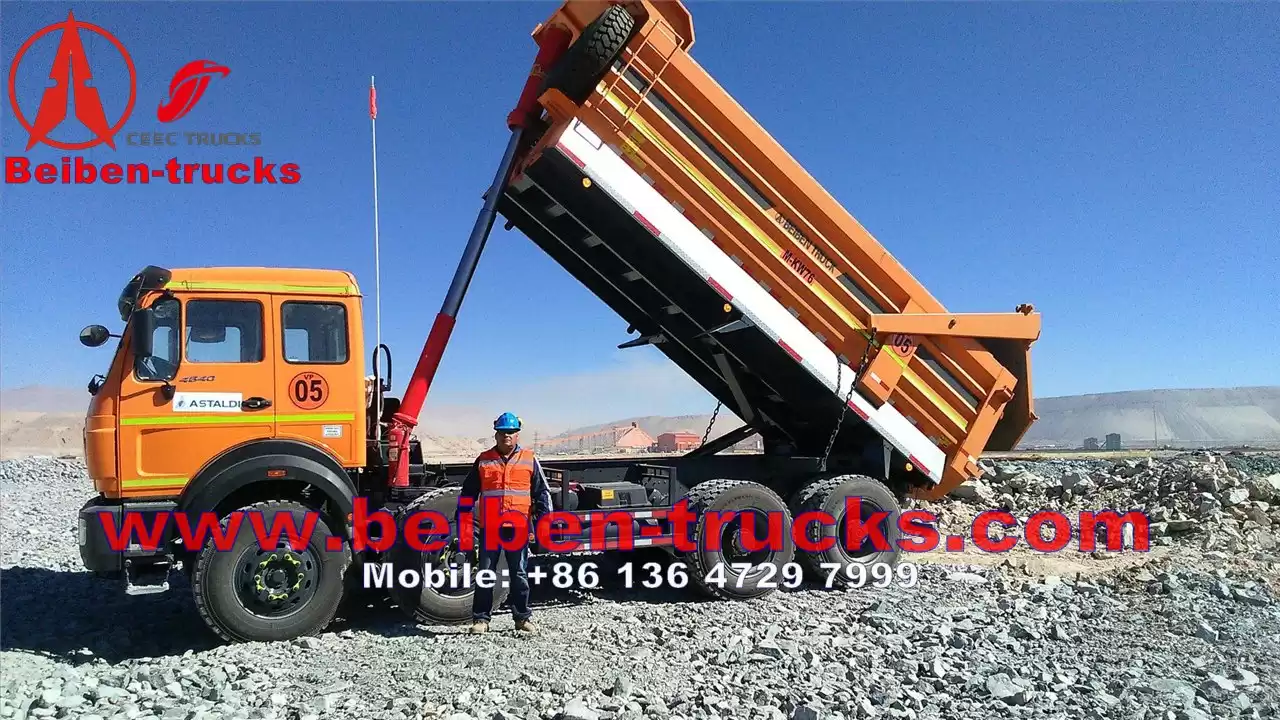

BEIBEN CAMION BENNE 30TON LOAD 12 WHEELS DUMP TRUCK
1. Best Chinese 8x4 Dump Truck Beiben NG80 Tipper Truck with low price
2. Mercedes Benz Technology
3. Left hand drive and right hand drive available
4. Long durability
5. Most professional service
| Overall dimension(mm) |
9950x2500x3180 |
Wheel base (mm)
|
1500+4450+1450
|
Curb weight kg
|
11200
|
Engine
|
Model
|
WP10.336(Wei Chai engine.Euro II,Based on Styre technology, made in China)
|
Power, max kw/rpm
|
247/2200
|
Max torque(Nm/rpm)
|
1250/1200-1600
|
Emission standard
|
EUROII
|
Fuel tanker capacity L
|
300
|
Clutch
|
Model
|
GFX420, Single dry frictional disc,Hydraulic boosting
|
Gearbox
|
Model
|
ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering system
|
Model
|
ZF8098
|
Frame of vehicle
|
Fish belly shape, variable width, variable section side beam structure
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Tyre
|
12.00R20
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C
|
