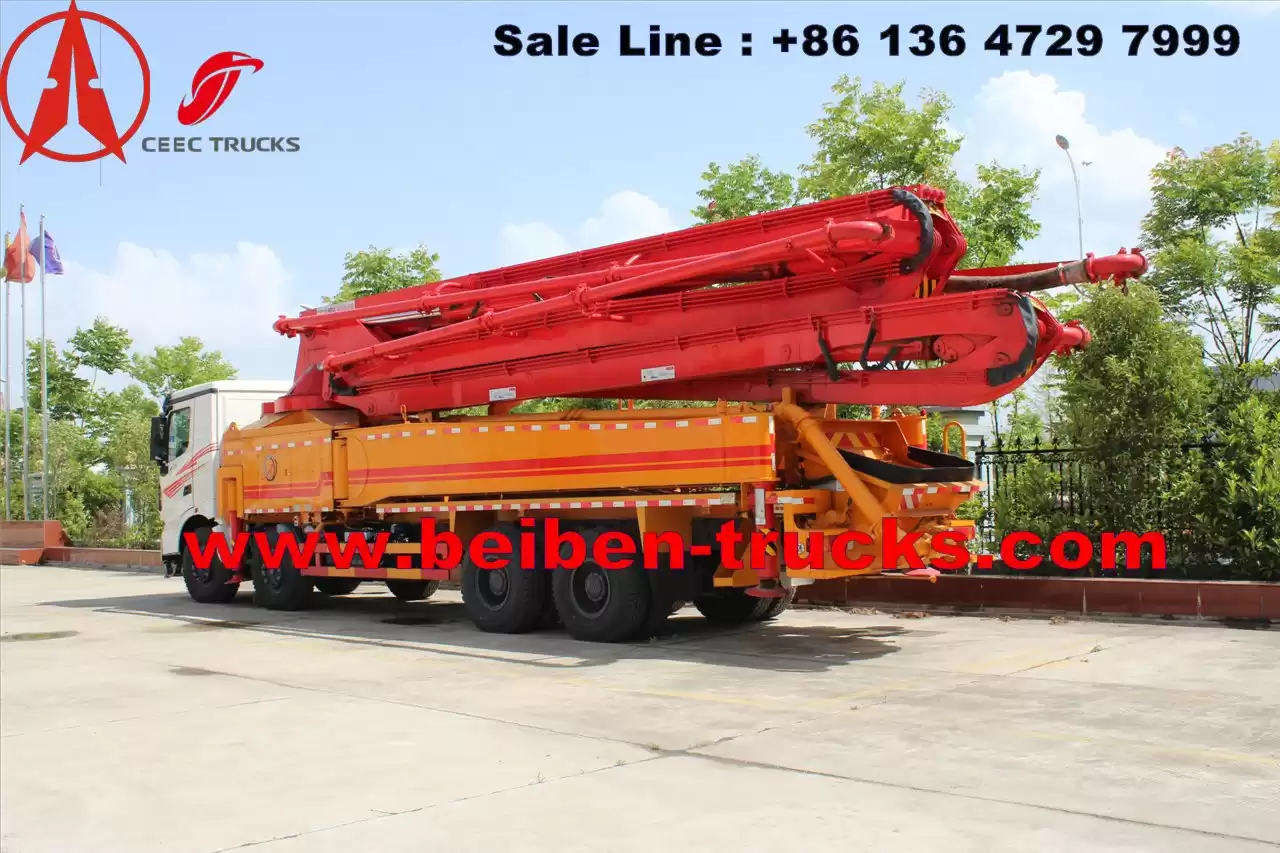

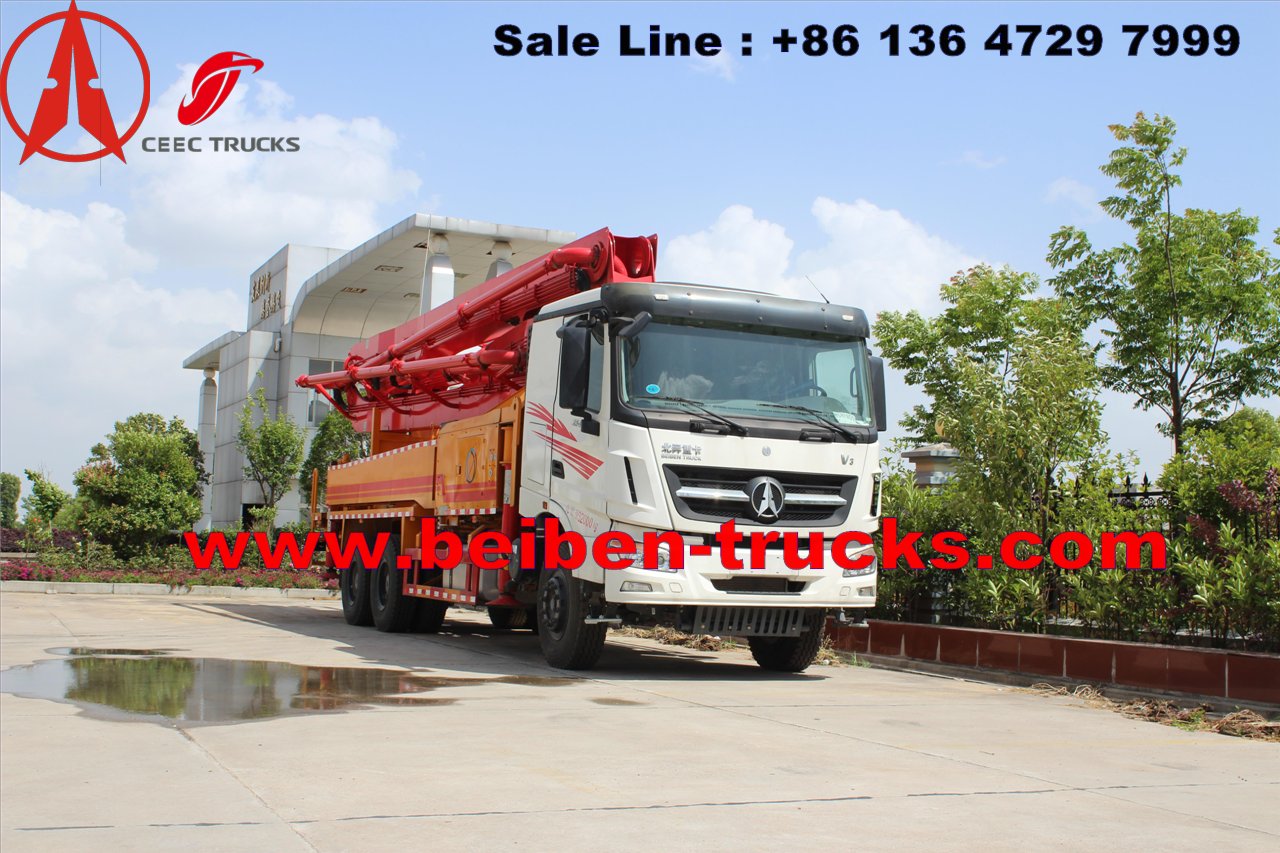

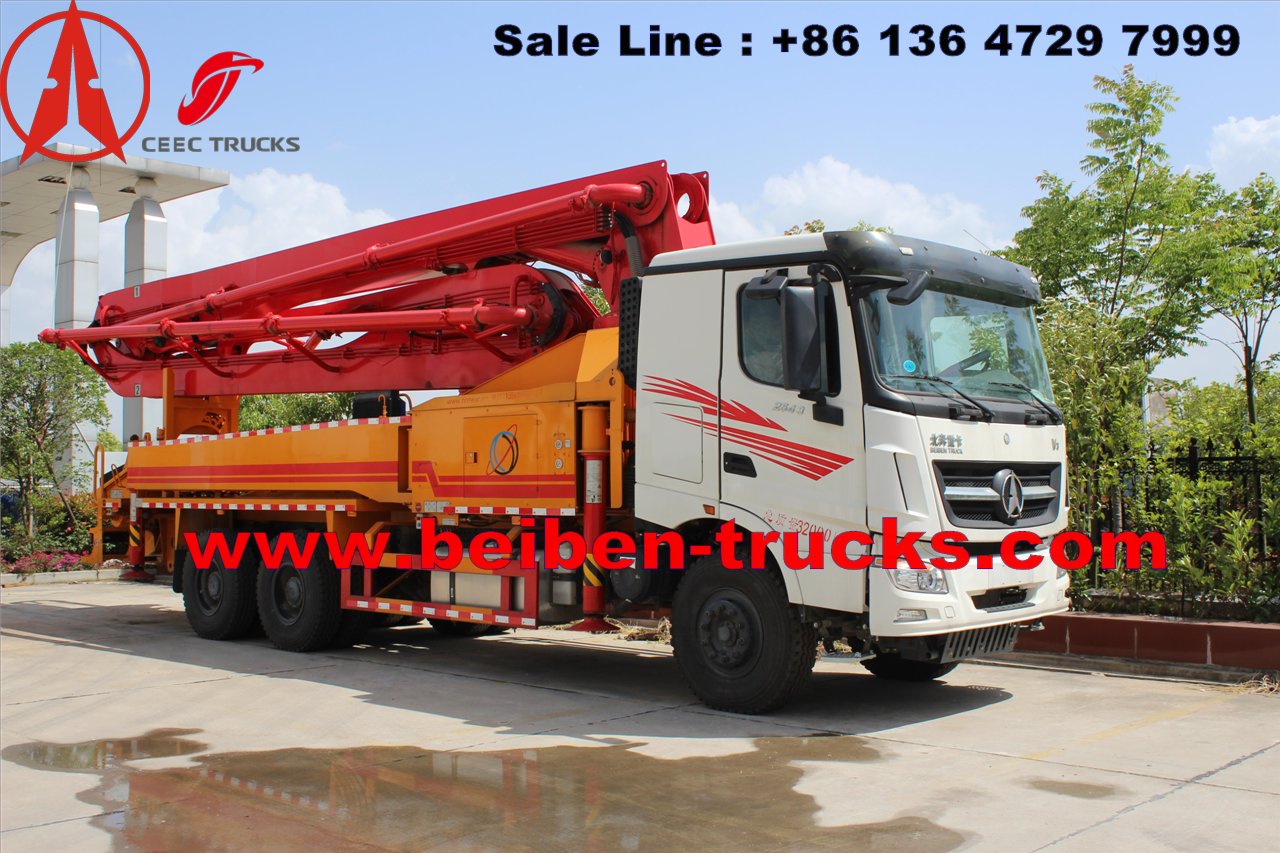

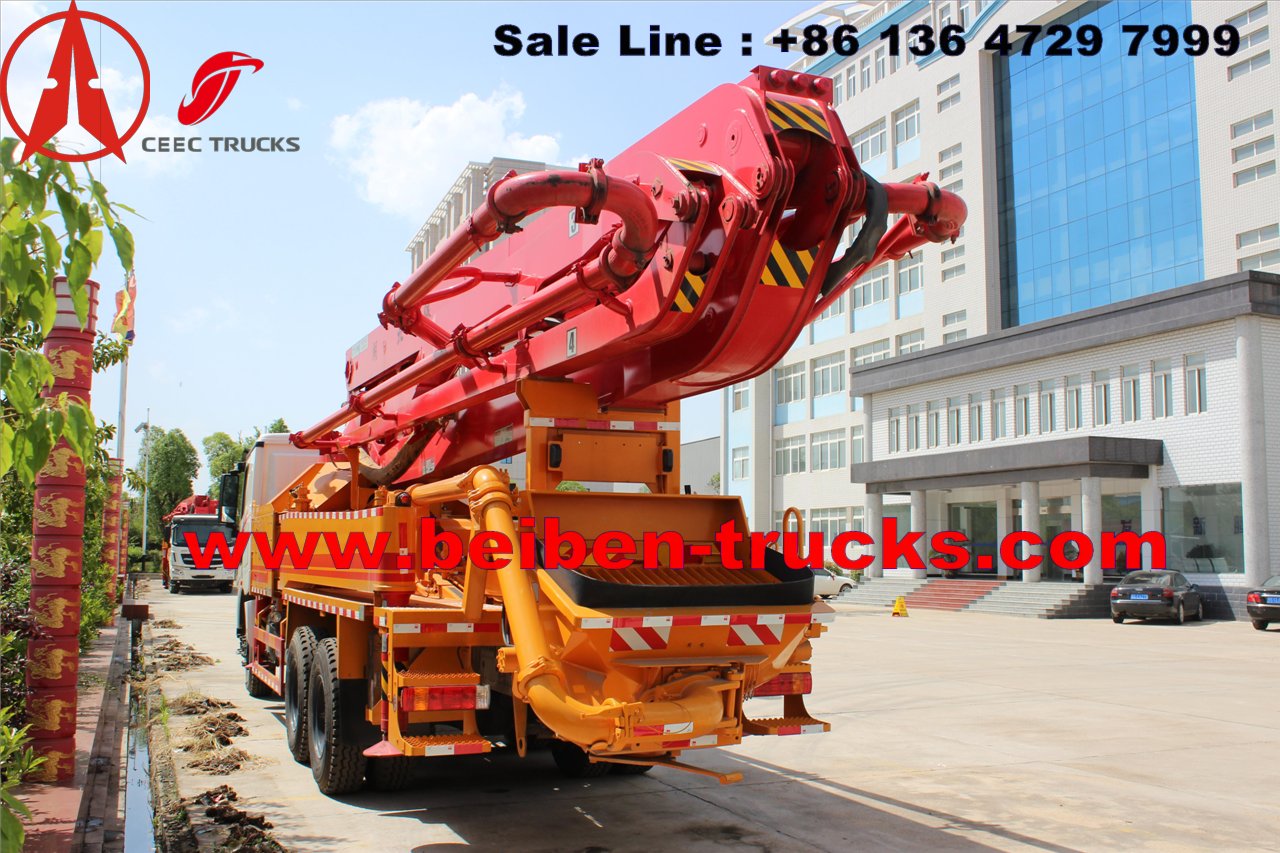

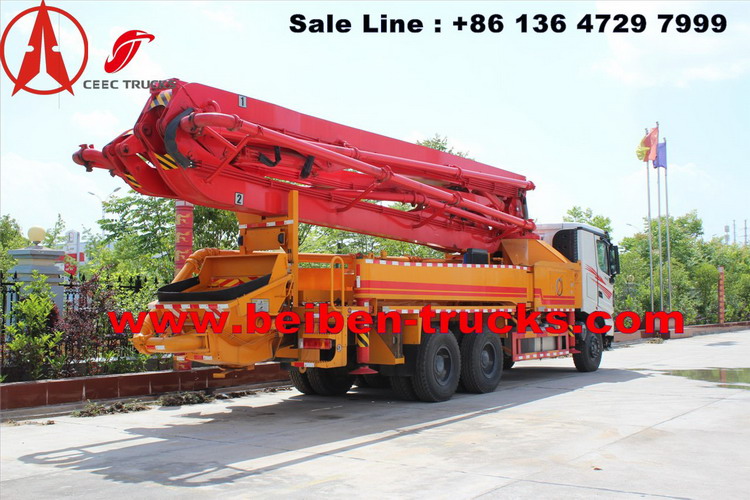

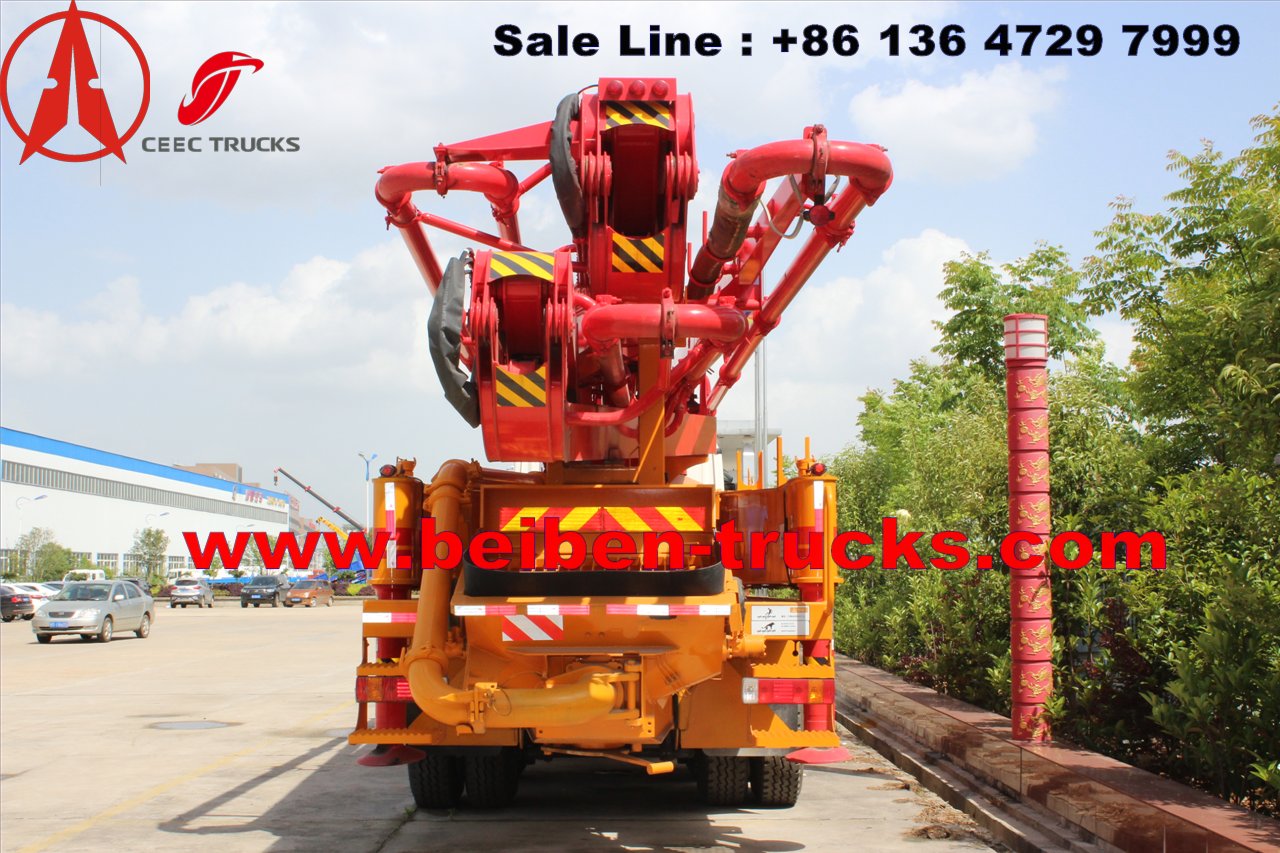

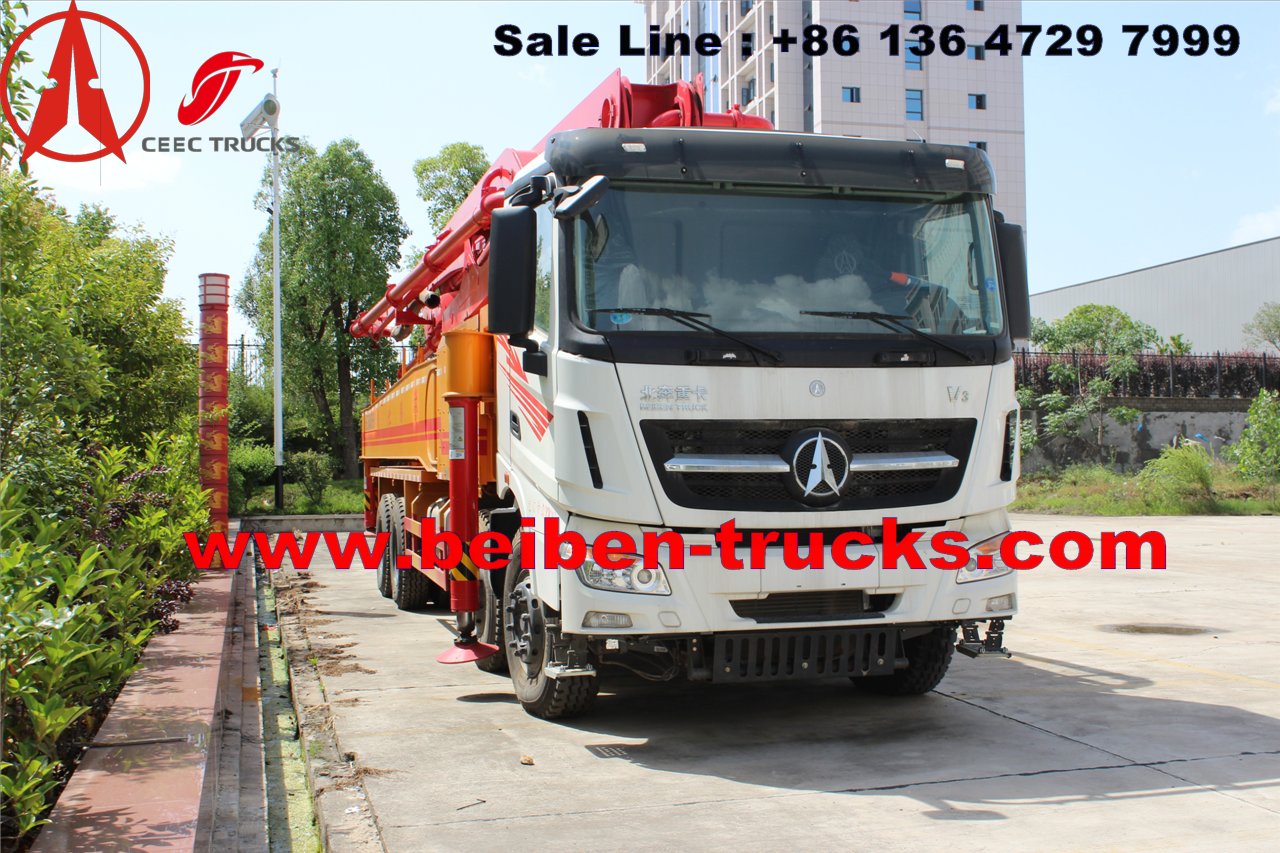

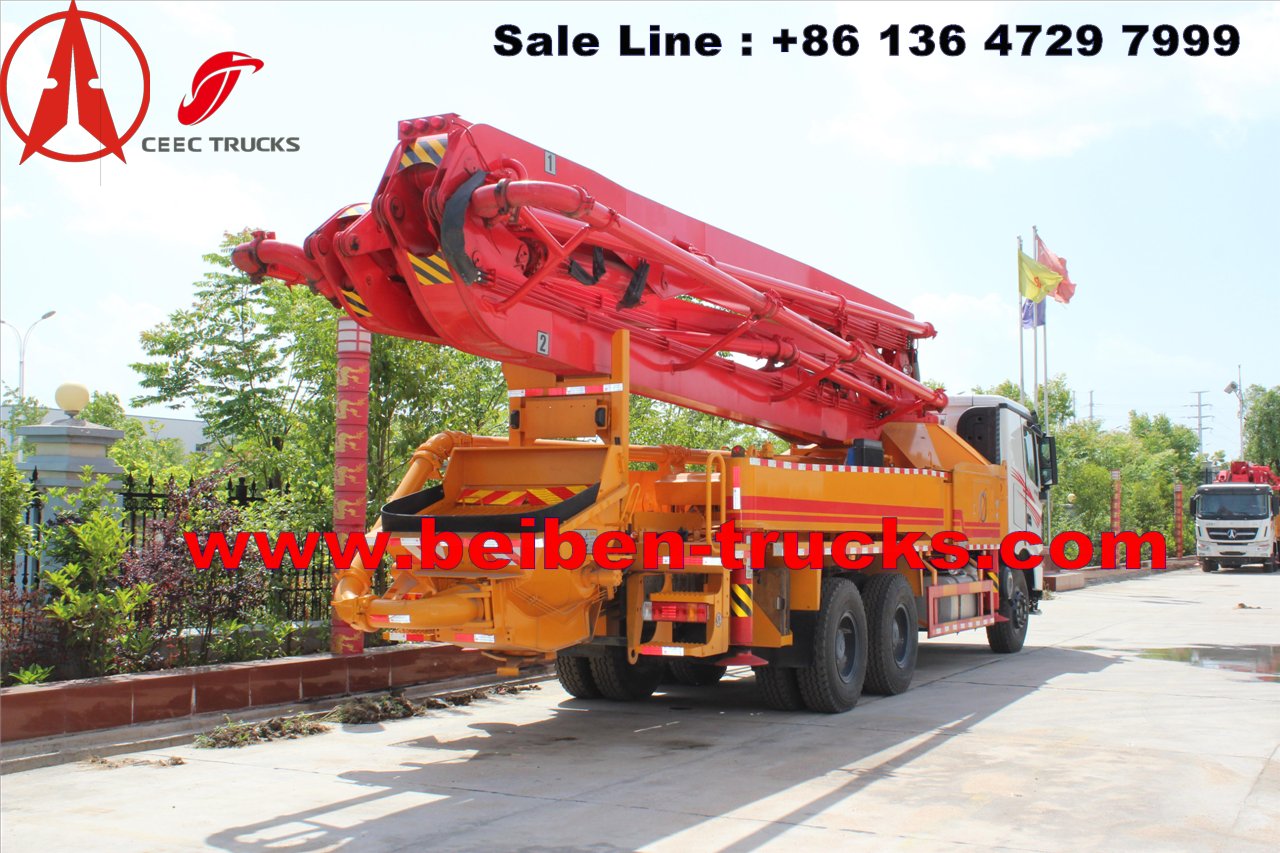

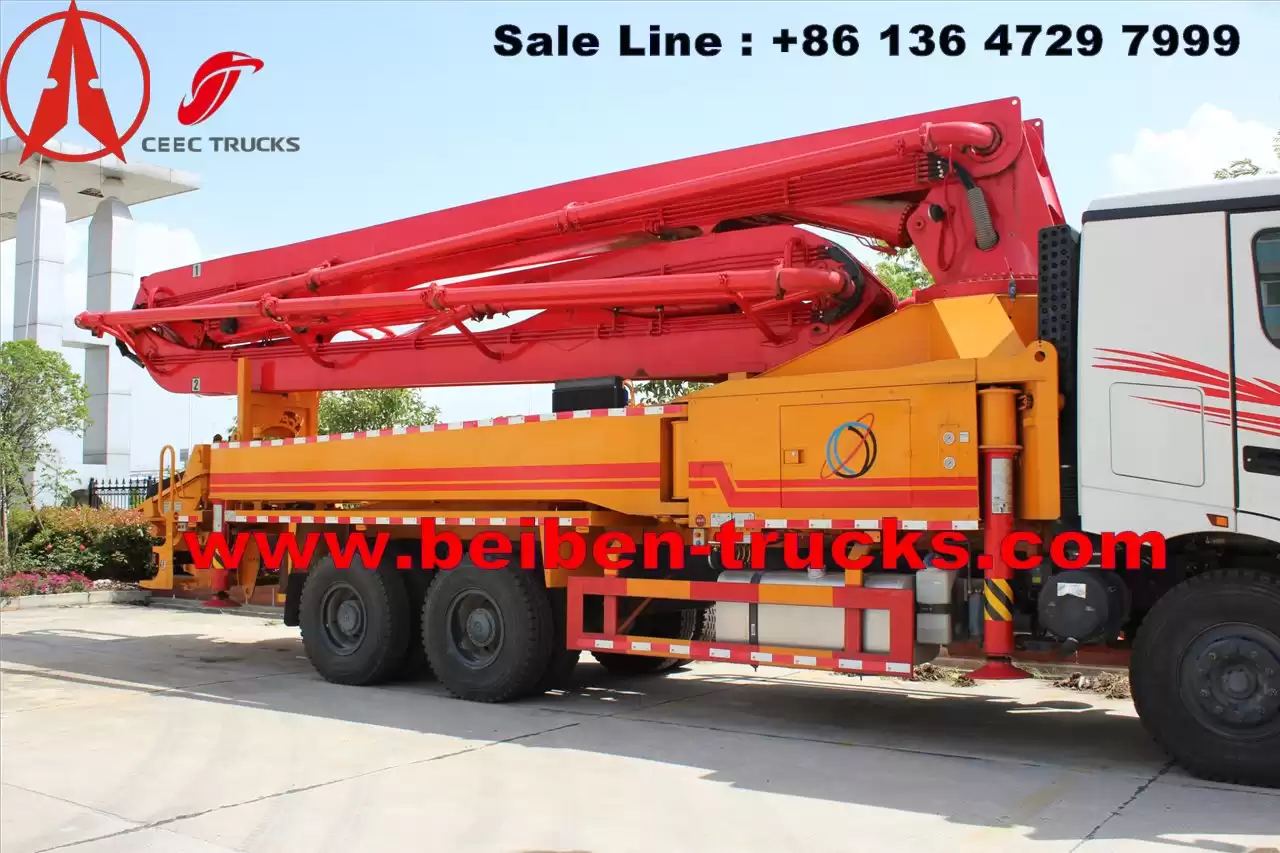

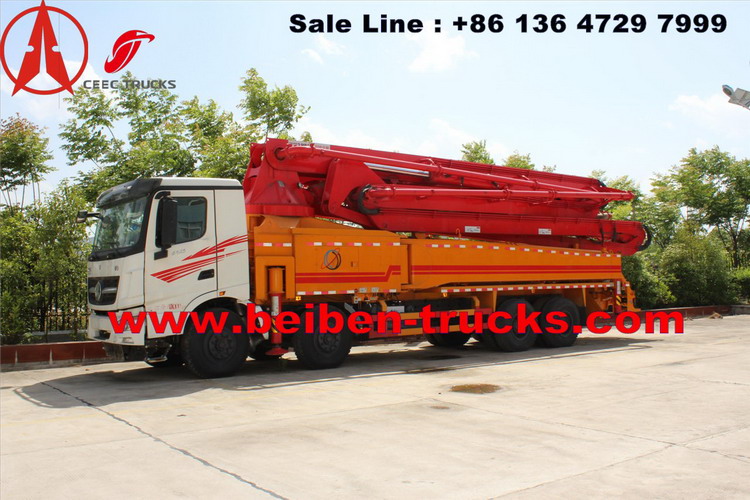

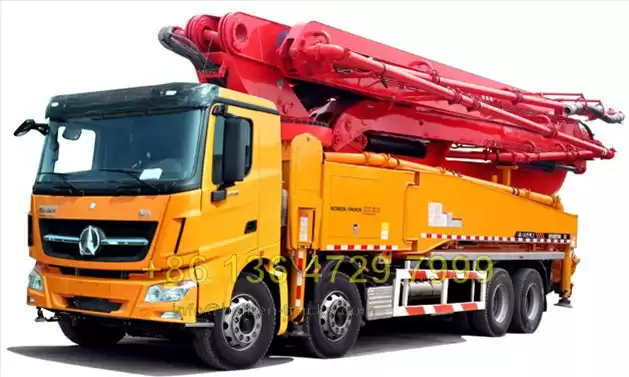

Beiben V3 concrete pump truck manufacturer in china
Best beiben V3 pump truck manufacturer, more than 10 years experience in producing beiben 37 M concrete pump truck, beiben 44 M concrete pump truck, beiben 60 M pump truck. we can provide beiben original spare parts for beiben V3 truck chassis and beiben NG80B truck chassis.
We are the most professional Beiben concrete pump truck manufacturer
in china, can produce beiben 27M concrete pump truck, concrete 35 m
concrete pump truck, beiben 55 M concrete pump truck.
Currently , CEEC TRUCKS plant have sucessfully supplied
with north benz boom trucks to more than 40 countries. The whole
solution for beiben pump trucks is avaibe in our plant.
| Technical Parameters
|
|
Brand |
BEIBEN concrete pump TRUCK |
|
Vehicle model |
2534PU
|
|

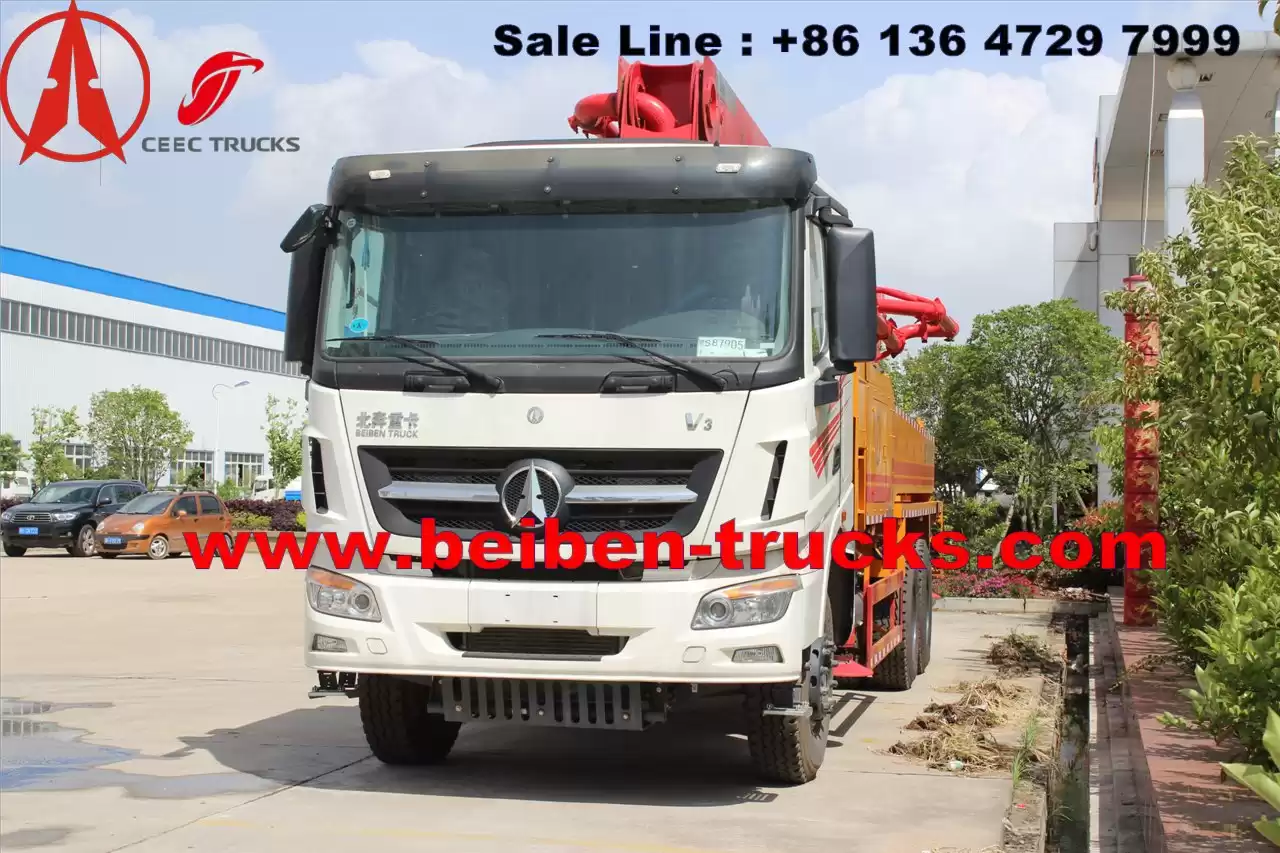

Cabin |
Full steel skeleton structure, covered with double layer steel plate
|
|
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
|
|
Long with single sleeper, made by full steel material, anti-crash
performance can be ensured by double hollow chamber structure, can be
tipped forwardly
|
|
Persons in cab: 3
|
|
Driving |
6×4
|
|
Wheel base (mm)
|
4450+1450
|
|
Engine |
Model
|
Brand WeiChai WD12.336 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders, |
|
Power |
340HP
|
|
Emission
|
EUROII
|
|
Rated power(kw/rpm)
|
247Kw/2200rpm
|
|
Transmission
|
FAST GEAR Model:RT11509C 12-forward &2-reverse gears
|
|
Clutch
|
GFX420, single disc, dry type, diaphragm spring
|
|
Frame
|
BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame |
|
Fish belly, various width, various sections, side beam structure
|
|
Axle |
Front: |
Mercedes Benz Technology, 7.5 ton, non-driving steering axle
|
|
Middle/Rear:
|
Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
|
|
Suspension
|
Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension，
|
|
Steering
|
ZF8098 (Original ZF technology)
|
|
Wheels and tyre size |
10+1/12.00-R20
|
|
Fuel tank (L)
|
300L
|
|

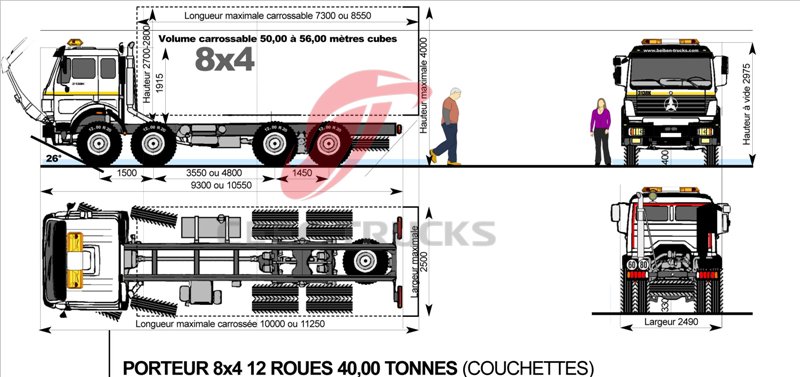

Dimension unloaded (Lx W xH)
|
12000×2500×3930mm
|
|
Colour
|
Metal White, multi-colored options
|
|

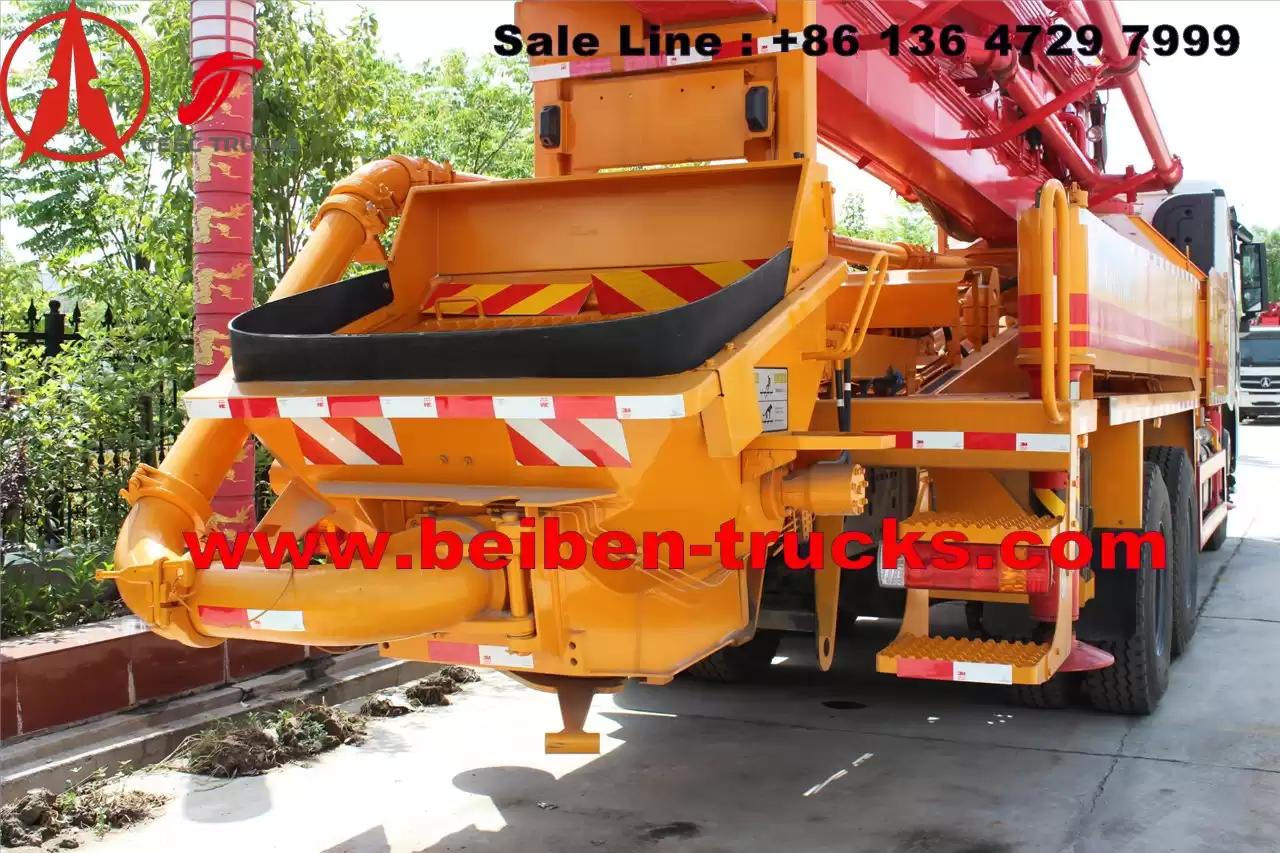

Pump specification
|
|
Max transport capacity
|
120M3/N
|
|
Max pump transport pressure
|
61BAR
|
|
Max hydraulic pressure:
|
320BAR
|
|

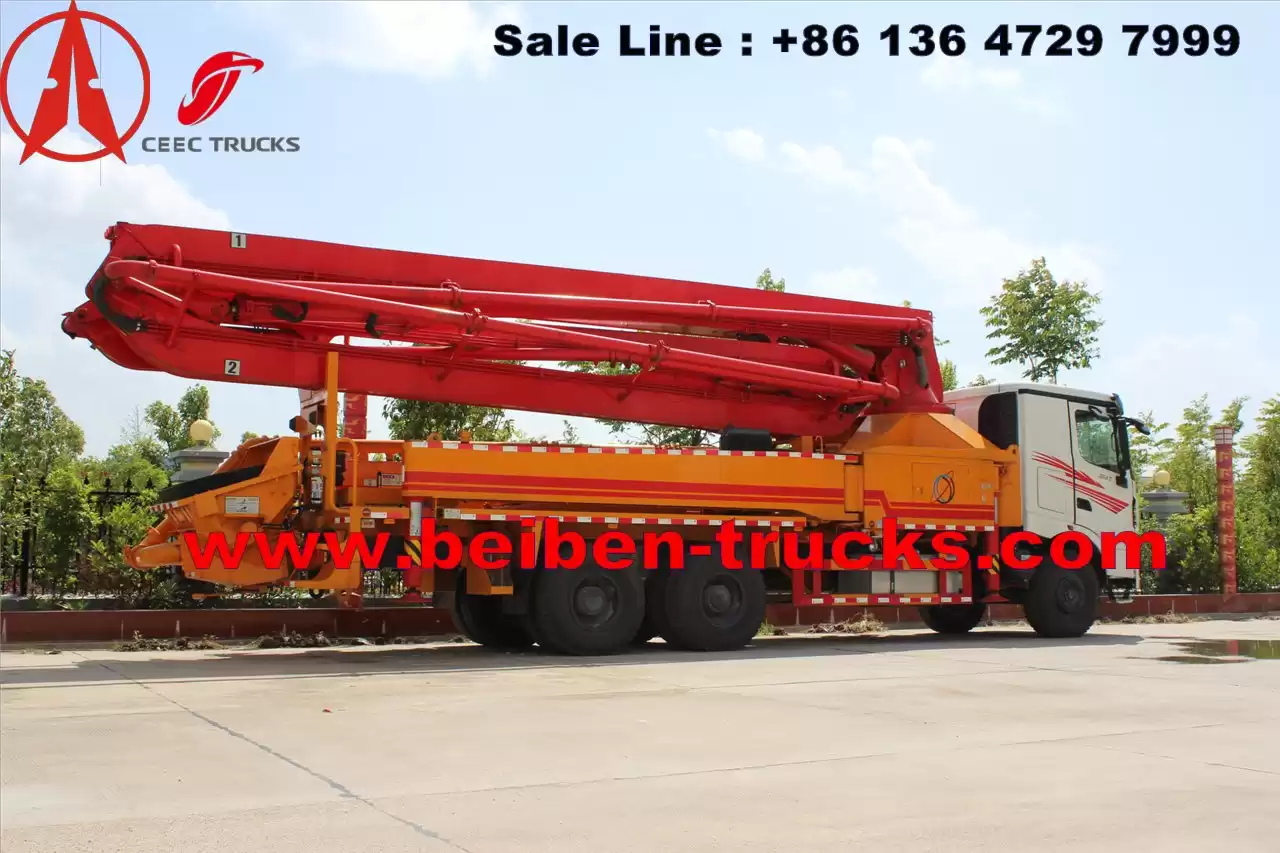

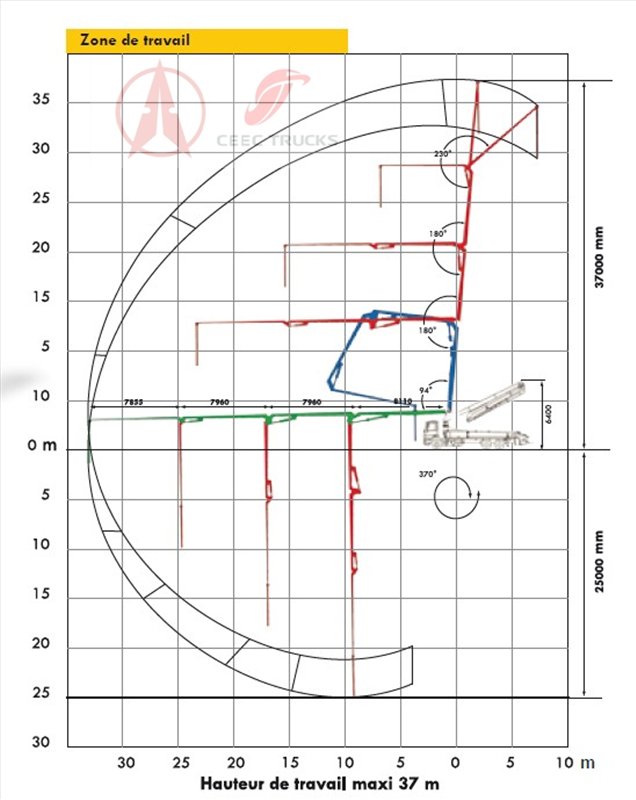

Arm horizontal distance
|
32.7
|
|
Max height:
|
37m
|
