TRUCKS produced beiben 4*2, 6*4, 8*4 dump trucks are widely export to
Africa countries including kenya, Algeria, Nigeria, Tanzania, Cameroon,
etc. Mainly used for building, road construction, also service for
mining projectin Africa.

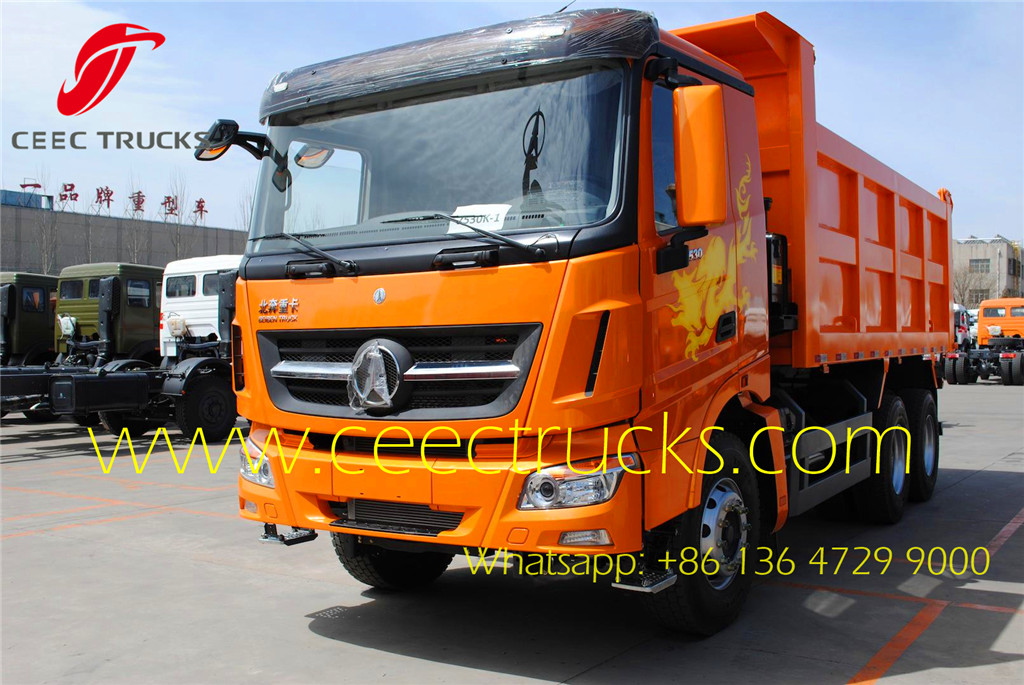

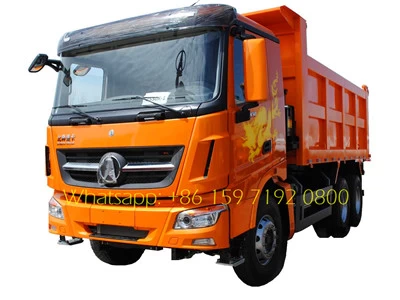

Best selling Beiben 2538 V3 Tipper Trucks
Export Africa Beiben 2538 mining dumper truck advanced featuers:
â—† Germany Mecedes BENZ technology chassis with high durability andreliability, Newly V3 cabin for sale

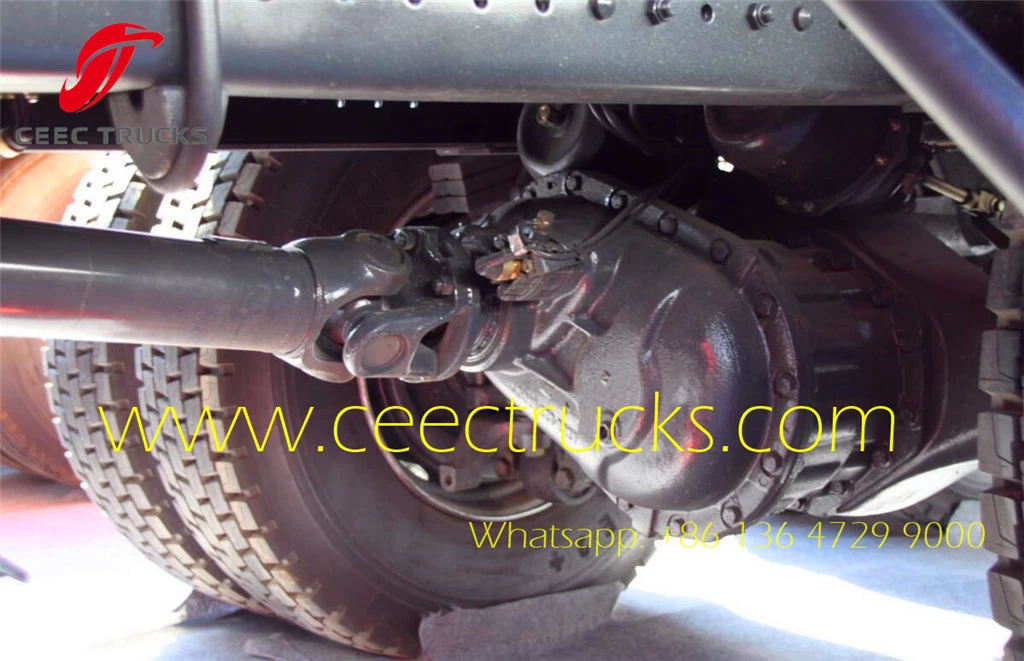

â—† BENZ technology engine combined with original rear axle reducer gear and differential gear
â—† Continuous welding throughout body for additional strength, Fulldepth rear corner post with full depth rear crossmember.
â—† Enhanced body, and the motherboard adopts variable cross-sectionbeams.
â—† Special beiben 60 t Dumper Body Design are optional
â—† Other customer requirements are welcome
we provides greater durability and superior performance with its newly Beiben V3 2538 reinforced heavy-duty trucks of responding to customer’s needs, Beiben tipper trucks carbo box can be as below:
Similar key words: beiben 2538 dumper truck, north benz 2538 dump truck, beiben 2538 tipping truck, beiben 2538 dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck, congo beiben 6*4， 8*4 dump truck, baotou beiben 2538 dump truck supplier.
| beiben 2538 V3 tipper trucks beiben Vechicle information list
|
| Truck brand
|
North benz / Beiben
|
| Truck model
|
ND3253B38 dump truck
|
| Total mass
|
25000
|
| Rated mass
|
12700
|
Vechicle size
|
8347×2500×3384
|
| Cyrb weight
|
12170
|
Box size
|
5600×2300×1150
|
| Cabin seat
|
2
|
|
|
| A/D angle
|
26/30
|
F/R hang
|
1410/1687
|
| Axles
|
3
|
Wheel base
|
3800+1450
|
| Axles loading
|
7000/18000(double rear axis )
|
Max speed
|
85
|
| Dump body information
|
The 2538k dump truck .
The body size:5600x2300x1500mm
The body information : side thickness 10mm,the floor thickness 16mm,all steel use manganese steel.
side has 9 pcs Vertical reinforcement support
5 Pcs Stringer plate.
Hayv tipping system .
|
| Chassis information
|
| Chassis model
|
ND1251B38
|

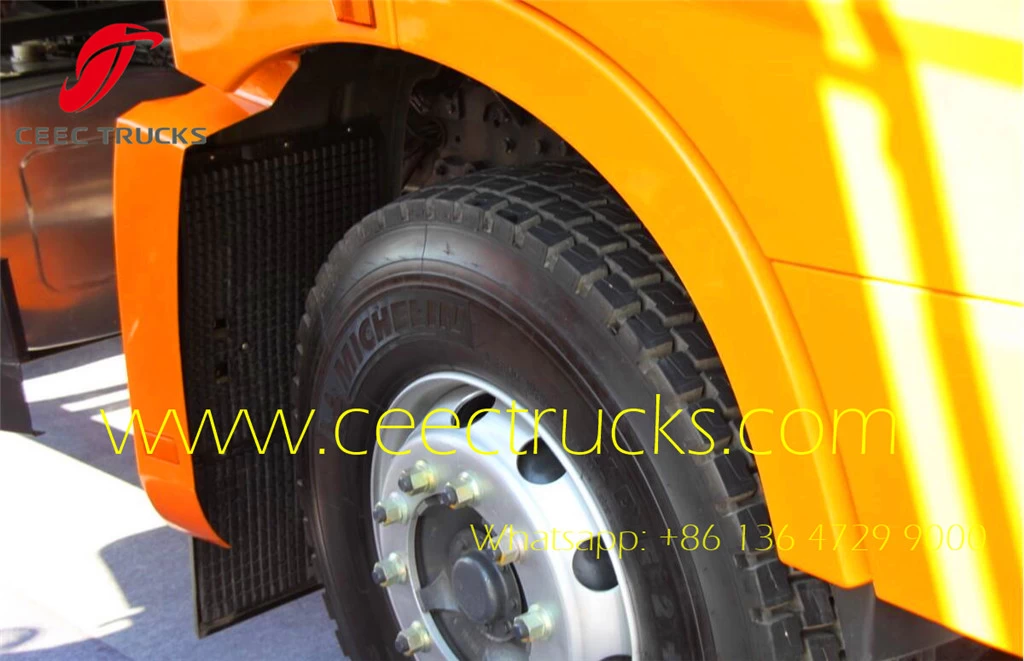

| Tyre size
|
12.00-20 spare tyre
|
Tyre quantity
|
10
|

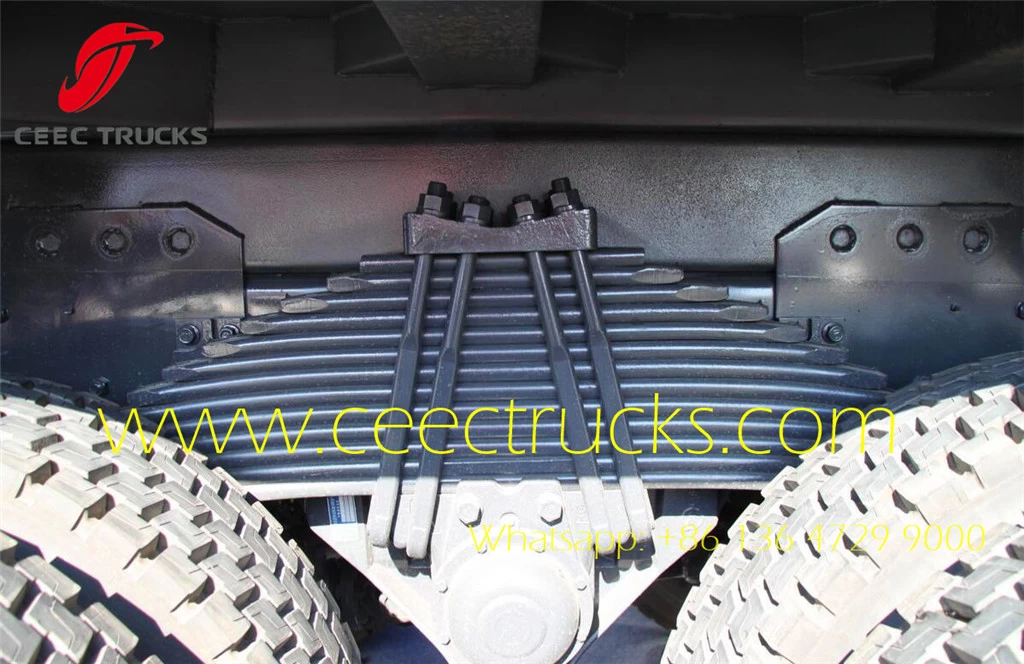

| Leaf spring quantity
|
10/13
|
Front track
|
1995
|
| Fuel type
|
Diesel
|
Rear track
|
1800/1800
|
| Engine model
|
WP10.380E32
Water cooled
Inline
6-cylinder
4 stroke
|
Displacement/power
|
9726ml/213kw
|
| Trasimission (gear box)
|
10-speed,high and low speed
|
| Warranty
|
12months
|
| Delivery time
|
20-30days
|
| Price valid
|
2 months
|

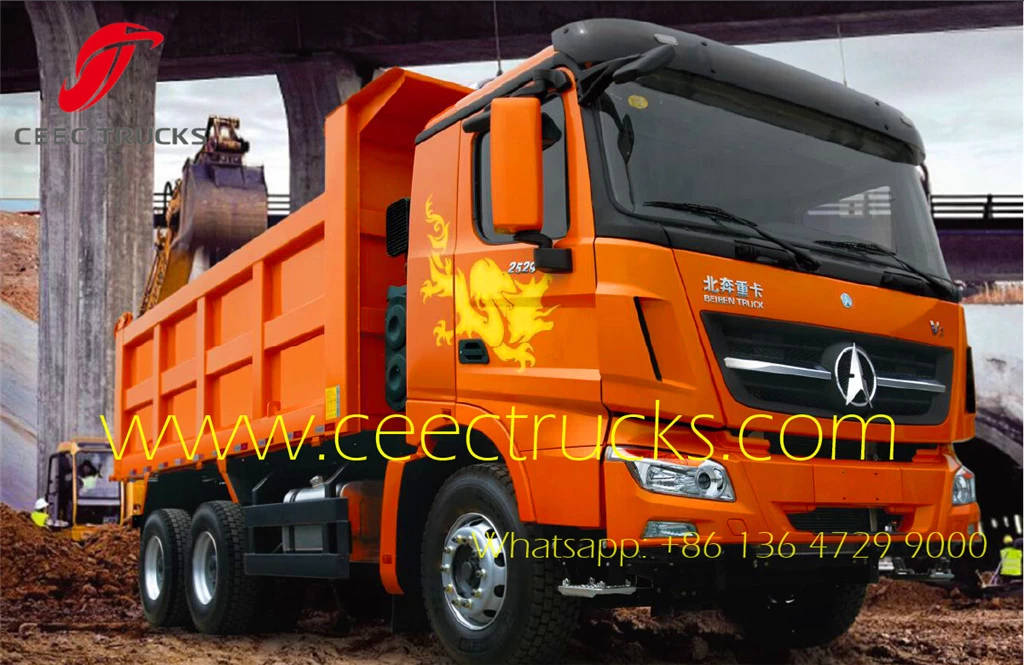

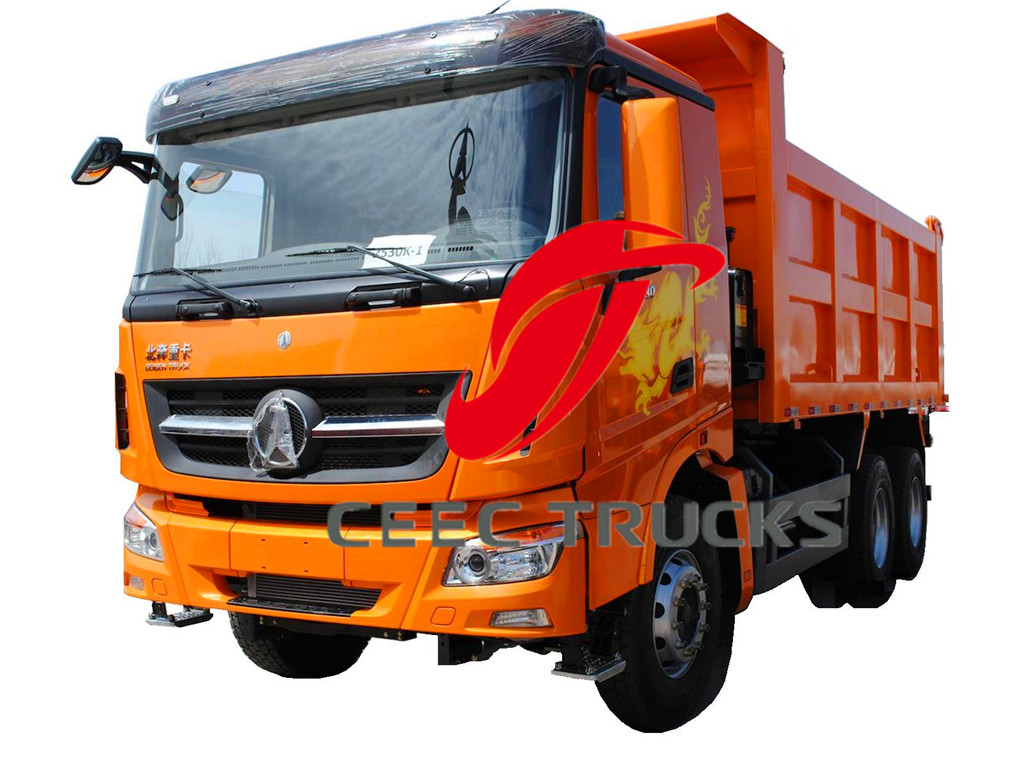

beiben dump trucks on sale

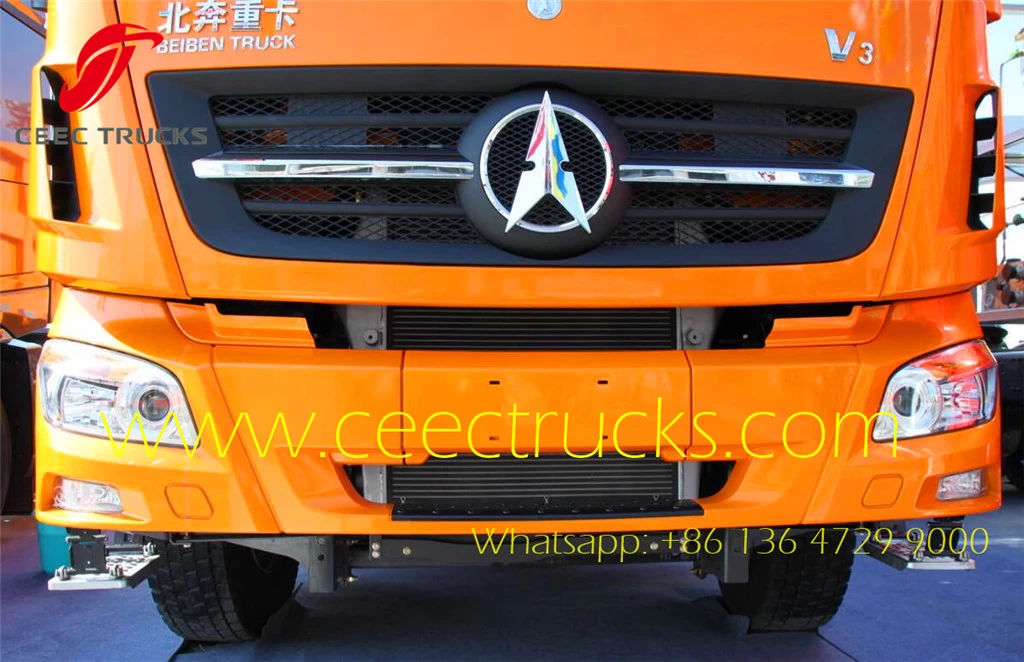

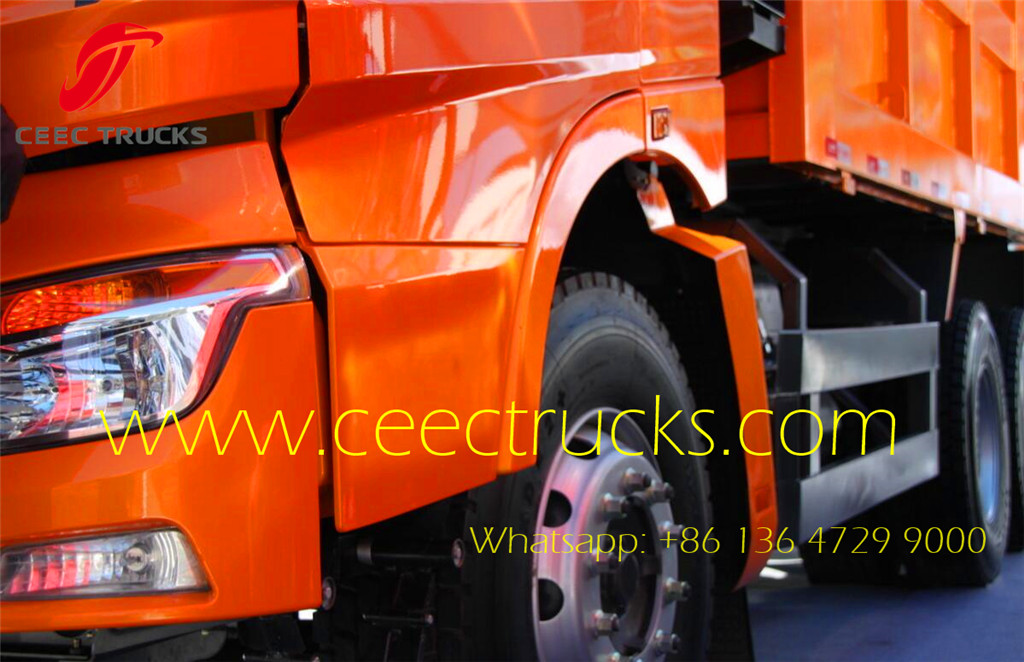

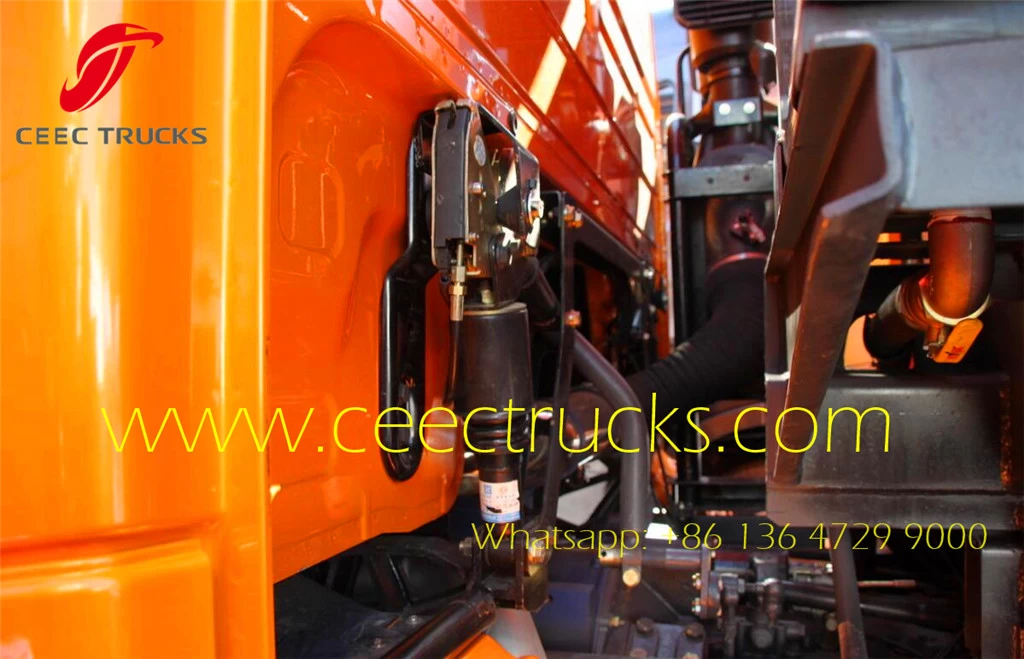

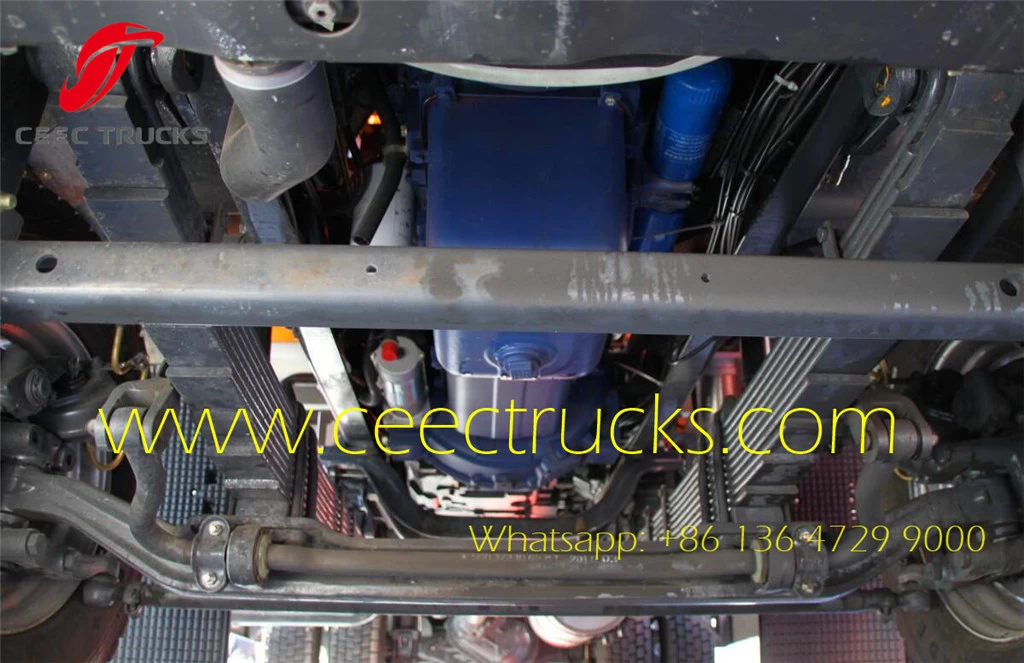

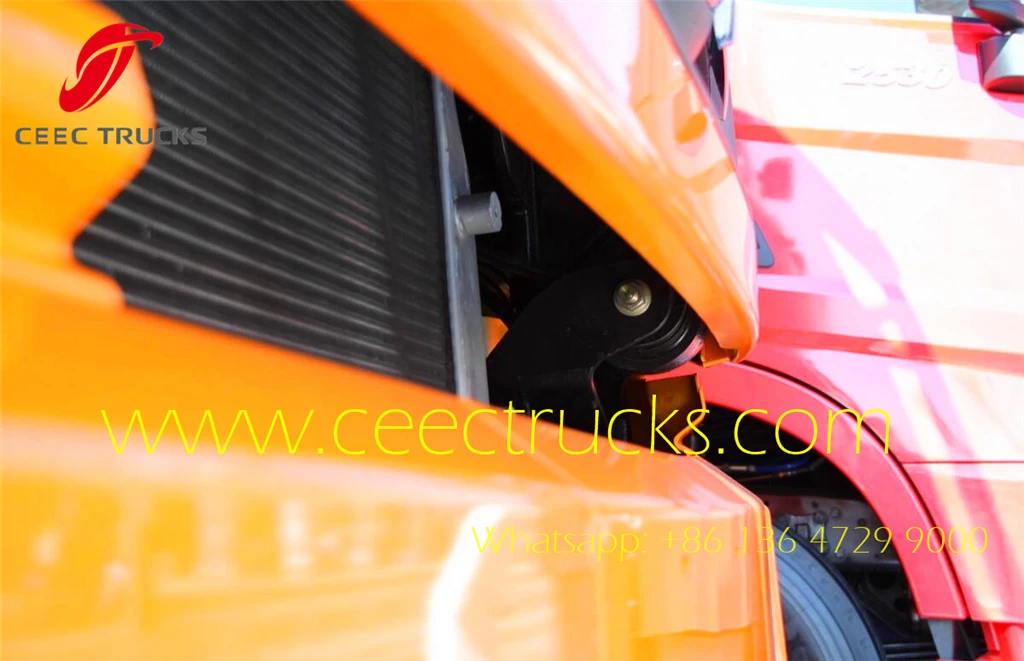

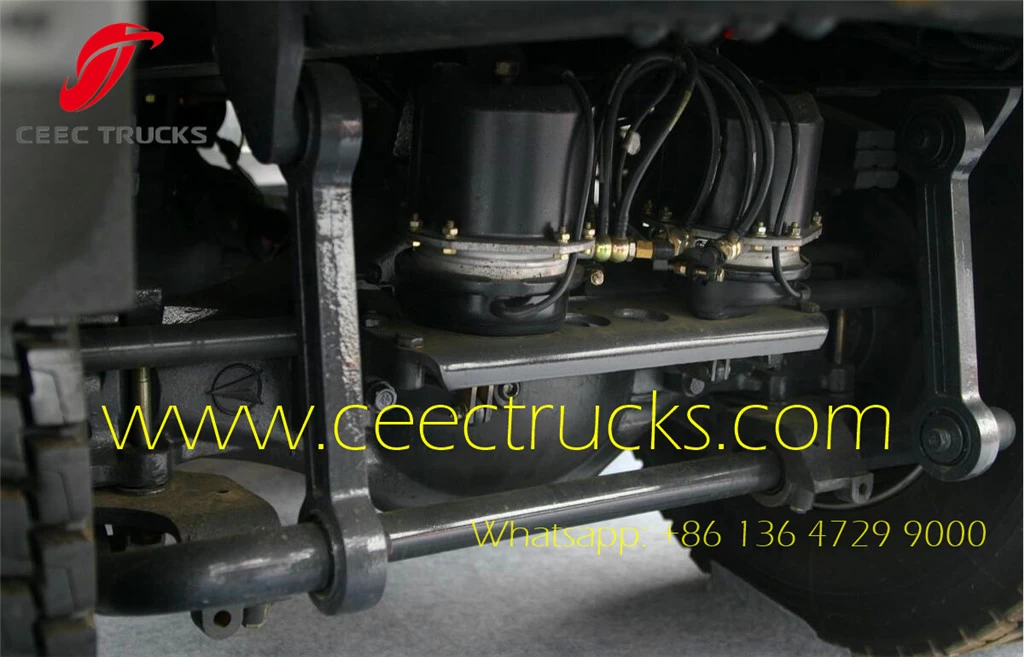

CEEC TOP quality beiben trucks display
