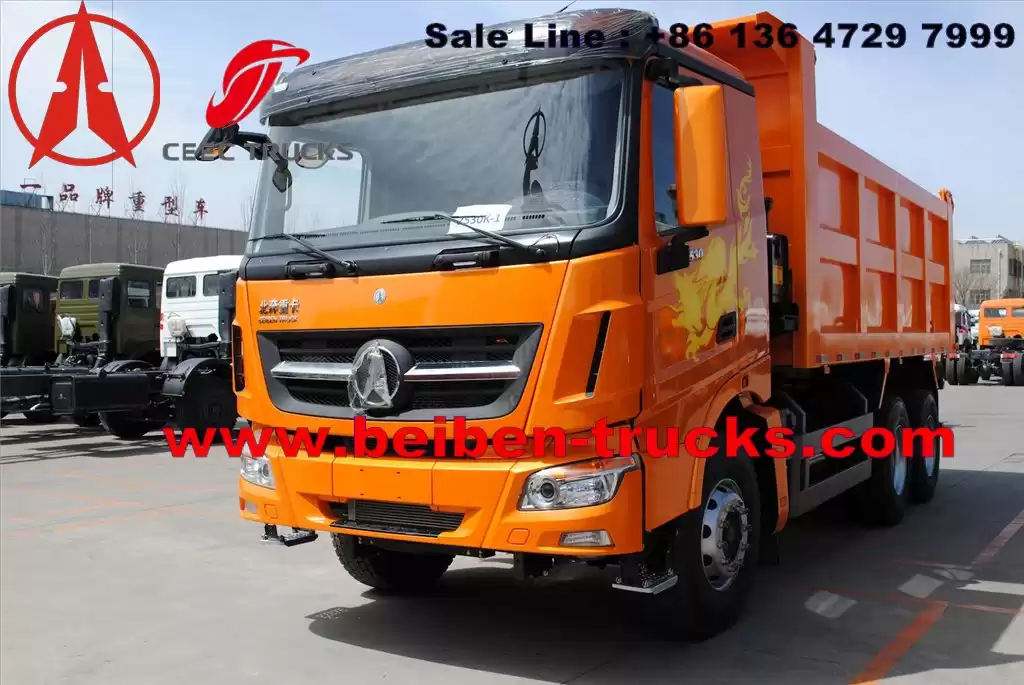

Beiben high Quality 380hp 10 wheel dump truck for sale

Beiben high Quality 380hp 10 wheel dump truck for sale   ,
Diesel, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection,WP10.380E3, EUR3

Facebook Twitter Pinterest LinkedIn 分享

Beiben high Quality 380hp 10 wheel dump truck for sale



Packaging & Shipping



In order to save the cost on freight for customers, we can supply you SKD services so that the trucks can be put into containers.



Product Description



Traction  Type 6x4
Model ND3259B38
Brand Beiben
Driving type LHD option RHD
Cabin Length cabin with one sleeper,flat roof
Engine Brand WEICHAI
Model WP10.380E3, EUR3
Power    380hp
Type Diesel, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
Displacement 9.726liters
Max Output 247kw
Max torque 1260NM@1200-1500rpm
Gear box FAST 12JS200T(12 speeds)
Clutch 430 diaphragm type
Steering ZF technology
Axle front 7.5t STR
rear 13t STR, ration:5.92
Tyre 12.00R20 Radial tyre
Fuel tank capacity (L) 400
Max. Speed (km/h) 80
Kerb Mass 12300kg
Total mass 25000kg
Wheel  base(mm) 3800+1450
Front overhang (mm) 1410
Rear overhang (mm) 1870
Front track (mm) 2045
Rear  track(mm) 1872
Approach angle 26degree
Departure angle 32degree
Dimension of box(mm) 8530*2500*3430
