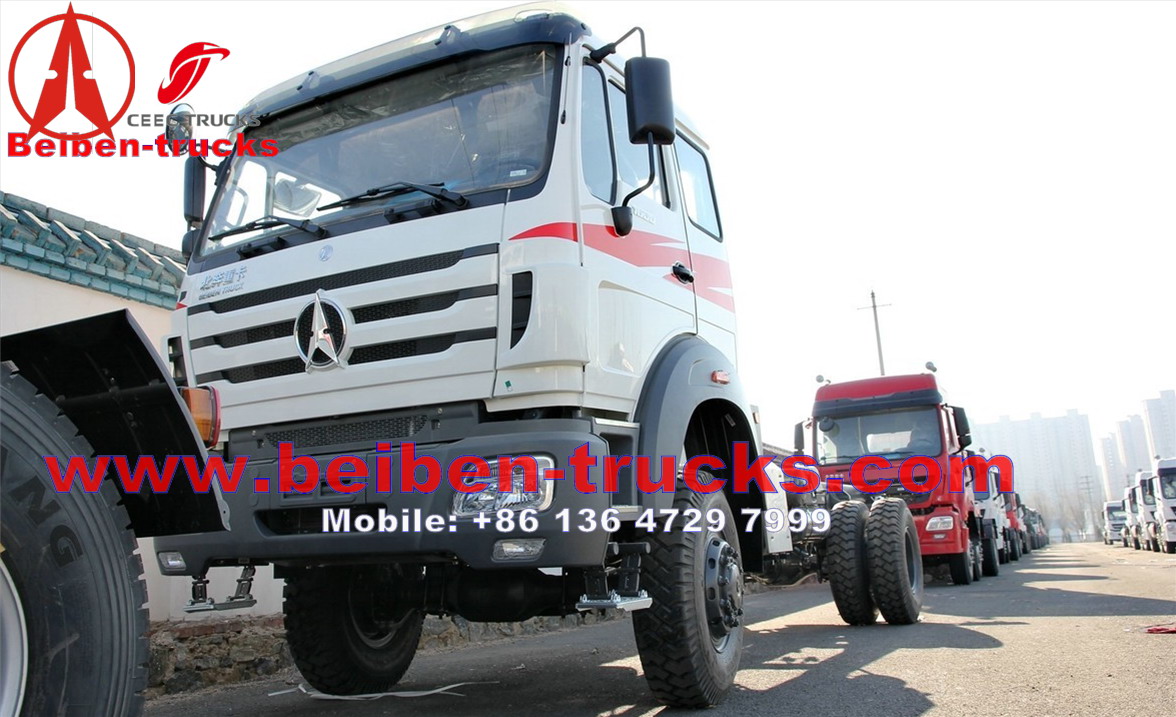

Beiben ND12502B41J all wheel drive truck 300 hp
The series products of our Beiben military all wheel drive trucks are ideal
transport with outstanding performance and high quality, they are widely used
in industries and sectors, such as national defense, aviation, postal service,
railways, highways, harbors, petroleum, chemicals, water and electricity,
forests, fire fighting, banks and peace keeping forces.
300 hP ENGINE, FAST 9 shift transmission. 12.00R20 tyre.
Beiben truck manufactured underthe license of Mercedes Benz technology, which has excellent performance withreasonable price.
| Vehicle Name:
|

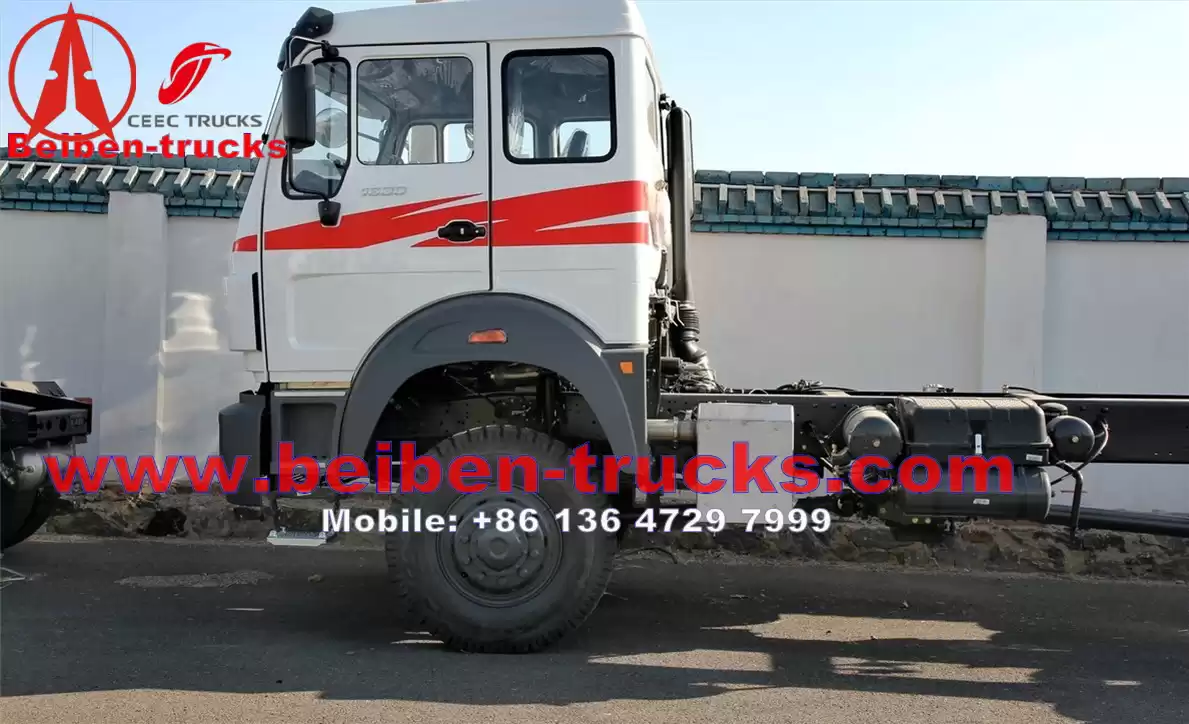

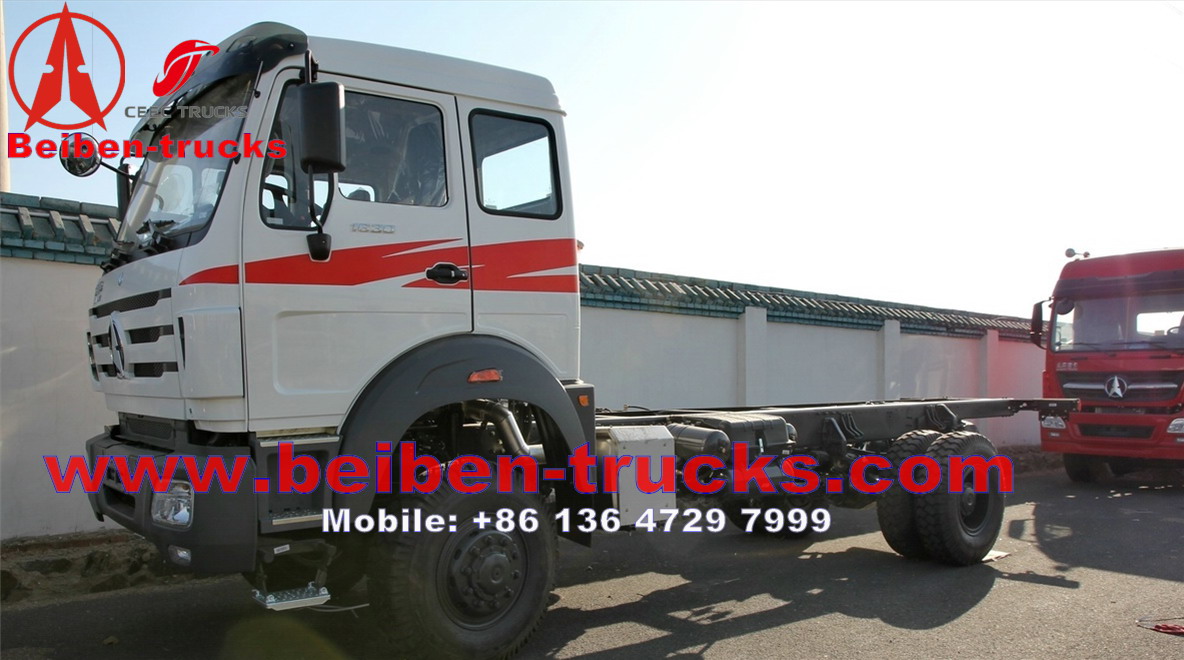

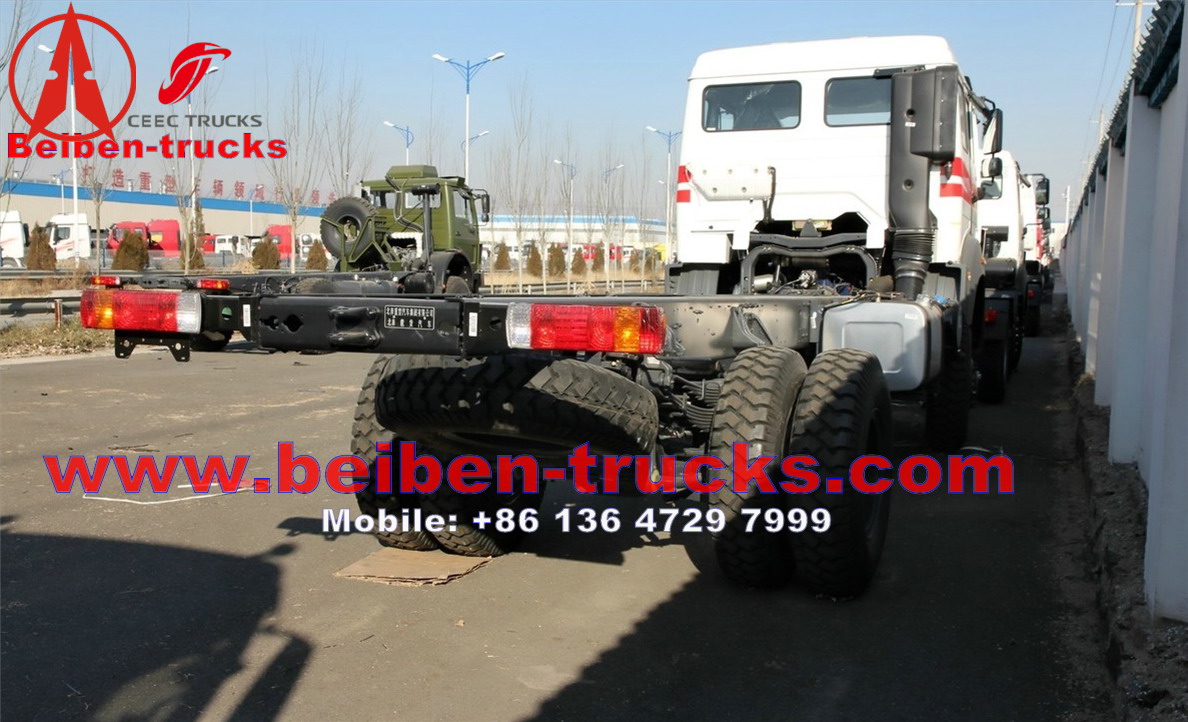

Beiben 4*4 truck chassis
|
| Types of drive
|
Left hand drive (LHD )
|
| Truck model number
|
1626S
|

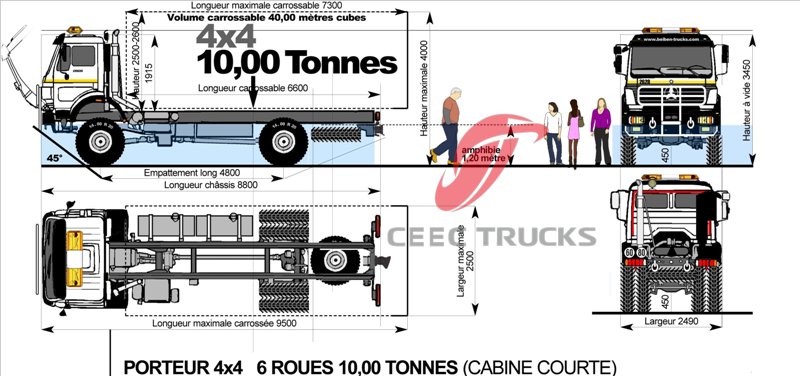

| Dimension (mm)
|
8665*2495*3145
|
| Curb weight (kgs)
|
7440
|
| Drive wheel
|
4×4
|
| Engine model
|
WD10.300 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
|
| Horsepower(hp)
|
300
|
| Bore*stroke (MM)
|
126*155
|
| Displacement (L)
|
9.726
|
| Rated speed (R/min)
|
2200
|
| Max torque (Nm)
|
1160
|
| Max Torque speed( R/min)
|
1200-1600
|
| Lowest fuel consumption (G/kw.h)
|
< 198
|
| Net weight (KG)
|
870
|

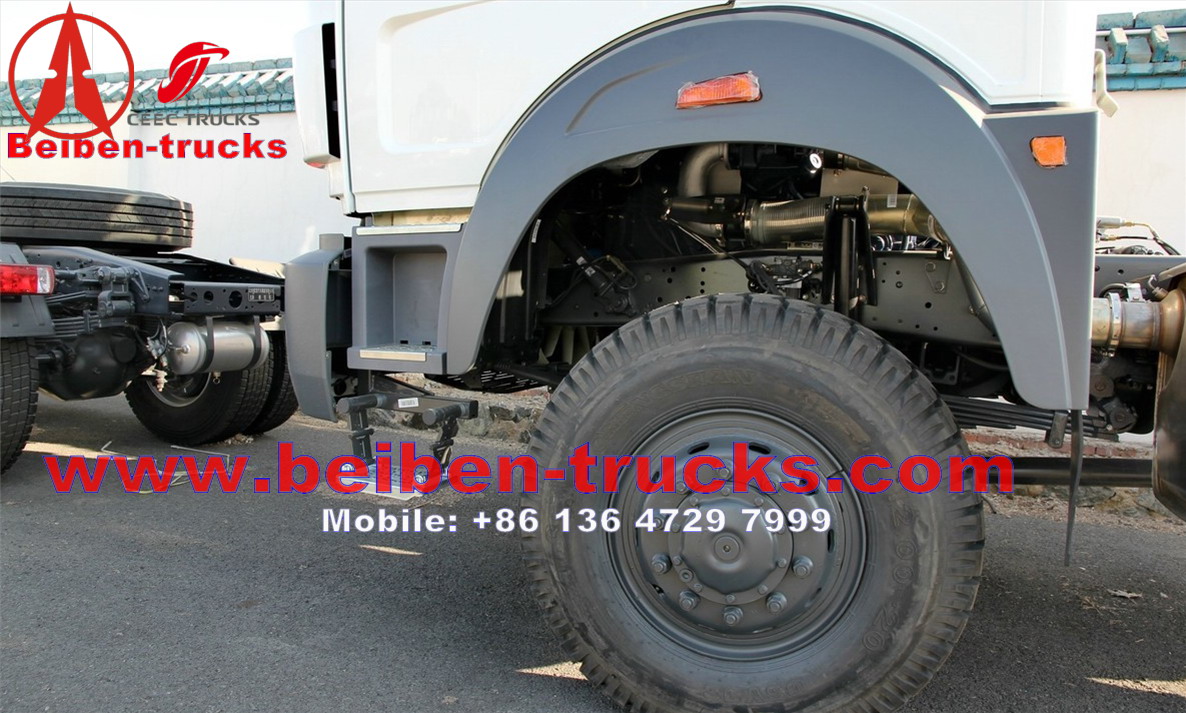

| Meridian tire
|
12.00-20
|
| Number of tires
|
6 + 1(spare wheel)
|
| Saddle types
|
None
|
| Transmission types :
|
RT11509C
|
| Steering mechanism:
|
TAS85
|
| Wheelbase (mm)
|
4800
|

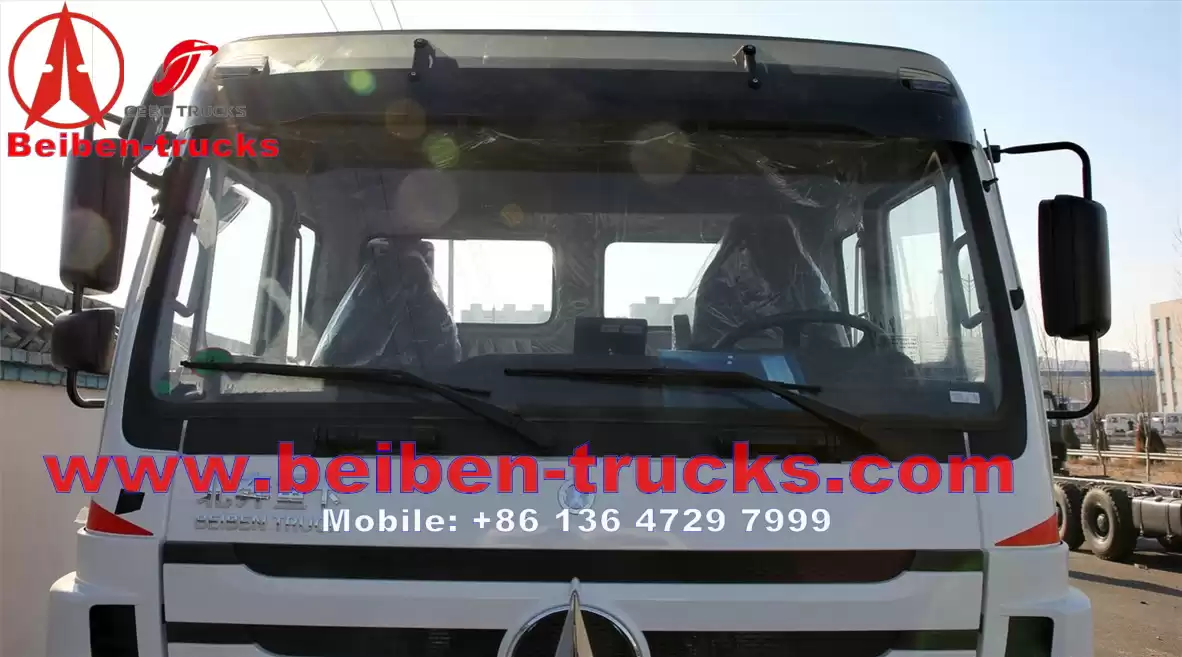

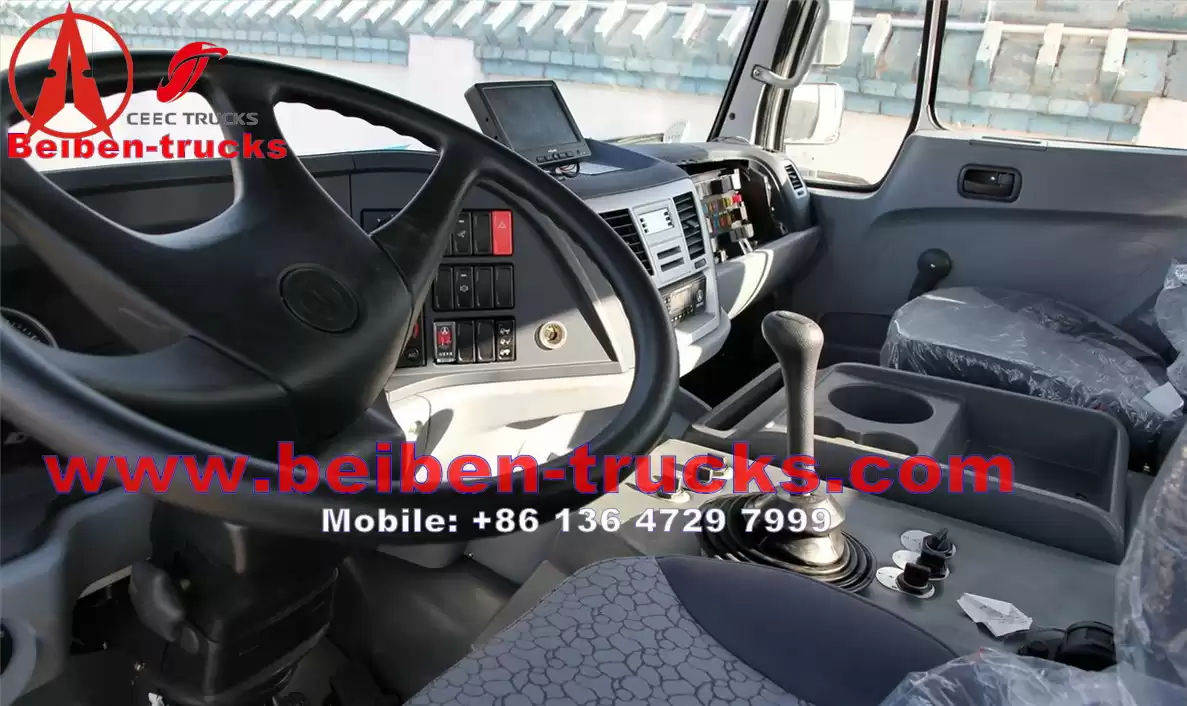

| Cab style
|
Long cabin, Benz technology ,without bed
|
| Air-condition
|
With air-condition
|

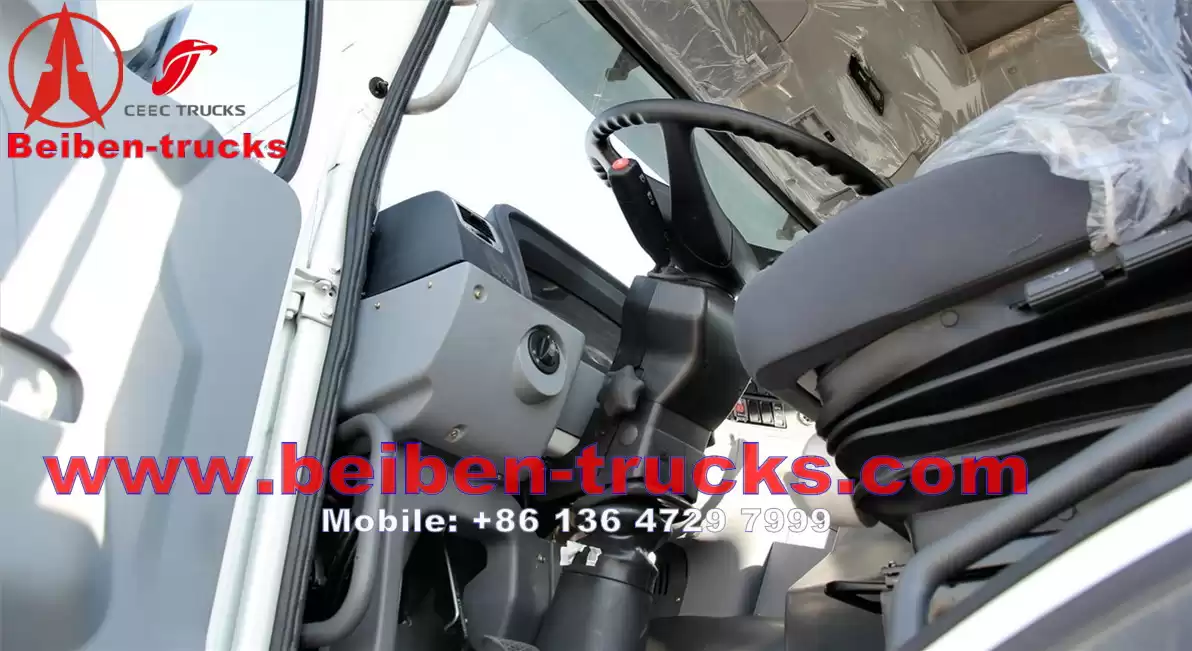

| Cab body style
|

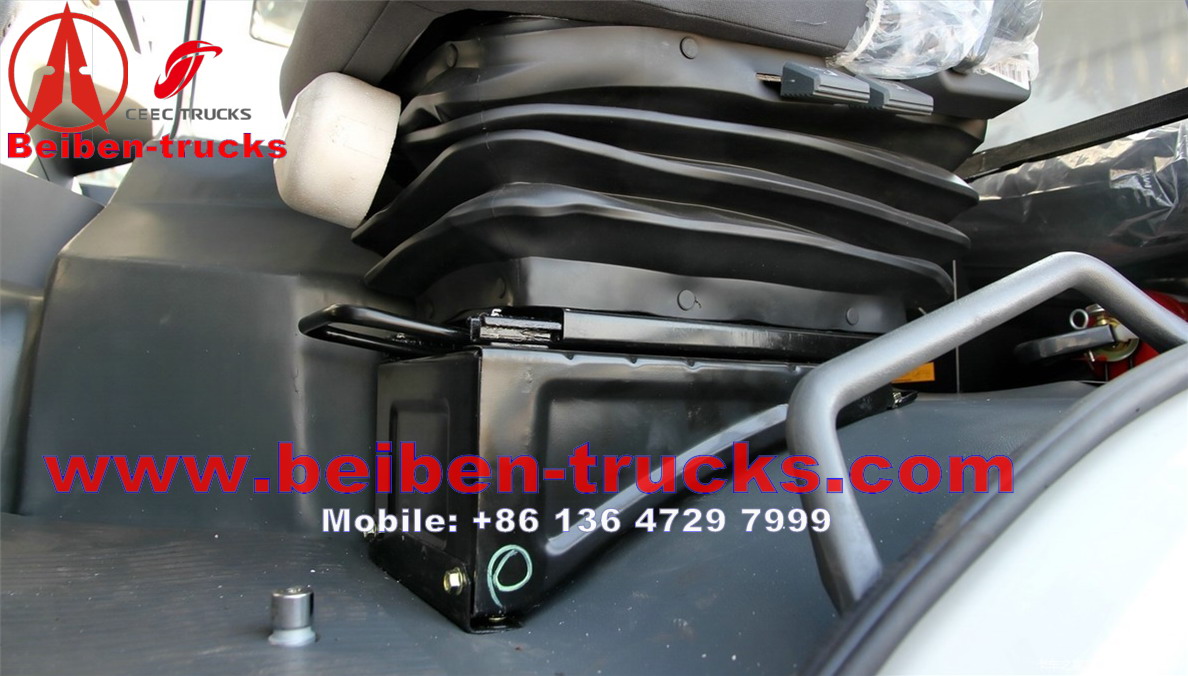

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.
|
| Steering system
|
High safe and reliable, and flexible, ZF8098
|
| Brake system
|
Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB
|
| Electric system:
|
Stronger load ability, high reliability and easy maintenance
|

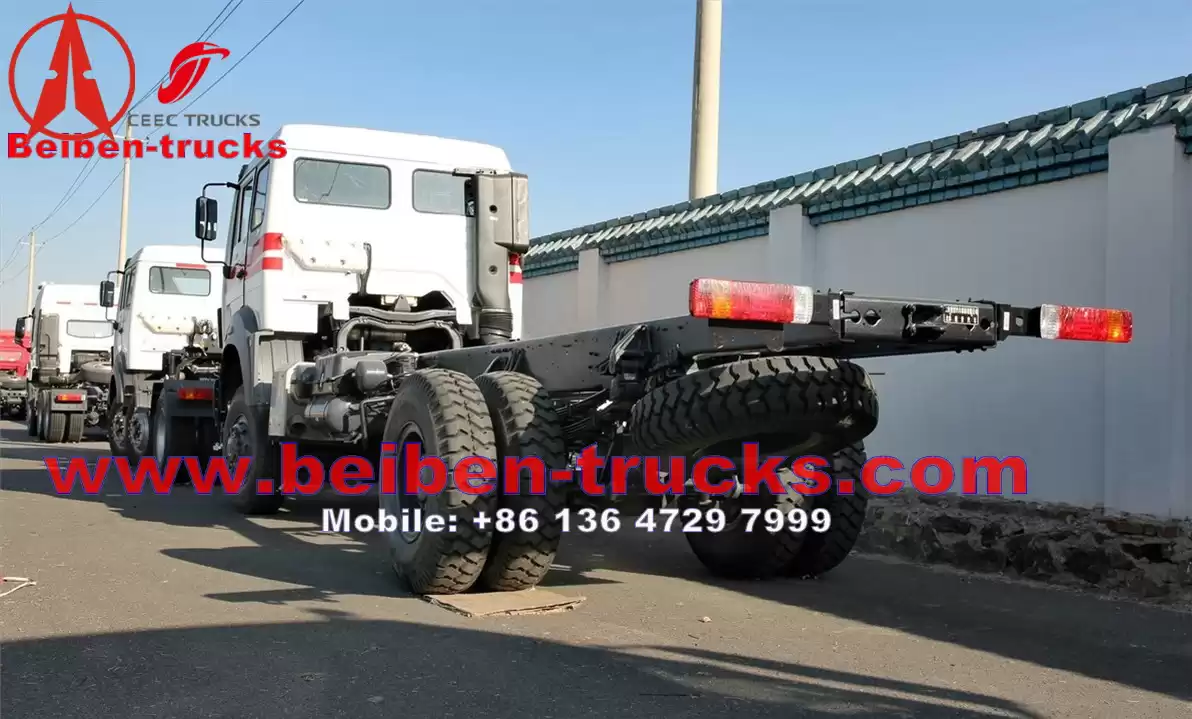

| Truck frame style
|
Fish maw shape, inequilaterally section, equal intensity, Benz technology
|

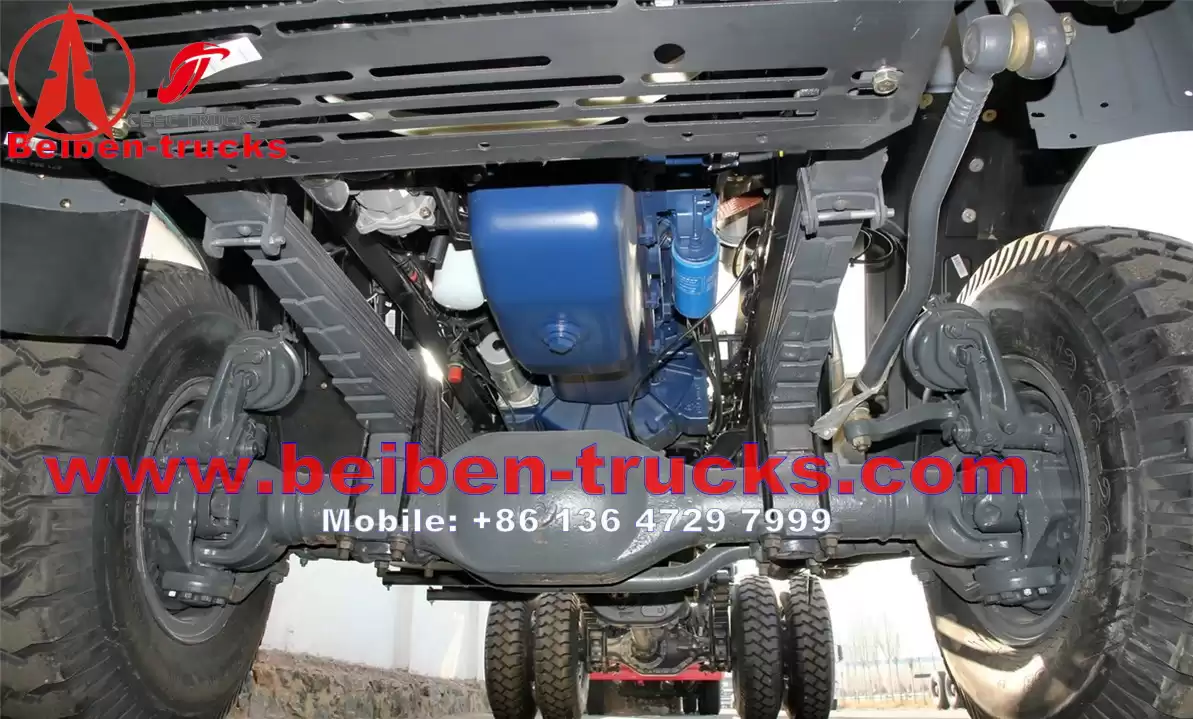

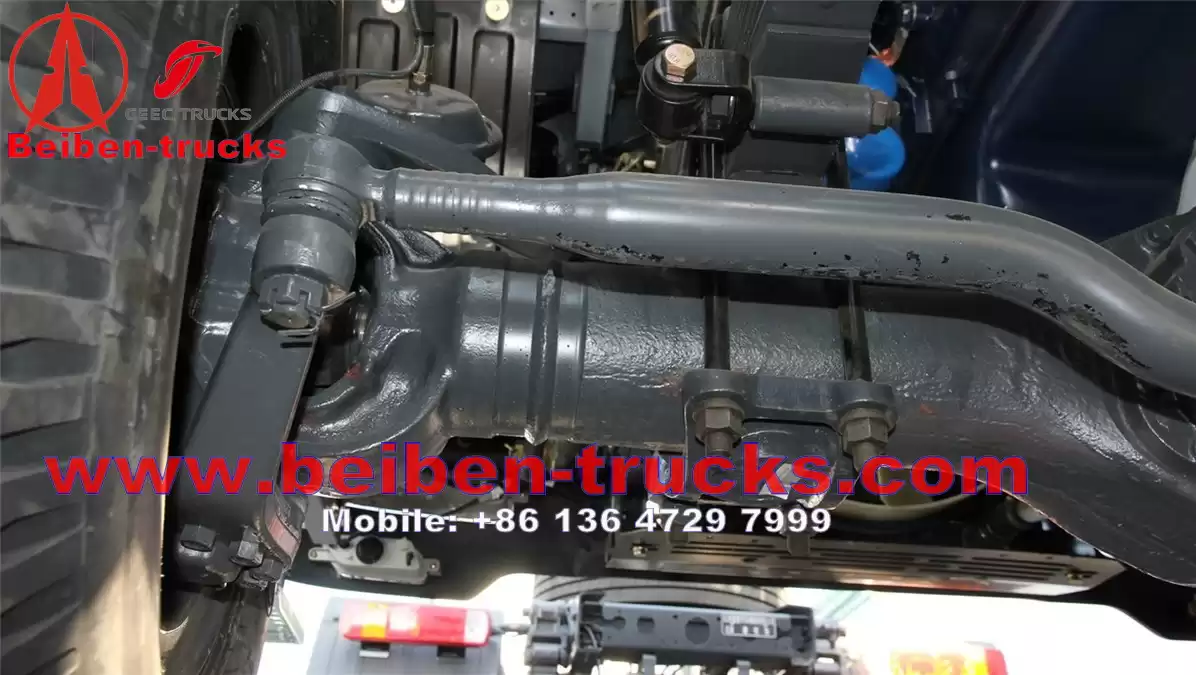

| Front axle
|
Benz 7.0T Transaxle
|

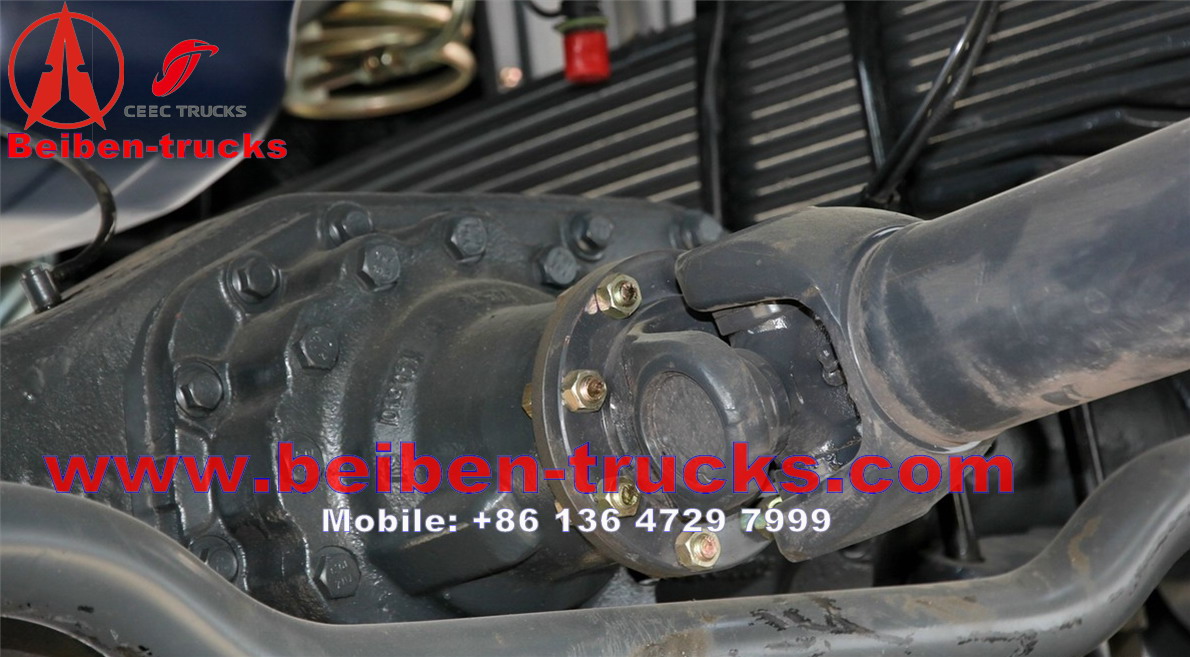

| Rear axle
|
Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)
Ratio=5.263
|
| Electric system:
|
Stronger load ability, high reliability and easy maintenance,24 V
|
| Emission standard
|
Eur 2 & EURO 3
|
| Fuel tank capacity (L)
|
400
|
| Optional equipment
|
Saddle , upper berth, ABS , squareness silencer.
|
