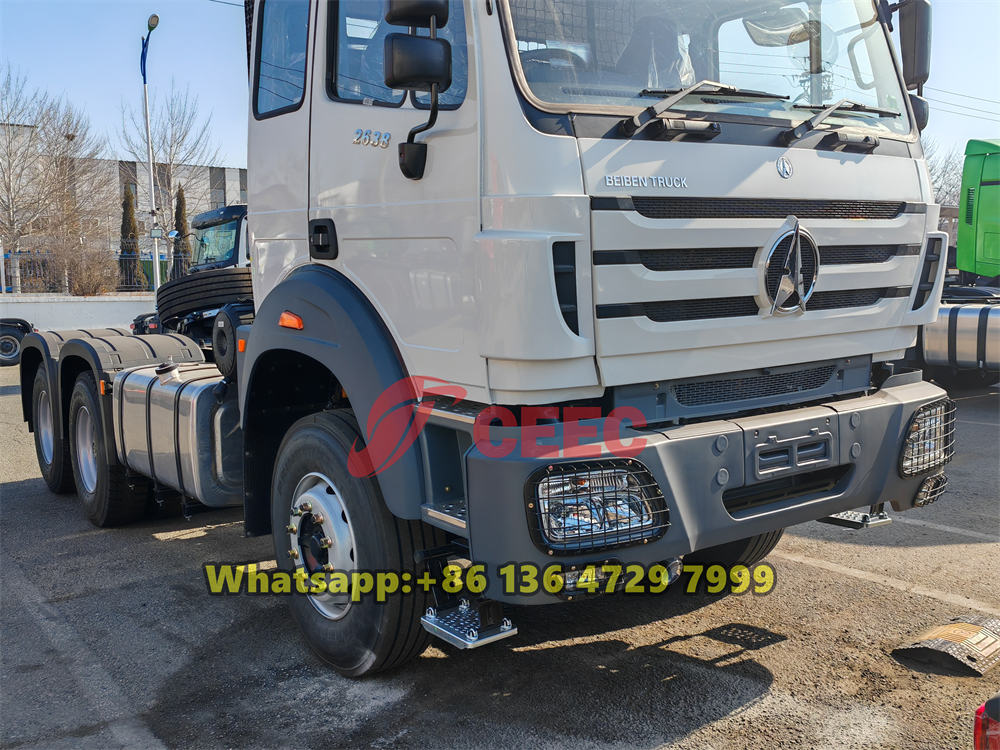

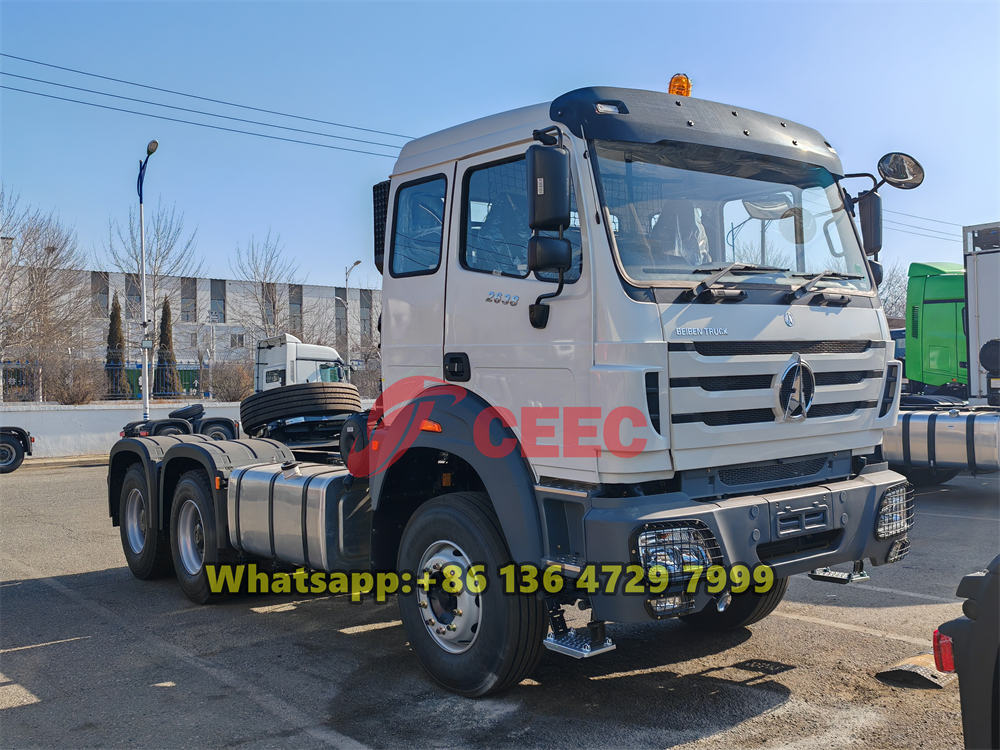

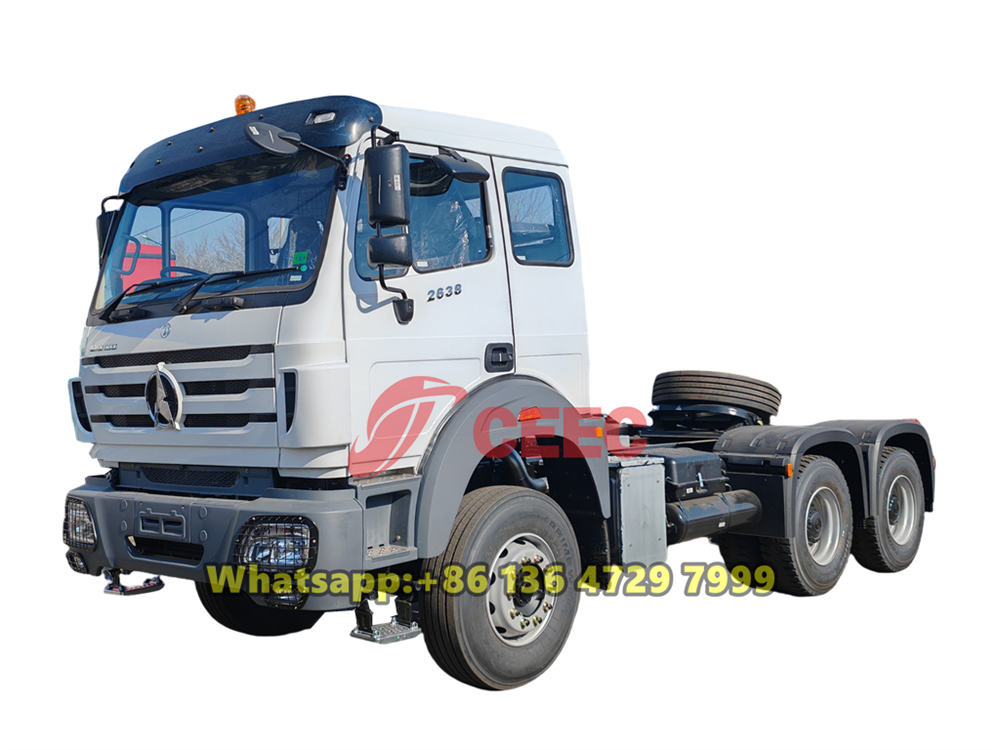

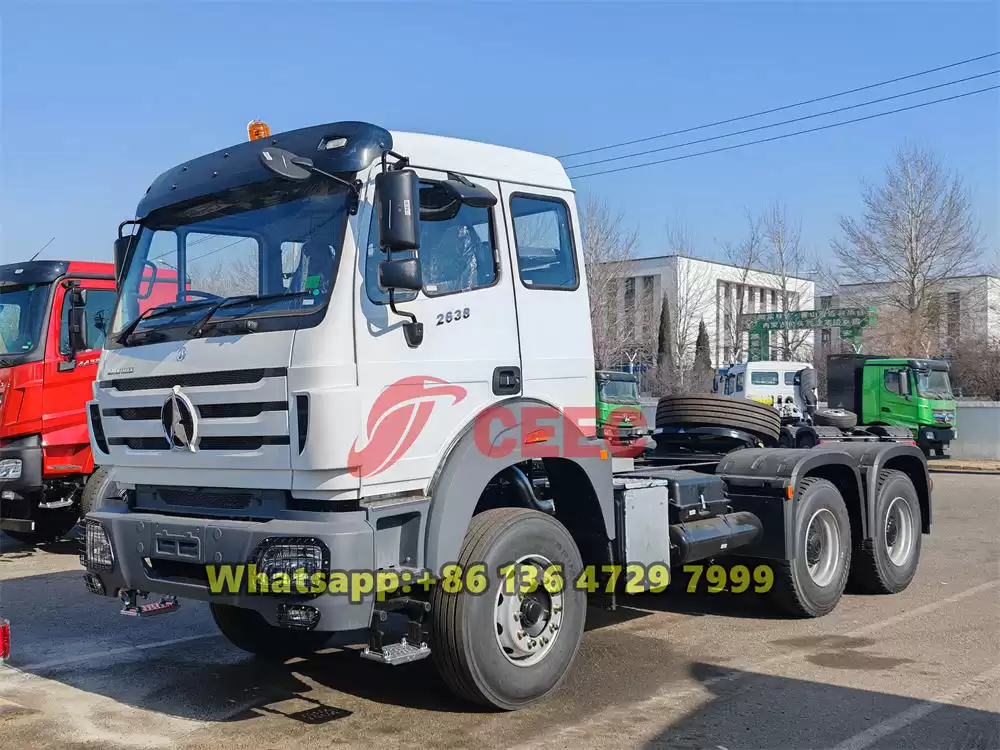

Beiben NG80 10 wheeler RHD tractor

The Beiben NG80 6×4 right-hand drive tractor is specifically designed for heavy-duty transportation. It is equipped with a Weichai 380HP engine, matched with a 12-speed transmission, and has a maximum traction weight of 40 tons. The vehicle features an all-steel frame cab with double berths, a sturdy chassis structure, an efficient braking system, and is equipped with 12.00R20 radial tires. With an approach angle of 26 degrees and a departure angle of 64 degrees, it is suitable for complex road conditions. It is an ideal transportation partner for logistics, mining, construction, and other industries.


  • Production time30 days
  • Payment termsTT
  • Working Capcity40 tons
  • Engine power380 HP
  • Drive system6×4, RHD

Product Description

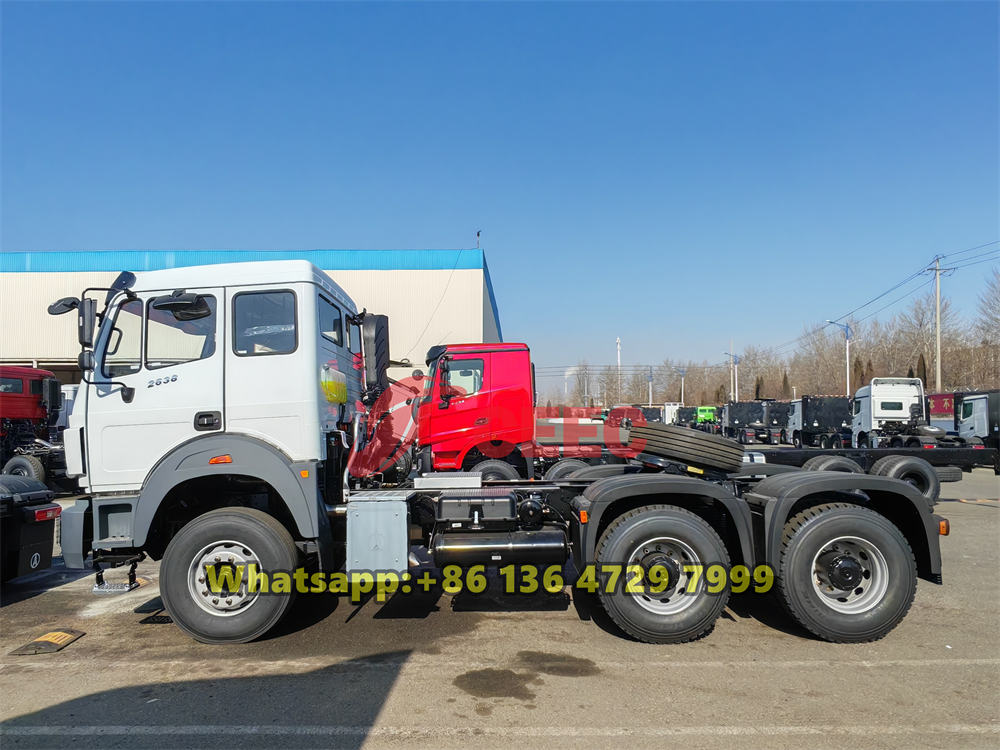

The Beiben NG80 6×4 RHD tractor is a specialized vehicle designed for heavy-duty transportation, featuring a 6×4 drive configuration and right-hand drive design, suitable for countries and regions where right-hand drive is the norm. With its powerful engine and robust chassis structure, it ensures efficient and safe cargo transportation. The vehicle has a wheelbase of 3450+1450 mm, with front and rear overhangs of 1410 mm and 740 mm, respectively, and overall dimensions of 7150×2500×3200mm. This dimensional design balances vehicle flexibility with ample carrying capacity. The curb weight of the vehicle is 9200 kg, with a maximum towing capacity of 40 tons and a maximum speed of no more than 90 km per hour. This design ensures stability and safety even when the vehicle is fully loaded.



Beiben 10 wheeler tractor truck for sale

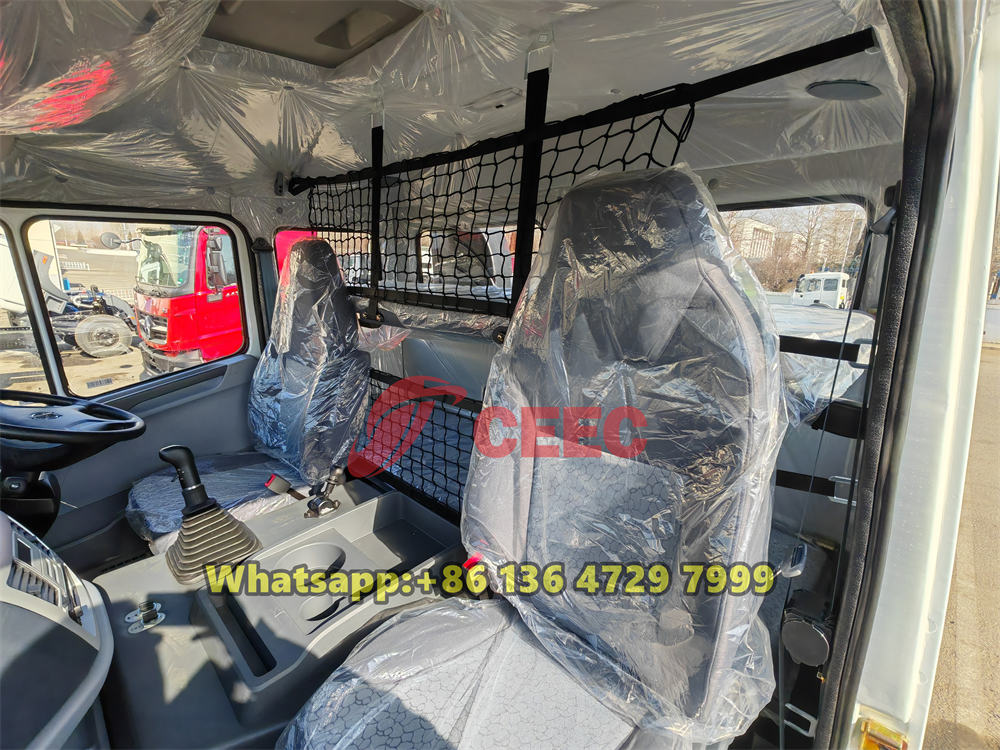

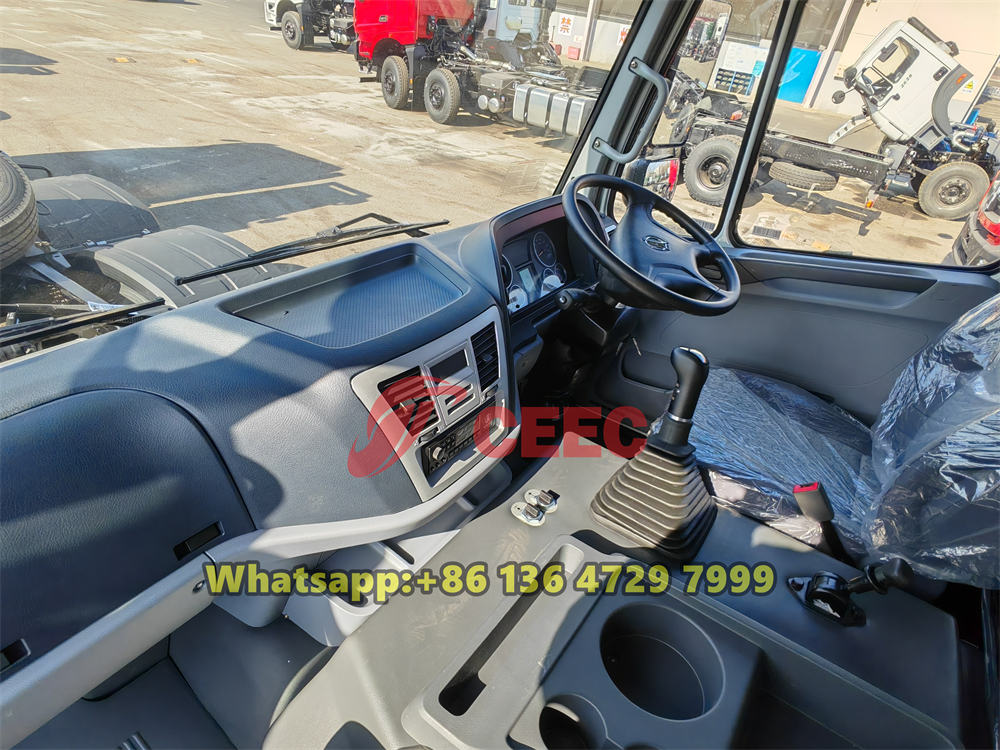

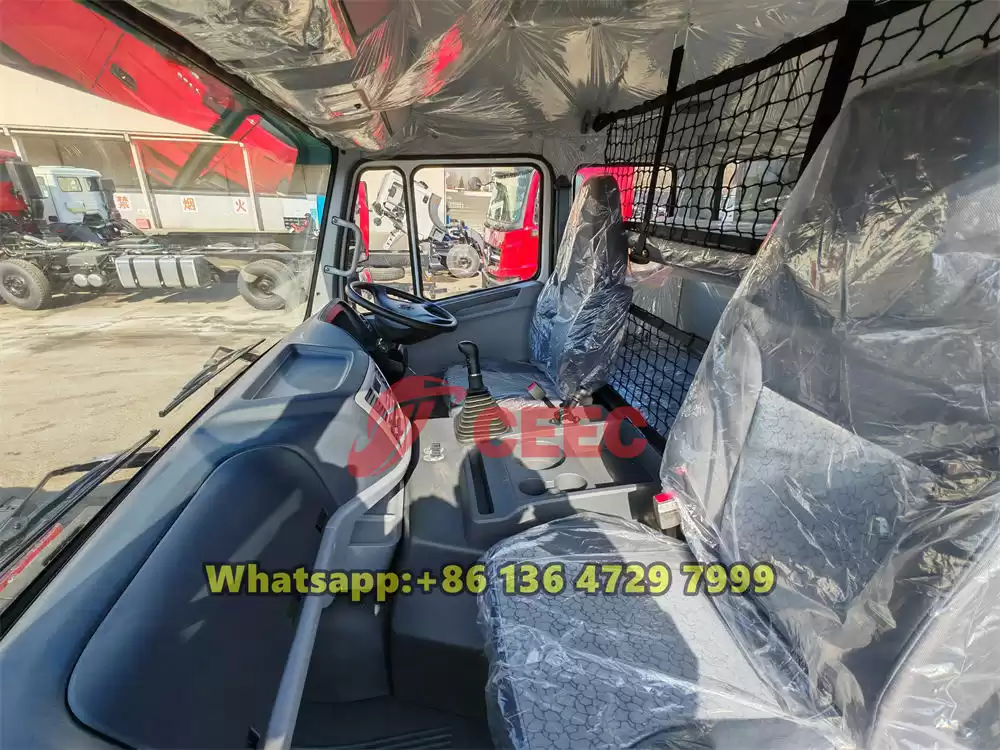

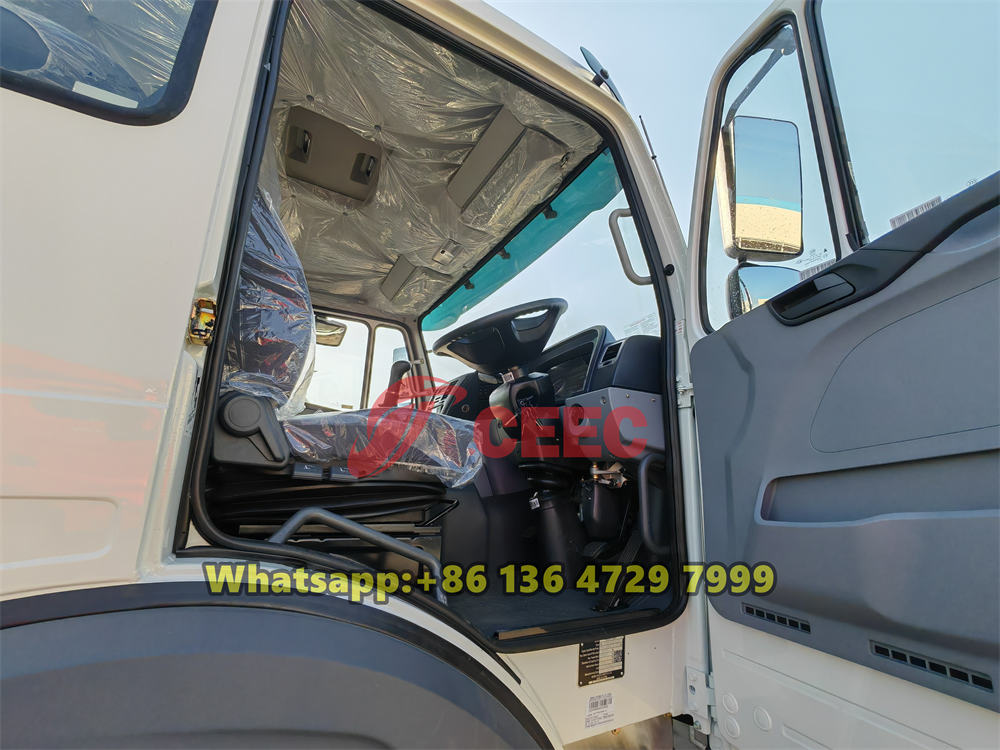

The cab of the Beiben 10 wheeler RHD tractor truck adopts the NG80B long cab design, equipped with double sleeper berths, ideal for long-distance transportation. The cab features a full steel frame structure with double-layer steel plate covering, providing excellent impact resistance and durability. The cab can be tilted forward for easy maintenance of the engine and chassis components. The interior of the cab is humanely designed, equipped with a multifunctional steering wheel, air conditioning system, audio system, etc., providing a comfortable driving environment. The instrument panel is logically laid out with clear information display, allowing the driver to monitor the vehicle's status at all times.

The Beiben 6×4 RHD tractor is powered by the Weichai WP10.380E32 engine, a water-cooled, four-stroke, 6-cylinder inline turbocharged diesel engine with a displacement of 9.726 liters and a maximum power output of 380HP. The engine is mated to a FAST 12JS200T mechanical transmission, offering 12 forward gears and 1 reverse gear. This transmission design ensures smooth shifting and flexible operation, accommodating the frequent starts and stops required in heavy-duty transportation. The clutch is a Φ430 diaphragm spring clutch with hydraulic assistance, known for its high durability and ability to withstand the rigors of intense operational demands.

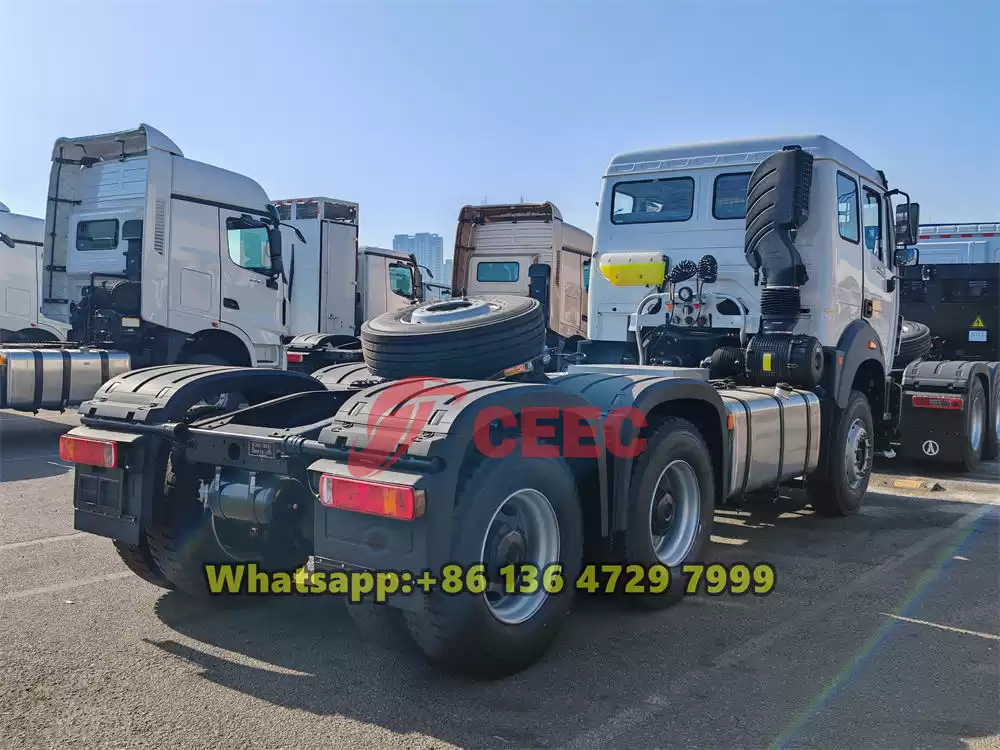

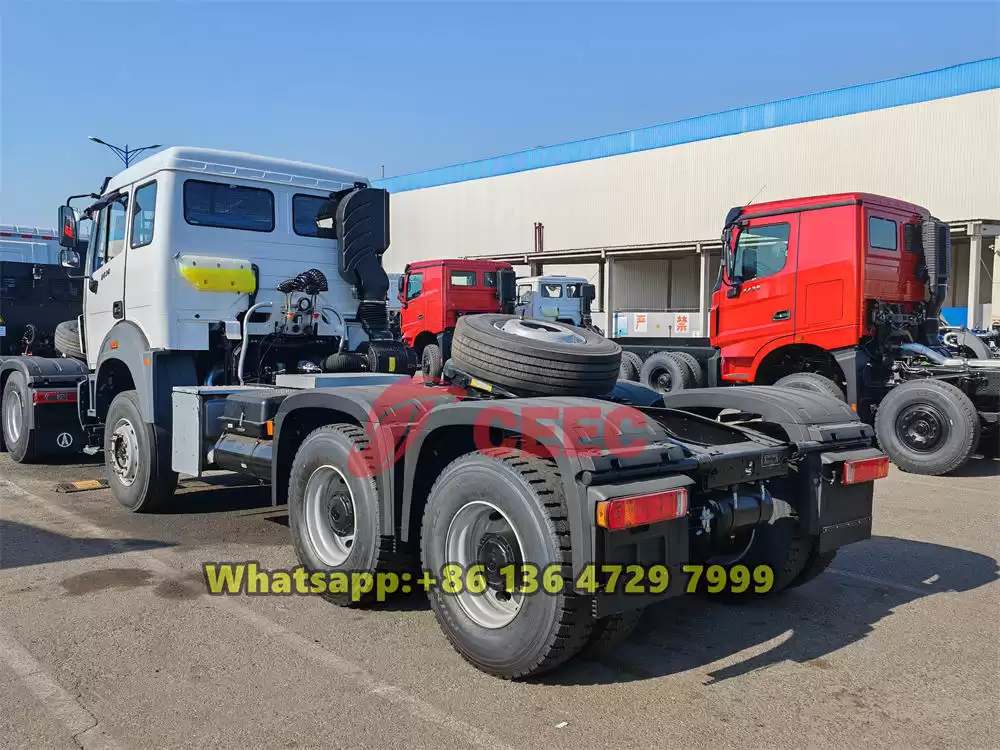

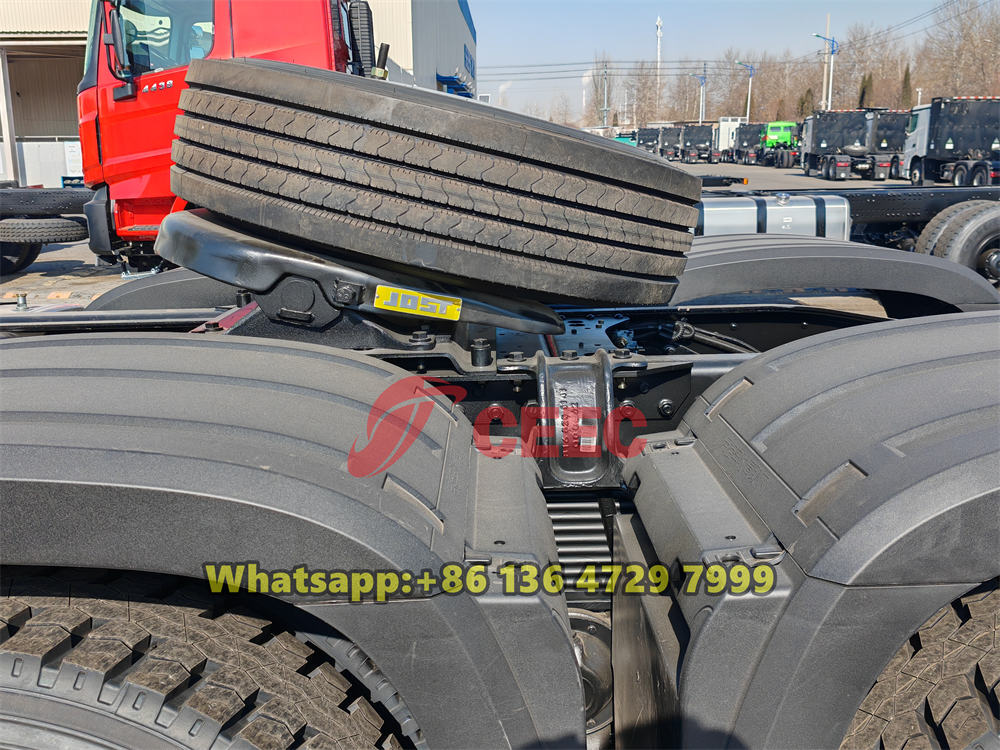

The chassis structure of the Beiben 2638 RHD tractor head is designed to be sturdy and durable. The front axle adopts a double-shoe pneumatic brake non-driving steering axle with Mercedes-Benz technology, with a load-bearing capacity of 7.5 tons. The middle and rear axles also incorporate Mercedes-Benz technology, offering strong load-bearing capabilities suitable for heavy-duty transportation. The suspension system is designed to effectively absorb road vibrations, enhancing driving comfort and vehicle stability. The fifth wheel adopts a #90 one-way traction pin, providing a secure connection suitable for various trailer towing needs.



Beiben 10 wheeler RHD tractor unit



Product Specifications



Beiben NG80 6×4 RHD tractor truck

Wheel base (mm)

3450+1450

Curb weight (kg)

9200

Max. towing weight  (kg)

40 tons

Max Speed (Km/h)

≤90

Dimension (Length*Width*Height)

7150×2500×3200mm

Front overhang/rear overhang (mm)

1410/740

Approach angle/Departure angle

26/64

Engine

Brand

Weichai

Model

WP10.380E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged

Fuel type

Diesel

Power

380HP/280 kW

Emission

EURO III

Displacement(L)

9.726

Fuel tanker capacity (L)

400L Aluminum alloy

Clutch

Φ430, Diaphragm Spring, Hydraulic boosting

Gearbox

FAST 12JS200T, mechanical type,12 Forward speed gear.

Steering system

 ZF8098

Front axle (Mercedes Benz
Technology)

Double-shoe pneumatic brake,7.5tons non-driving steering axle

Middle and Rear axle
(Mercedes Benz technology)

Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263

Tire

12.00R20 radial tire 11 (10+1)

Cab

NG80B Long cab with two sleepers,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;

Fifth wheel

#90 single direction



Beiben 6×4 RHD prime mover for sale



Product Details



Beiben 2638 tractor truck for sale



Beiben RHD tractor truck price



Beiben NG80 longe cab tractor



Beiben 6×4 380HP tractor head specifications
