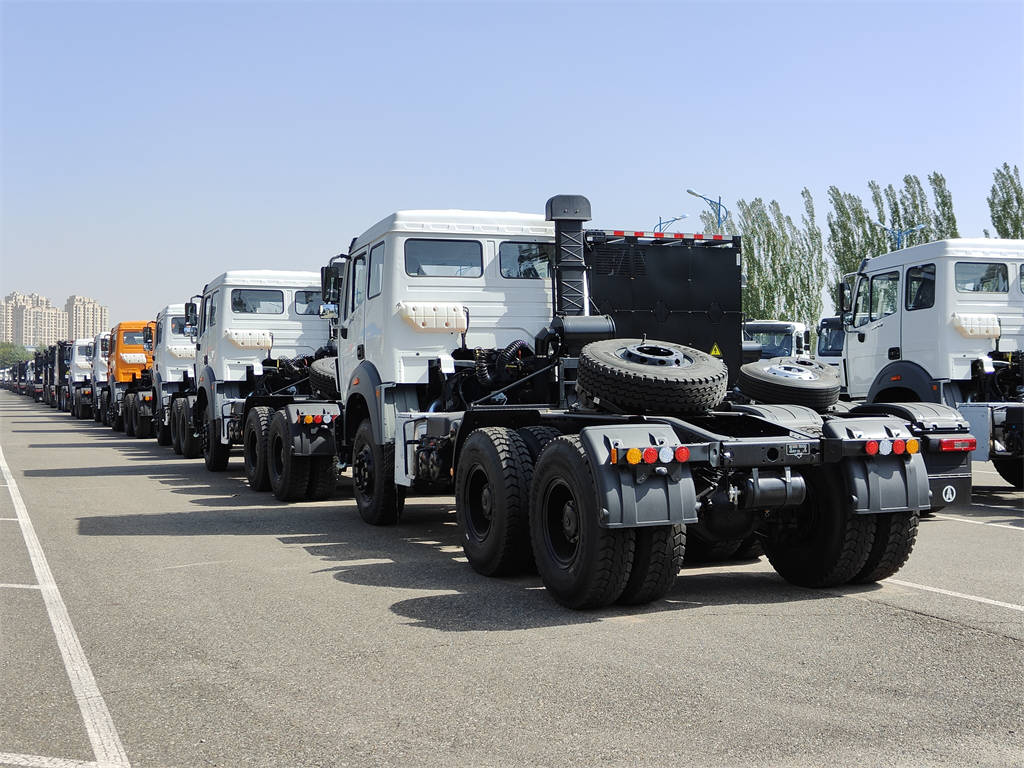

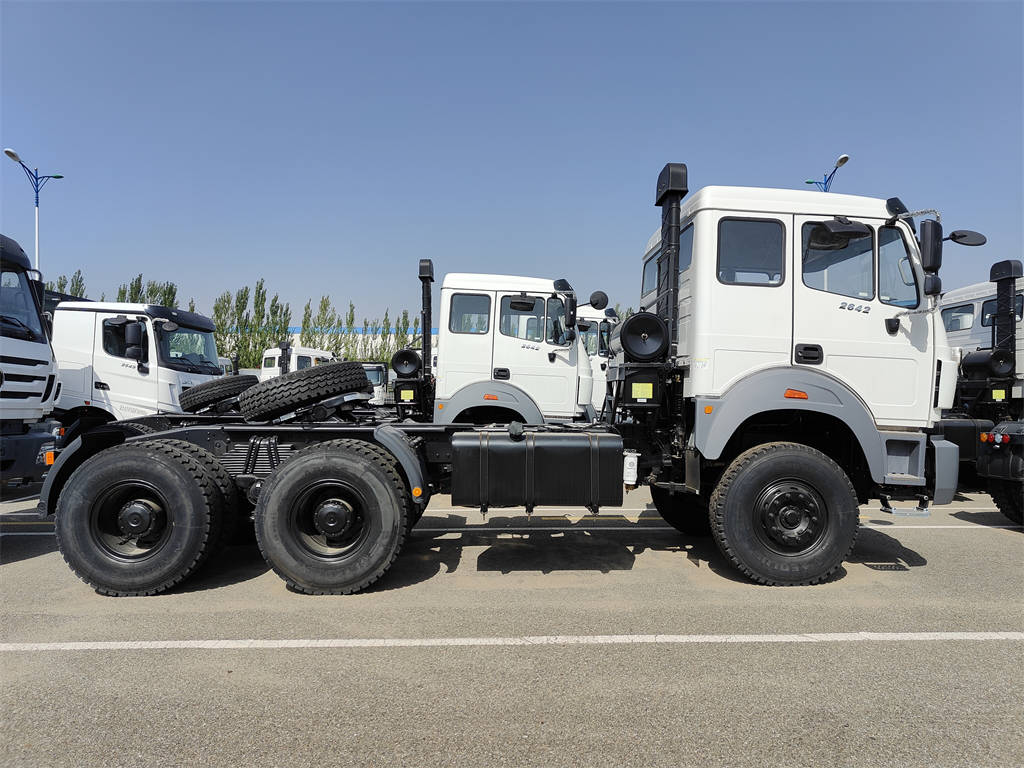

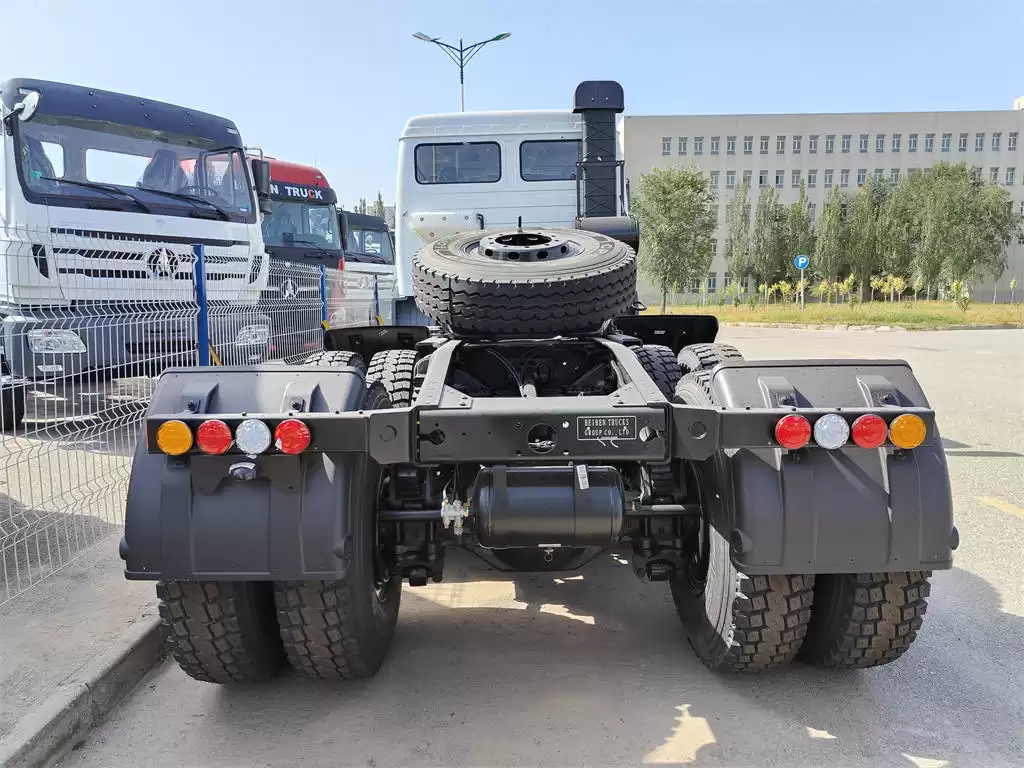

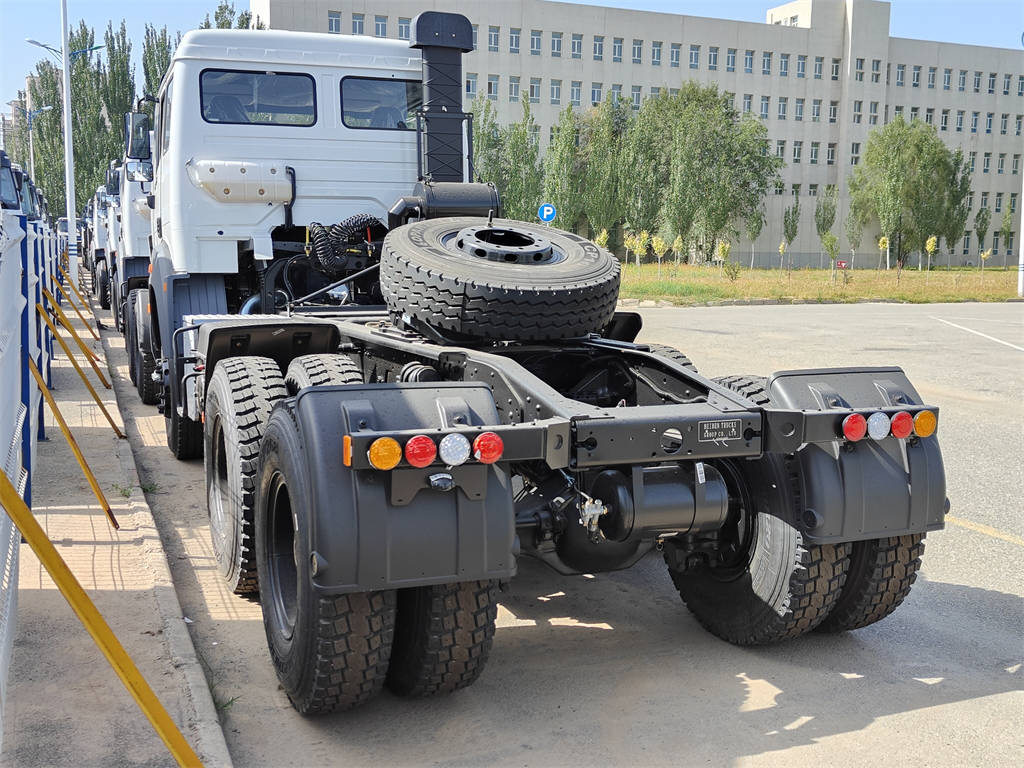

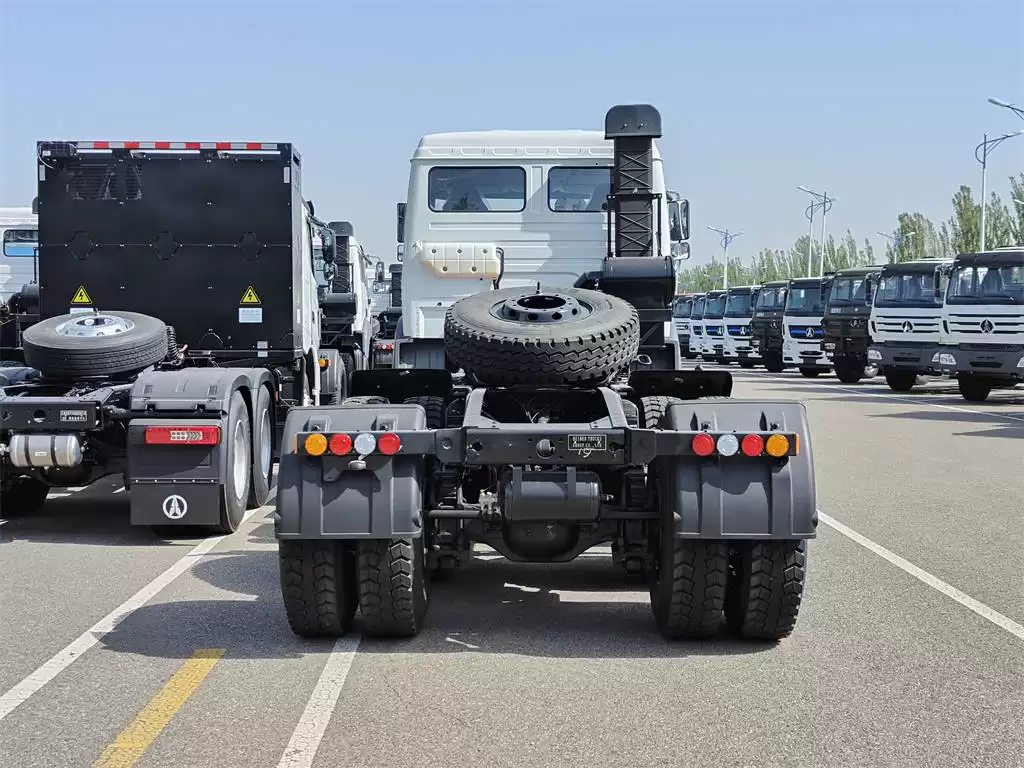

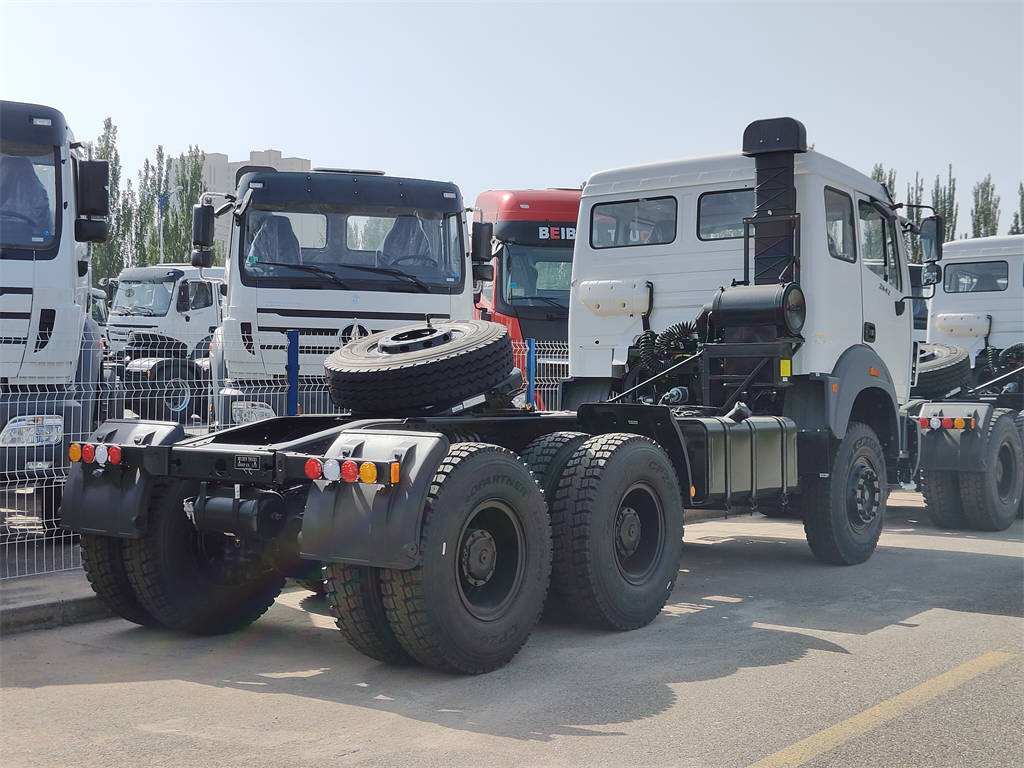

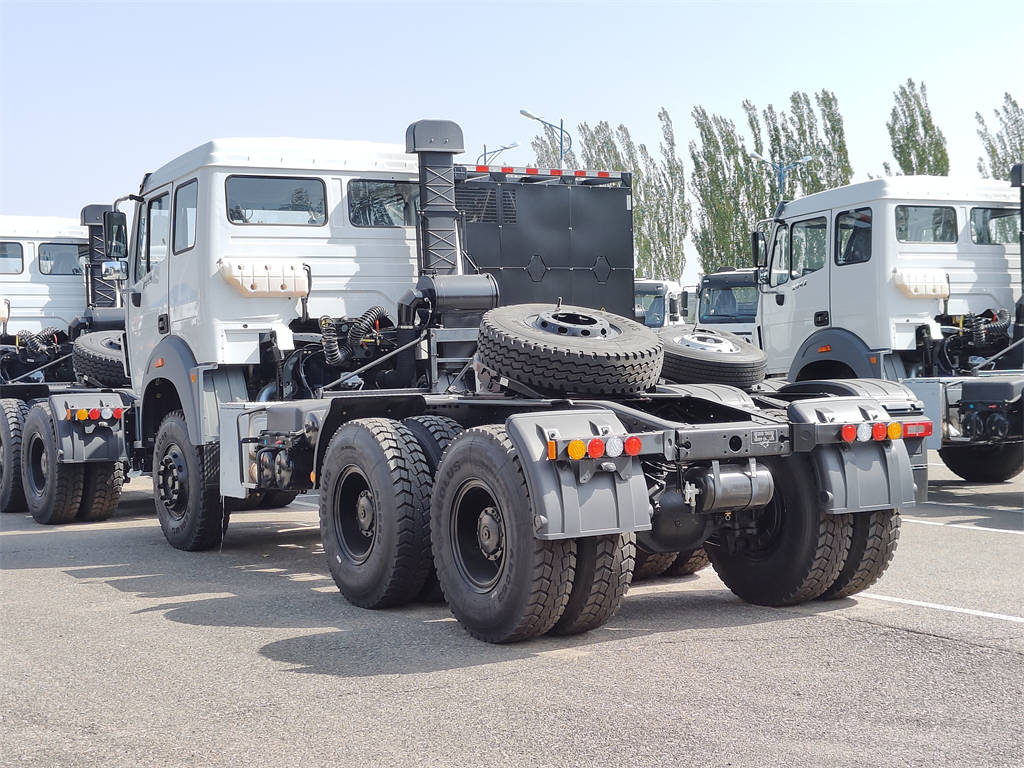

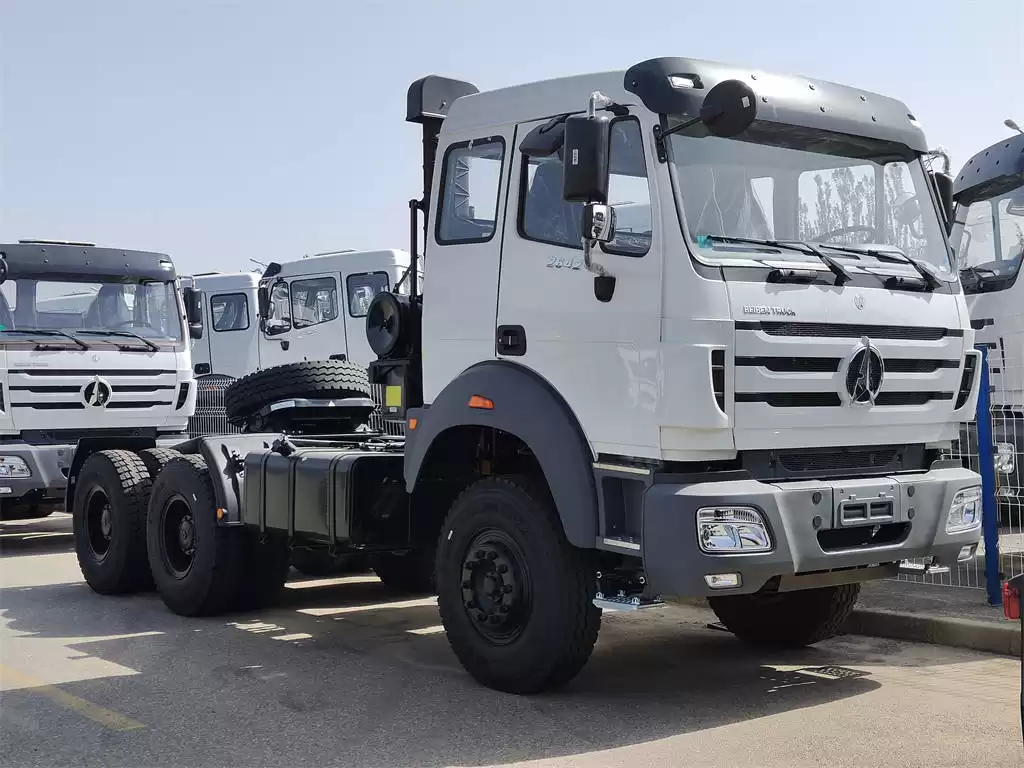

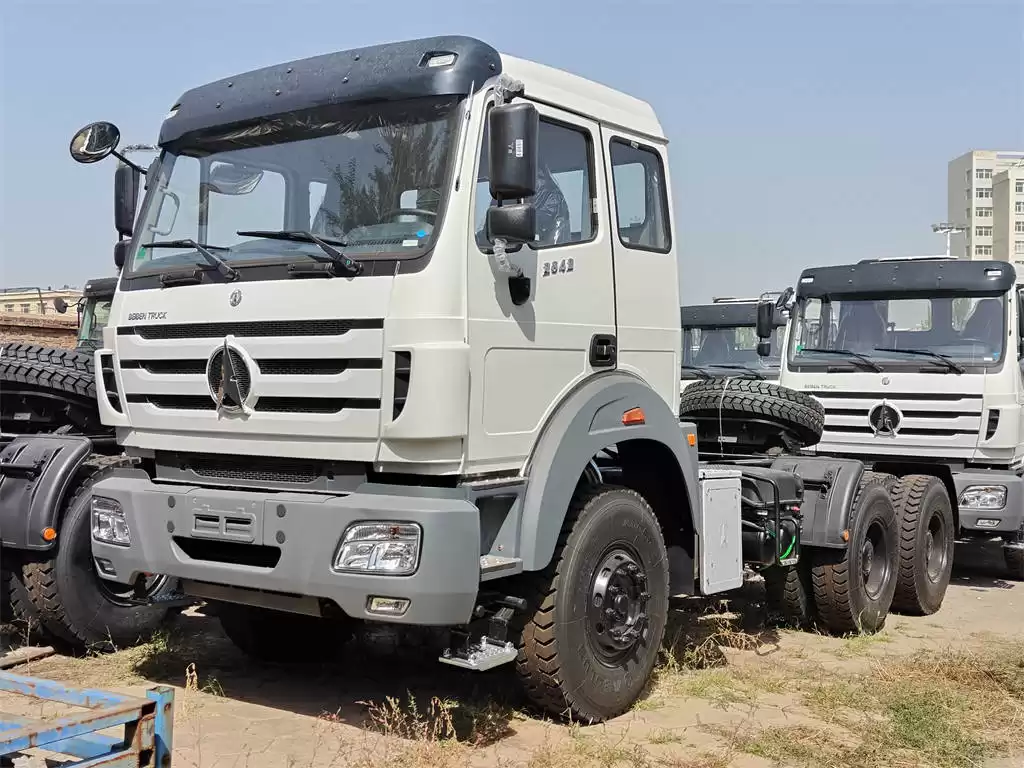

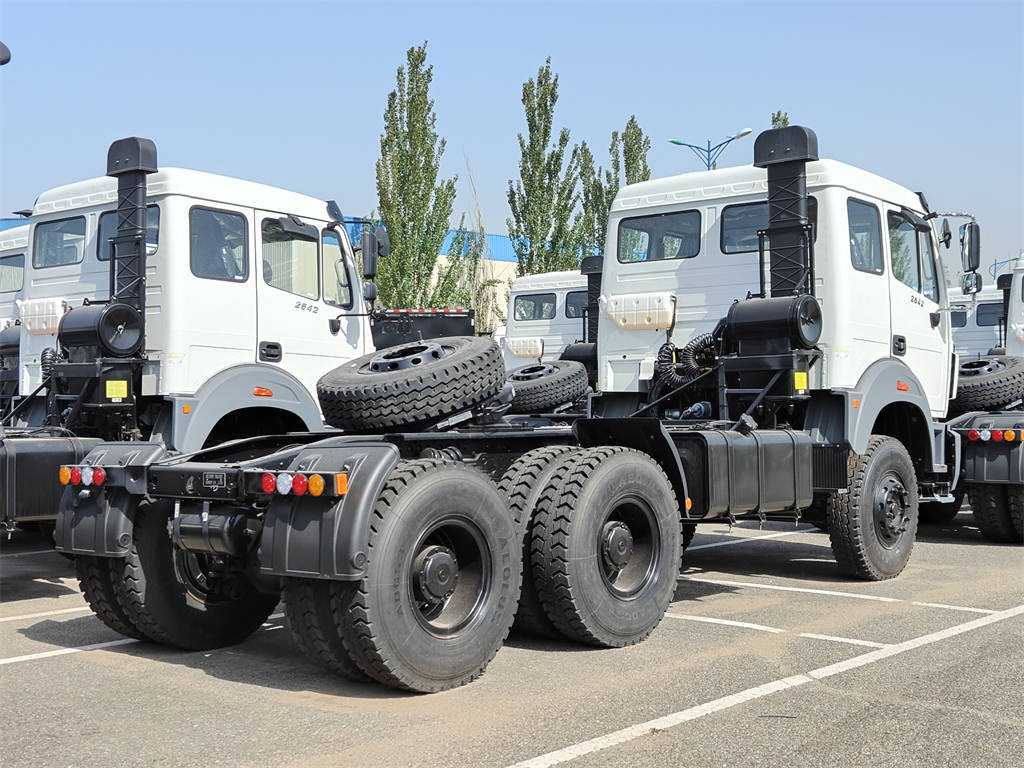

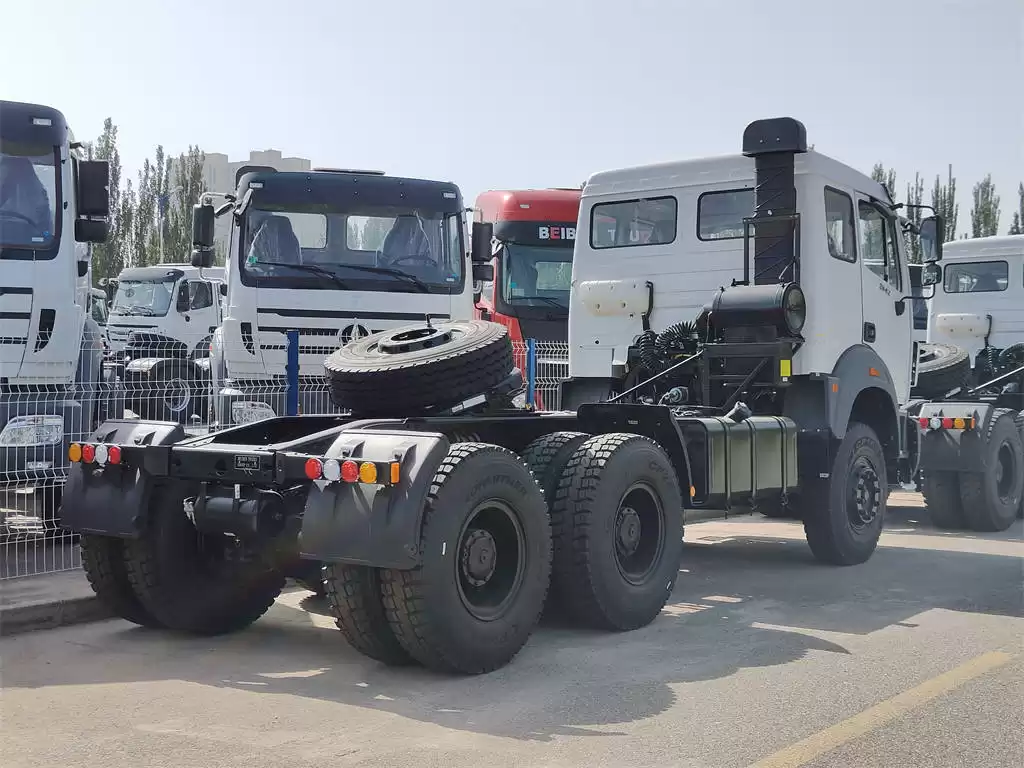

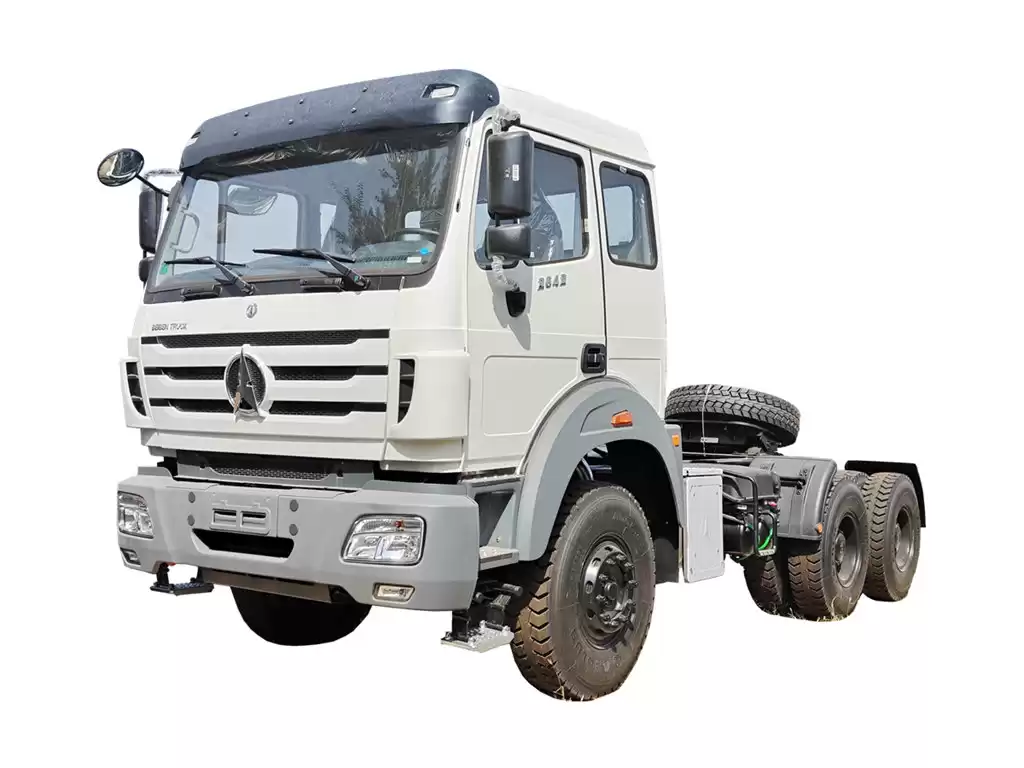

Beiben NG80 420HP tractor truck

Beiben 2642 tractor is a vehicle specially built for the Mongolian market based on German Mercedes-Benz technology, with overall dimensions of 7140×2500×3200mm, wheelbase of 3450+1450mm, curb weight of 8800kg, and maximum traction weight of 40000kg. The vehicle is equipped with a WP10.420E32 engine with a maximum output power of 308kw, which meets the EURO III emission standards. It is equipped with a 400L fuel tank, a FAST 12JS200T gearbox and a luxurious cab, providing a comfortable and convenient driving environment for the driver.


  • Production time30 days
  • Payment termsTT
  • Working Capcity40 tons
  • Engine power420 HP
  • Drive system6×4

Product Description



Beiben 2642 tractor is an export vehicle built for the Mongolian market. Its overall design and technology are based on German Mercedes-Benz technology, ensuring the vehicle's excellent performance and reliability. The overall dimensions of the Beiben2642 tractor are 7140×2500×3200mm (length×width×height), and the wheelbase is 3450+1450mm, providing a stable driving foundation for the vehicle. Its curb weight is 8800kg, and its maximum traction weight reaches an astonishing 40000kg, fully demonstrating its powerful traction capacity as a tractor.





The Beiben 2642 tractor truck is equipped with a WP10.420E32 engine, which is a water-cooled, four-stroke, inline six-cylinder, turbocharged diesel engine. Its maximum output power is 308kw, equivalent to 420 horsepower, and it can reach the rated power at a speed of 2200rpm. This engine is not only powerful, but also meets the EURO III emission standards, which is both environmentally friendly and efficient.

The Beiben 2642 tractor head is equipped with a 400L fuel tank to ensure the vehicle's long endurance. Its clutch adopts a 430-type single-dry friction plate and hydraulic power-assisted type, which is easy to operate. The gearbox uses a FAST 12JS200T mechanical gearbox with 12 forward gears and smooth shifting, which can meet various driving needs.

The front axle of the Beiben tractor truck adopts a double-shoe pneumatic brake non-driven steering axle with Mercedes-Benz technology, while the middle and rear axles are heavy-duty axles designed for the Mongolian market, which also use double-shoe pneumatic brakes and are equipped with wheel-side reducers and double-stage reduction drive shafts to ensure strong load-bearing capacity and driving stability. The vehicle is equipped with 11 12.00R20 radial tires, which provide good grip and driving stability.



Product Specifications



Overall Dimension (L*W*H)  (mm)

7140×2500×3200

Wheel base (mm)

3450+1450

Curb weight (kg)

8800

Max. towing weight (kg)

40000

Max Speed (km/h)

≥90

Engine

Model

WP10.420E32, water-cooled, four-stroke,6 cylinders straight in line, turbocharged

Fuel type

Diesel

Max. Power (kw)

308kw

Rated Power /rotating ( hp/(r/min)

420hp /2200rpm

Emission

EURO III

Displacement ( ml )

9726

Fuel tanker capacity ( L )

400L fuel tank

Clutch

Model

430, Single dry frictional disc, Hydraulic boosting

Gearbox

Model

FAST 12JS200T mechanical type, 12 Forward speed gear.

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake, With ABS system

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Suspension System

Rear Suspension

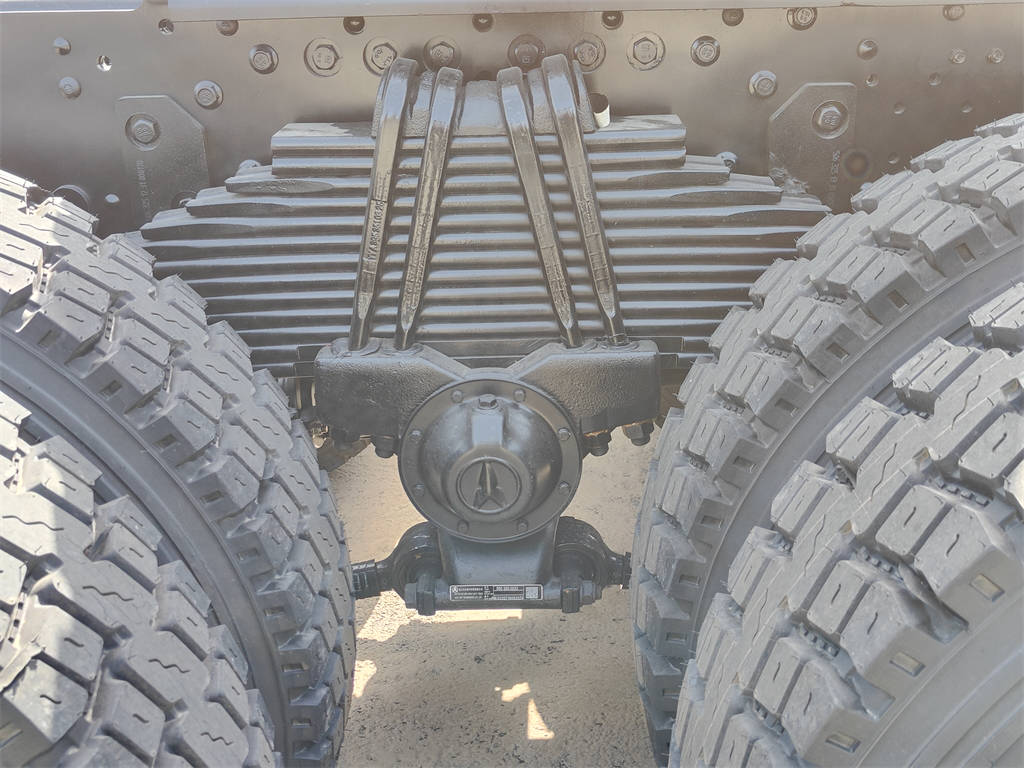

Non-free standing stabilization spring, stabilization suspension,

Frame

Fish belly shape, variable width, variable sections
Based on Germany Benz Technology

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

HEAVY DUTY TYPE for Mongolia market. Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tire

12.00R20 radial tires

Qty of tire

11

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

With one sleeper  (NG80 Benz Cabin)
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;

high back seat for driver, one sleepers, standard sleeper box, heating and air conditioning, high roof box, electric glass riser, standard steering wheel, 24V power, radio (with MP3), digital instrument, manual adjustment of headlamps, with central clock.

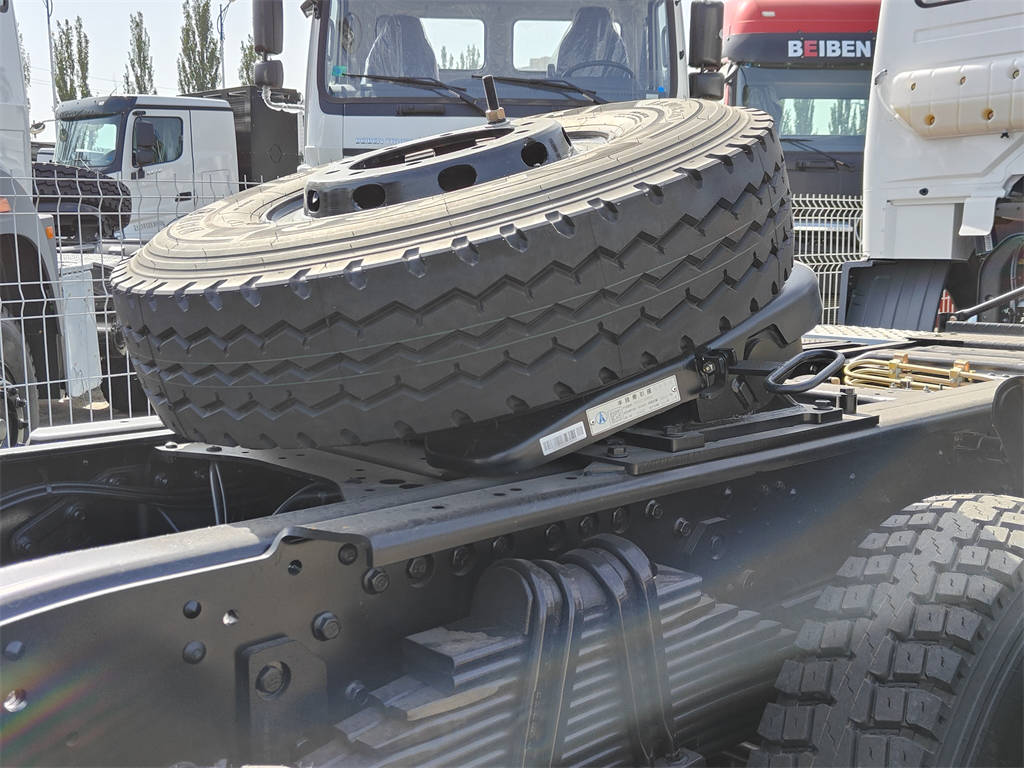

Fifth wheel

#50 single direction





Product Details

  • #
  • #
  • #
