Beiben NG80 4x4 Cargo truck

Beiben 4x4 truck chassis is world widely know as Beiben 1822 cargo truck, Beiben 1929 cargo truck. Drive mode 4x4 means four-wheel full drive, which is suitable for use environments that require strong off-road performance and stability. The Beiben 4x4 offroad type of chassis is usually equipped with a high-performance engine WEICHAI diesel type and transmission system FAST brand, as well as good load-bearing capacity with Mercedes Benz technology 7.5tons front axle and 13tons rear axle, and durability to meet the transportation needs of long-distance, heavy-loaded and harsh road conditions. Beiben cargo trucks can customize the chassis according to customer needs, including wheelbase, number of tires, engine model, etc., to meet the specific needs of different customers. Specially Beiben NG80B cabin can be customized as any color as required.


  • Working Capcity12-15 tons
  • Payment termsTT
  • Production time20-25days
  • Engine power220HP
  • Drive system4x4

Beiben 4x4 cargo truck chassis, Beiben 1822 cargo truck with its four-wheel all-drive, high performance and strong customization, meets the transportation needs of African customers in long-distance, heavy-load and harsh road conditions. At the same time, the advantages of Beiben trucks such as reasonable price, sufficient power, low fuel consumption, strong adaptability and reliable quality also make African customers more inclined to choose Beiben 4x2 truck, Beiben 4x4 truck, Beiben 6x4 truck, Beiben 6x6 truck, Beiben 8x8 truck as their means of transportation.

Beiben 4x4 offroad cargo truck chassis supply from www.beiben-trucks.com, the Beiben trucks equipped with China Top 1 WEICHAI 220HP diesel engine, international good quality FAST 9-shift manual gearbox with 9 forward and 1 reverse back, Beiben truck wheelbase 4600mm, with very strong truck chassis and the cross section is 317x70x8.5+7mm, and overall dimension 7790x2500x3200mm, Classical NG80B white cabin with ZF8098 steering system. Beiben military 4x4 offroad truck chassis with Mercedes Benz technology, and front axle 7tons and rear axle 13tons, the durable quality double reduction with speed ration 5.263. Mounted with 12.00R24 radial tires and totally 7 pcs, which is much higher and very suitable for rough road in Africa countries, such as DR Congo, Kenya, Tanzania, Ethiopia, Uganda, Angola, Zambia, Mozambique, Rwanda, Gabon, Zimbabwe, Nigeria, Cameroon, etc.

Why Africa customers prefer to buy Beiben 4x4 offroad 1822 cargo trucks from China?
Reasonable price: Chinese cars are usually more cost-effective than other brands in the international market, which enables African customers to buy reliable vehicles at a relatively low cost.
Powerful and low fuel consumption: Beiben vehicles are designed with full consideration of the road conditions and transportation needs in Africa. They have excellent power performance and fuel economy, and can meet the actual needs of African customers in long-distance transportation.
Strong adaptability: The road conditions in Africa are complex, with many mountainous roads, muddy roads and other harsh environments. The four-wheel all-drive design of the Beiben 4x4 truck chassis gives the vehicle stronger passing ability and stability in these environments.
Reliable quality: As a representative of well-known Chinese brands, Beiben vehicles have been recognized by customers for their product quality and after-sales service. African customers can usually get satisfactory use experience and maintenance support after purchasing Beiben vehicles.
  • #

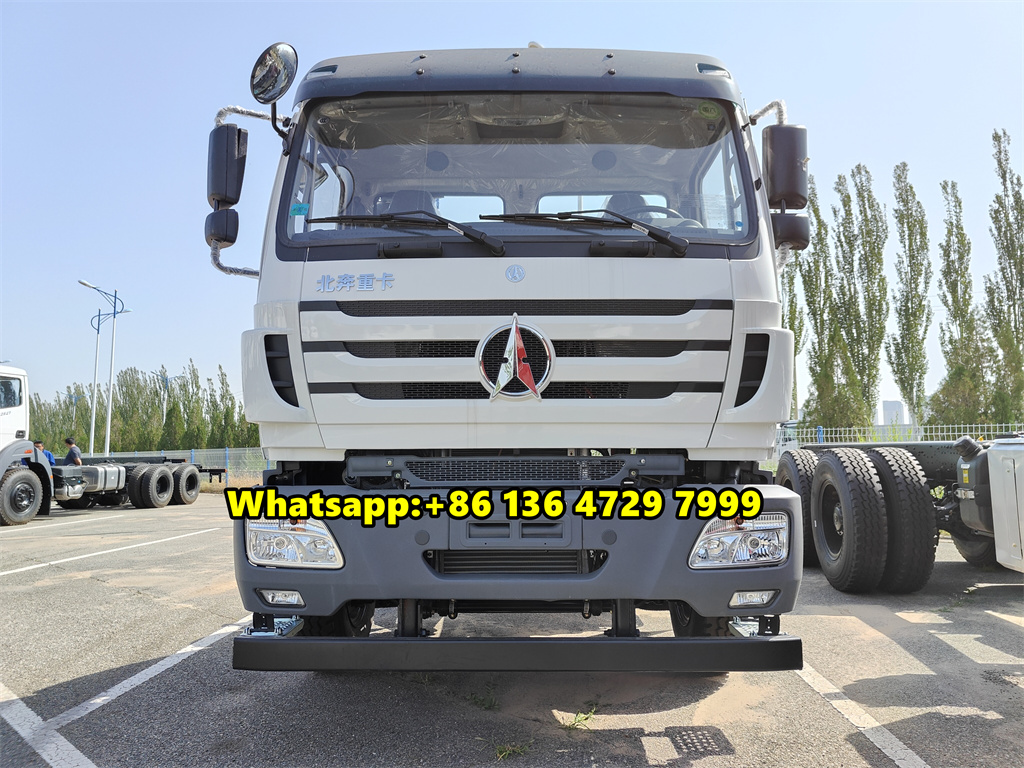

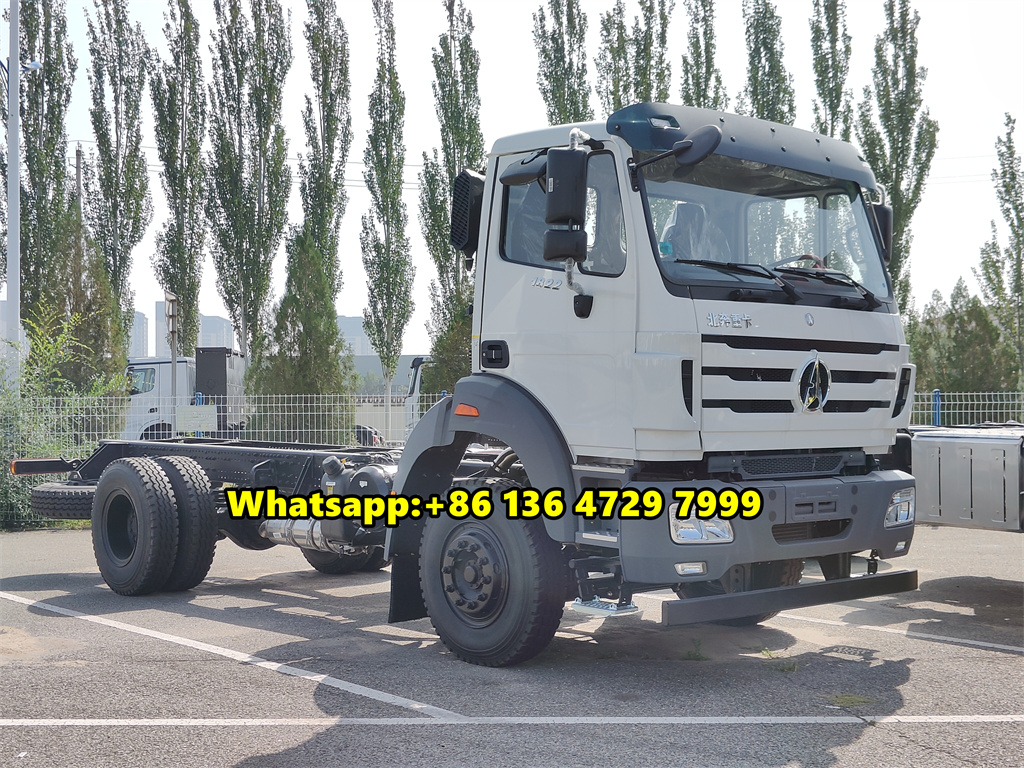

    Beiben NG80B truck cabin
  • #

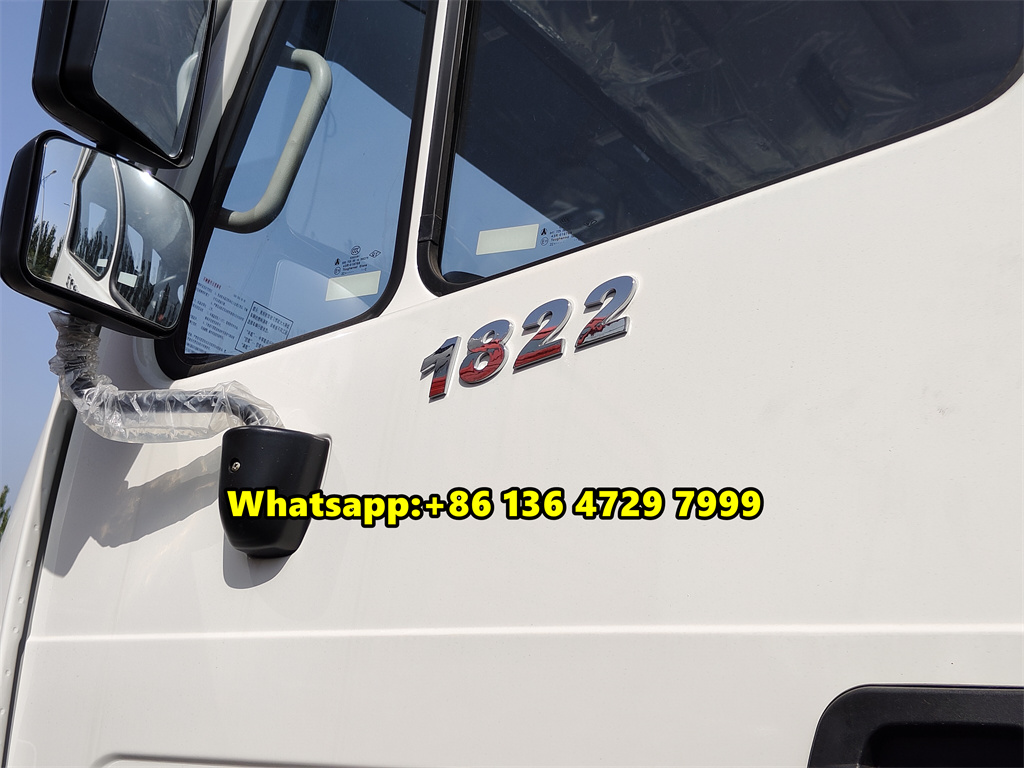

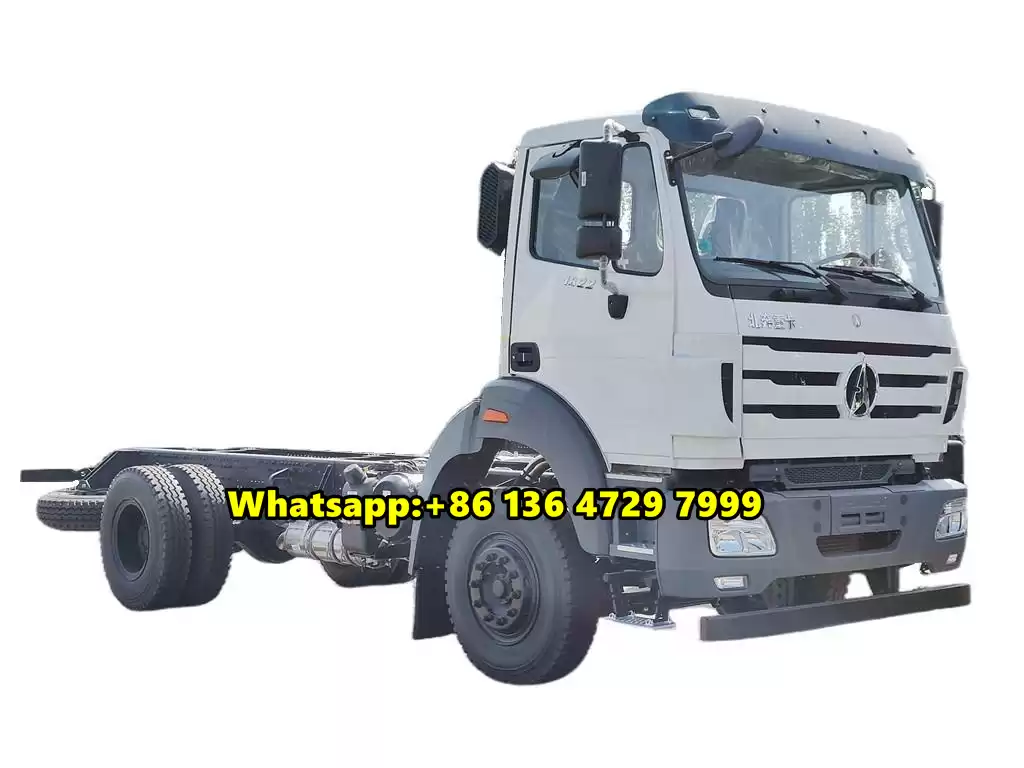

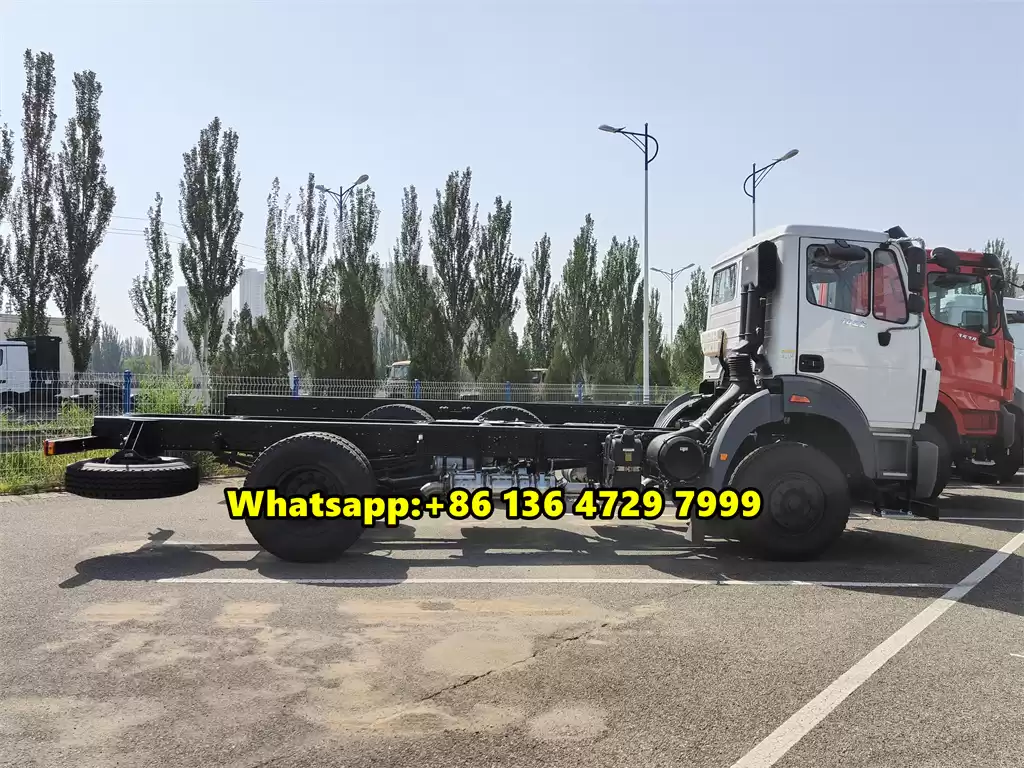

    Beiben cargo truck with 1822 model
  • #

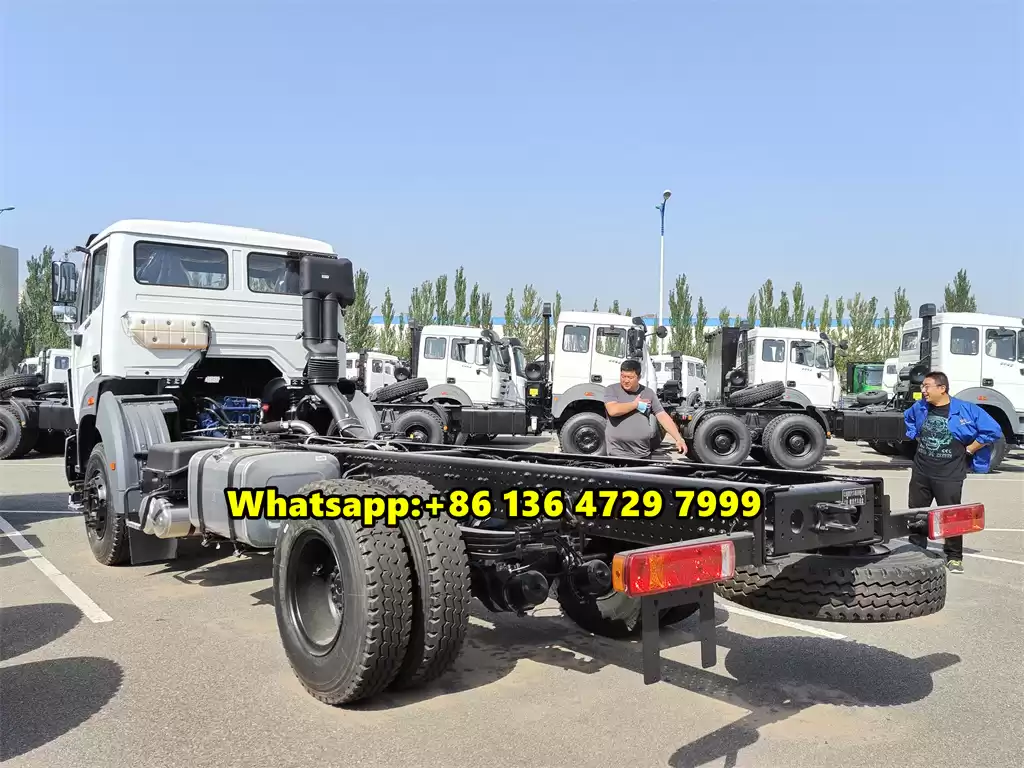

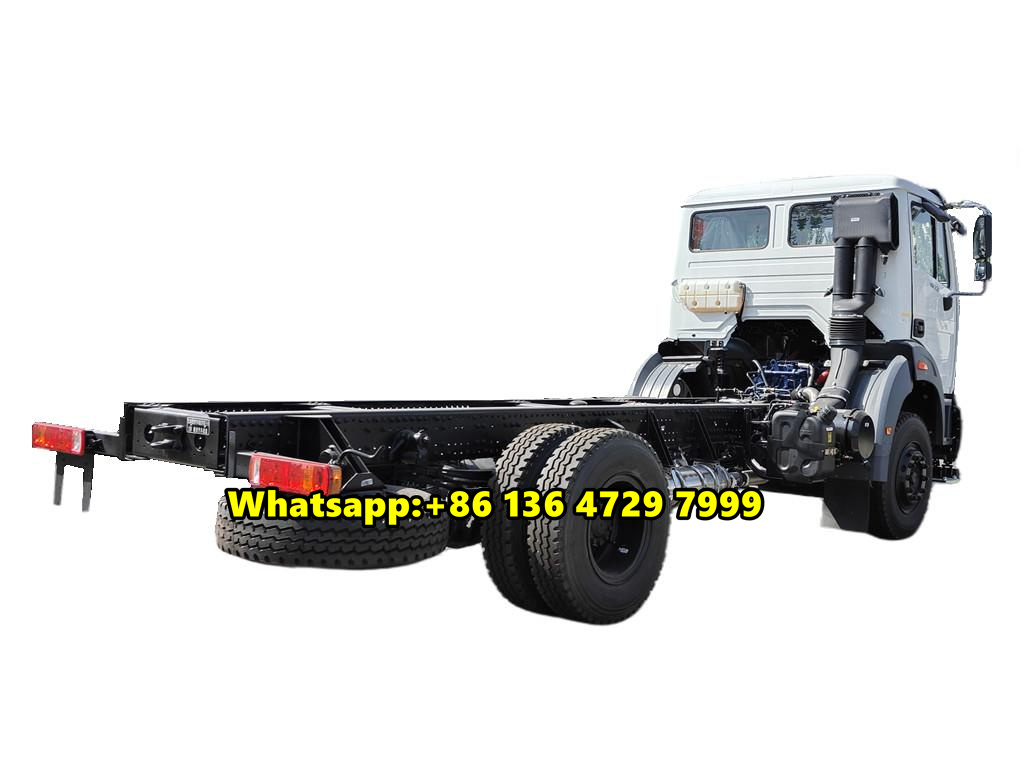

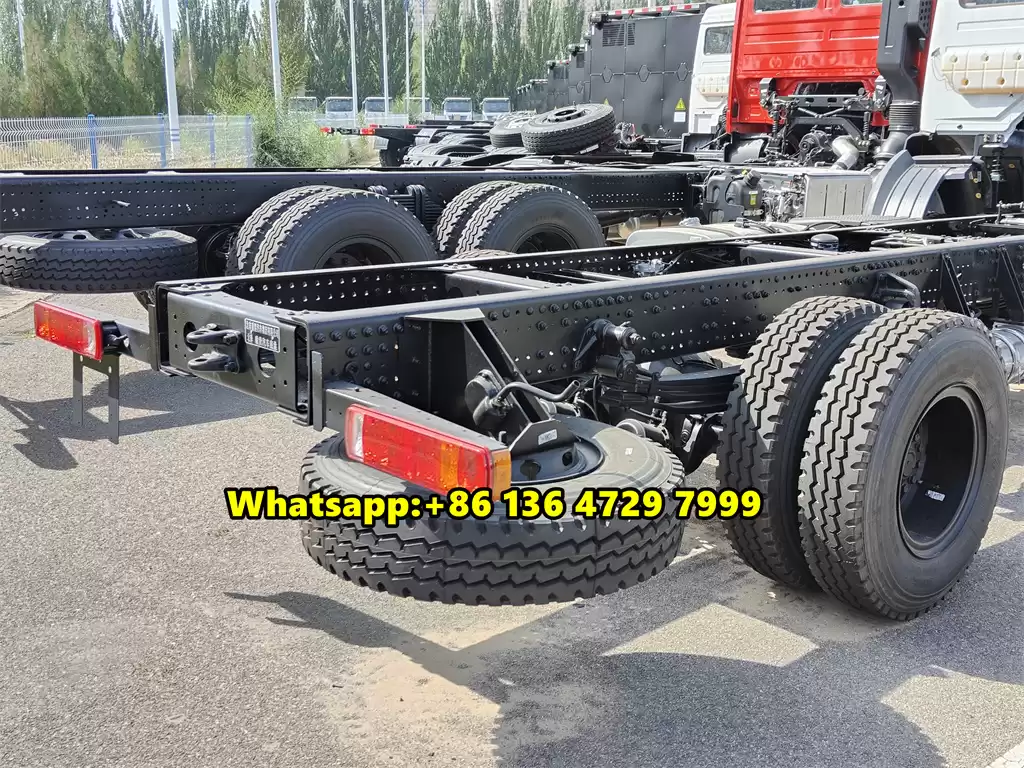

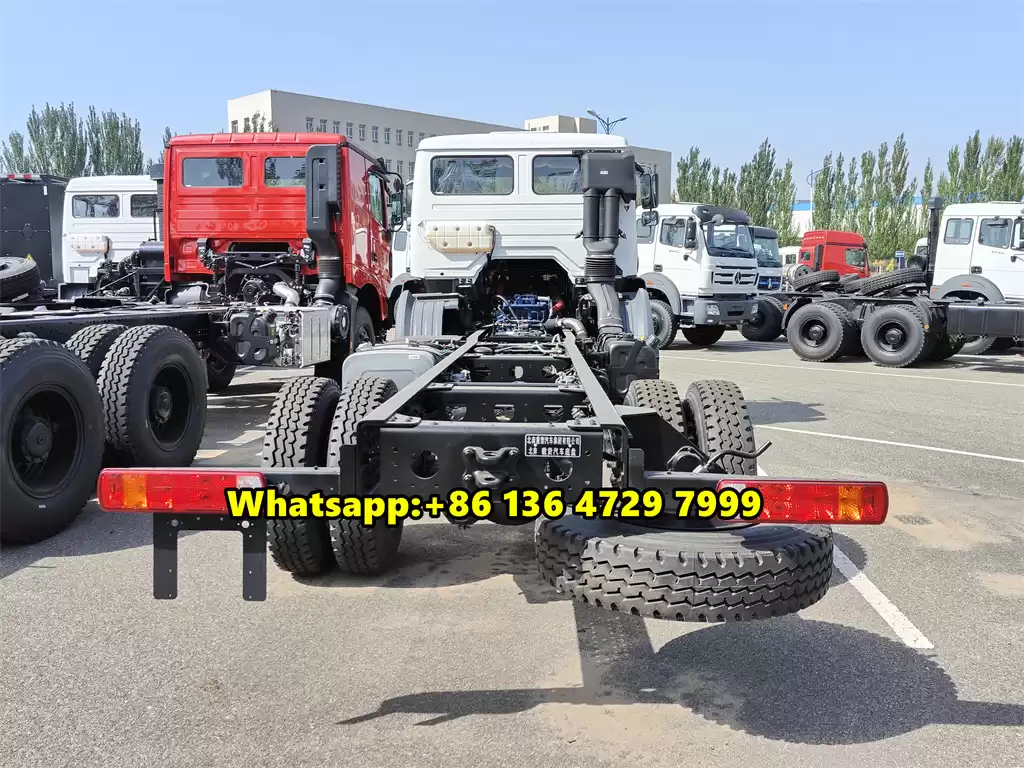

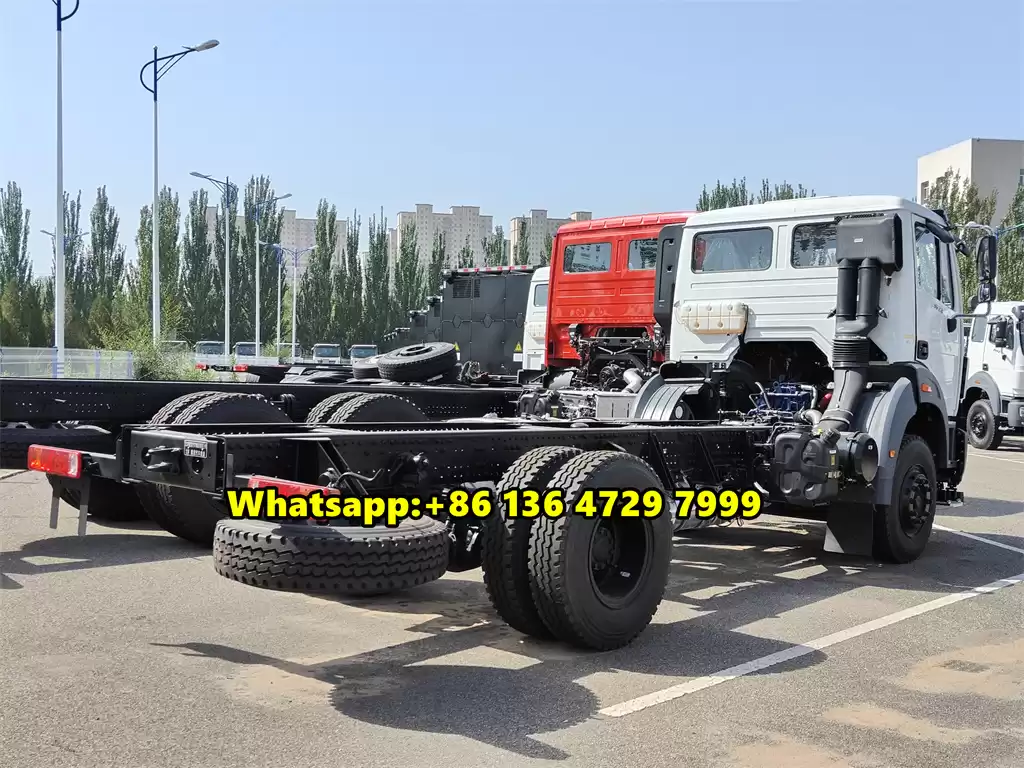

    Beiben cargo truck with Benz axles

Engine parameters

Engine Model:
Weichai WP10.220E32
Engine Brand:
Weichai
Engine Commonly Known By:
Weichai WP10
Number of cylinders:
6 cylinders
Fuel Type:
diesel fuel
Cylinder arrangement:
In-line
Displacement:
9.726L
Emission Standards:
China 3
Maximum output power:
220HP
Maximum horsepower:
220 hp
Maximum torque:
1390N·m
Maximum Torque Speed:
1200-1500RPM
Rated speed:
1900RPM
Engine type:
Water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercoolant

Container parameters

Cargo box form:
Steeplechase type
Cargo length:
6.23 meters
Cargo box width:
2.3 meters
Cargo box height:
0.6 meters

Cab parameters

Cab:
Flattened
Number of passengers:
2 people
Number of seats:
Row in half



Transmission parameters

Transmission model:
Fast 9JS150A
Transmission brand:
Fast Priest
Gear Shifting Method:
Manual
Forward gear:
9 gears
Number of reverses:
1 pc



fuel tank

Fuel Tank Material:
Aluminum alloy
Fuel Tank Capacity:
300L

Chassis parameters

Front axle description:
7 tons
Permissible load on the front axle:
6000KG
Rear axle description:
13 tons of double reduction bridge
Permissible load on rear axle:
10000KG
Ratio:
5.263
Number of springs:
10/8+6

tyre

Tire Specifications:
12.00R20
Number of tires:
6 pcs
Announcement Model:
ND2163E48J
Type:
Trucks
Drive type:
4X4
Wheelbase:
4800mm
Box length level:
6.2 meters
Motor:
Weichai WP10.300E40
Gearbox:
Fast 9JS150A
Rear axle ratio:
5.263
Body length:
8.82 meters
Body width:
2.5 meters
Vehicle Height:
3.34 meters
Front track:
1990mm
Rear track:
1800mm
Vehicle weight:
7.92 tons
Rated load:
7.95 tons
Total mass:
16 tons
Maximum speed:
90KM/h
Origin:
Shandong
Tonnage Class:
Heavy trucks
Driving license:
A1,A2,B2
Approach Angle:
32 degrees
Departure Corner:
23 degrees
Market Segments:
Transportation of building materials, transportation of agricultural and sideline products
Front/rear overhang:
1.41/2.61 meters
Fuel Type:
diesel fuel
