Beiben NG80 6x4 30tons Dump Truck for African Market

Cabin: Mercedes Benz short cab

Engine brand: Steyr (Weichai)

Engine model: WD615.44 320HP /340hp/360hp/380hp/400hp/420hp

Emission standard: EURO II

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Rated power (kw): 235

Displacement: 9.726 liters

Max. output: 320hp@2200rpm

Max torque: 1250NM@1400-1600rpm



Type: DUMP TRUCK

Brand: Beiben

 Traction type: 6X4 Driving type: LHD (RHD is option)

Cabin: Mercedes Benz short cab

Engine brand: Steyr (Weichai)

Engine model: WD615.44 320HP /340hp/360hp/380hp/400hp/420hp

Emission standard: EURO II

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Rated power (kw): 235

Displacement: 9.726 liters

Max. output: 320hp@2200rpm

Max torque: 1250NM@1400-1600rpm

Bore/Stroke(mm):126/130

Gear box: Model:5S-112GP (ZF Gear box)

Type: manual

Clutch: 430, Single dry frictional disc, hydraulic boosting

Steering: ZF8098

Tyre: 12.00-20 (bias tire) No. of tyre: 10+1spare

Front axle: Mercedes Benz Technology

 Rear axle: Mercedes Benz Technology

Wheel base (mm): 3800+1450

Dimension (mm): 8530×2500×3310

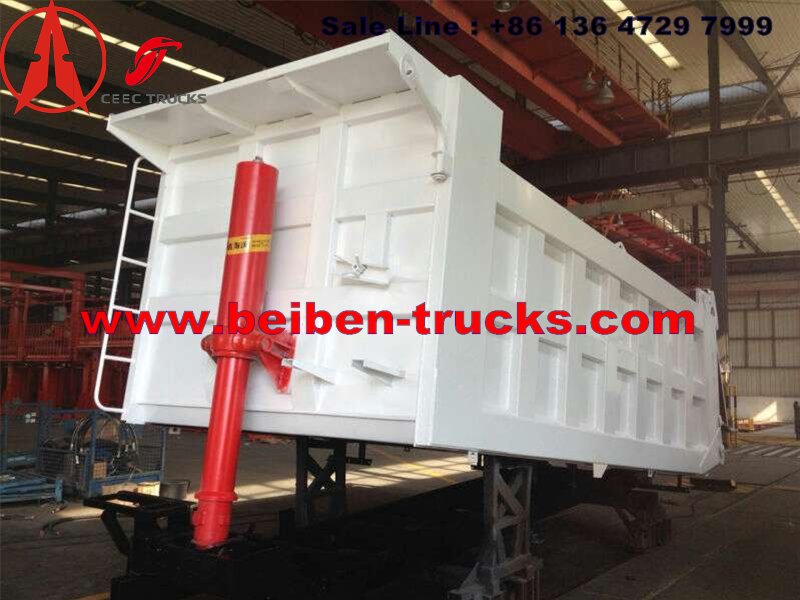

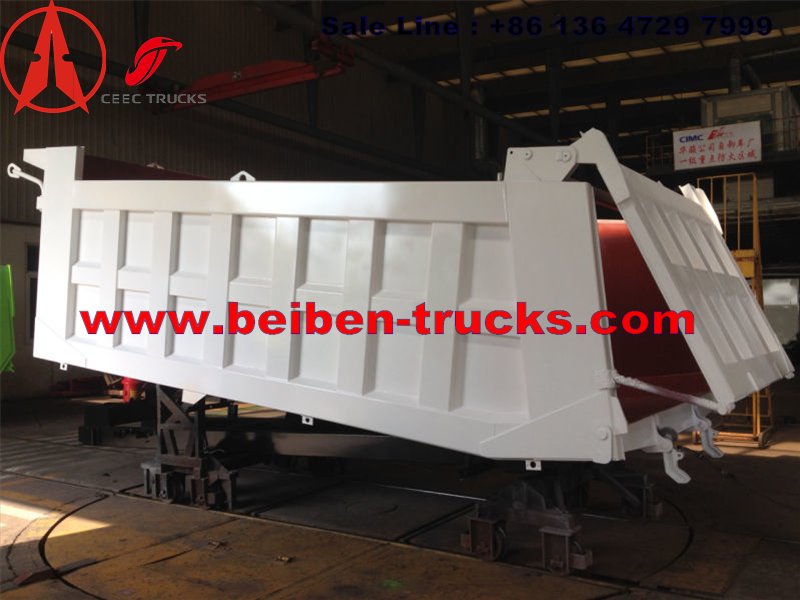

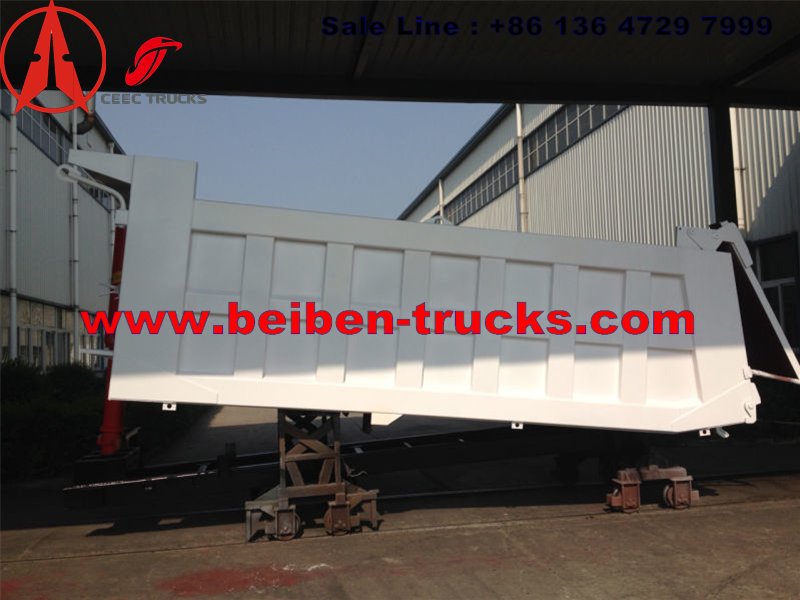

Body:

Inner size(mm): 5172x2300x1500

Capacity:17.84CBM

Thickness of body steel(mm): floor6mm side 4mm

Tipping type: Hydraulic tipping system----Middling tipping type

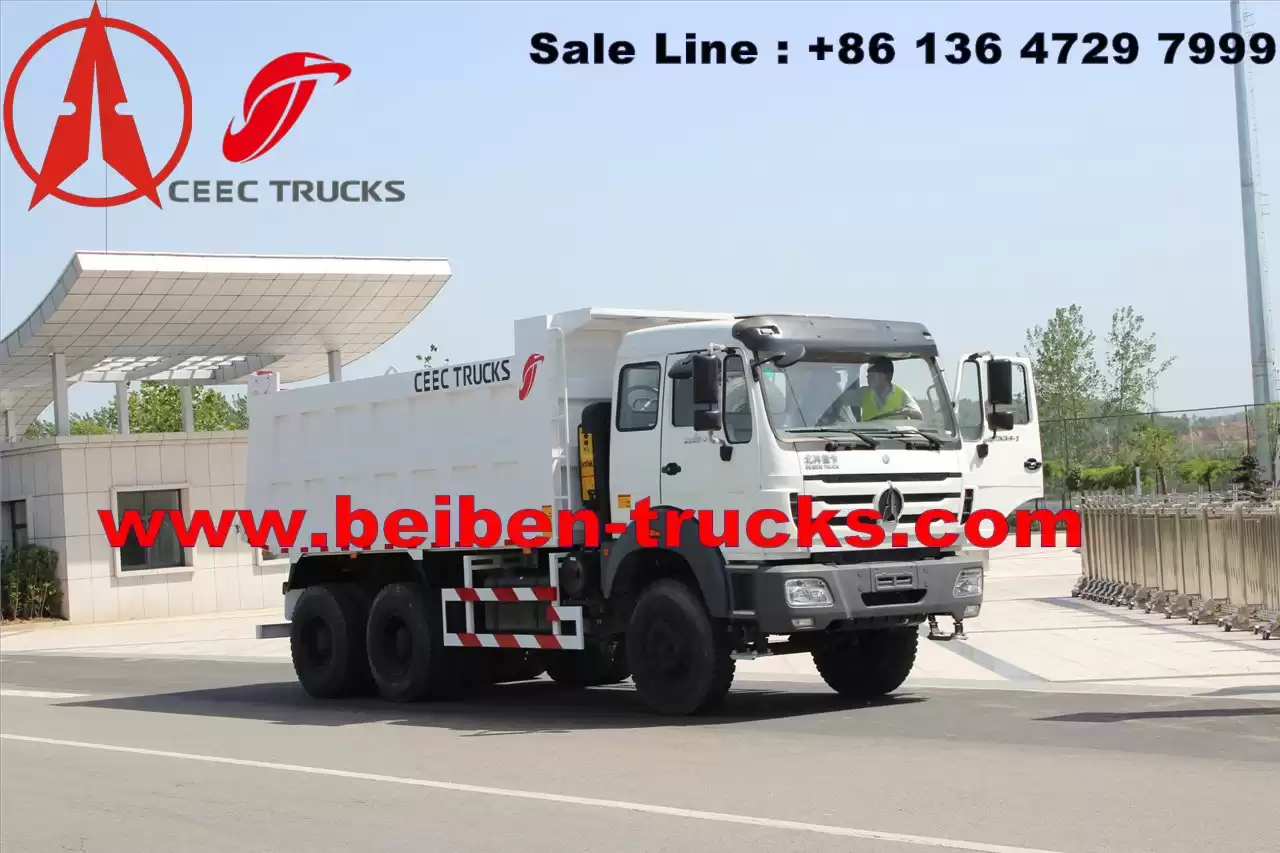

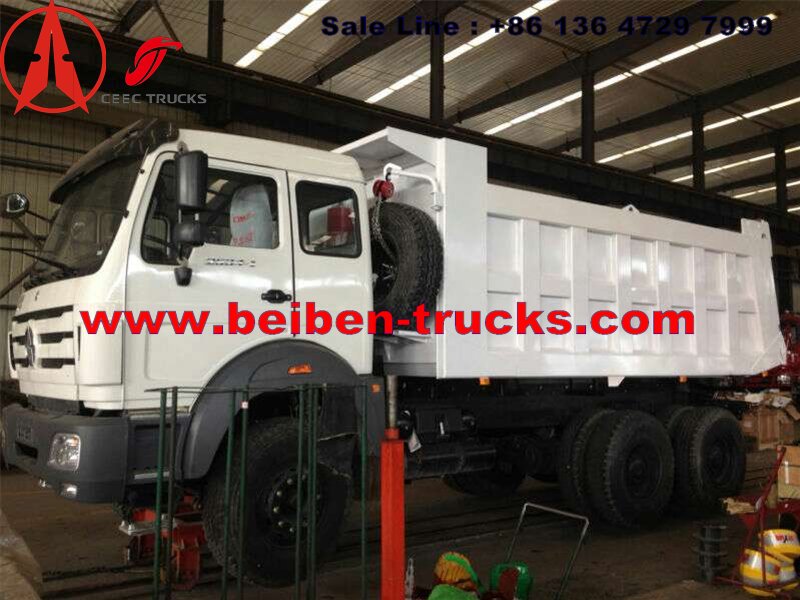

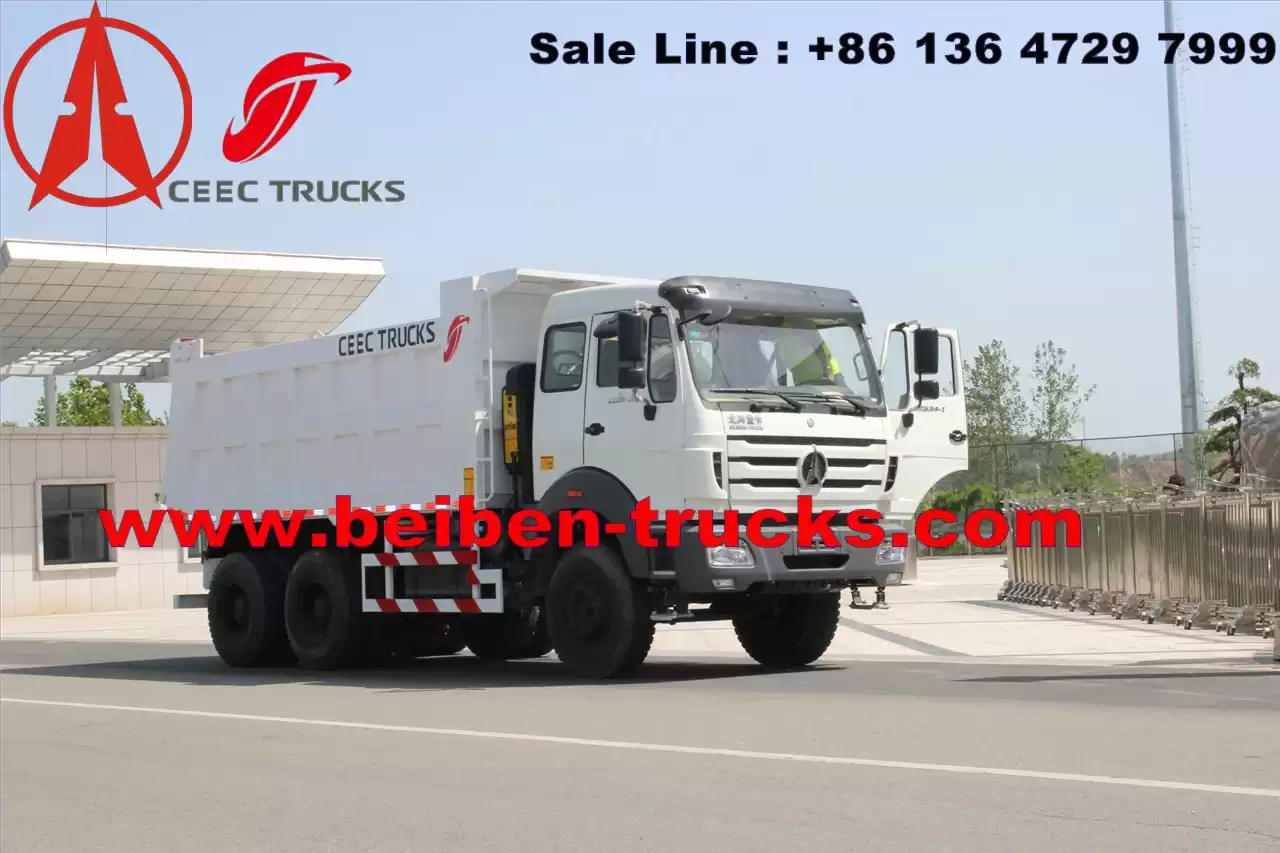

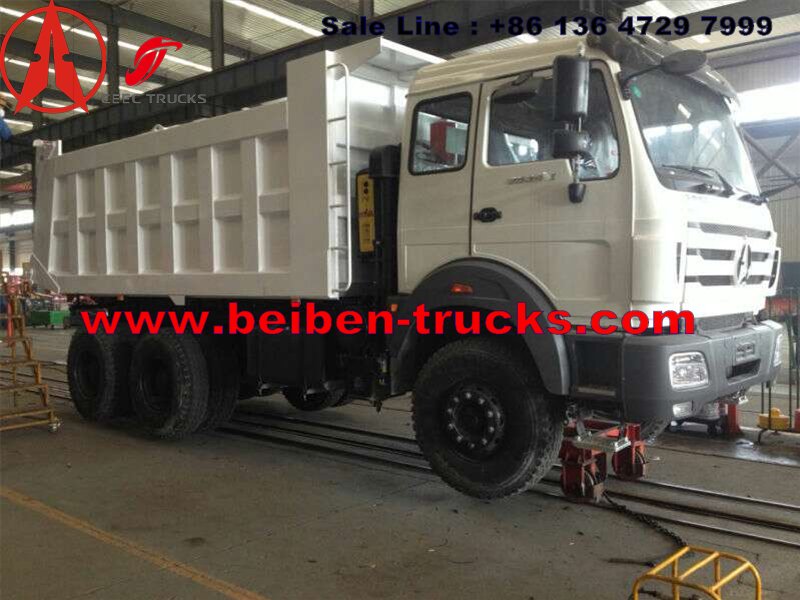

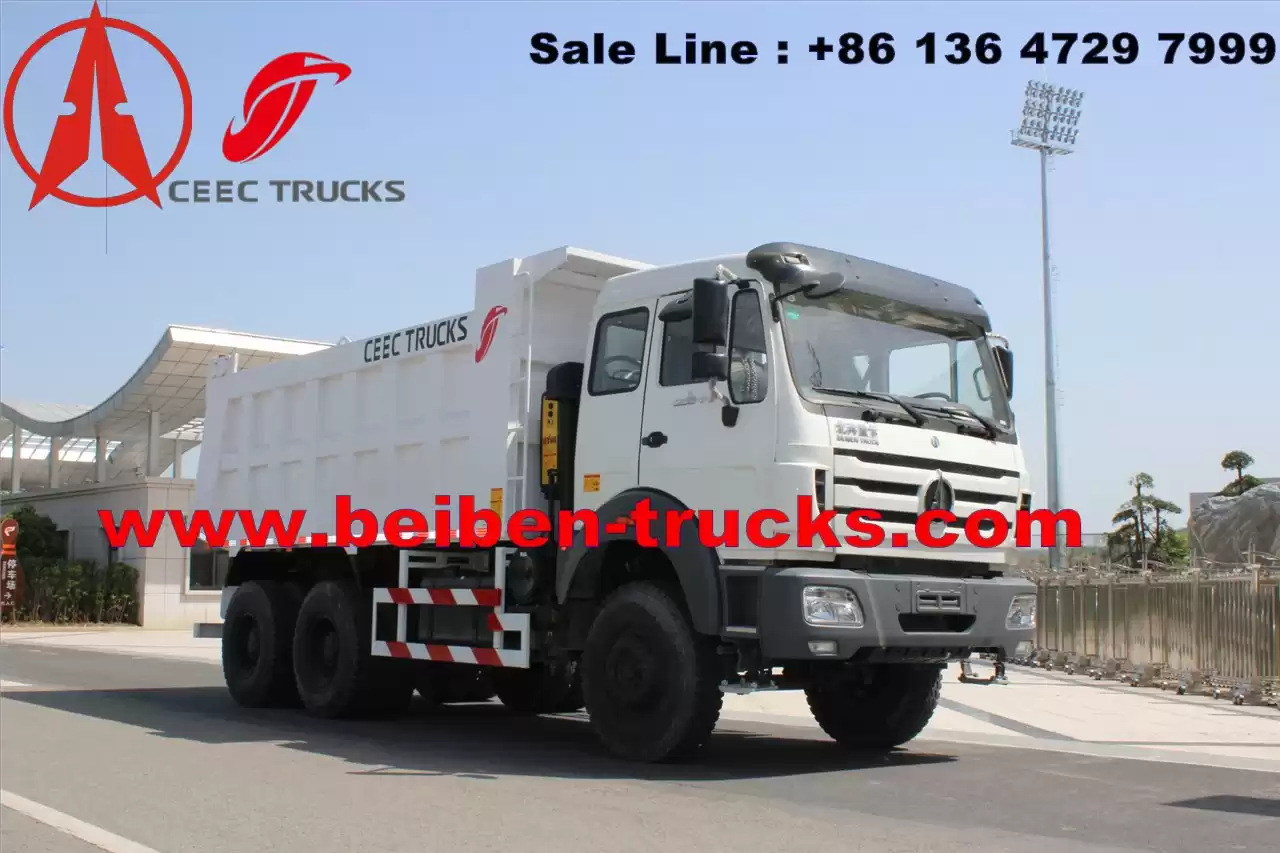

Beiben dump truck for africa congo

Beiben dump truck for africa congo

Beiben dump truck for africa congo

Beiben dump truck for africa congo
