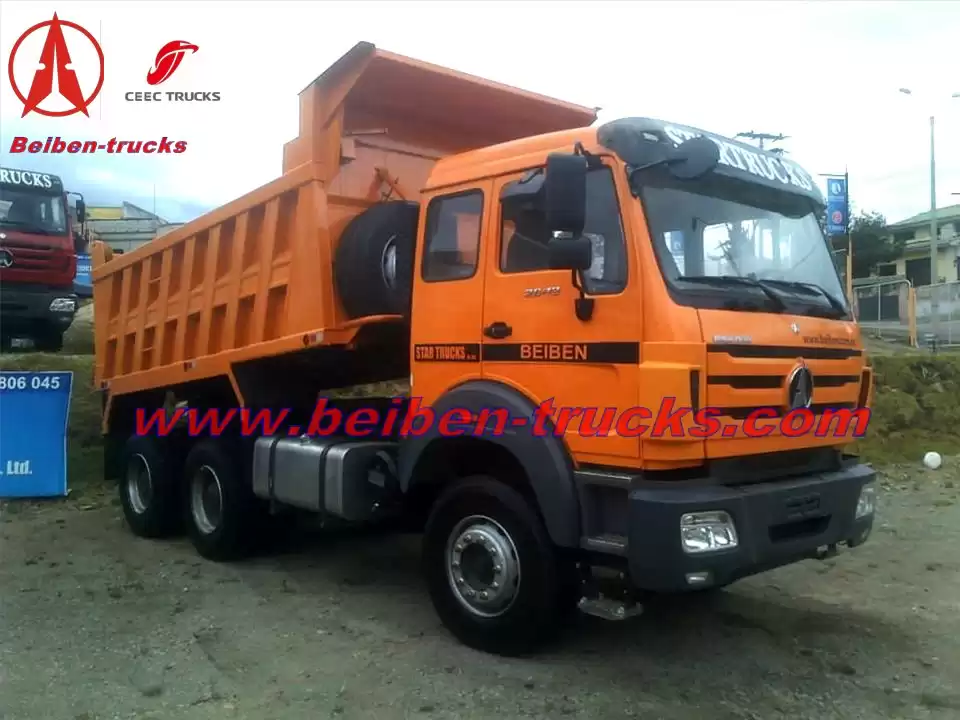

Beiben NG80 6x4 dump truck for congo
Beiben 6*4 Tipper Truck for Pointe noire, CONGO, we have branch in CONGO for beiben dump trucks business.
Beiben NG80B dump trucks
|
|
Traction type
|
LHD
|
Drive System
|
6×4
|
Cabin
|
NG80B Short Cabin, Air Conditioner ,no sleeper
|
Engine
|
Brand
|
WEICHAI
|
Model
|
WP10.340E32 EURIII
|
Rated power
|
340hp
|
Engine displacement
|
9.726 liters
|
Gearbox
|
FAST 9 Speeds (9JS150A)
|
Clutch
|
430 Diaphragm type
|
Steering
|
ZJ120D
|
Axle
|
Front
|
BEIEBN 7.5 Ton
|
Rear
|
BEIBEN 13 Ton double reduction axle, ratio:5.921
|
Max. running speed (km/h)
|
80
|
Tire
|
12.00R20
|
Spring
|
10/13
|
Fuel tank
|
300L
|
Kerb weight (kg)
|
12400
|
Total mass (kg)
|
25000
|
Wheel base (mm)
|
3800+1350
|
Overhang (mm) (front/rear)
|
1410/ 1870
|
Track (mm) (front/rear)
|
1995/1800
|
Approach / departure angle(°)
|
26/32
|
Dimensions(L*W*H)(mm)
|
Overall
|
8330x2500x3430
|
Dump body
|
5600x2300x1500
|
Thickness (mm)
|
Bottom 8 , front 6mm,side 4
|
Hydraulic lifting system
|
Middle lifting(Made in China)
|
