Beiben NG80B fuel tanker truck with 2638 model
Applications:
The Beiben 20 cbm oil fuel truck is a type of tanker truck used for the transportation of various types of fuel, including gasoline, diesel, and kerosene. It has a capacity of 20 cubic meters and is commonly used for long-distance transportation of fuel to gas stations, airports, and other industries that require large quantities of fuel. The Beiben 20 cbm fuel oil truck is built with a durable tank that can withstand the corrosive nature of petroleum products and has a pumping system that makes it easy to offload the fuel at the destination.
The tank of Beiben 20 m³ fuel truck is typically made of high-quality steel or aluminum and is equipped with multiple chambers for the storage and transportation of different types of fuel. The tank is also equipped with an advanced pumping system that allows for the efficient and safe delivery of fuel to various locations.
Other features of Beiben 20 m³ fuel truck may include a digital metering system that allows the operator to accurately measure the amount of fuel being delivered, a safety valve and emergency shut off switch that can be activated in case of an accident or spill, and an electronic monitoring system that alerts the operator to any potential problems or malfunctions.
Beiben Fuel trucks are used primarily by oil companies, fuel distributors, and other commercial enterprises that require large amounts of fuel for their operations. They are also used by governments and emergency response agencies in disaster situations, where they play a vital role in keeping emergency generators and other critical infrastructure runnin
Key Features:
---- Famous beiben NG80B cabin, super reliable
---- Patented fuel tanker upper structure, safety.
---- Strong oil gear pump, 50,000 hours working.
---- heavy duty suspension system, benz axle.
---- Military Germany mercedes benz technology controlling system.
Specifications:
|
beiben 2638 fuel tanker truck
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
beiben 2638
|
|

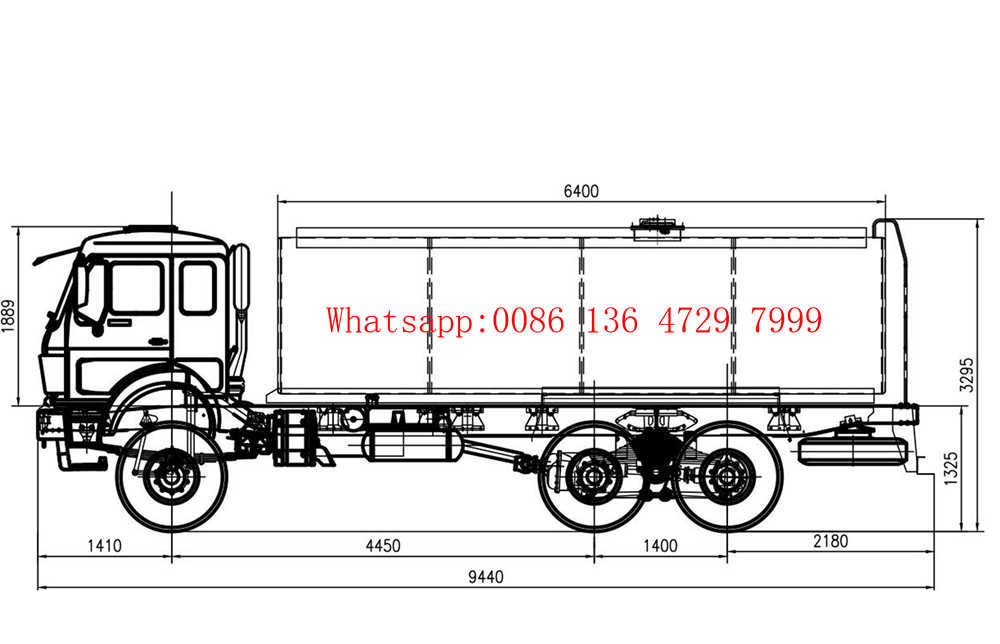

Overall Dimension
|
9800 * 2500 * 3050 mm
|
|
GVW / Kerb Weight
|
25,000kg / 12,000kg
|
|
Cab
|
Cab Capacity
|
2+1 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI
|
|
Power
|
380 HP (275 KW)
|
|
Displacement
|
9726 ml
|
|
Emission Standard
|
Euro 3
|
|
Chassis
|
Drive Type
|
6X4
|
|
Transmission
|
FAST 9 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4450+1450 mm / 3
|
|
Tire Specification
|
12.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Tank Capacity
|
20,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 5mm
|
|
Body Material
|
Whether resisting steel
|
|
Fuel pump
|
Fuel pump equipped for overhead delivery |
|
Loading type
|
Self loading
|
|
Tank thickness
|
5 mm
|
|
Cover thickness
|
5 mm
|
|
Hose
|
High quality, wire strengthened hose,
with cooper wire, anti-static |
|
Tank cover
|
China famous
|
|
Control
|
Manual (Optional air operated)
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
** It can be divided into many compartments.
** Imported American pump as optional.
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
|

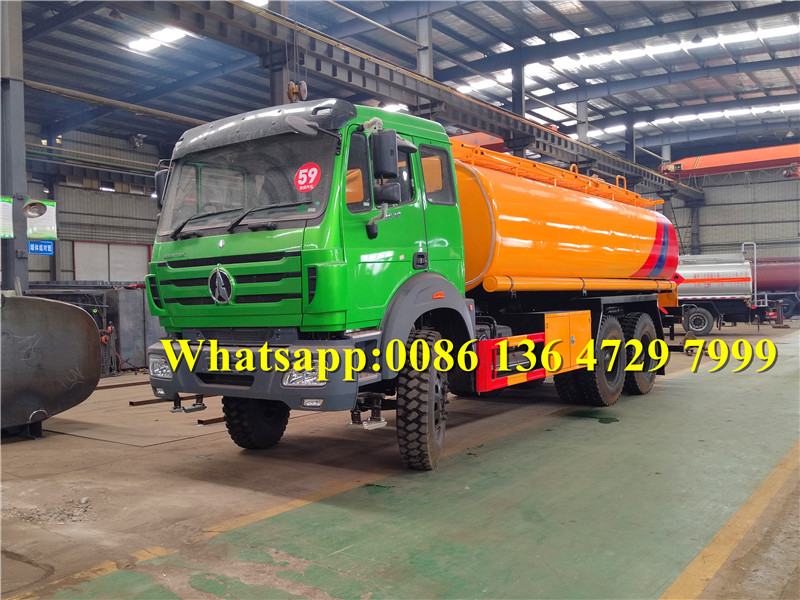

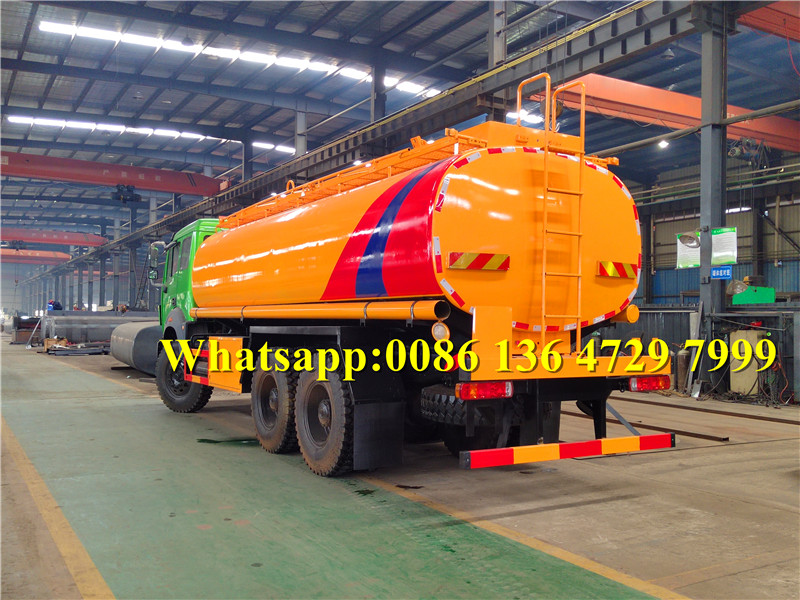

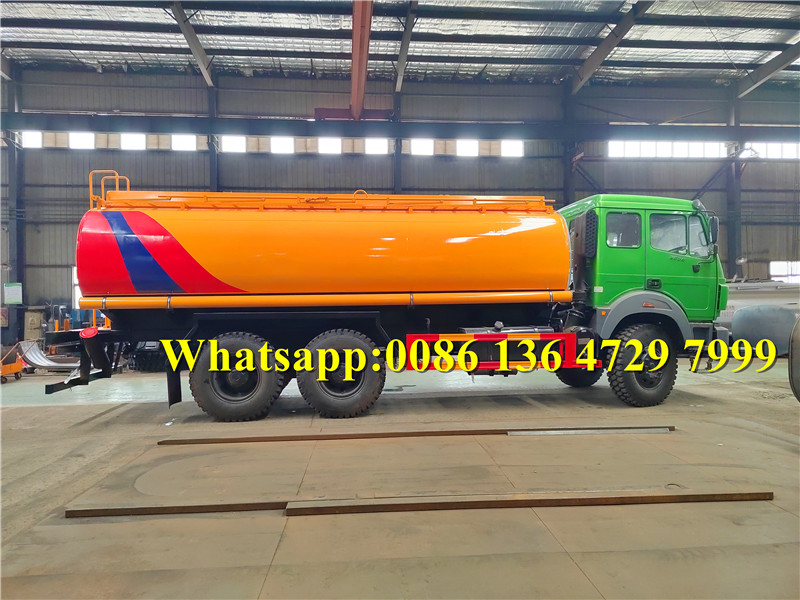

Beiben 2638 fuel tanker truck
Beiben 2638 fuel tanker truck
