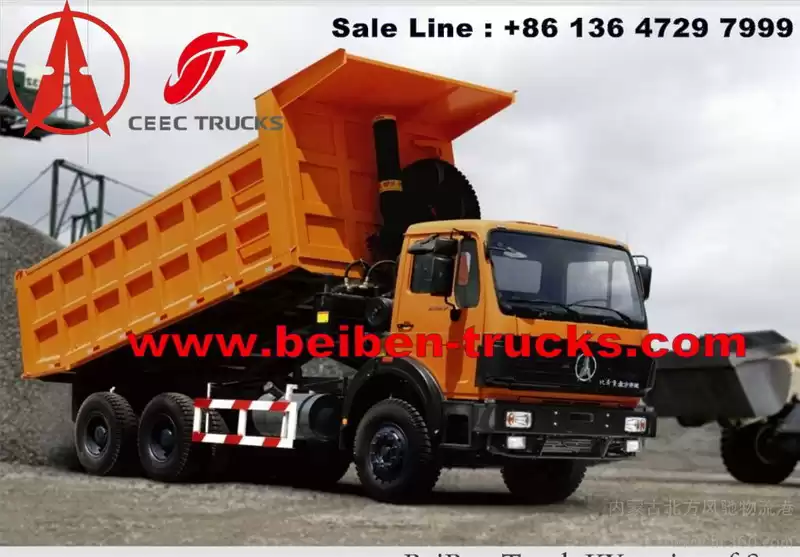

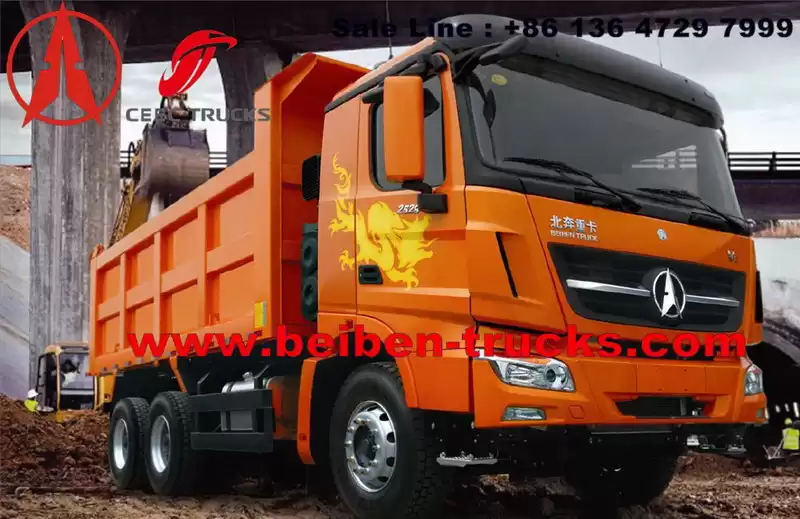

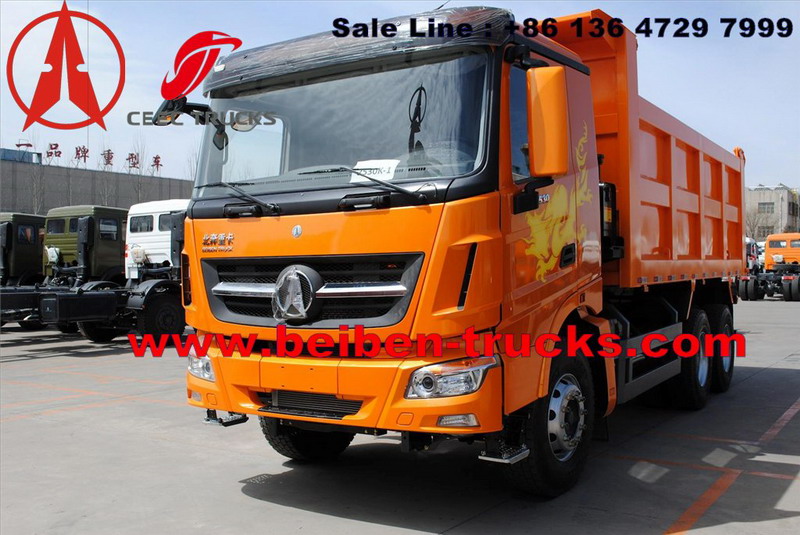

Beiben North benz NG80B 6X4 dump truck 10 wheels 25T 30T 18cbm 20cbm dump tipper trucks

Model

ND3259B38

Traction type

6X4

Driving type

LHD

Driver's cab

Long cabin, single sleepers with A/C

Dimensions in (mm)

Wheel base(mm):  3800+1450

Overall size(mm):  8350x2500x3430

Bucket size(mm):  5600x2300x1400

Thickness of bucket(mm):  floor 8mm,side & back 4mm

Dump box tipping

Middle tipping system

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: WP10.380E32

Emission Standard: EUROIII EGR

Maximum output: 380HP /2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

Fuller 12JS200T(12 speeds)

Steering

ZF8098

Front Axle

Benz front axle 7.5 ton

Rear Axle

Benz strengthened type 13T, double reduction drive axle

Ratio: 5.921

Spring

10/13

Types

12.00R20 Radial tyre

No. of tyre

10+1(spare)

Fuel tank

300L

Electrics

Operating voltage: 24V, negative grounded

Weight in kg

Kerb weight  12220kg

Total mass   25000kg

Performance

Maximum driving speed(km/h) 80
