Beiben RHD 2529 Dumper truck

Beiben 30T tipper truck , North benz 2529 dumper truck chassis, weichai WP10.290 engine, FAST 9-shift manual gearbox, nice performance,high strength carbon steel Q345 material dumper cargo



The best north benz RHD dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 right driving dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 2534 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaiable .

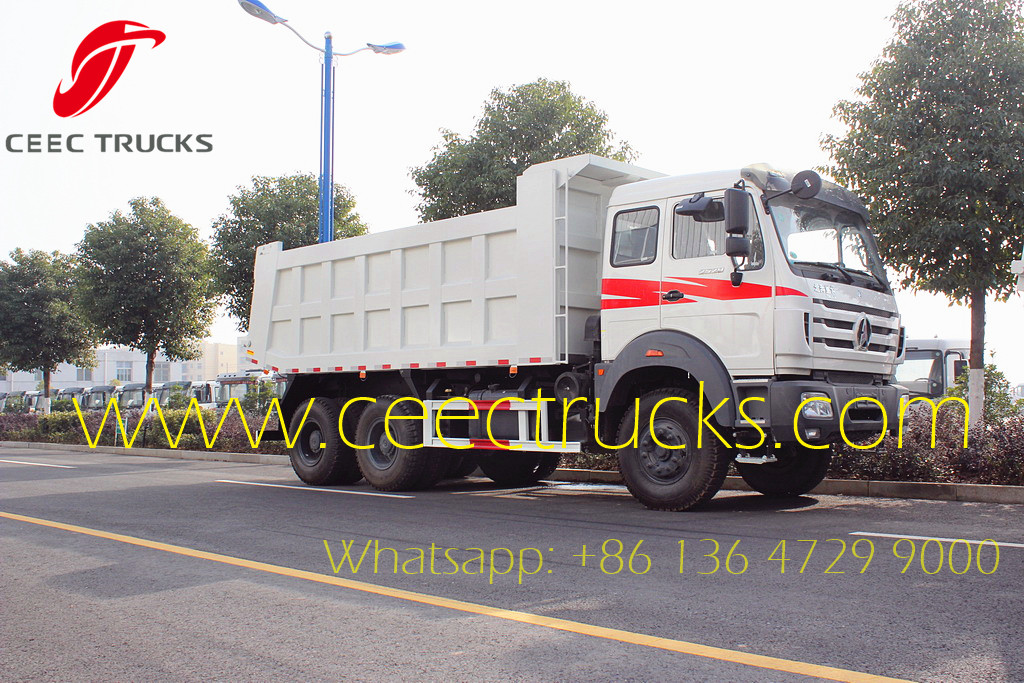

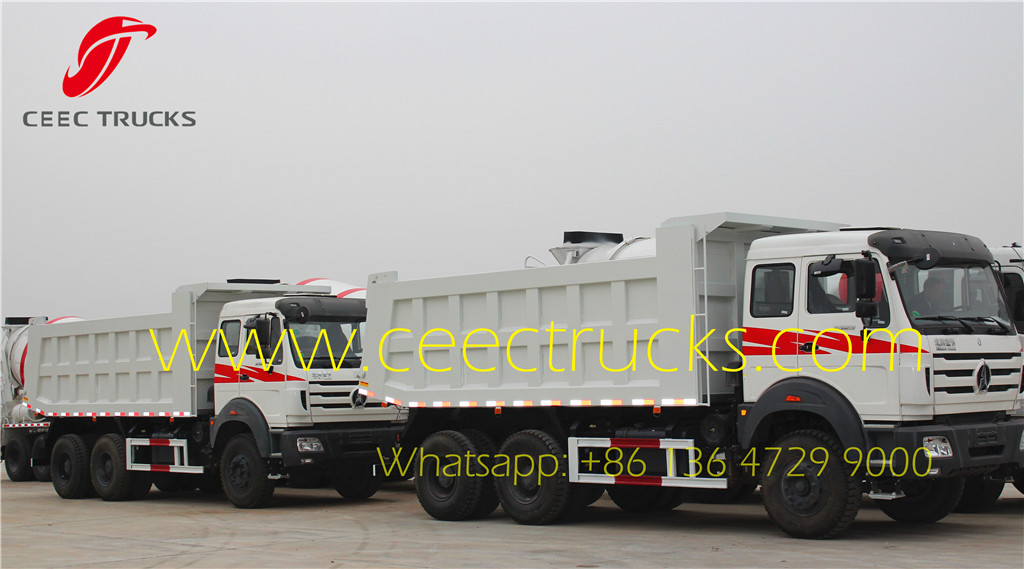

Beiben RHD 2529 dumper truck export Congo DRC

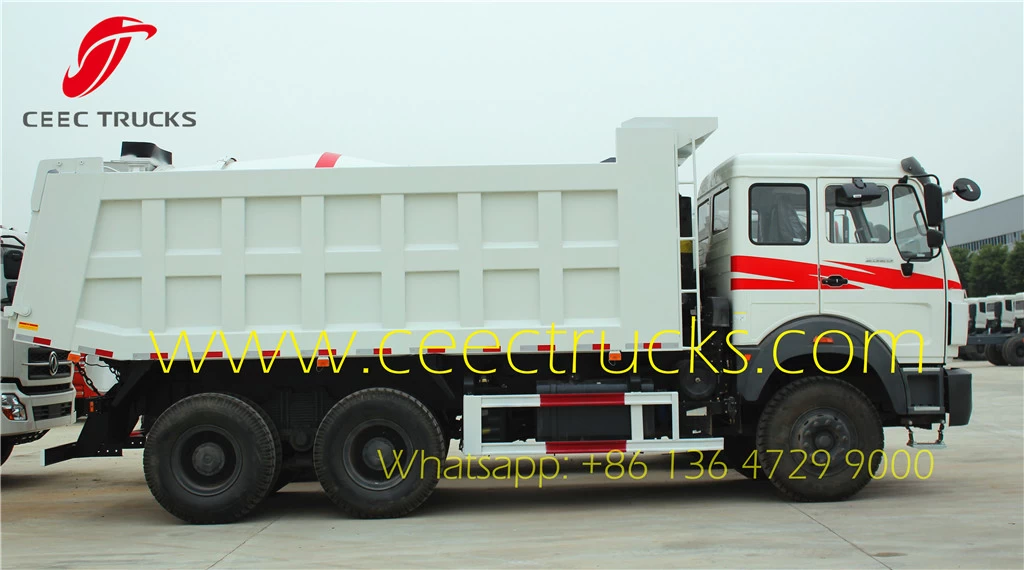

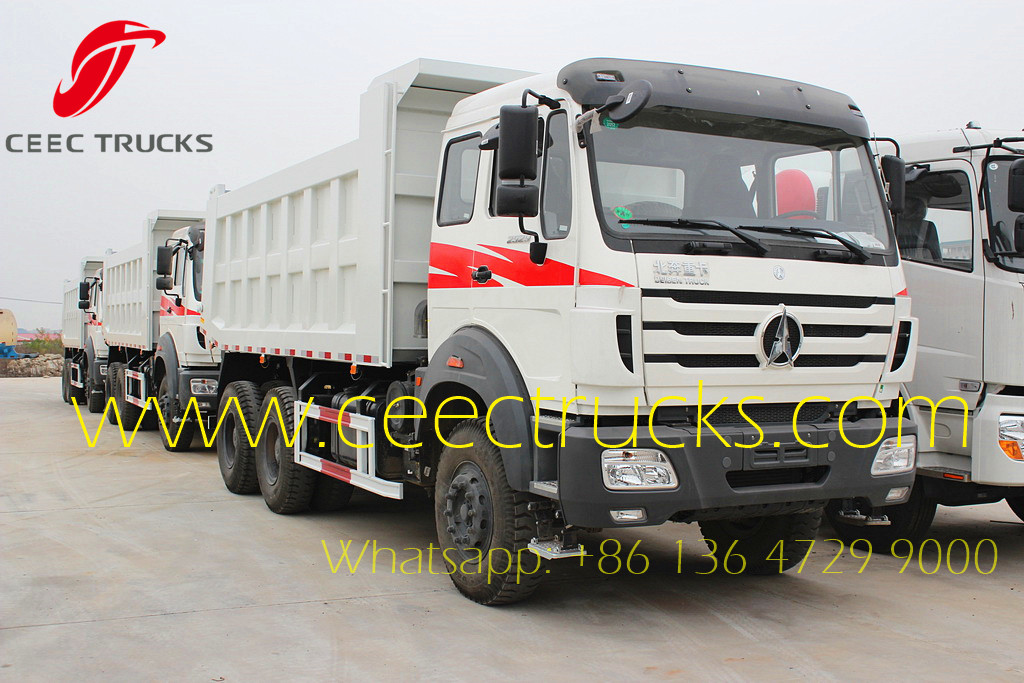

Beiben RHD tipper truck

Beiben RHD dumper trucks are special designed right side steering tipper trucks, which use strong Q345 or Q550 material dumper body, and body shape can be standard body, U-shape body,  mining rock body, side tilting body etc. Our beiben RHD 2529, 2534, 2538, 2542 dumper trucks mainly export Asia Maidives, Pakistan, SriLanka; Africa Kenya, Mauritius, Mozambique, Tanzania, Zambia; South America St Lucia, Trinidad and Tobago, etc.

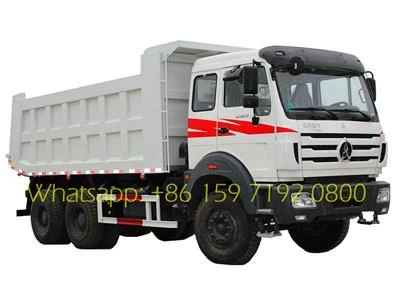

beiben 12 wheeler dumper truck



Advantages for Beiben RHD 2529, 2534, 2538 dumper truck:

â—† Beiben RHD dump truck chassis, also named Germany BENZ technology dumper chassis with high durability and reliability
â—† Weichai diesel engine super powerful can be 380HP. combined with original Benz rear axle reducer gear and differential gear
â—† Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
â—† Enhanced dumper body, and the motherboard adopts variable cross-section beams.
â—† Special beiben Dump Body Design are optional

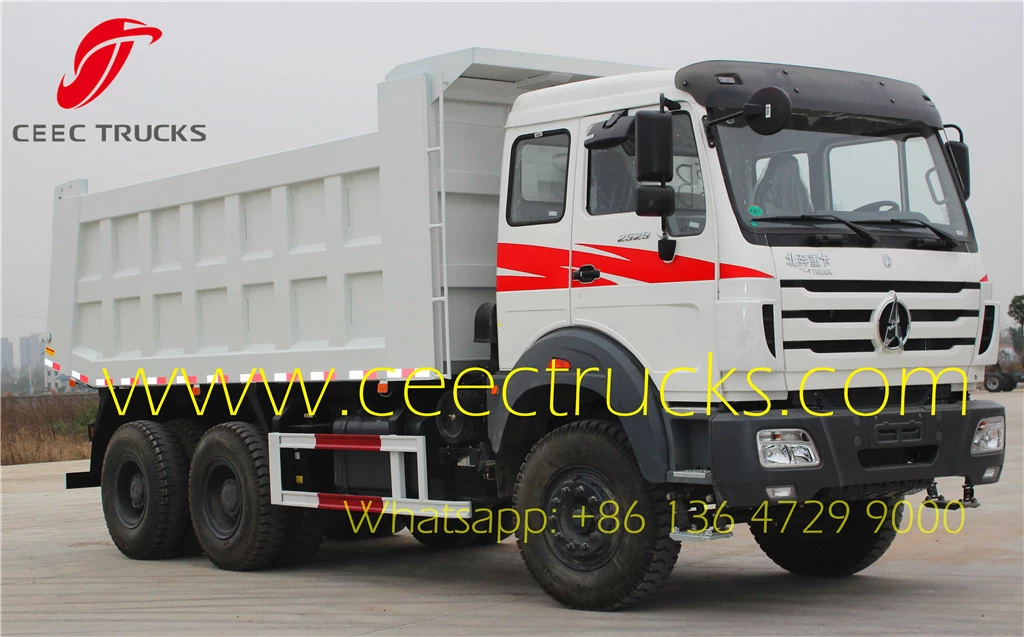

beiben 2538 dumper truck

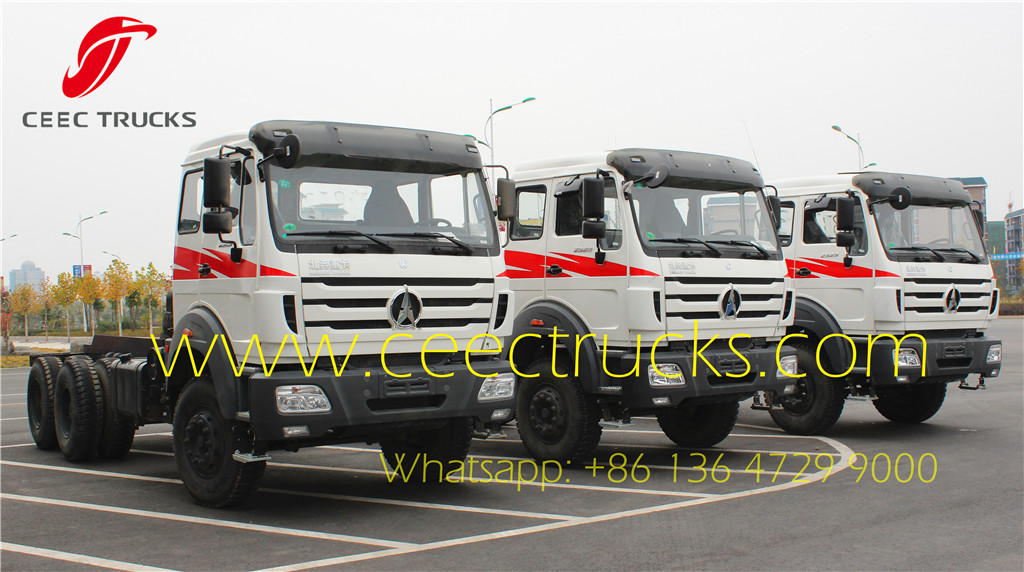

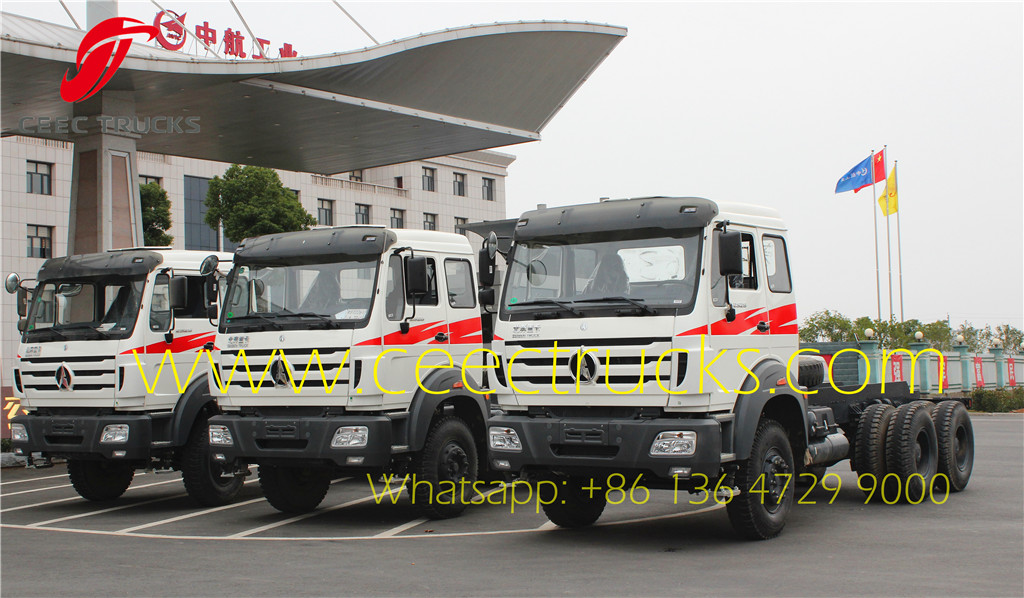

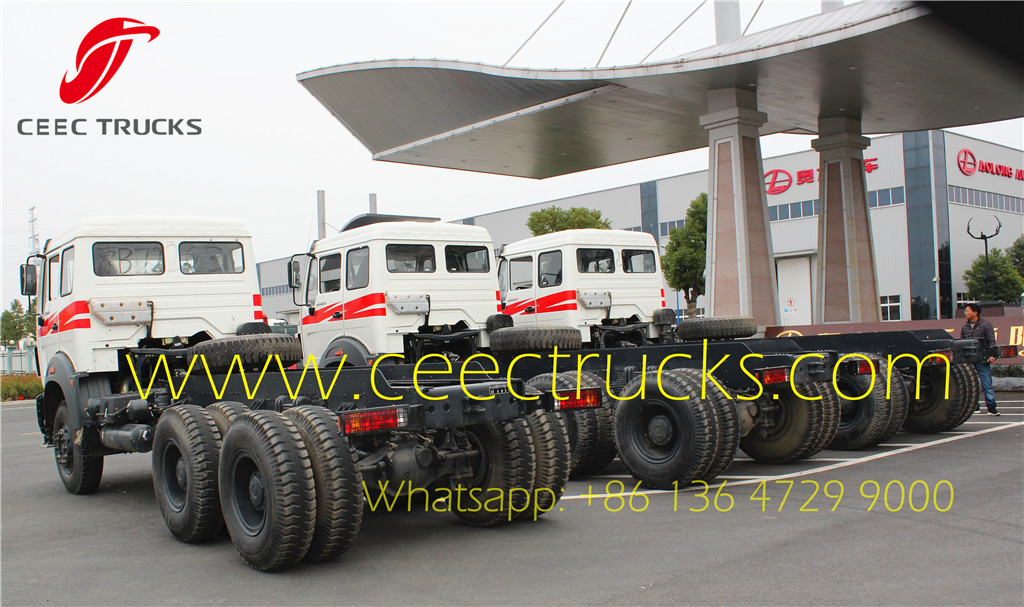

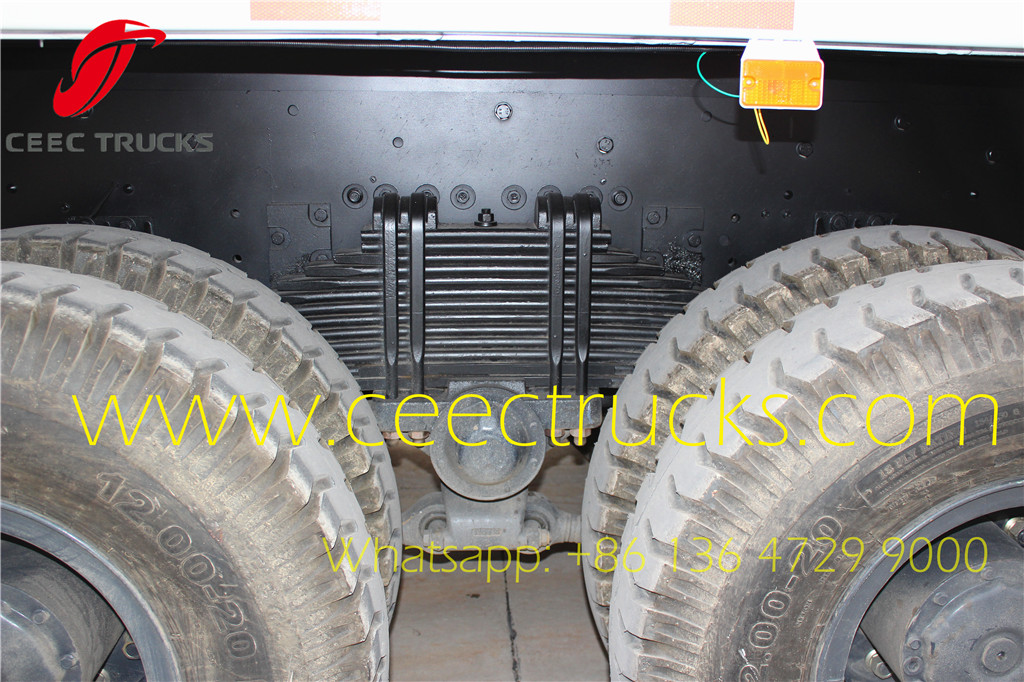

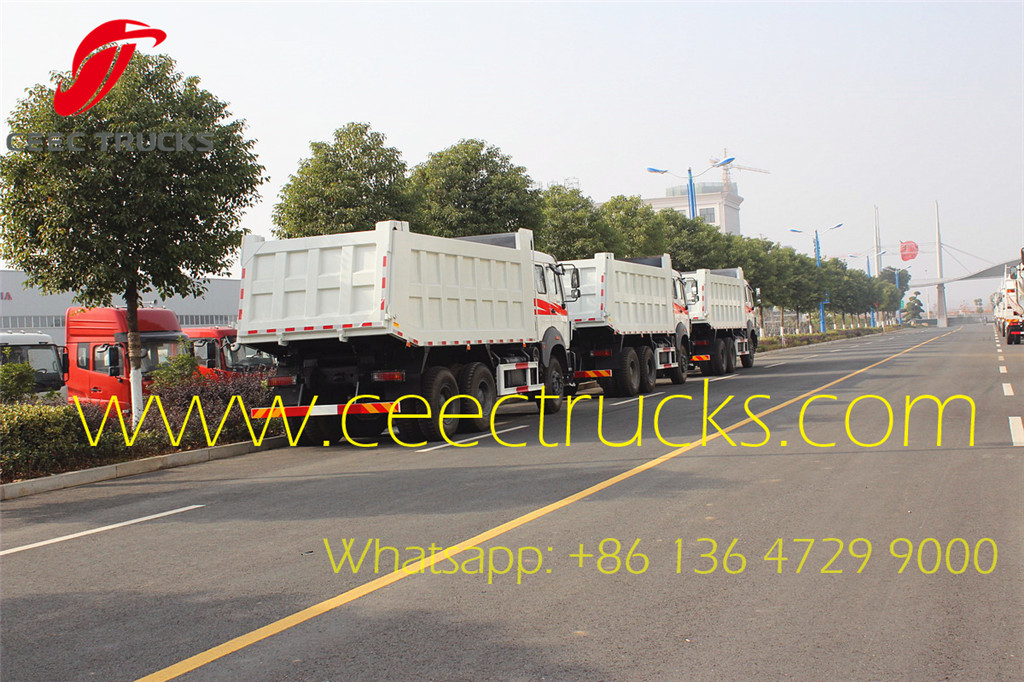

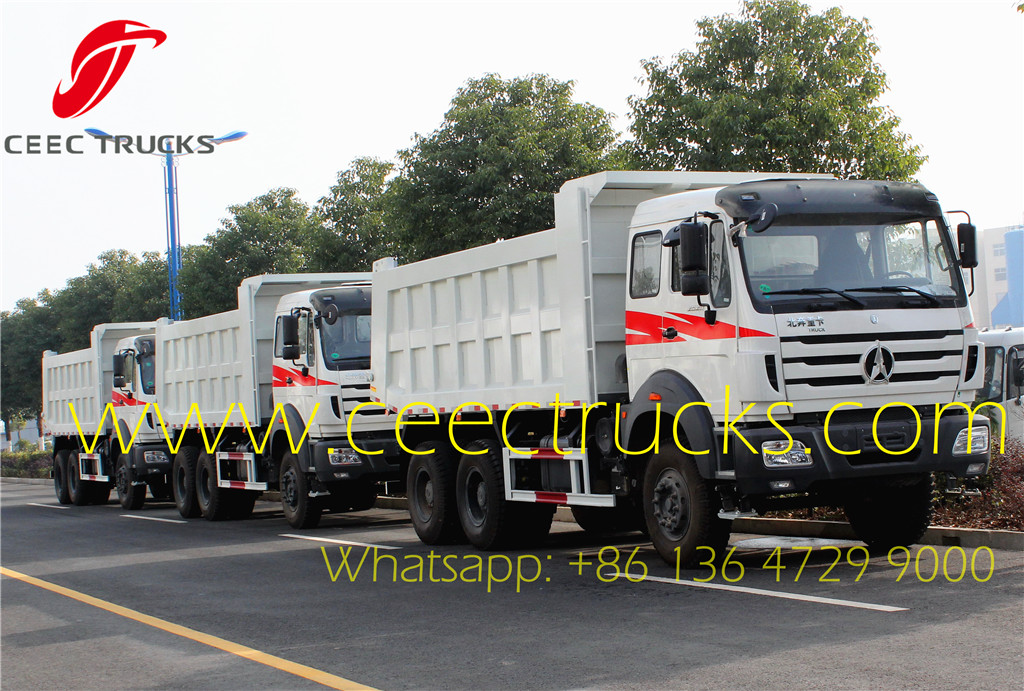

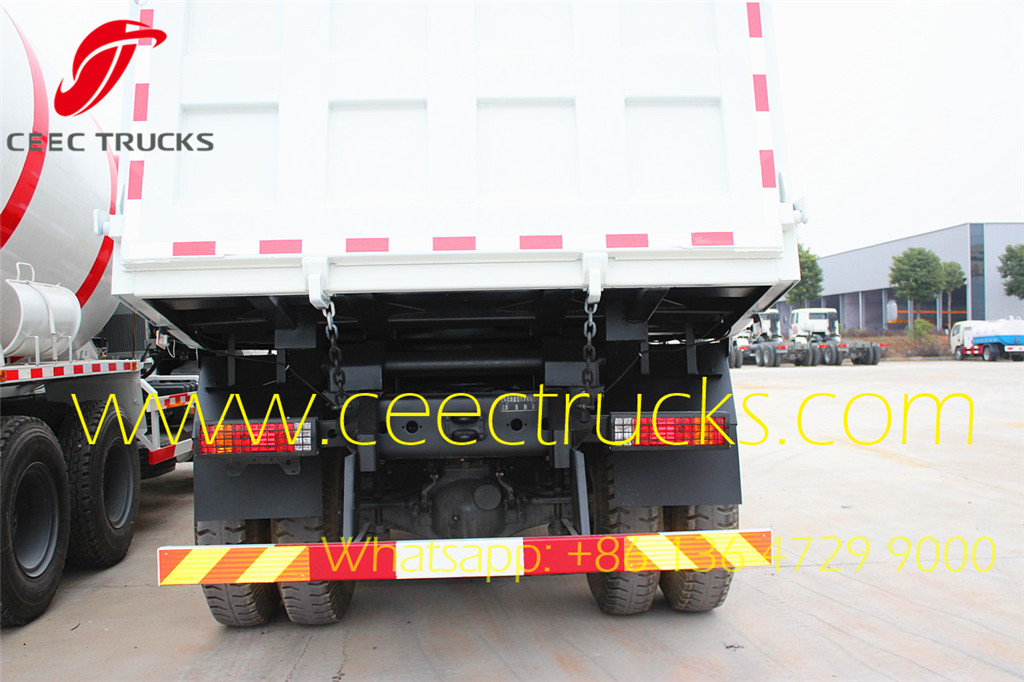

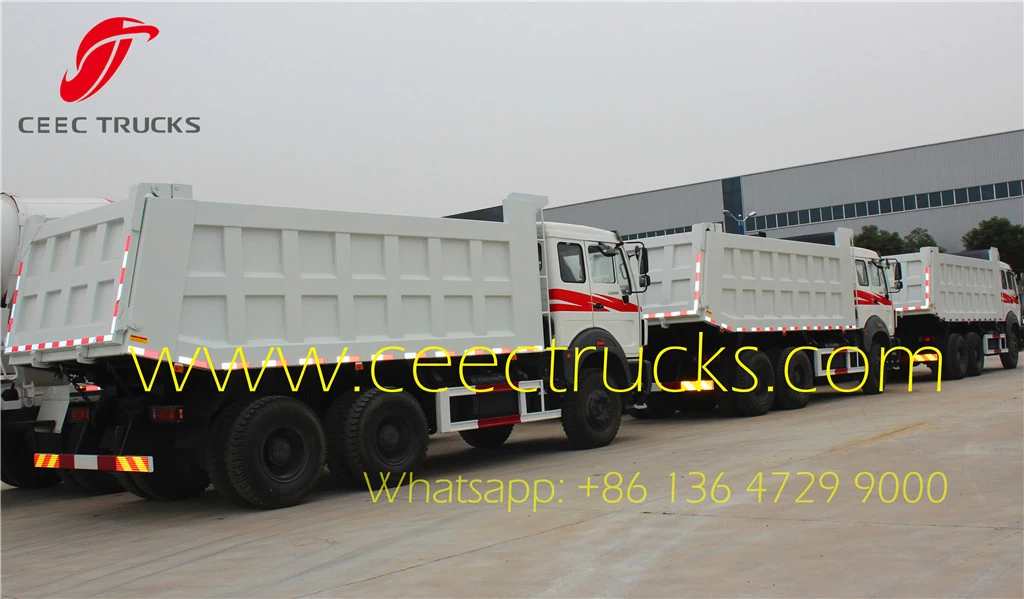

Previous Congo customer build success case for Beiben RHD 2529 tipper truck:

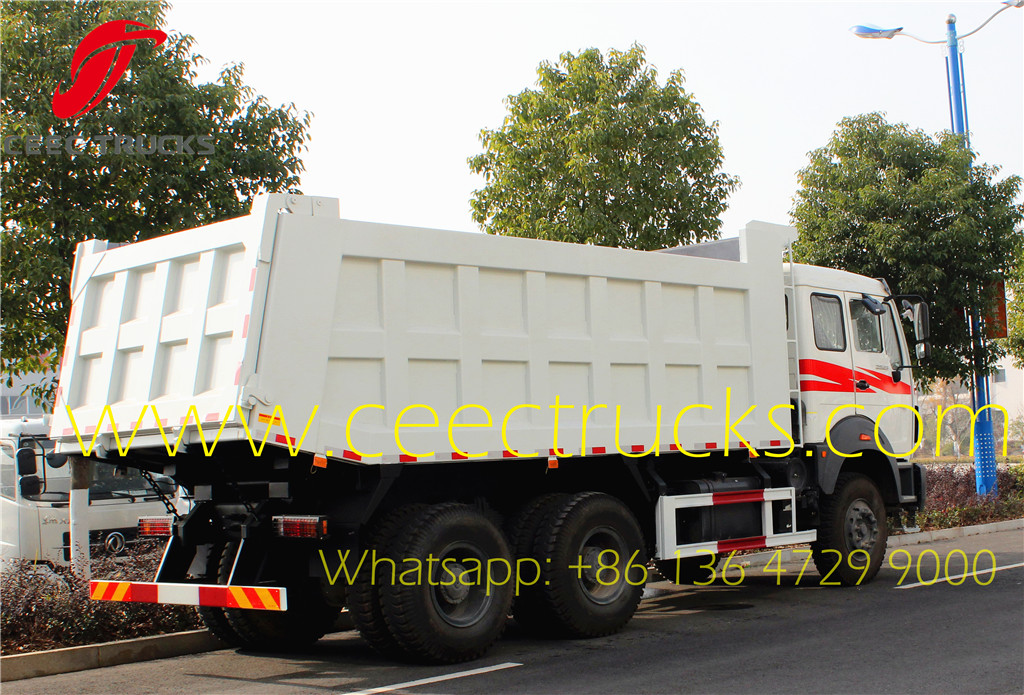

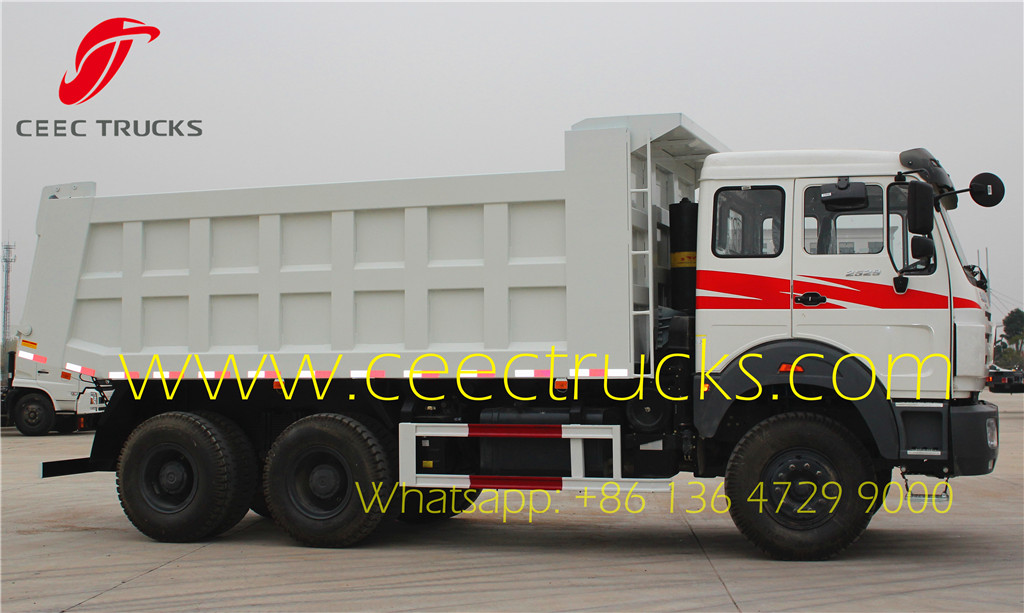

Beiben RHD 2529 dumper truck

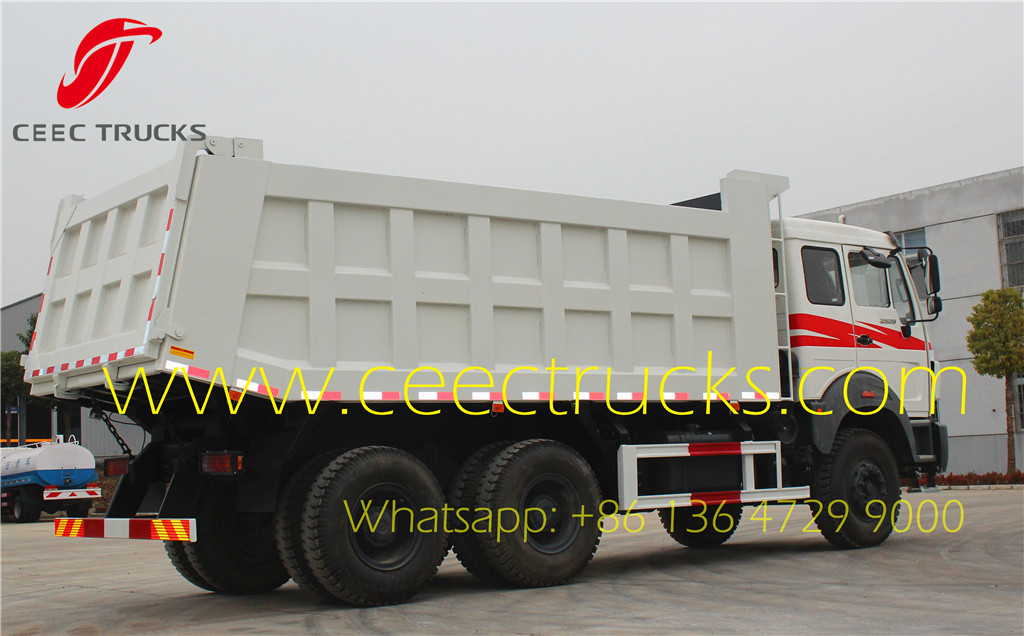

Beiben RHD 2529 dumper truck

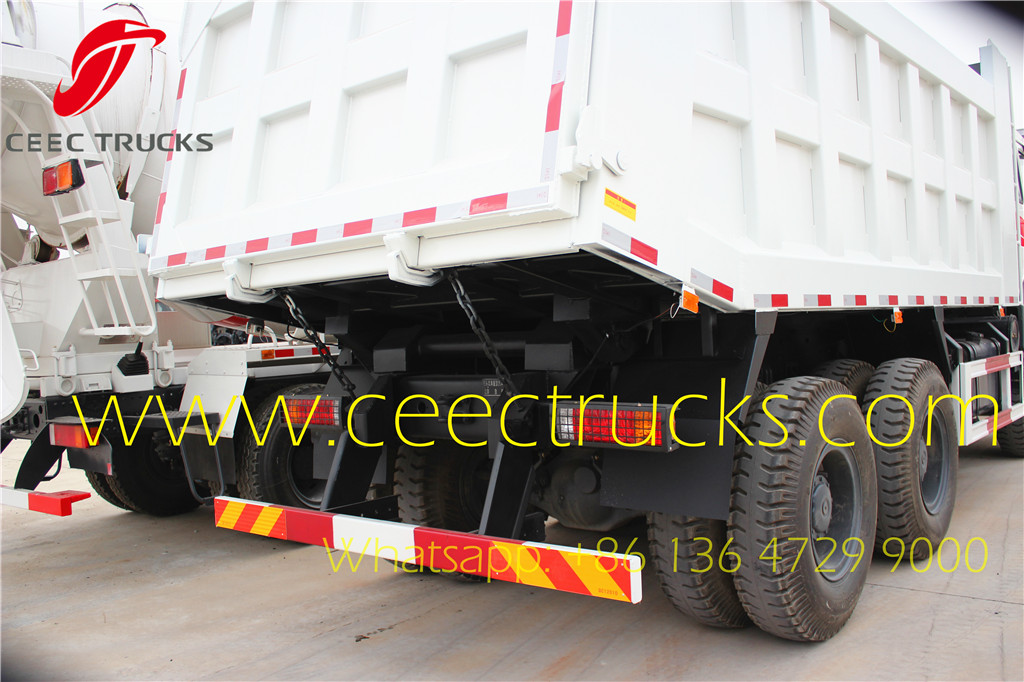

Beiben RHD 2529 dumper truck

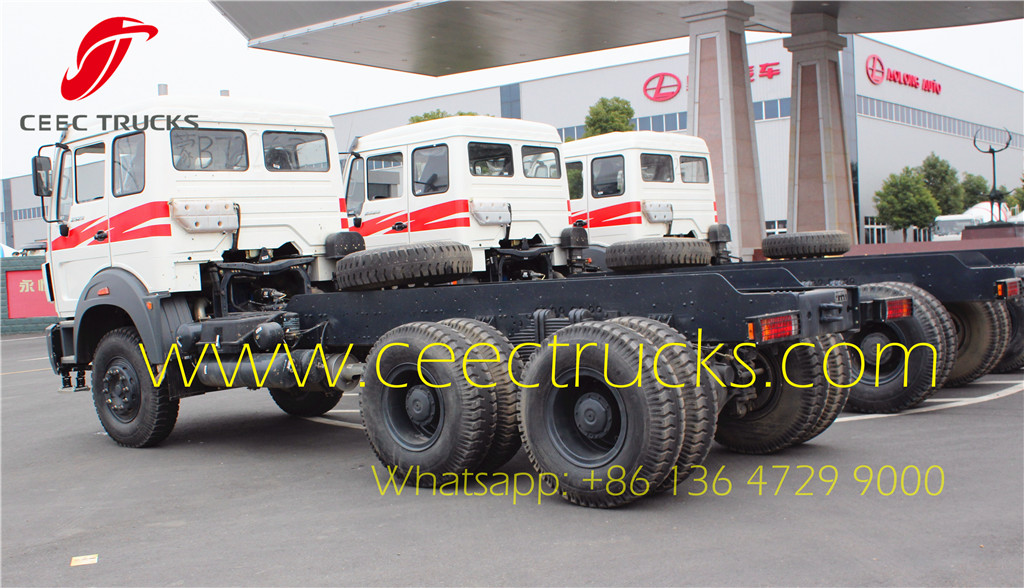

Beiben RHD 2529 dumper truck    Beiben RHD 2529 dumper truck



Beiben RHD 2529 dumper truck    Beiben RHD 2529 dumper truck



Beiben RHD 2529 dumper truck    Beiben RHD 2529 dumper truck



Similar key words: beiben RHD dumper truck, north benz 2529 RHD dump truck, beiben RHD sand transportation truck, beiben 2534 Right steering tipping truck, beiben RHD 2529 dump truck price, africa beiben dumper manufacturer



 congo beiben 2534 dump truck



Beiben 2529, 2534, 538 RHD dumper truck

Beiben Dumper Body

Body type

Rectangle reinforced standard body

(more body type refer to using environment)

Inner size

5600x2250x1400 mm

Side/front/tail plate thickness

4 mm Q235A carbon steel

Deck plate thickness

6 mmQ235A carbon steel

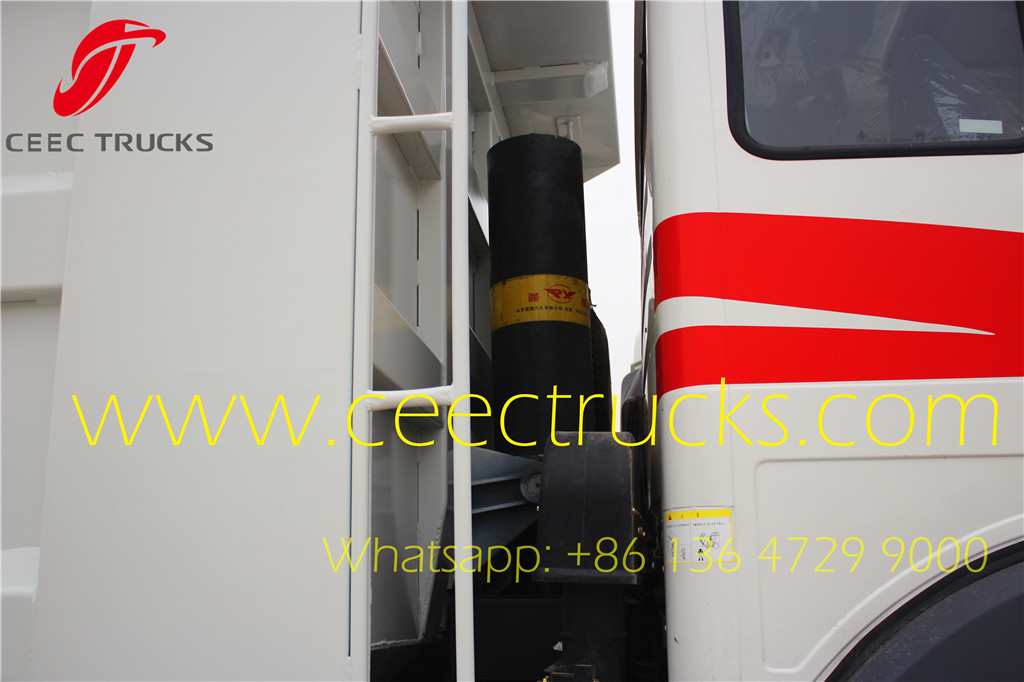

Lifting system,

HYVA 149 famous hydraulic lifting system

Lifting Type

Middle tipping

Tipper body lifting time,

≤ 20 S

Tipper body Falling Time

≤ 20 S

Max. lifting angle

52°

Sales No.

2629GKY

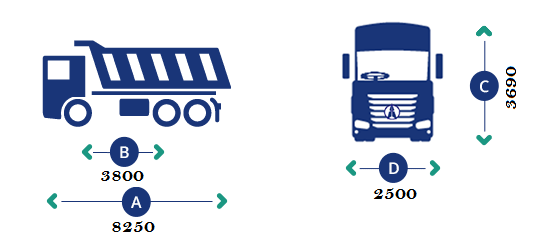

Dimension(mm)

Long

8250


Wide

2500


High

3690

Wheel base(mm)

3800+1450

Drive

6×4

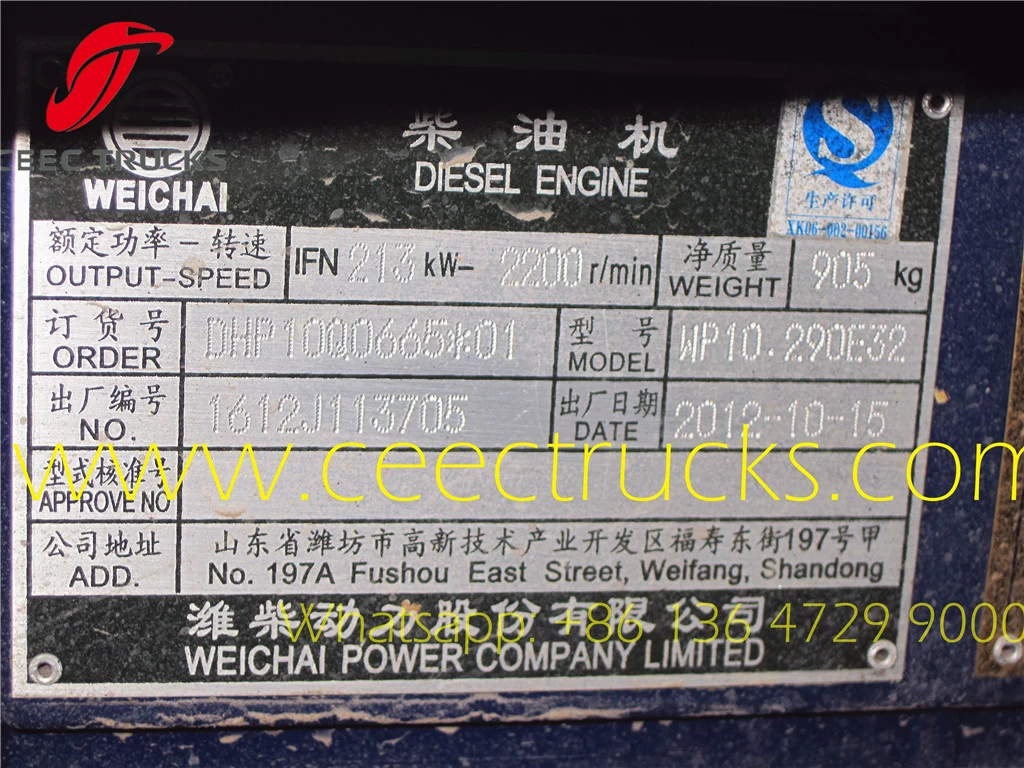

Engine

Model

WP10.290E32

Cabin

NG80B/Long cab

Clutch(mm)

Φ430

Front Axle

7.5T

Rear/Mid Axle

Model/speed radio

Double Reduction Driving Axle /5.263

Steering System

ZF8098

Braking System

Dual Circulation Air Brake System

Fuel Tank (L)

400L

Frame/mm

317×70×8.5+7+8mm

Tire

12.00R20

Front/Rear Overhang

1410/1590

Transmission

Fuller 9JS150TA

Curb Weight (kg)

12470

Up Body Volume(m³)

5.6mx2.3mx1.3m

Max Speed(km/h)

90



Beiben RHD dumper truck export Congo



beiben dump trucks on sale




beiben NG80B tipper

beiben 2534 tipper truck

beiben 60 T tipper truck

beiben 2538 dump truck

beiben 3138 mining dump truck

Engine

WP10.270

WP10.340E32

WD615.46

WP10.380

WP10.380E32

Model

Beiben 2527

Beiben 2534

Beiben 2536

Beiben 2538

Beiben 3138

Rated Power

270HP

340HP

360HP

380HP

380HP

Payload

30 T

50 T

60 T

70 T

90 T

Drive Type

6*4

6*4

6*4

6*4

8*4
