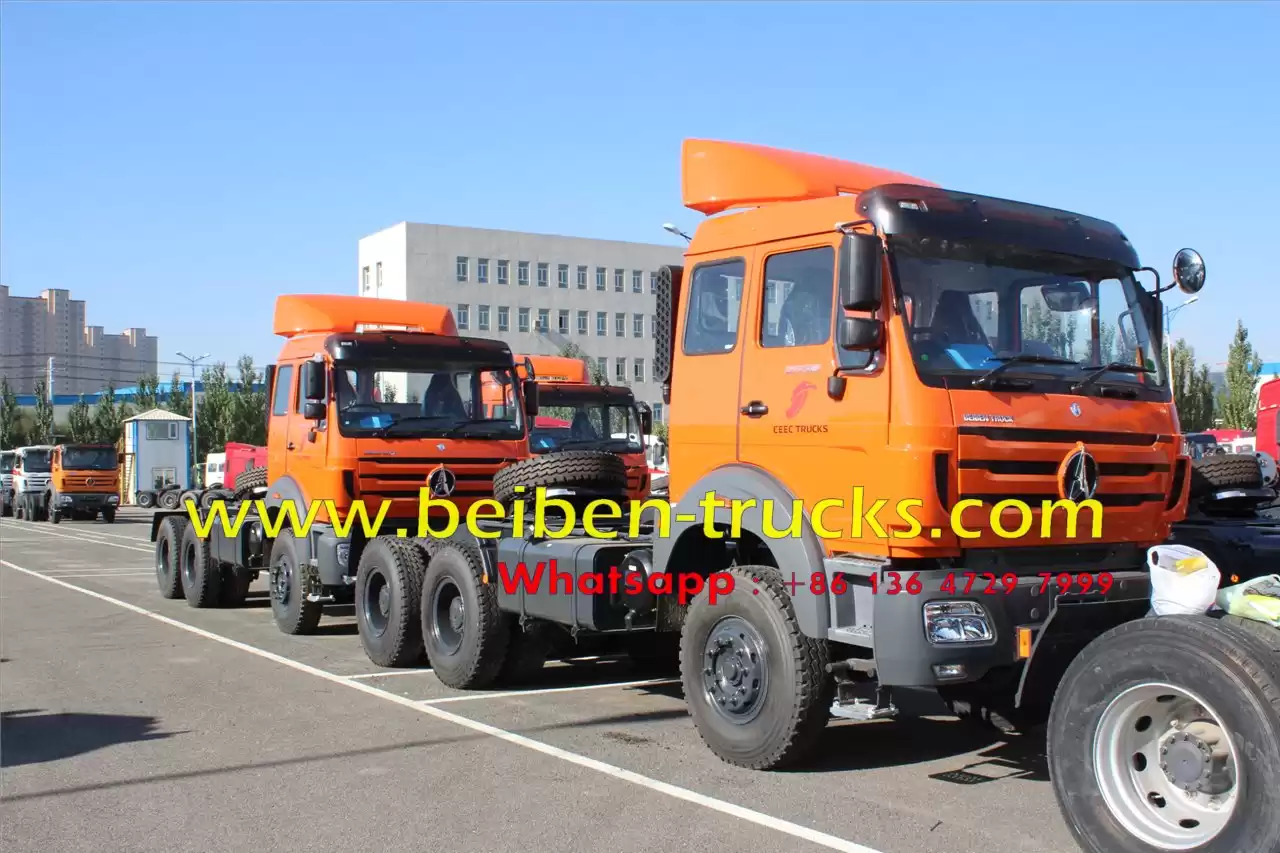

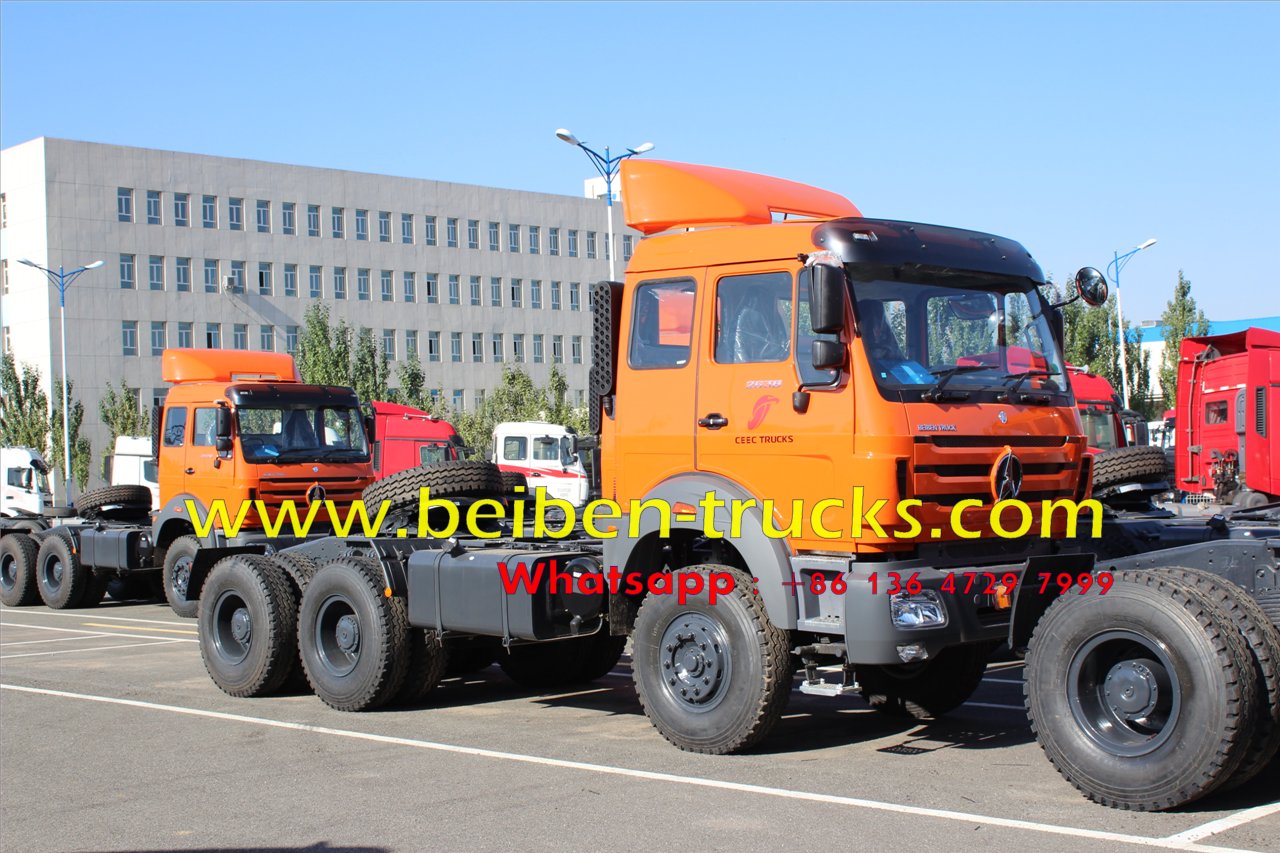

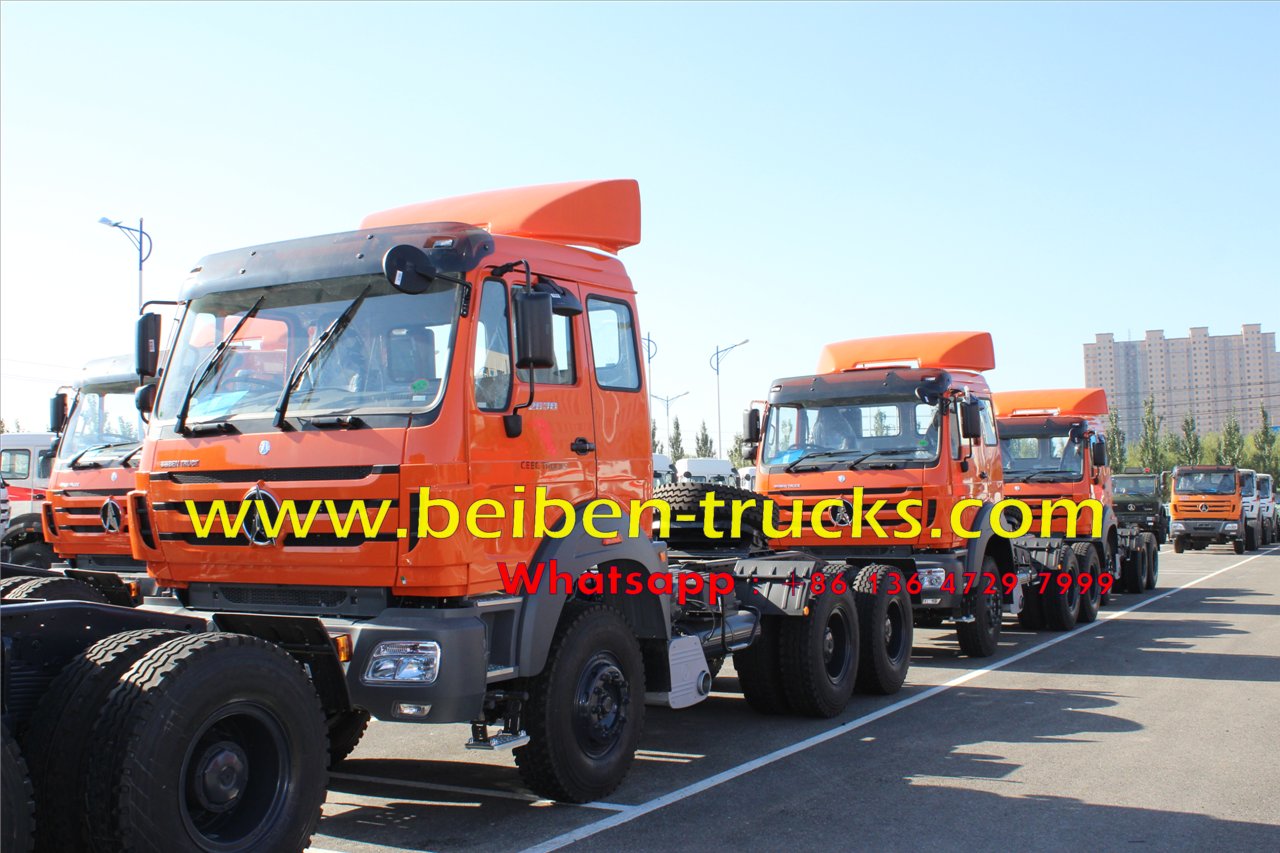

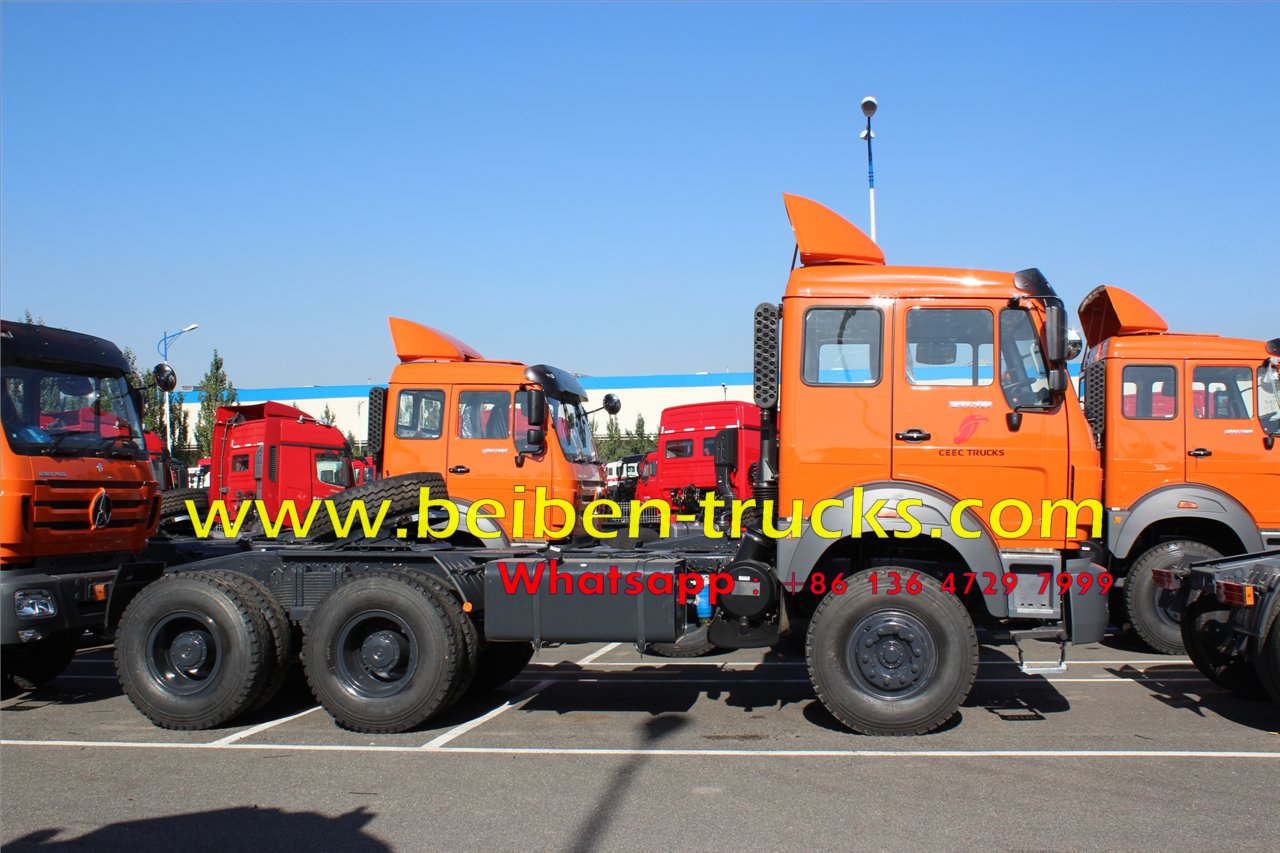

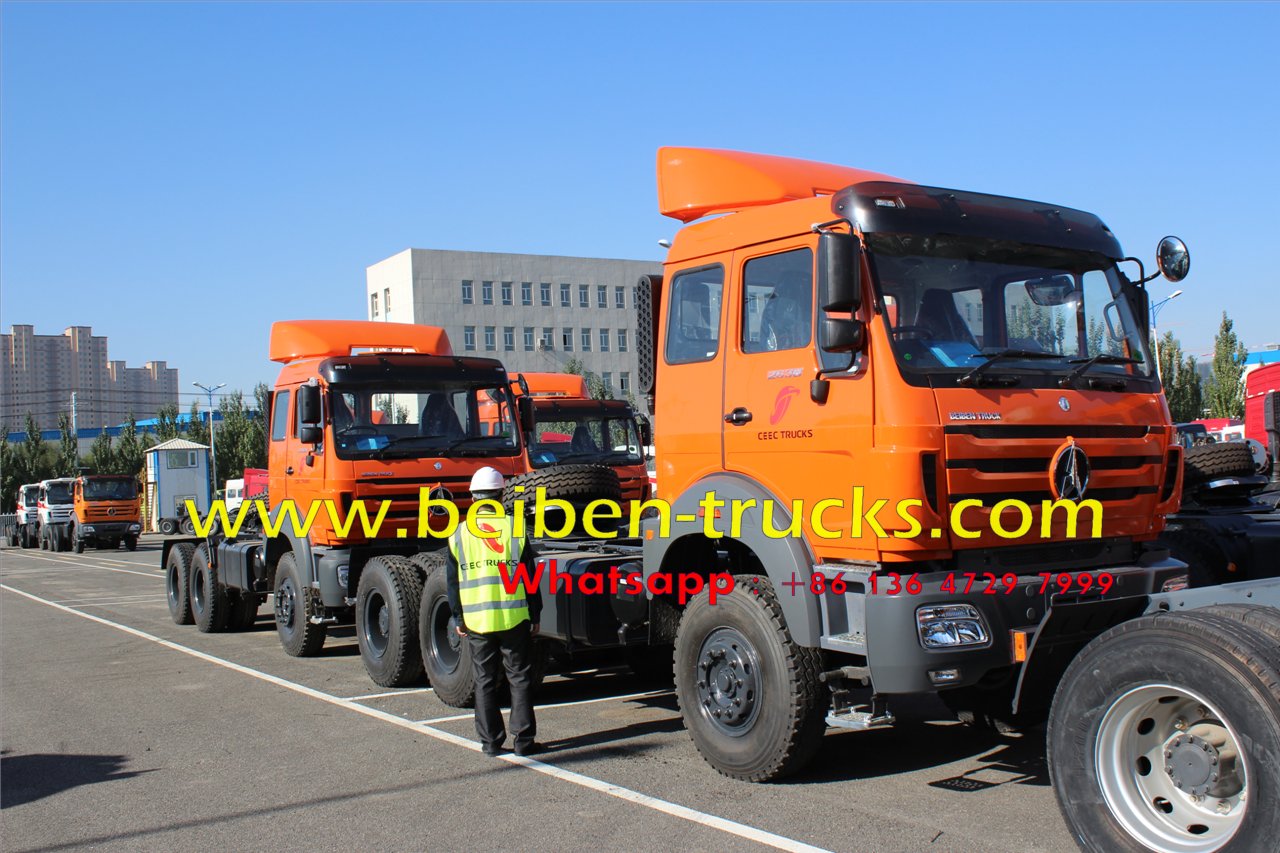

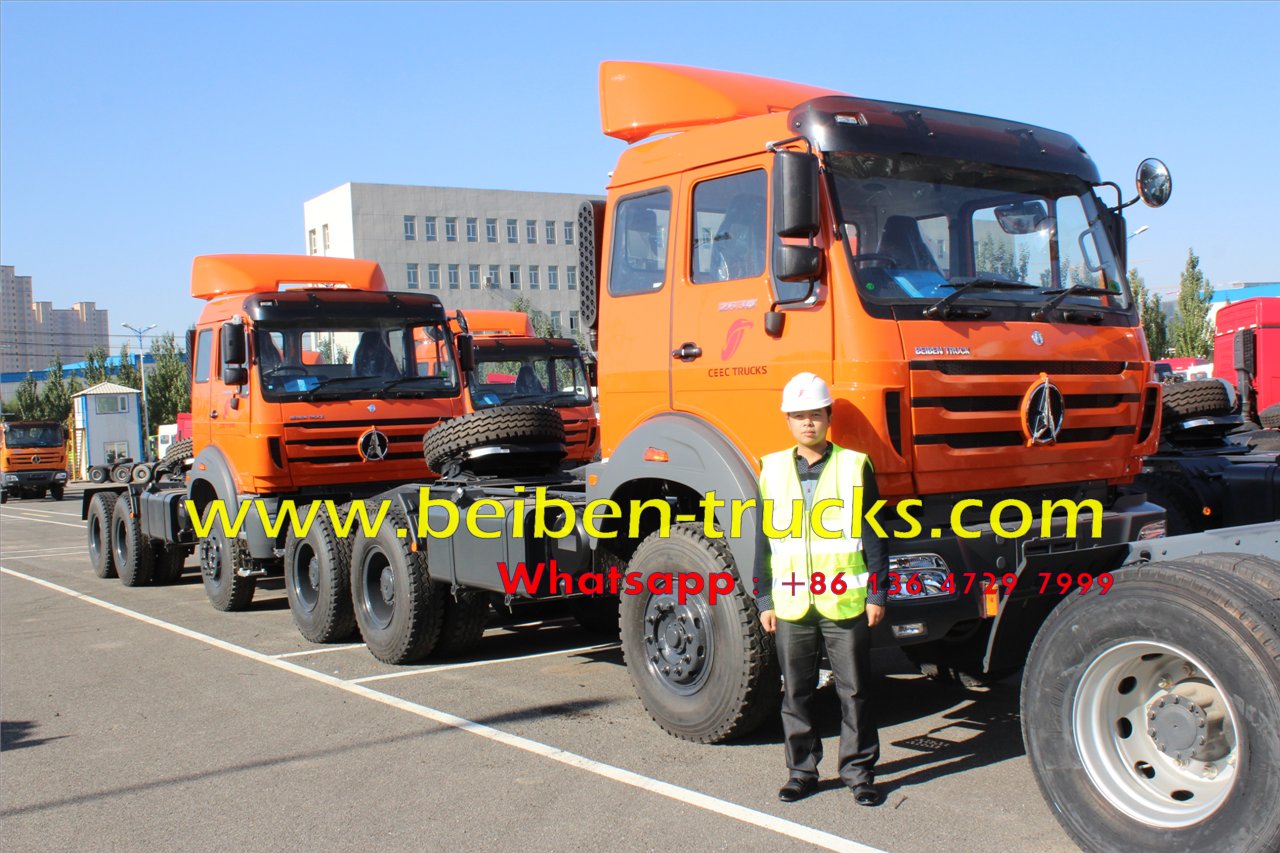

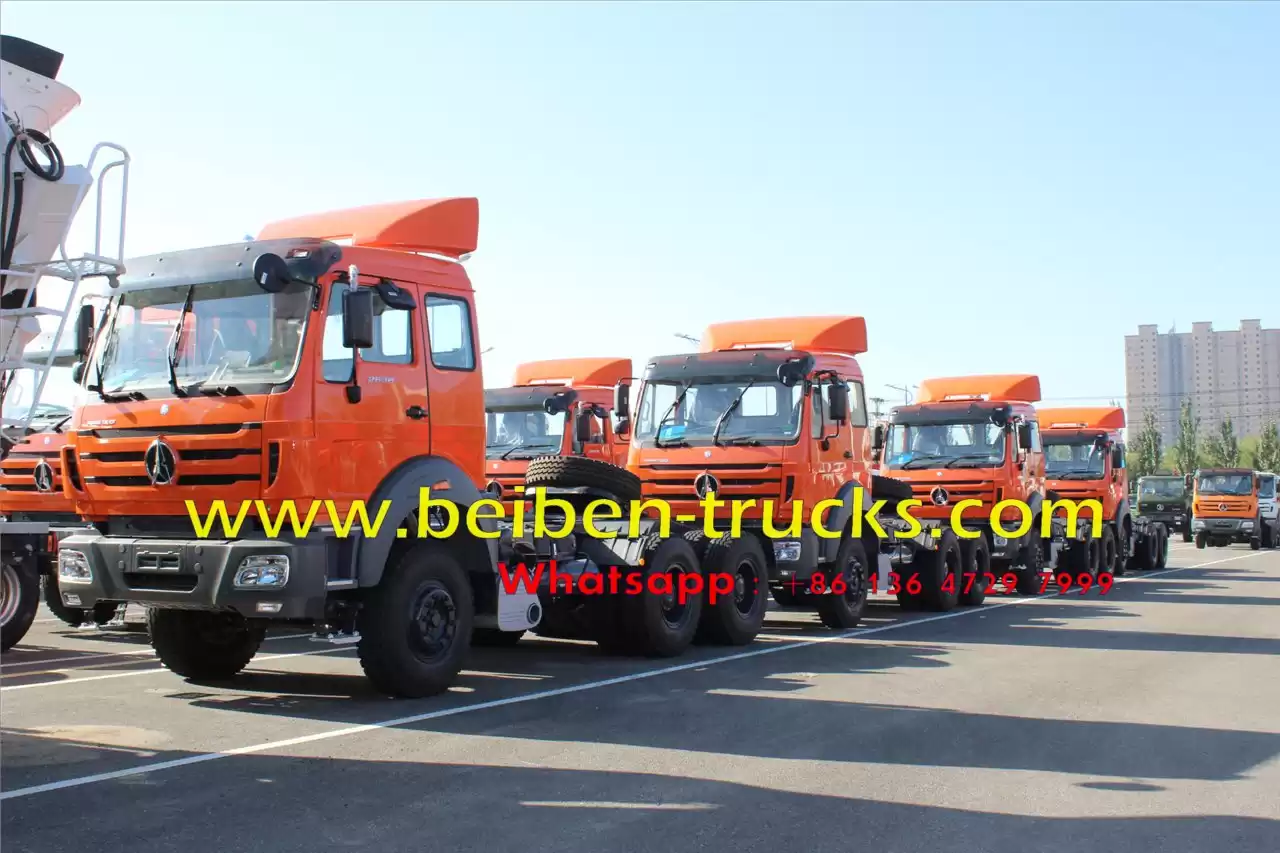

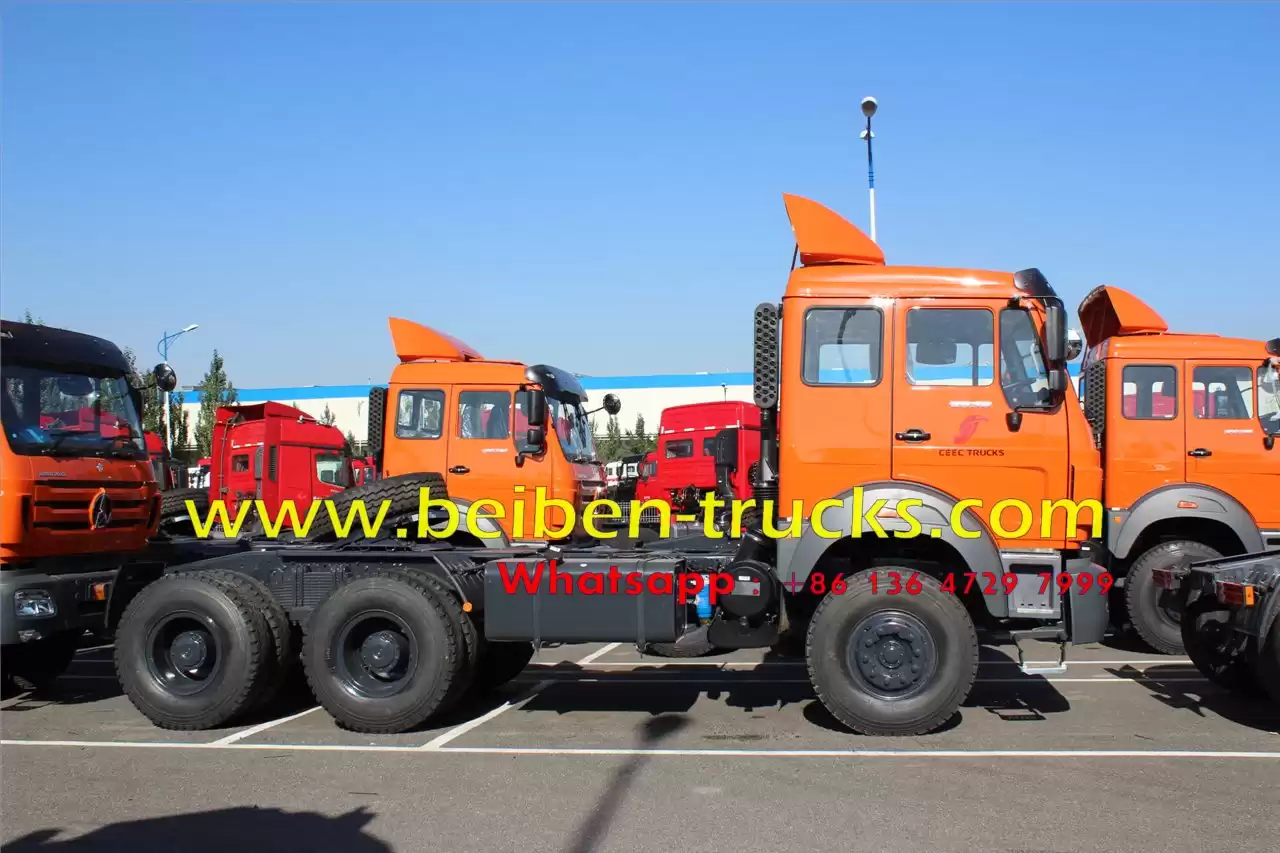

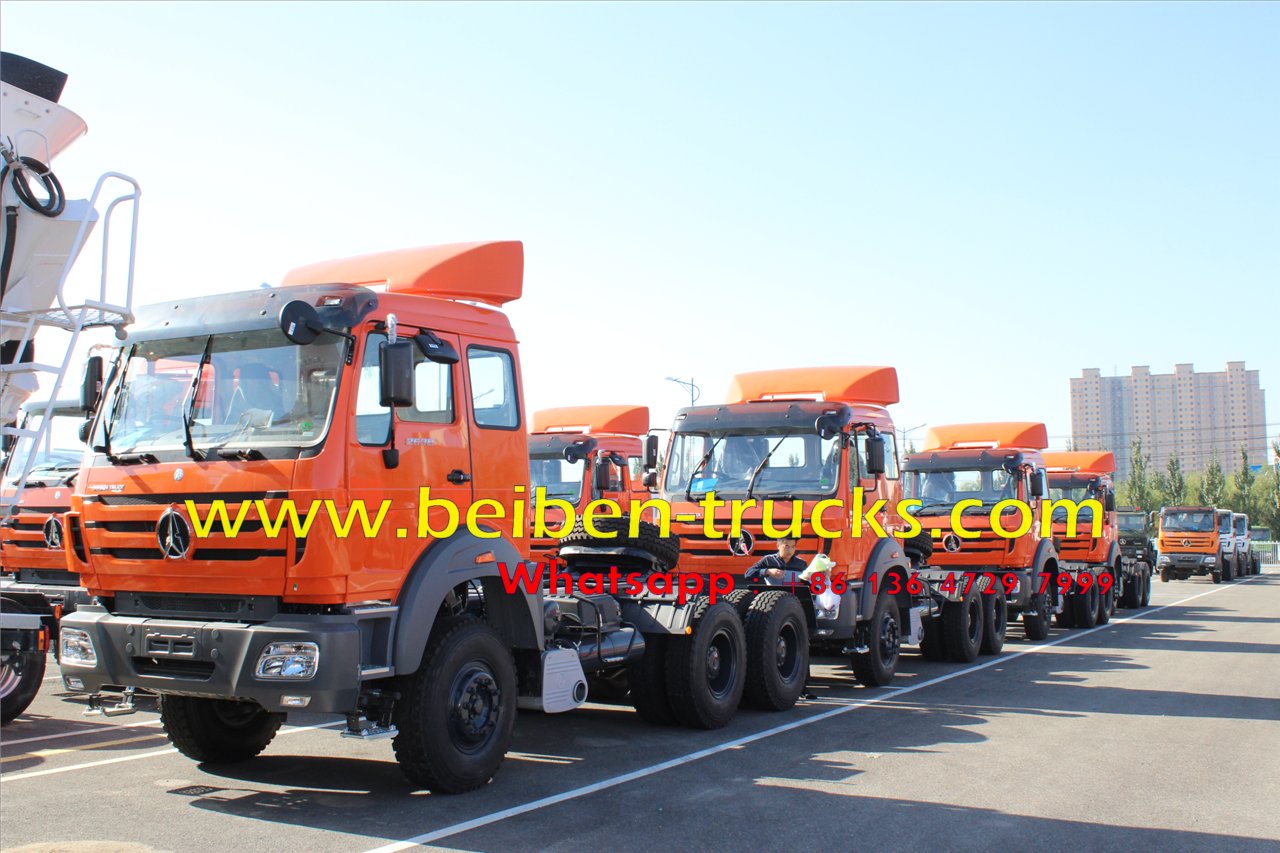

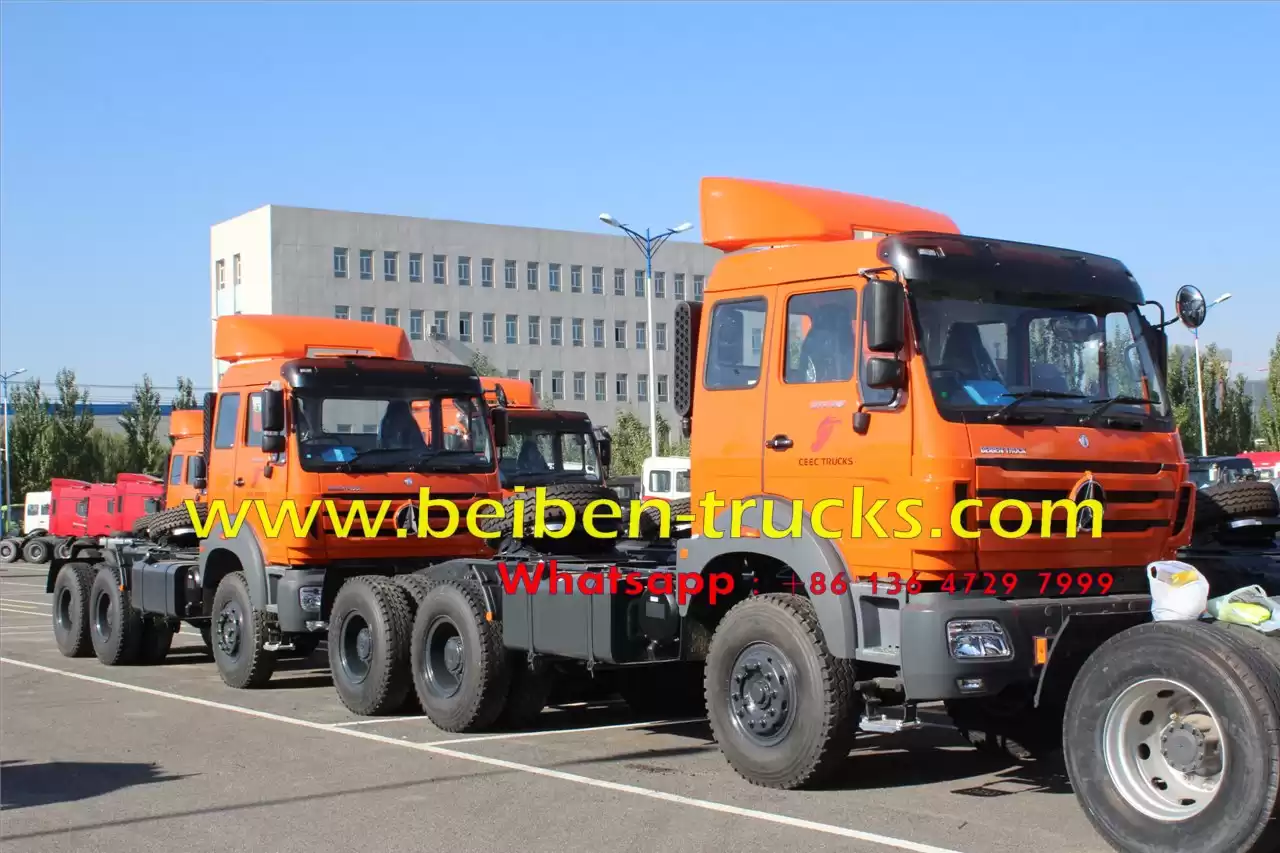

Beiben 2538 RHD tractor truck supplier for tanzania,kenya
We aim at supplying the best quality RHD drive beiben 4*2 tractor truck, beiben 6*4 tractor truck, beiben left hand drive and beiben right hand drive tractor truck for kenya, tanzania, uganda customers.
Currently we have BEIBEN RHD 2534,2538,2542,2544,2546 tractor trucks. Welcome for all the customer inquiry us. We can ensure the best quality beiben tractor truck , fast shippment time and best quality.
|

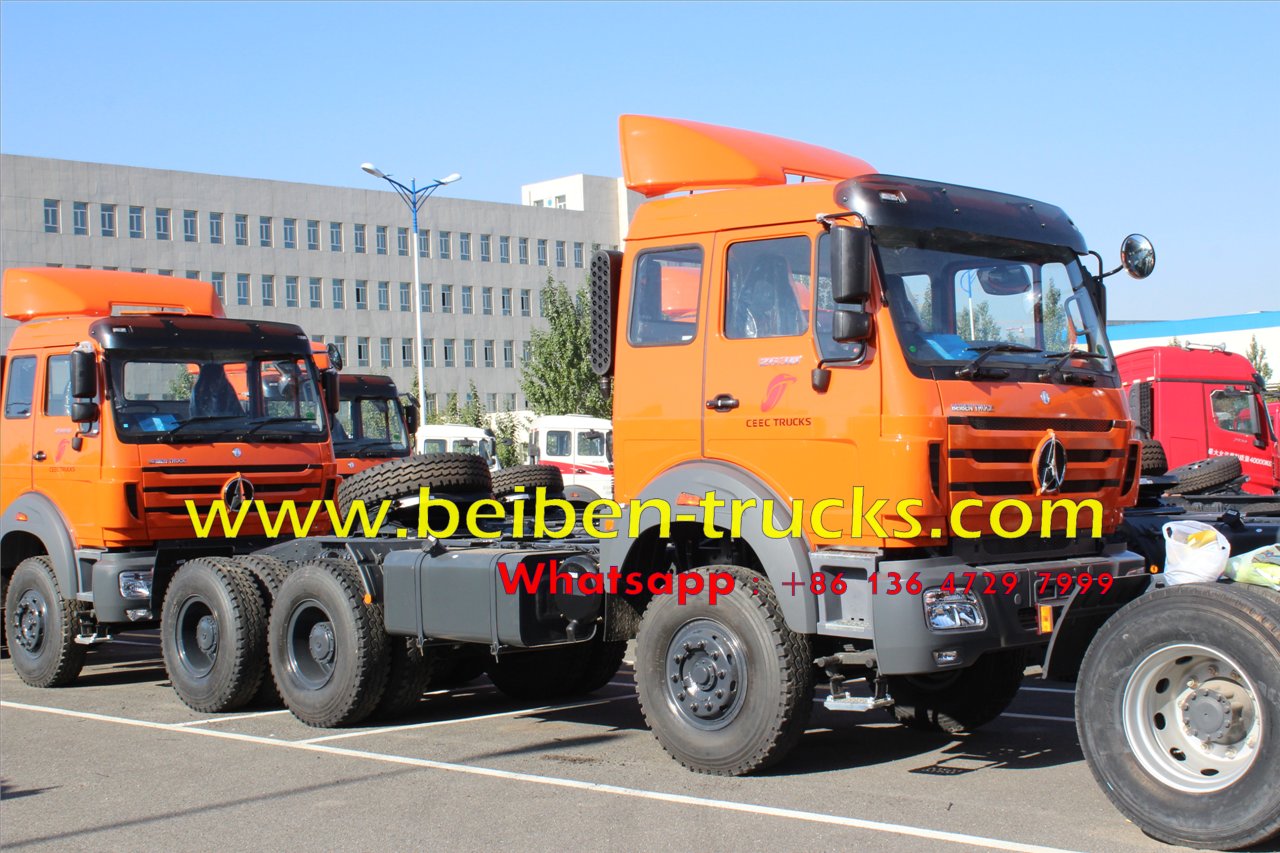

Beiben 2538SZ
/6×4/3450+1450/Long Cab/LHD
|
|

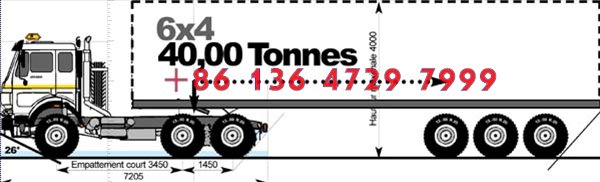

Dimension
|
7136*2495*3180mm
|
|
Approaching
angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/825mm
|
|
Wheel
base
|
3450+1450mm
|
|
Max
speed
|
90km/h
|
|
Curb
weight
|
9200kg
|
|
Max
towing weight
|
36900kg
|
|
Max loading on fifth wheel,
Permitted(kg)
|
15670kg
|
|
Slope
climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly
injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max.
power
|
280/2200
(kw/rpm)
|
|
Max.torque
|
1460/1200-1600（Nm/rpm）
|
|
Emission
stantard
|
EuroⅢ
|
|
Fuel
tanker capacity
|
400L
|
|
Clutch
|
∮430,
Single dry frictional disc，Hydraulic boosting
|
|
Gearbox
|
12JS200T,
mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear
ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00
R: 14.86 3.33
|
|
Suspension
system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with
stablizer bar suspension , 13pcs
|
|
Rear
|
Non-free
standing stablization spring, balance suspension system, 13pcs
|
|
Brake
system
|
Service
brake
|
Brake gap can be adjusted automatically, double circulation
air brake system
|
|
Assistant
brake
|
Engine
exhaust brake
|
|
Park
brake
|
Potential
springs pressing on middle and rear wheels
|
|
Steering
system
|
TAS85,whole
circulation in ball, hydraulic booster
|
|
Frame
|
Fish
belly shape, variable width, variable sections
|
|
Model
|
JOST ∮90
single direction
|
|
Height of fifth
wheel(mm) (unload)
|
1410
|
|
Radius of front gap
(mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front
axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
|
Middle
and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub
redactor, double reduction driving axle
|
|
Tyre
|
12.00-R20
|
|
Electrical
system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

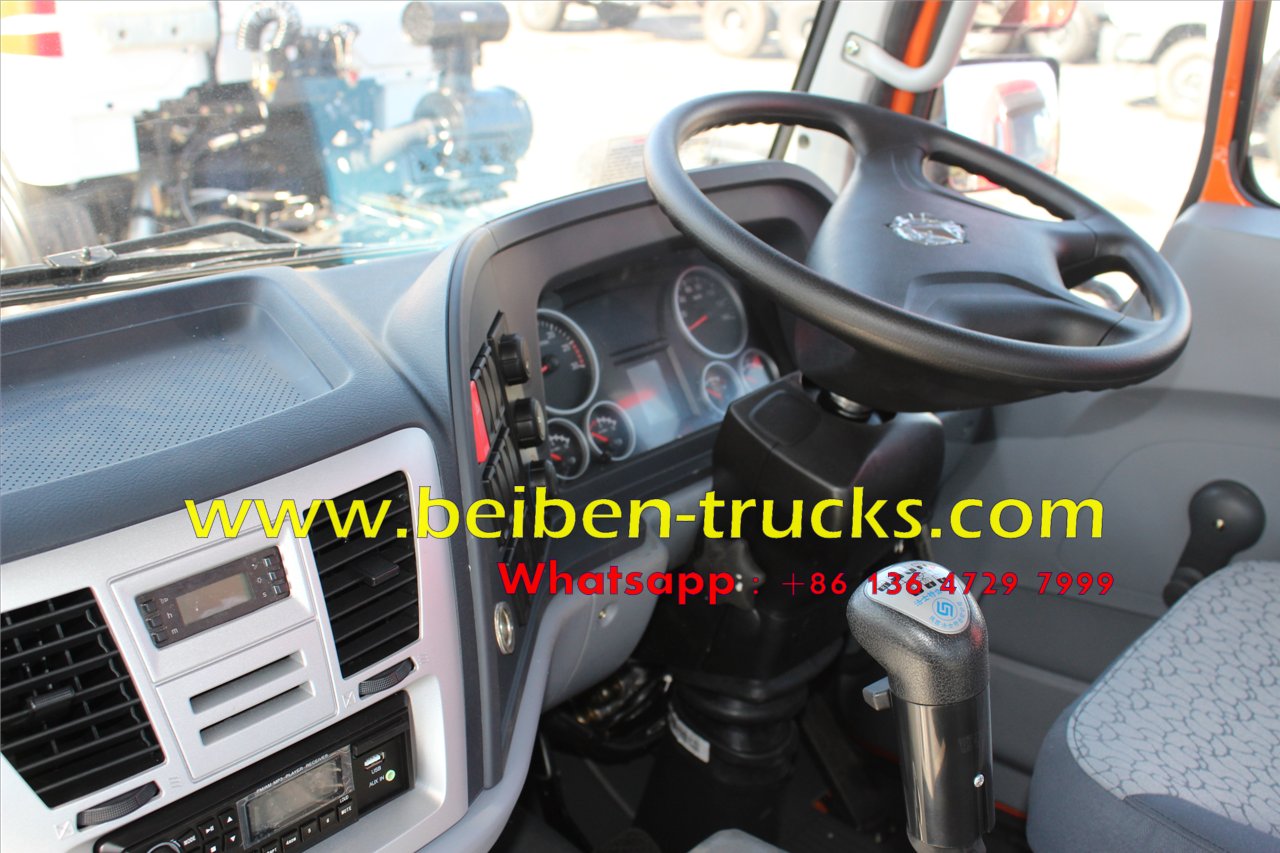

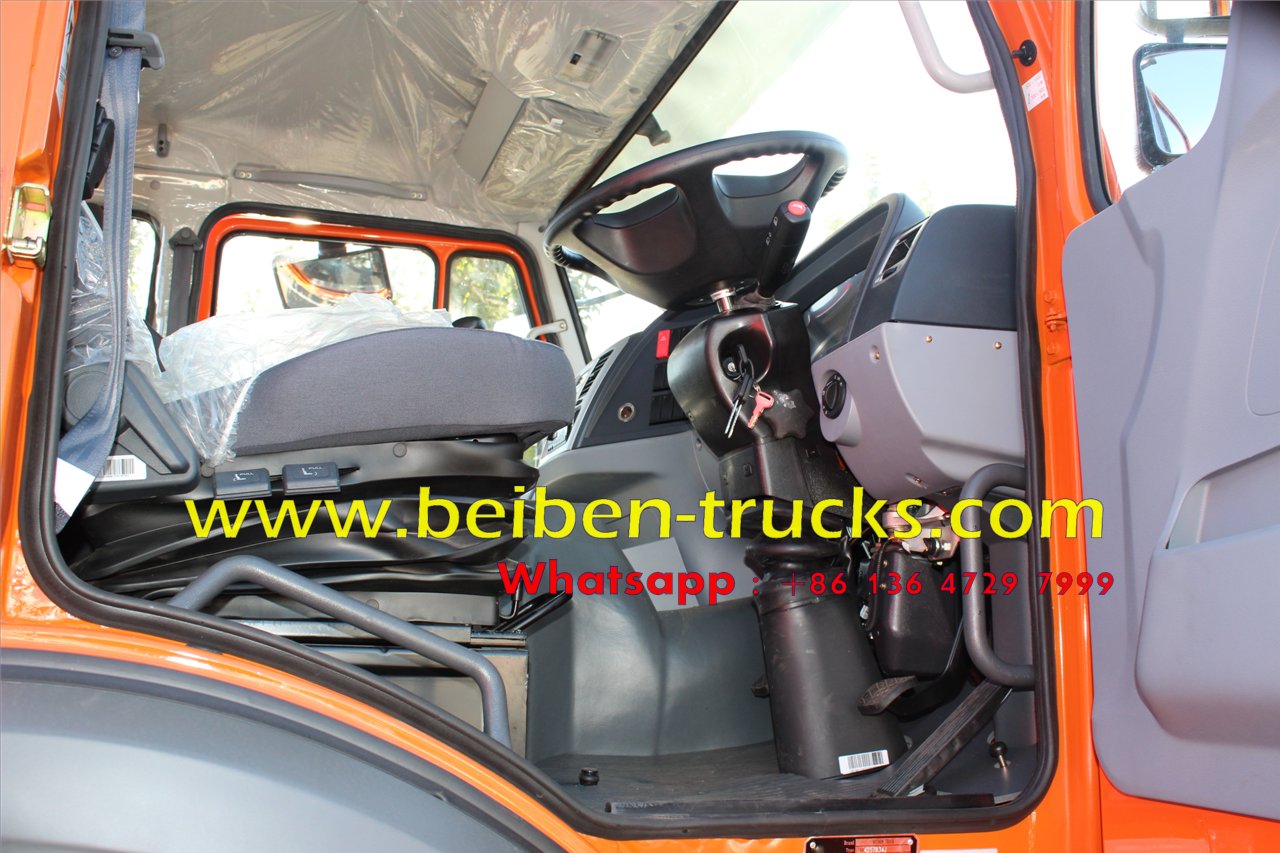

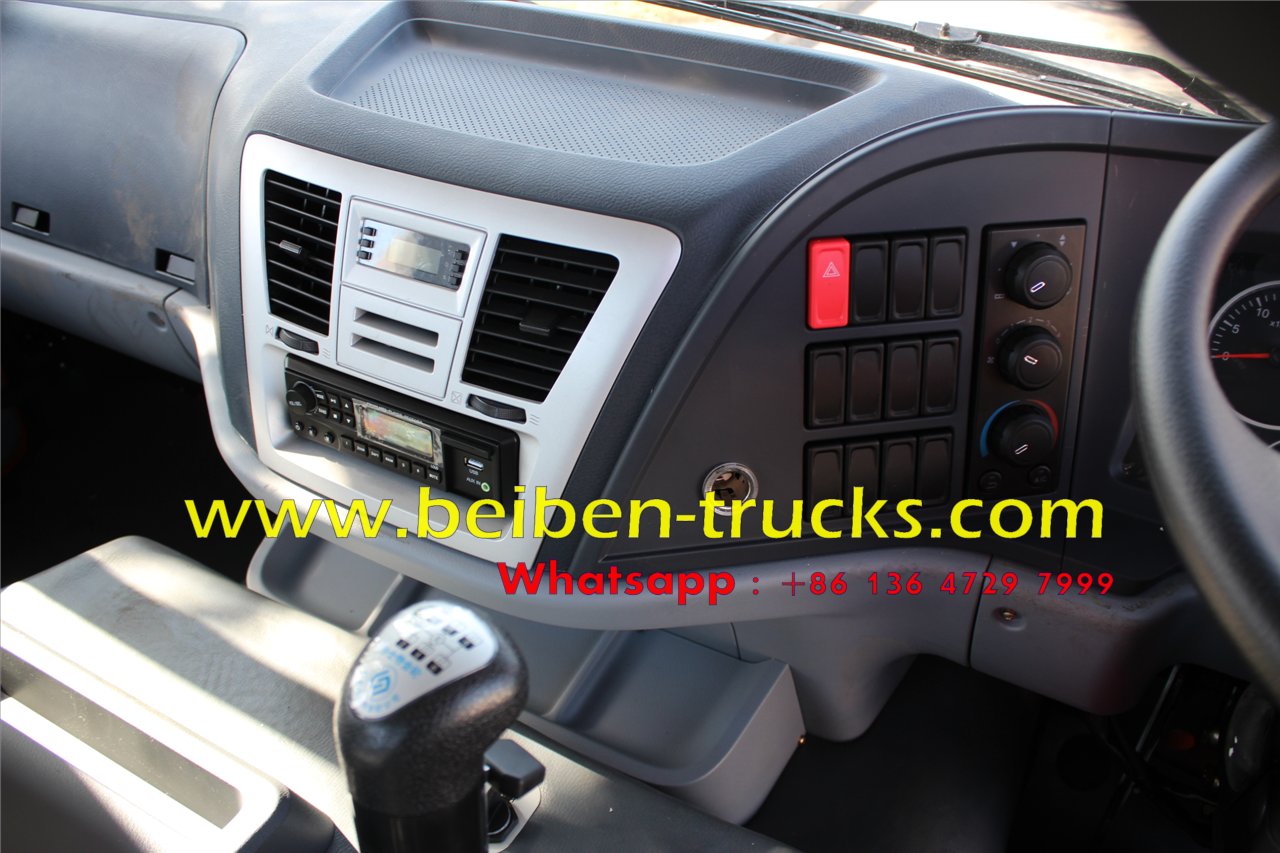

Cabin
|
NG80B
Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
Tanzania beiben RHD tractor truck supplier, ensure the best quality and best price for beiben RHD tractors.
