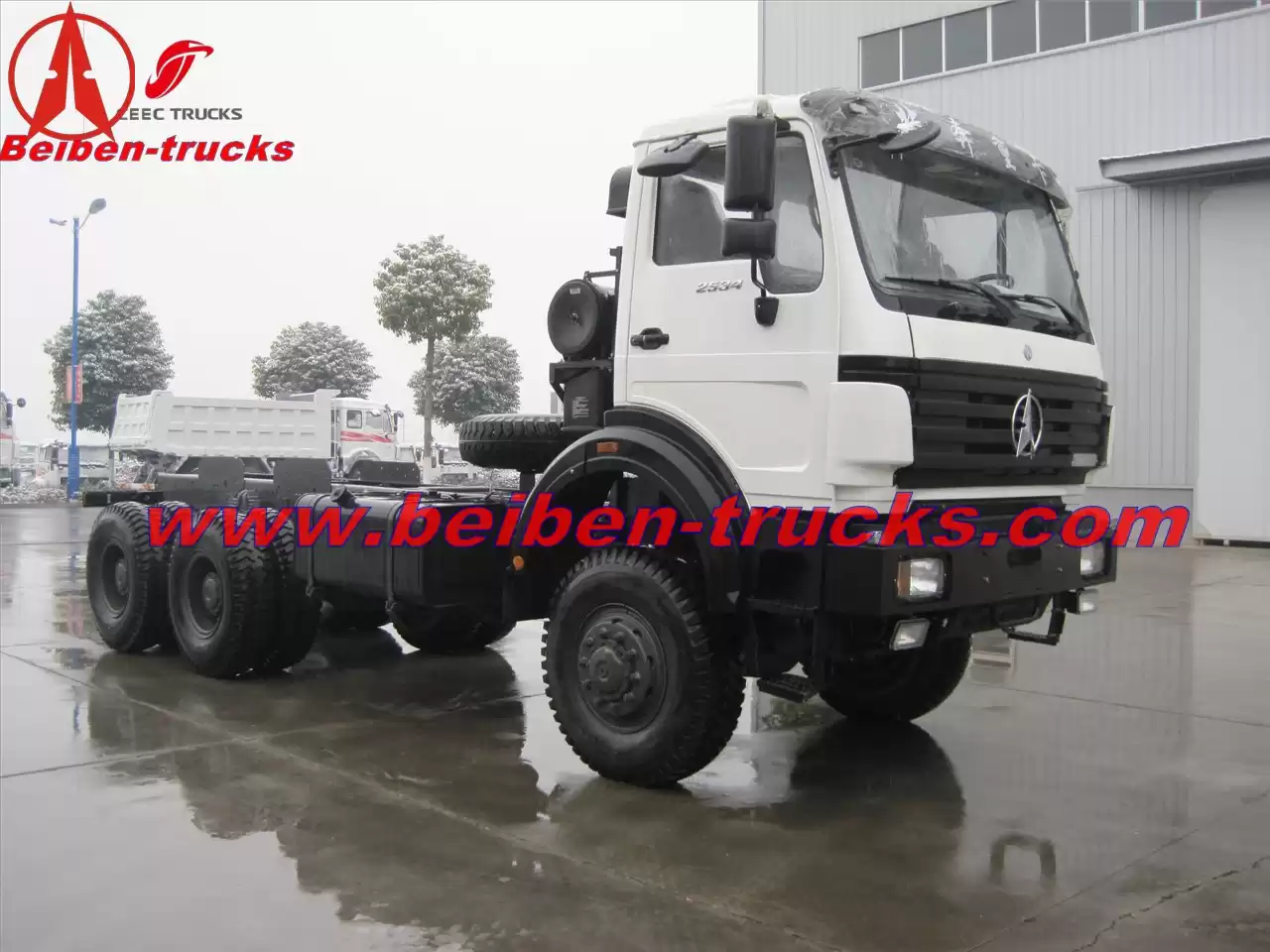

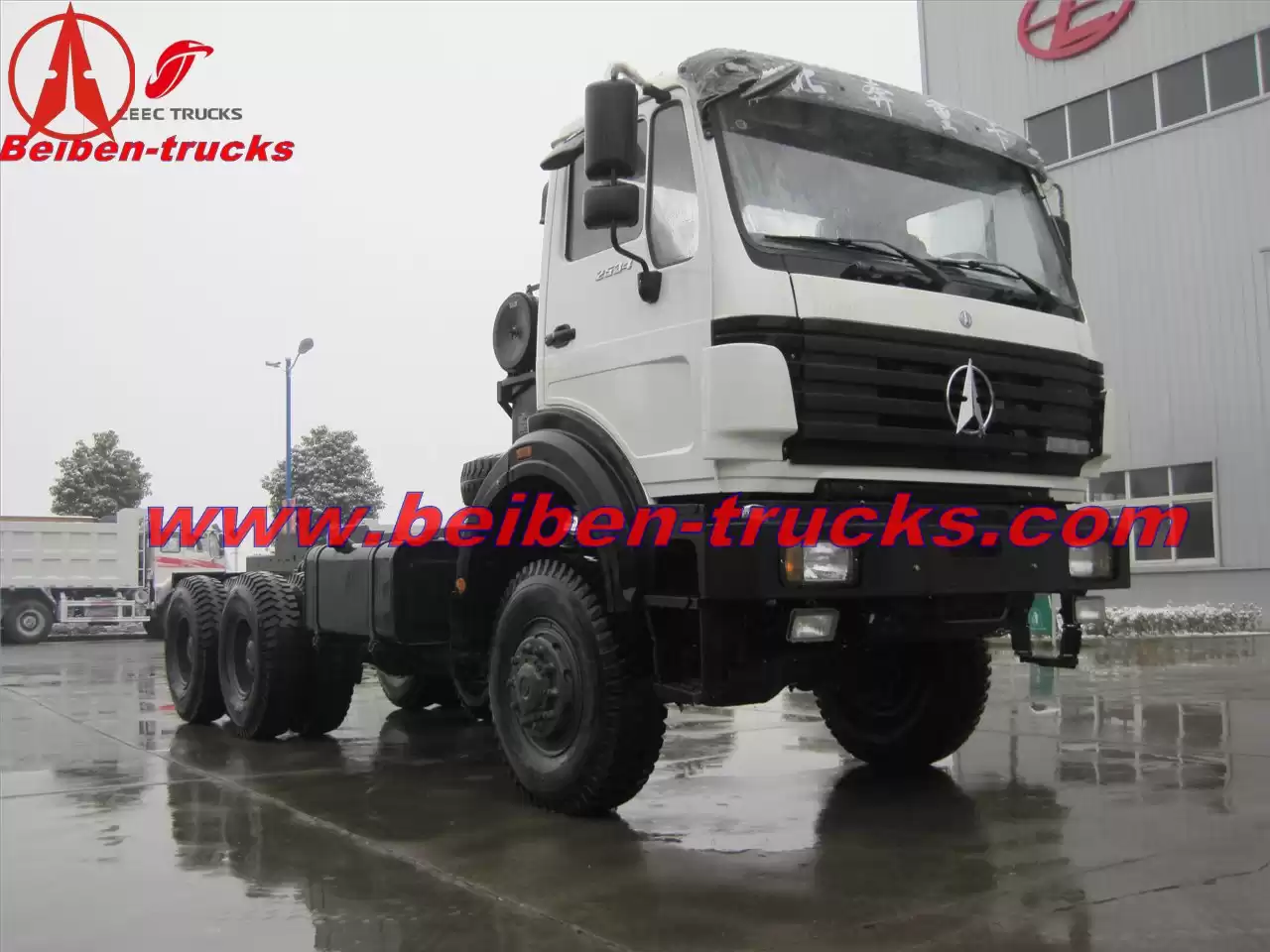

Beiben towing truck 2638

Chassis specification

Wheel base (mm)

3450+1450

Curb weight kg

9200

Engine

Model

WD12.375,water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Emission standard

EUROII

Fuel tanker capacity L

300

Clutch

Model

GFX430, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

12JS160T (With 12 forward gears,1 reverse gear)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,whole circulation in ball type, hydraulic boosting

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

radial 12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab with sleeper

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly; Inner A/C
