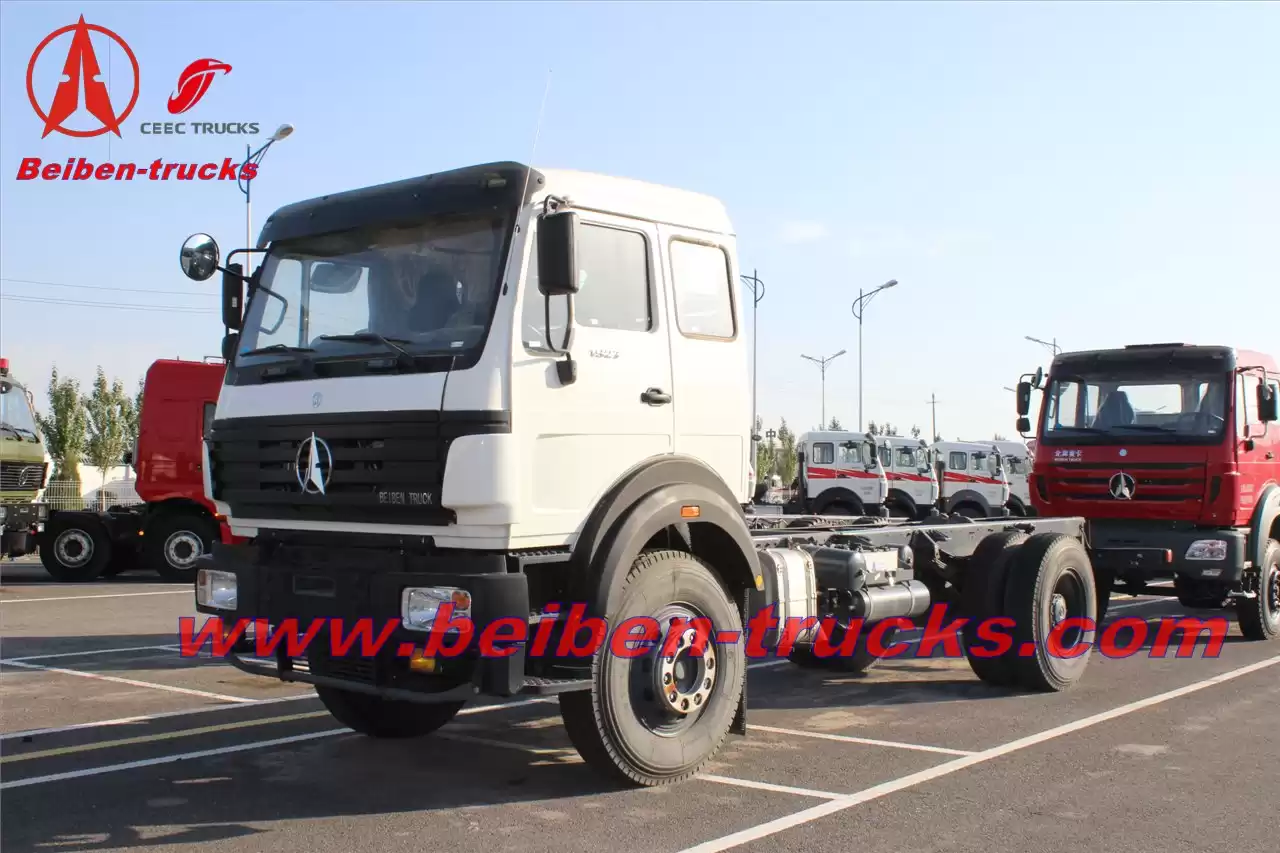

Beiben Tractor Trailer Truck China Trucks

Wheel base  (mm)

3450+1450

Curb weight (kg)

9360

Engine

Model

WP10.380 EuroIII ,water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Power(kw)

380HP

Emission

Clutch

Model

Φ430, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

12JS160T

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,whole circulation in ball type, hydraulic boosting

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab

color:White color with strip

Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly;

Seat: shock absorption seat for the driver

Delivery date

35 work days after receipt the deposit
