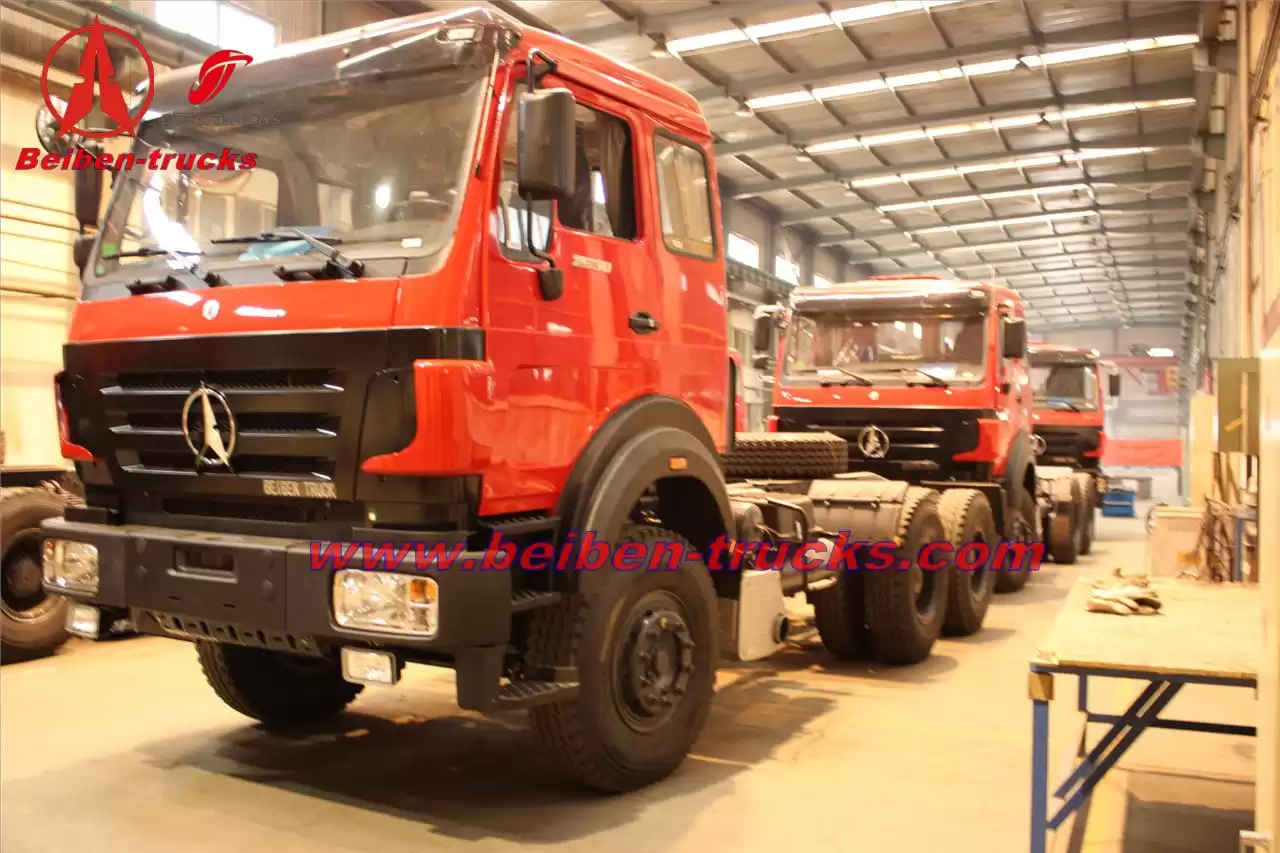

Beiben Tractor Truck 6x4 40ton tractor head economic new vehicles

BEIBEN

TRACTOR   TRUCK

ND4253B34J

Traction type

LHD

Drive System

6×4

Cabin

NG80 flat   cabin, air conditioner ,one sleeper

Engine

Brand

WEICHAI

Model

WP12.420E32 EGR

Rated power

420hp

Engine displacement

11.596   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85/ZF8098

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN   13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

85

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

9200

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1410/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

26/64

Overall Dimensions(L*W*H)(mm)

7135×2495×3180

5^th wheel

90#
