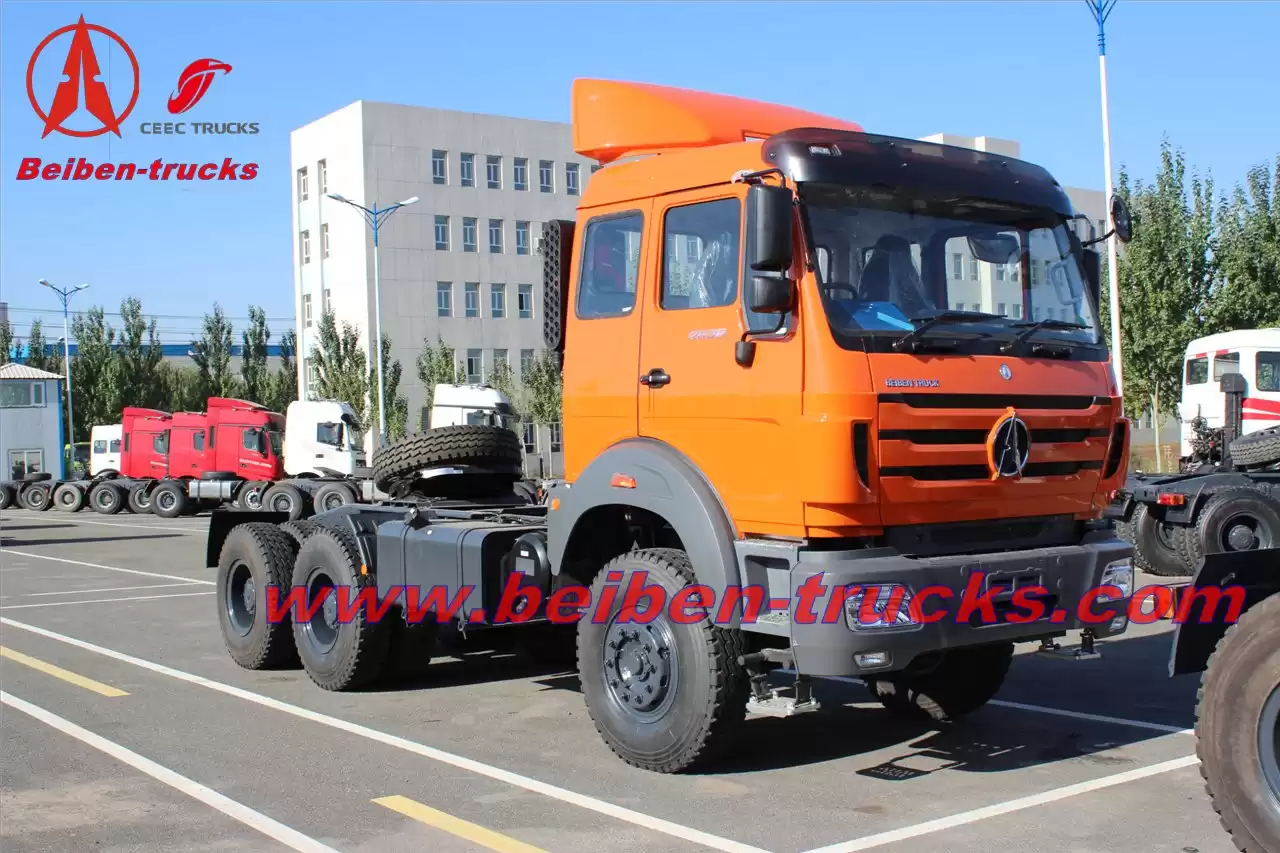

2534SZ /6×4/3450+1450/Long Cab/LHD |
Dimension |
6935*2495*3180mm |
Approaching angle/Departure angle |
26/64° |
Overhang(front/rear) |
1410/625mm |
Wheel base |
3400+1450mm |
Max speed |
90km/h |
Curb weight |
9200kg |
Max towing weight |
39600kg |
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
Slope climbing capability |
Max.40% |
Engine |
Model |
WP10.340E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement |
9.726L/Diesel |
Stroke |
126/130mm |
Max. power |
276/2200 (kw/rpm) |
Max.torque |
3500/1200-1600(Nm/rpm) |
Emission stantard |
EuroⅢ |
Fuel tanker capacity |
400L |
Clutch |
430, Single dry frictional disc,Hydraulic boosting |
Gearbox |
12JS160T, mechanism,12forward gears,2 reverse gear, manual operated
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
Park brake |
Potential springs pressing on middle and rear wheels |
Steering system |
ZS8098,whole circulation in ball, hydraulic booster |
Frame |
Fish belly shape, variable width, variable sections |
Model
|
JOST 90 single direction
|
Height of fifth wheel(mm) (unload)
|
1410
|
Radius of front gap (mm)
|
2300
|
Radius of rear slew (mm)
|
2600
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
Tyre |
12.00/R20 |
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
Starter |
5.4Kw/24V |

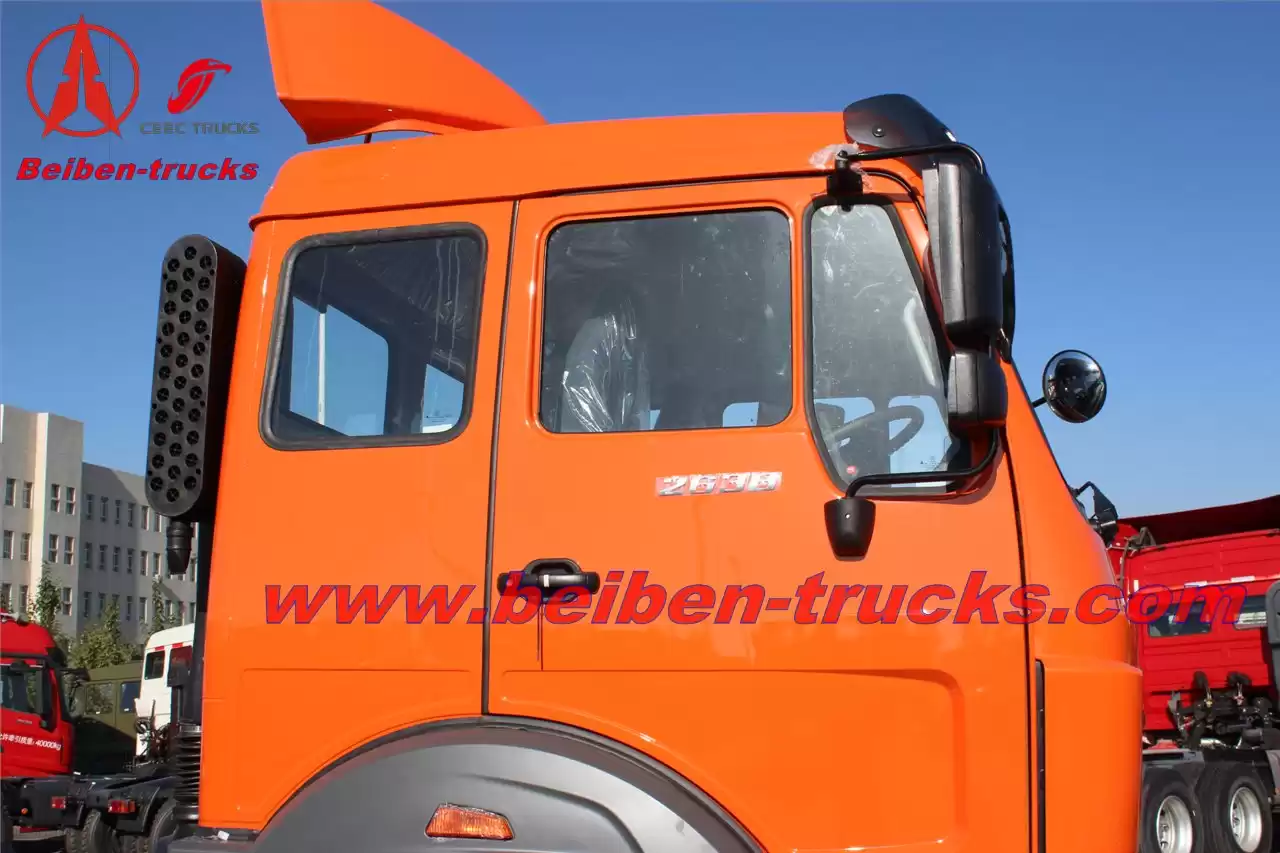

Cabin |
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C |
