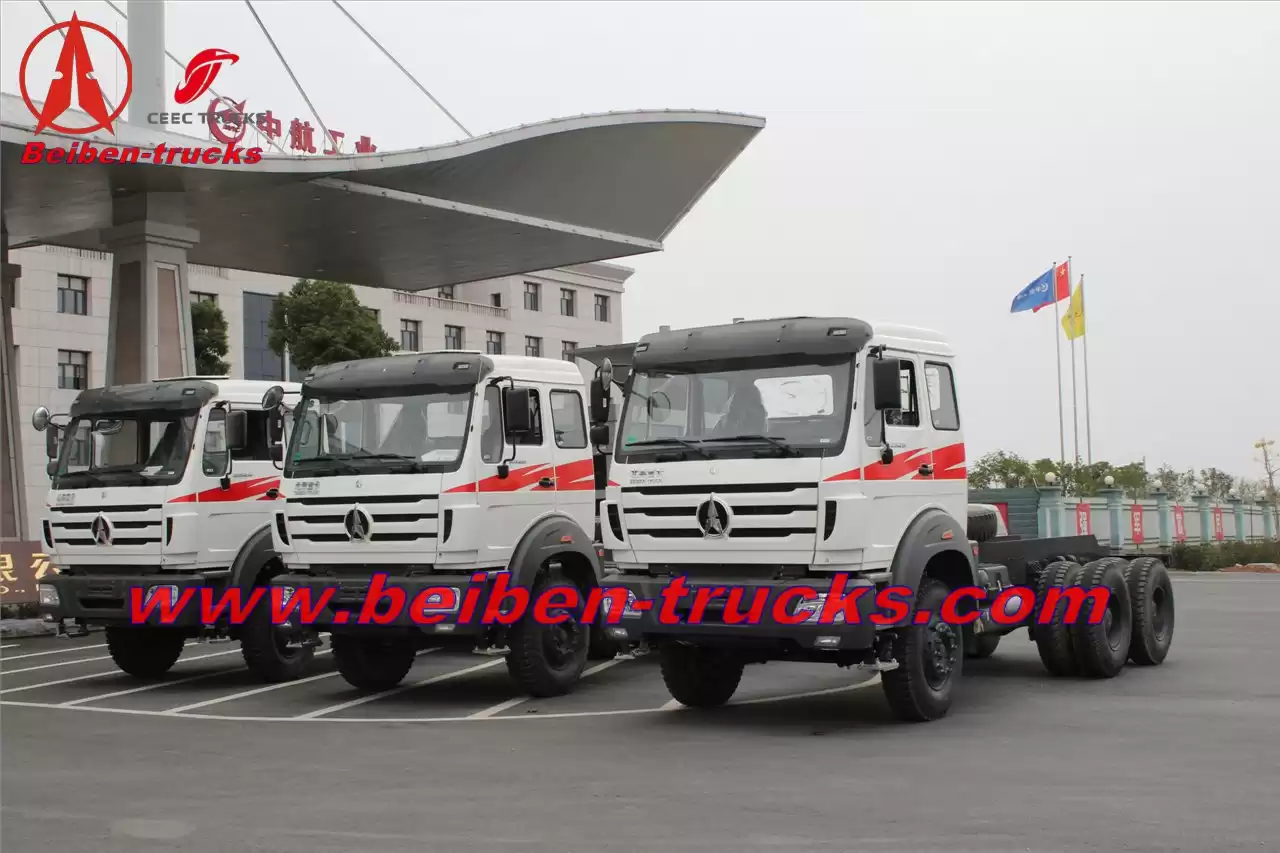

Beiben Tractors 6x4 Trailer Head Truck 290-420hp NG80 V3 prime mover

Model

ND4258B34J

Driving type

6x4

Cab

Mercedes Benz cabin with air conditioner and single bed

Drive type

RHD

Wheel base (mm)

3450+1450

Dimension (mm)

6935x2500x3630

Kerb. mass

9200kg

Total mass

40000kg

Front overhang

1410mm

Rear overhang

6255mm

Front track (mm)

2022

Rear track (mm)

1800

Approach angle

26 degree

Departure angle

64 degree

Engine

Engine Model

WP10.340NE32


Displacement

 9.726 liters

Max. output

340hp@2200rpm

Max torque

1350NM@1100-1600rpm

Engine type

Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling

chasiss

Gear box

12JS160TA

Clutch

GF420 spring type

Front axle

Benz 7.5T front axle

Rear axle

13T Benz double reduction drive axle, ratio=5.921

Tyre

12.00R20

Steering

TAS85
