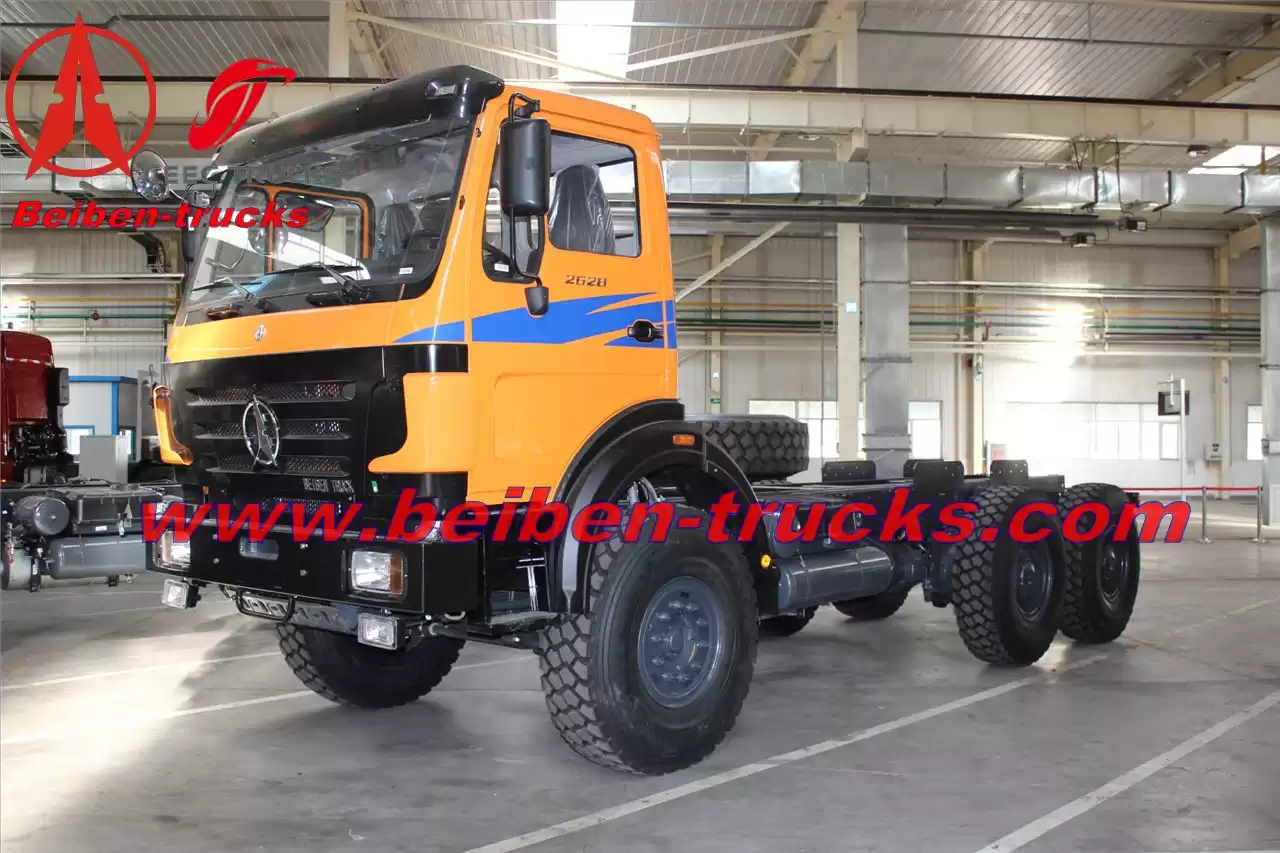

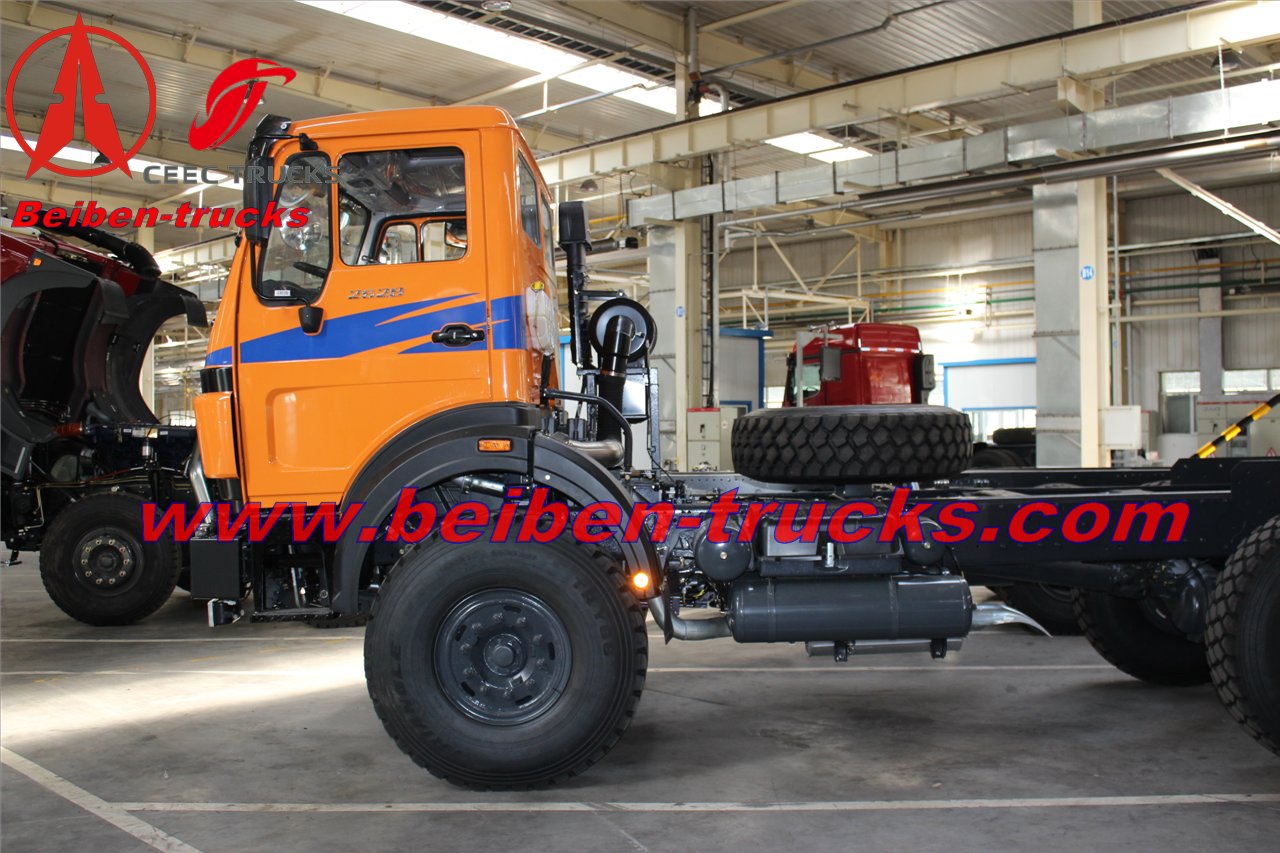

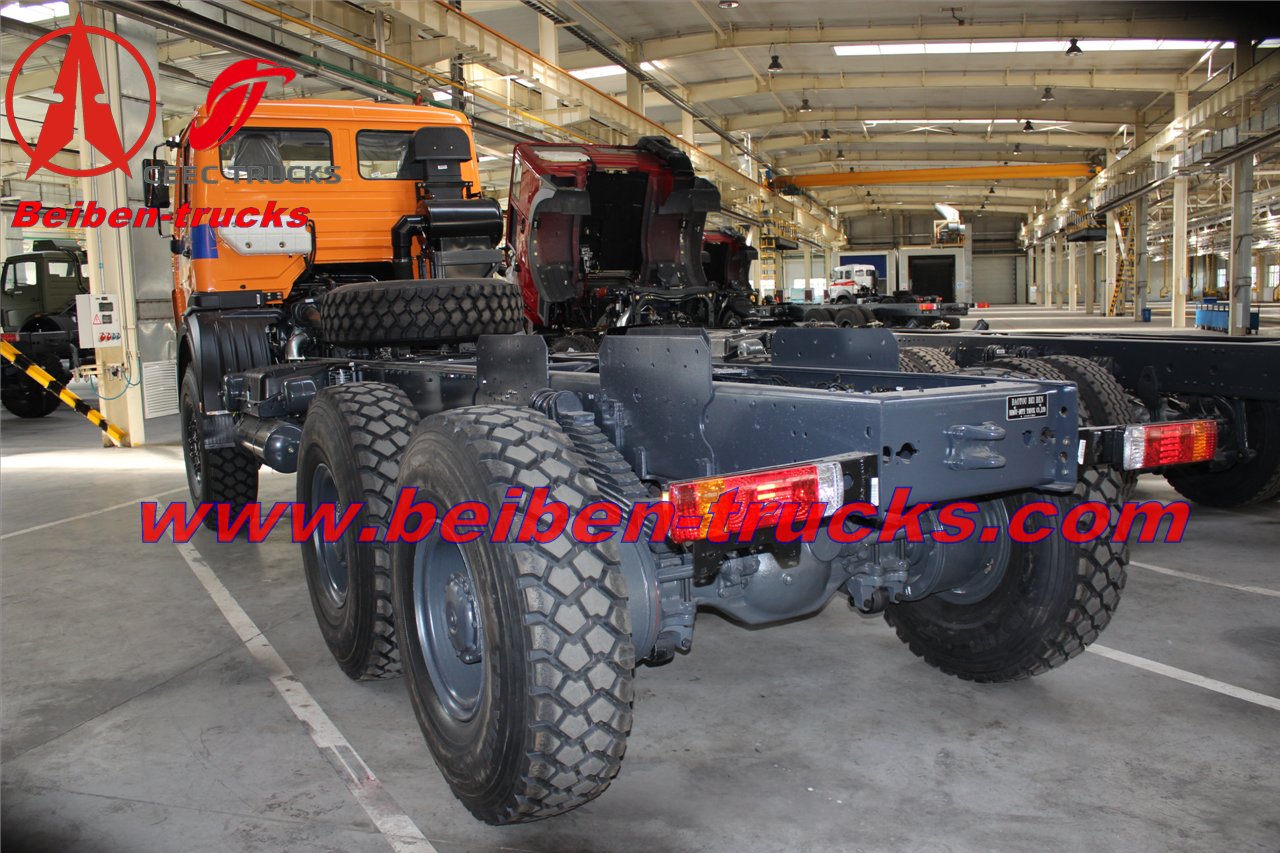

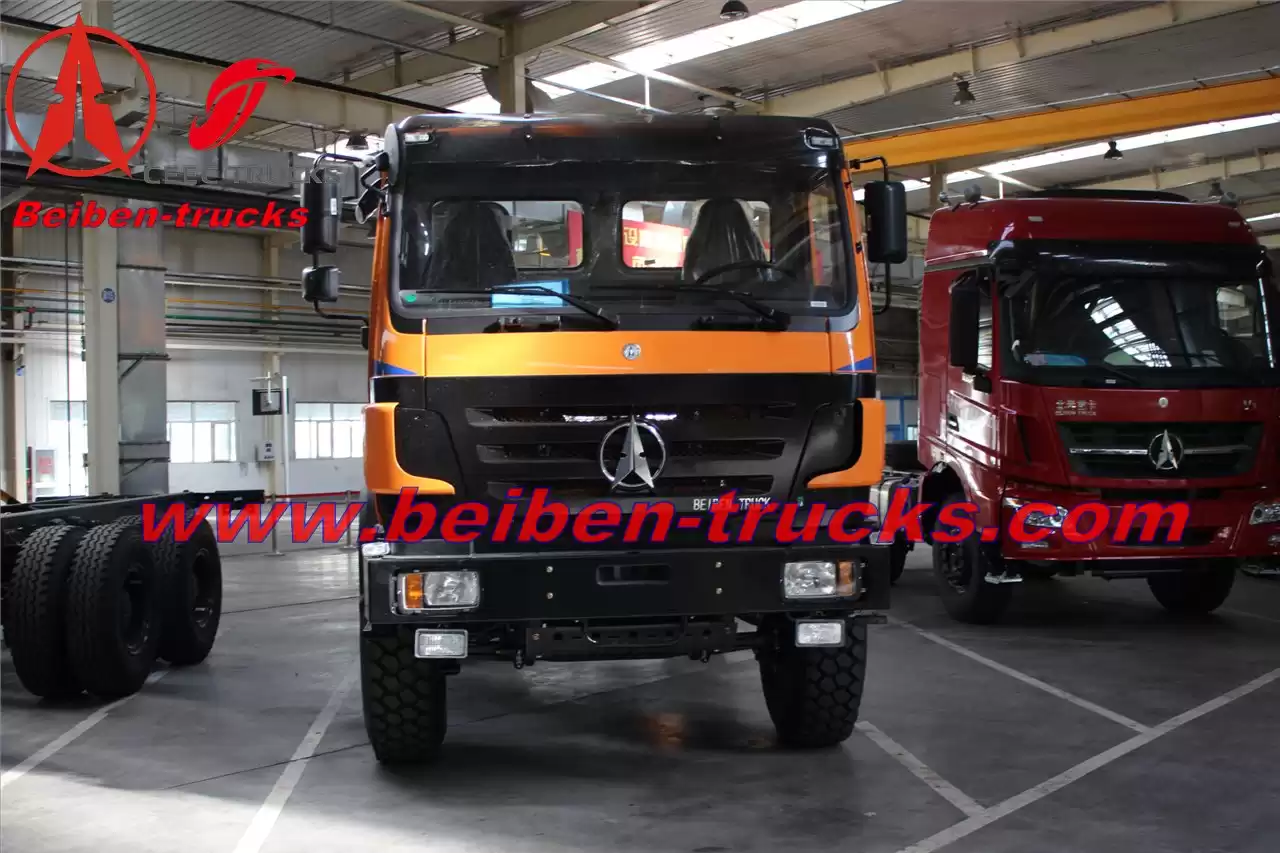

Beiben trailer truck head

Beiben trailer truck head, with the durable beiben 2638 trailer truck diesel engine and china beiben advanced assembling line.



BEIBEN/North Benz tractor truck most popular model

Traction type: 6x4

Driving type: LHD

Cabin: Full steel structure. NG80B long cab with one sleeper, dash board with all necessary gauges, video and player, sun visor, inner A/C, adjustable steering wheel.

Engine brand: WEICHAI

Engine model: WP10.380E32

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.

Displacement: 9.726 liters

Max.output: 380hp/2200rpm

Max.torque: 1460N.m/1200-1600rpm

Bore x stroke: 126x130mm

Transmission model: 12JS200T FAST brand (Manual, 12 forward and 2 reverse)

Steering: TAS85 hydraulic steering with power assistance

Clutch: GFX420, Single dry frictional disc,Hydraulic boosting

Frame: Fish belly shape, variable width, variable section side beam structure

Front axle: Benz technology double-shoe pneumatic brake steering axle

Rear axle: Double-shoe pneumatic brake, ductile casting casing, with hureductor, double reduction driving axle

Tyre: 12.00R20(one spare tire)

Fuel tank capacity: 400L

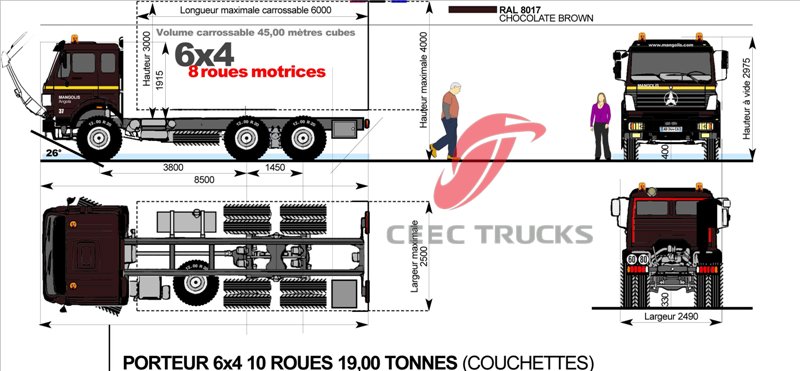

Wheel base: 3450+1450mm

Overhang(front/rear): 1410/825mm

Approach/departure angle: 26/64°

Overall dimension: 7135x2495x3180mm

Fifth Wheel: #50 or #90

Color option: White with red strip or per your request
