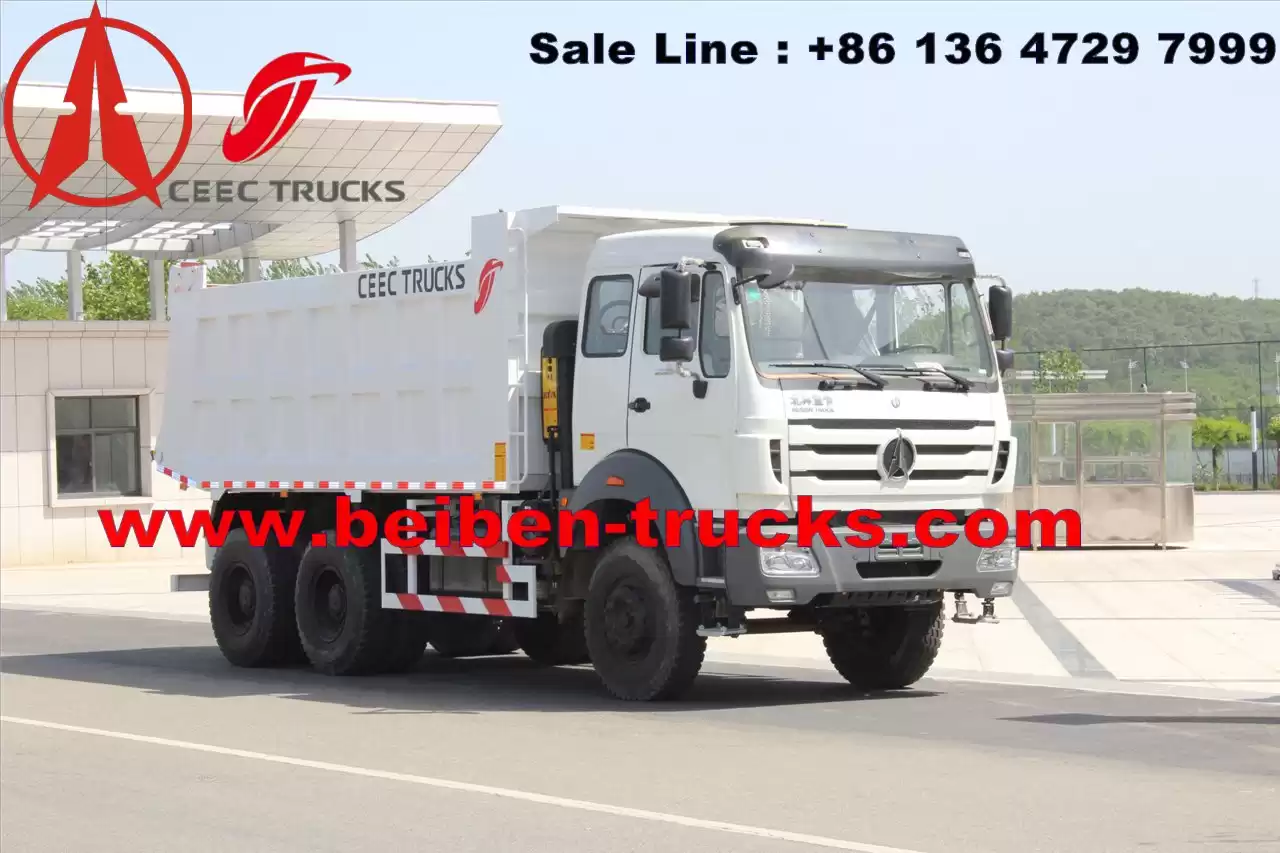

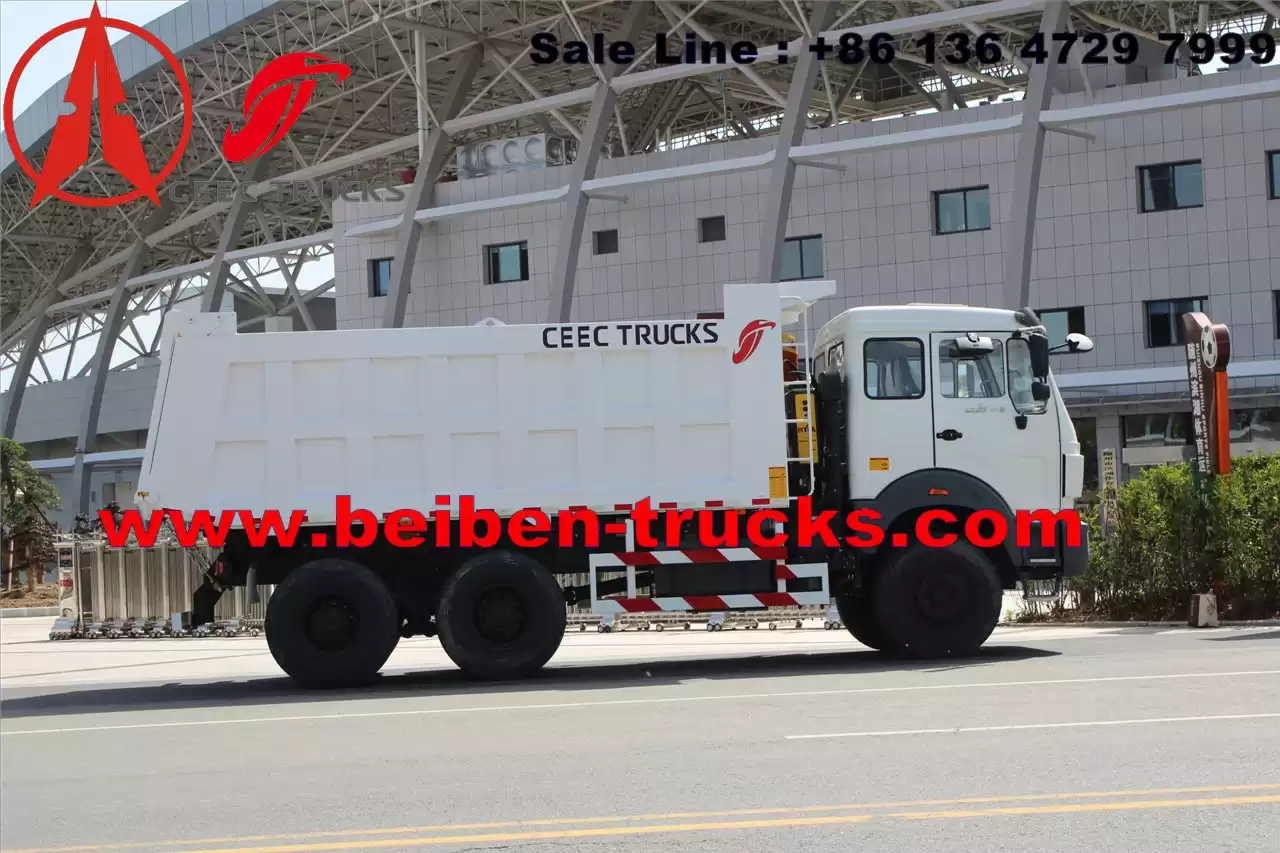

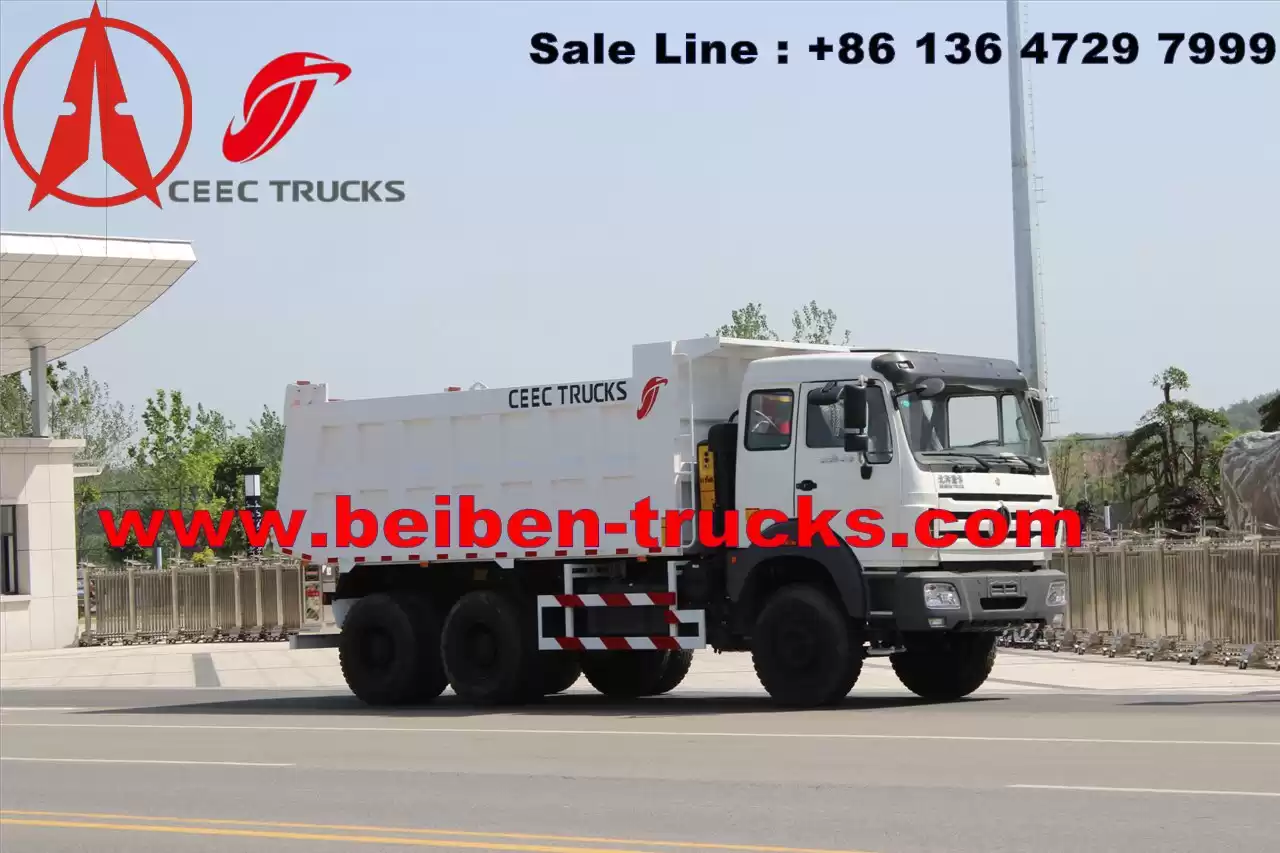

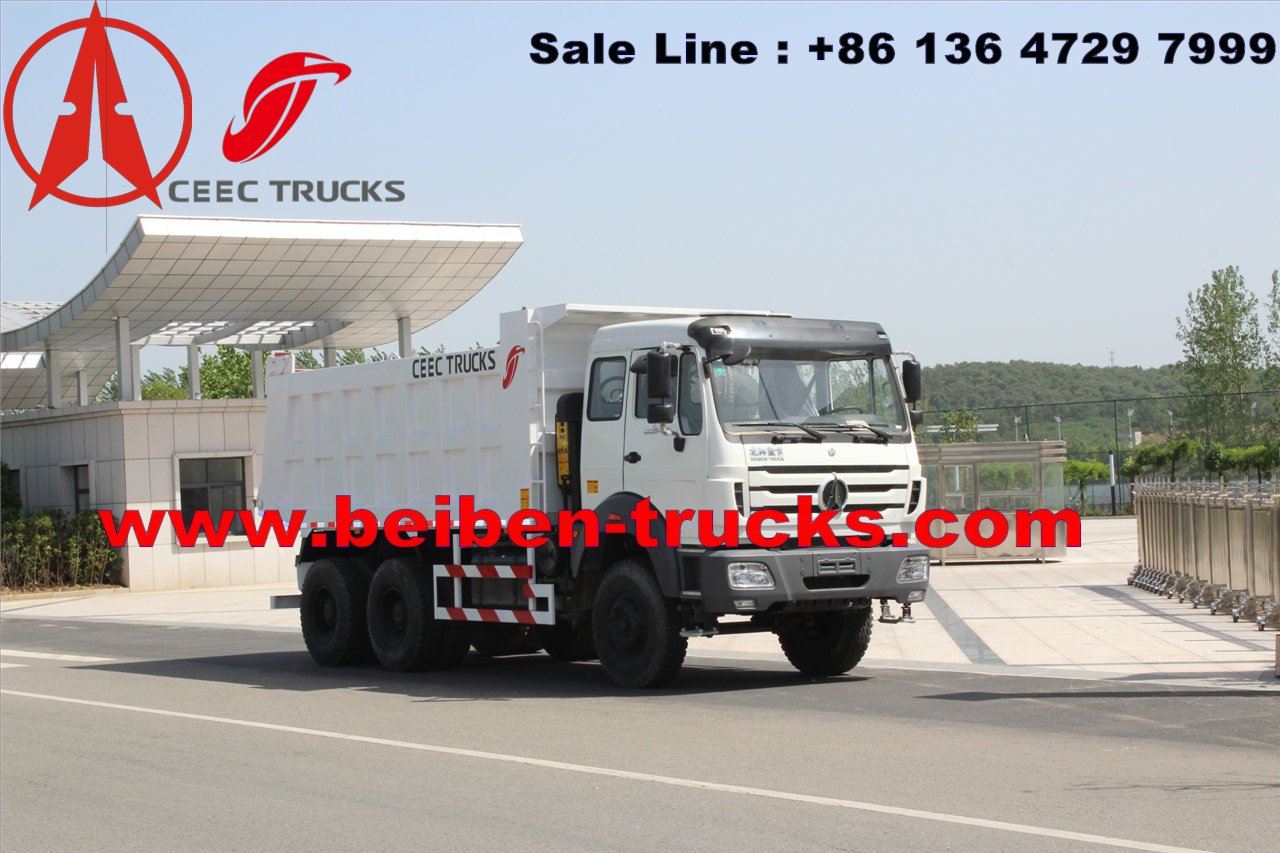

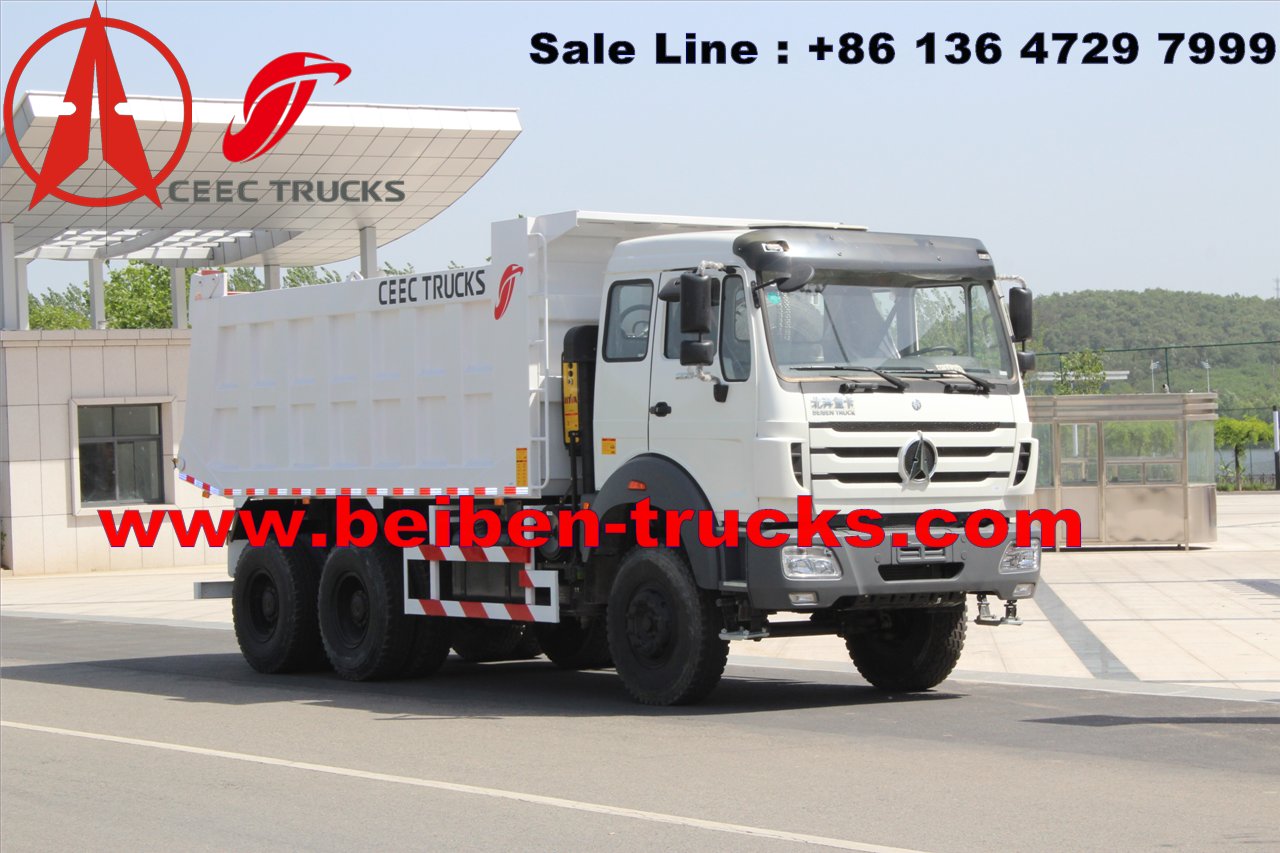

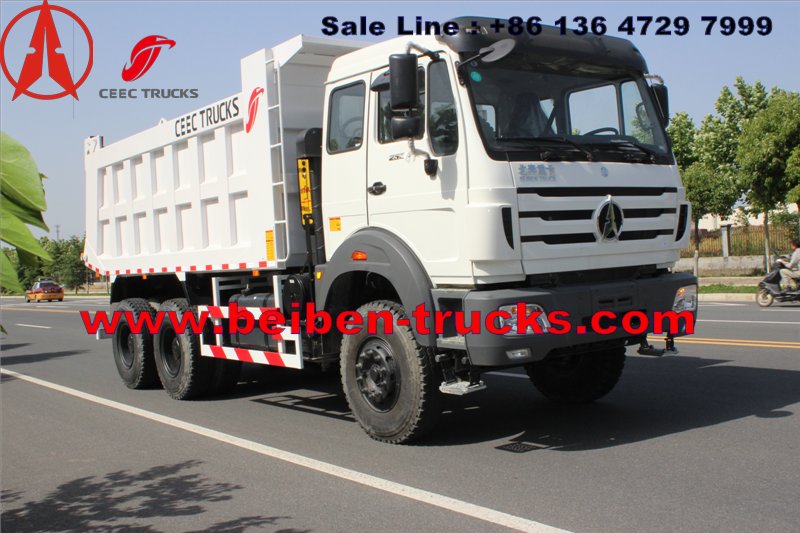

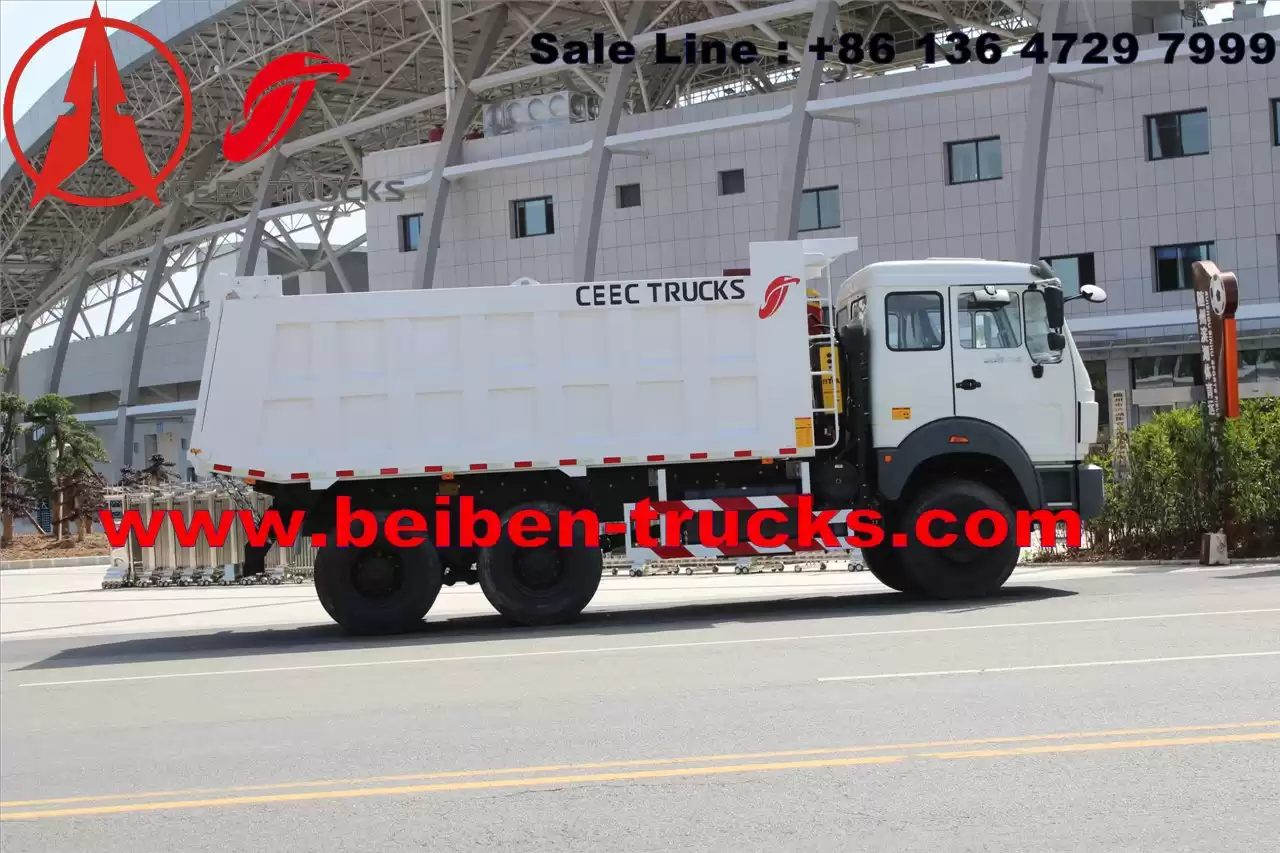

Beiben Truck 6x4 Dump Truck
Engine Weichai 340hp
Gear box Fast 9JS150A
Mercedes Benz Technology
10 yeas experiences
Beiben Truck 6x4 Dump Truck
Cabin:
North Benz Short cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 11.596 liters
Max. Output: 380HP@353kW
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS200T), manual, 12-forward and 2 reverse speeds
Steering: TAS85
Brake system:
Double-circulate brake system
Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 13/13
Fuel tank capacity (L): 400
