Beiben truck with benz technology

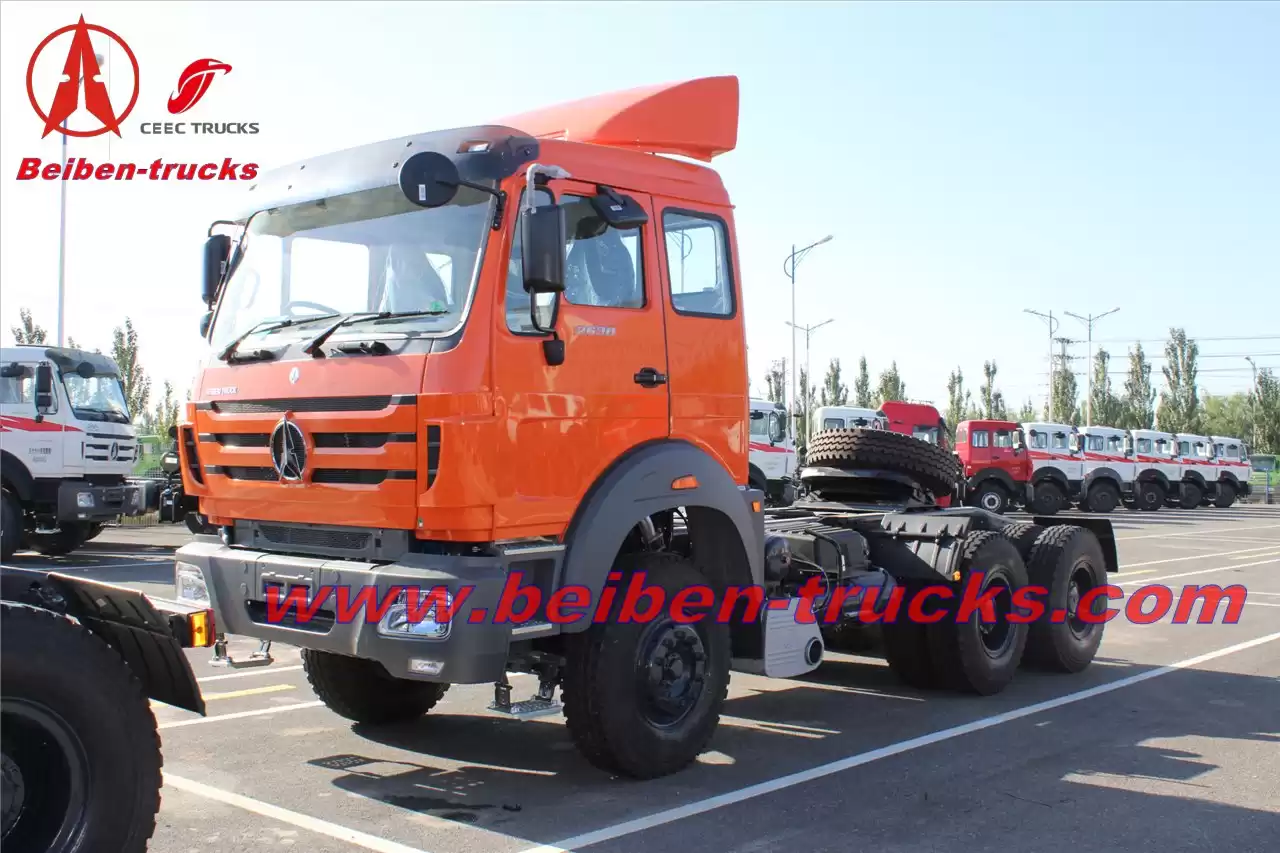

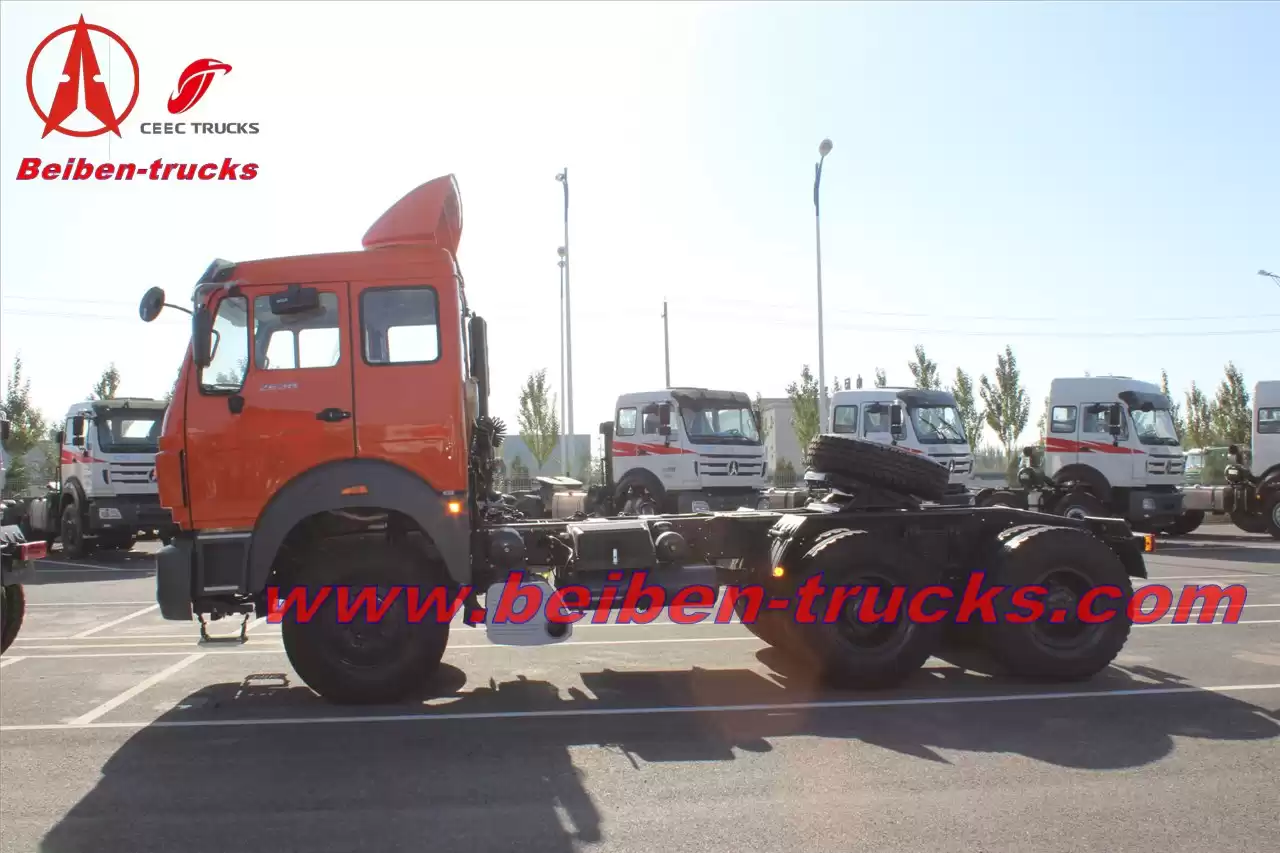

420hp 6x4 Beiben Tractor Truck
|
Model
|
ND42509B32J
|
Driving type
|
6 x 4
|
Total mass (kg)
|
25000
|
Curb weight (kg)
|
8800
|
Rated towing weight (kg)
|
40000
|
Wheelbase (mm)
|
3200+1350
|
Outline dimensions (L*W*H)(mm)
|
7060x2500x3700
|
Max. Speed (km/h)
|
80
|
Max. Gradeability (%)
|
35
|
Fuel consumption under certain conditions (L/100km)
|
30
|
Engine model
|
WP12.420E32
|
Engine make
|
Weichai power
|
Engine power (kw)
|
309kw (420hp)
|
Clutch
|
Single plate large diaphragm spring Φ430mm clutch
|
Transmission
|
Manual , 12 speed
|
Number of steel plate spring (front / rear)
|
Left 3 right 4 / Left 9 right 13
|
Steering gear
|
Chinese brand
|
Tire
|
11.00-20
|
Emission standard
|
Euro 3
|
