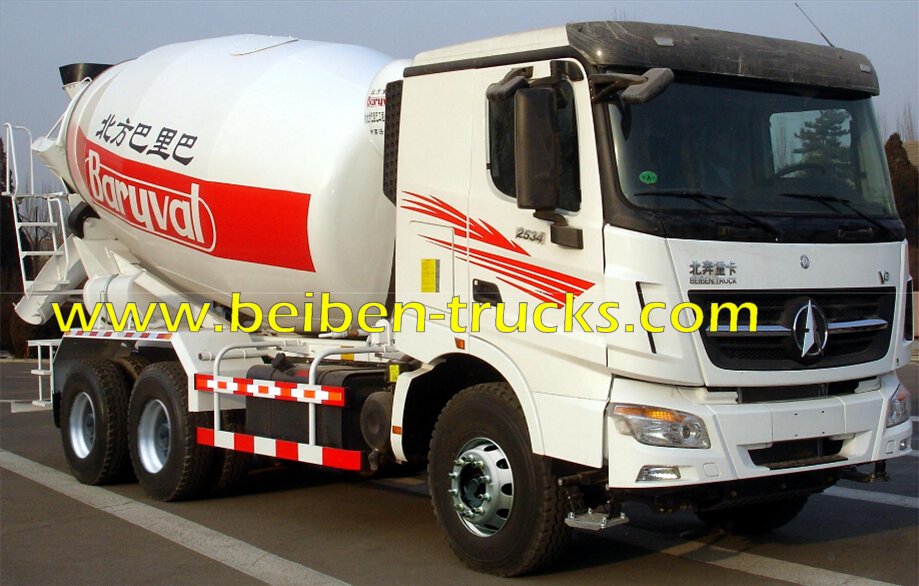

beiben V3 10 CBM concrete mixer trucks

beiben V3 10 CBM concrete mixer trucks, with weichai 340 Hp engine, fast 9 shift transmission, benz technology 7 T front axle, benz technology 13 T rear double axle, V3 cabin with air condition. 10 CBM drum.



beiben V3 10 CBM concrete mixer trucks

 China best quality beiben V3 cabin transit mixer truck manufacturer, we can produce and design beiben 2534,2538 cabin cement mixer truck, Our V3 mixer truck drum capacity can be range from 8 CBM , 9 CBM, 10 CBM, 12 CBM.

Description:

The Beiben NG80 concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites. All cement mixer trucks are constructed with high-tensile steel for endurance and resistance to friction, it’s very easy to operation.

Key Features:

   World-class Beiben Chassis, High power and Fuel efficiency, Reliability, Uptime

   The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;

 Comfortable, spacious cabin with heating and air conditioning, high-grade stereo and sleep area.

  The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;

 Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;

 The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;

 Mixer coverage 3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.

beiben V3 10 CBM concrete mixer trucks

Detail Technical Parameters:

A. Truck:

Name

Standard configuration

  Model:

Beiben ND5250GJBZ15

  Drive type:

6x4 Left hand drive

  Wheelbase

3800+1450 mm

  Cab type:

All-steel-welded construction, power tilting cab; spring suspensions with hydraulic shock absorbers. The color is white.2 seats, AM/FM CD/MP3 Player

  Air condition

Yes

  Engine

Model

WP10.340E40



Type

6-Cylinder in-line, 4-Cycle, Water-cooled, OHC, Turbo with intercooler



Max power

250  kw  (300hp)



Max torqu

1580/1450  N.m/r/min



Displacement

9.8  L

   Transmission

Fast brand 9-shift Manual, 9 forward and 1reverse speed

   Fuel tank

   400 Liters

   Tyres:

12.00R20

   Maximum drive speed:

90 km/h

   Max.Gradeability

301%

   Truck Curb Weight

12870 kg

   Overall Dimension (LxWxH)

9900x2500x398 mm



 B. Mixer drum:

Name

Standard configuration

   Material of tank body:

Q345B high strength, wear resistant steel

   Material of spiry blade:

Baosteel Q345B high strength, wear resistant steel

   Geometric volume

13.4  m3

   Mixing concrete volume

10 m3

   Operating speed

0~14  rpm

   Feeding speed

3 m3/min

   Maximum Diameter inside drum

2310 mm

   Angle of inclination

12.4 degree

   Slump scope

40-210 mm

   Discharge speed

2 m3/min

   Discharge residual percentage

1%



beiben V3 cement mixer truck
