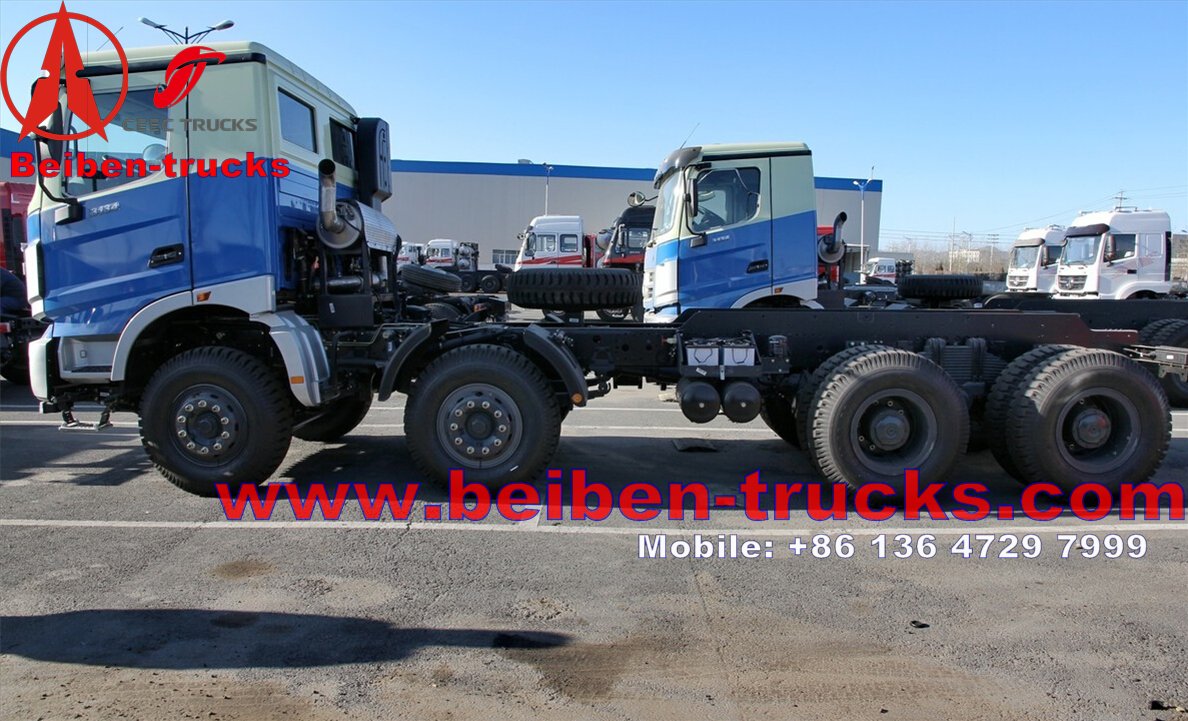

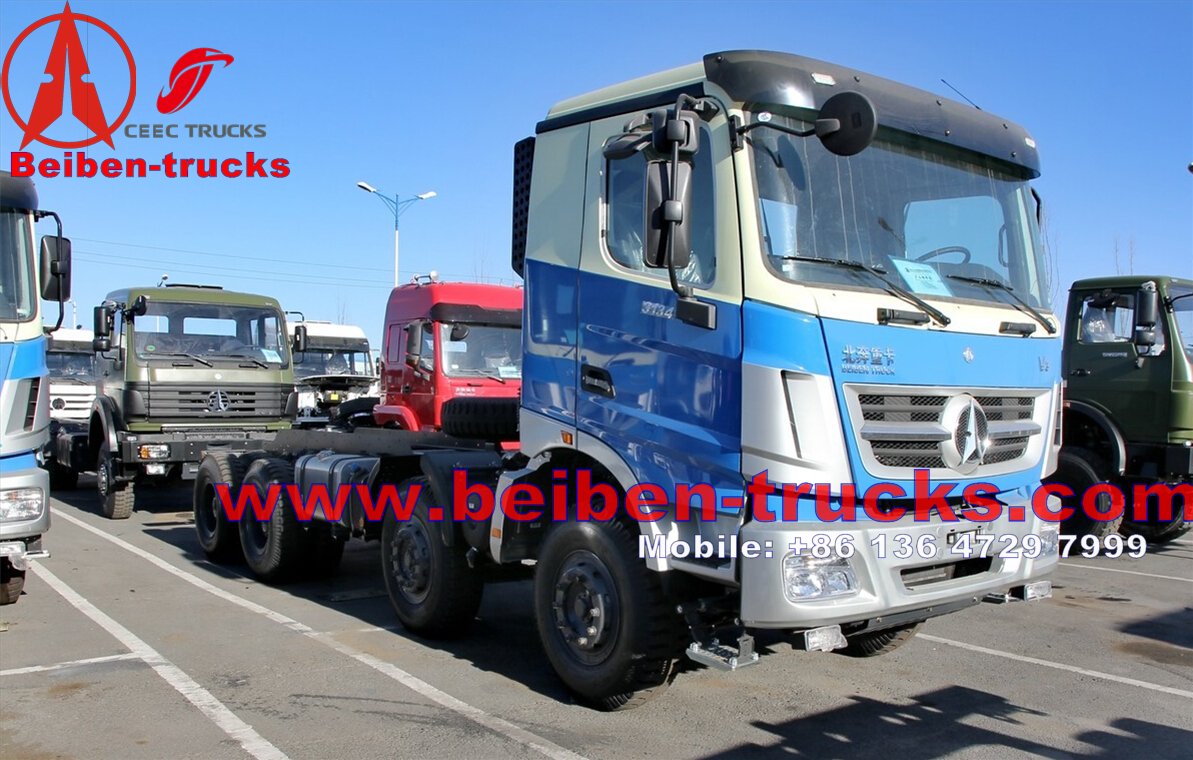

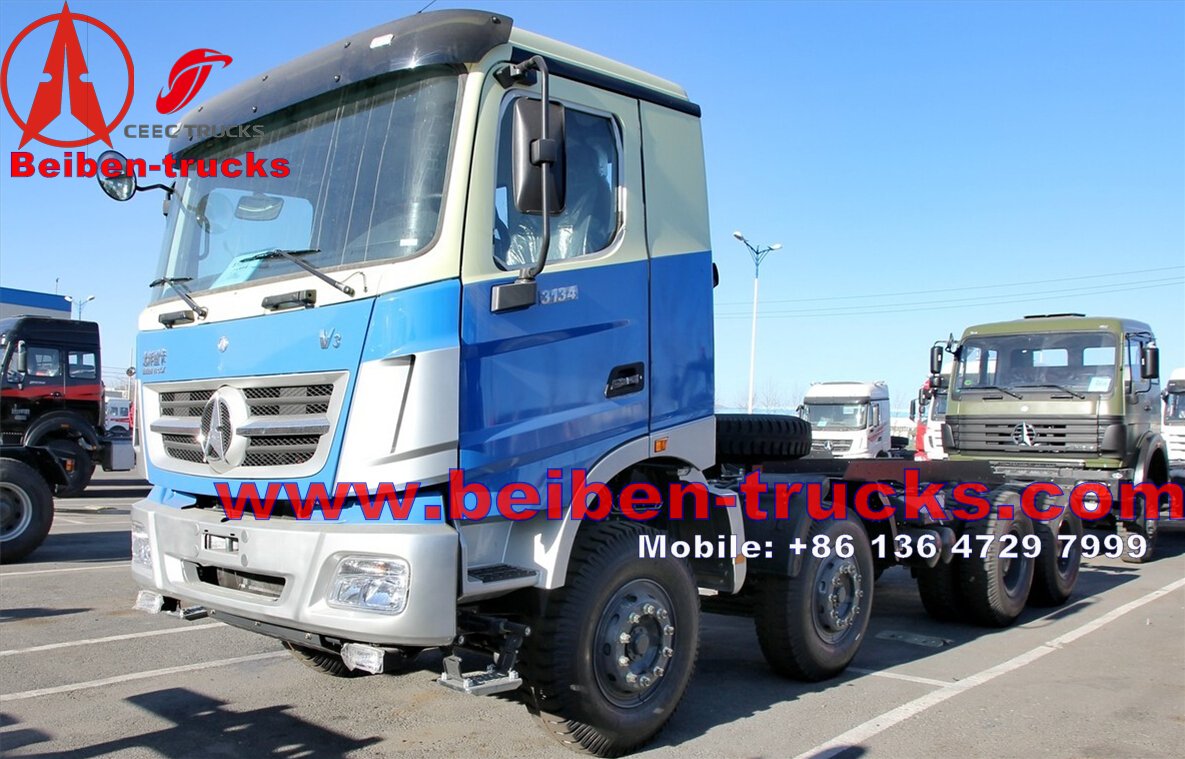

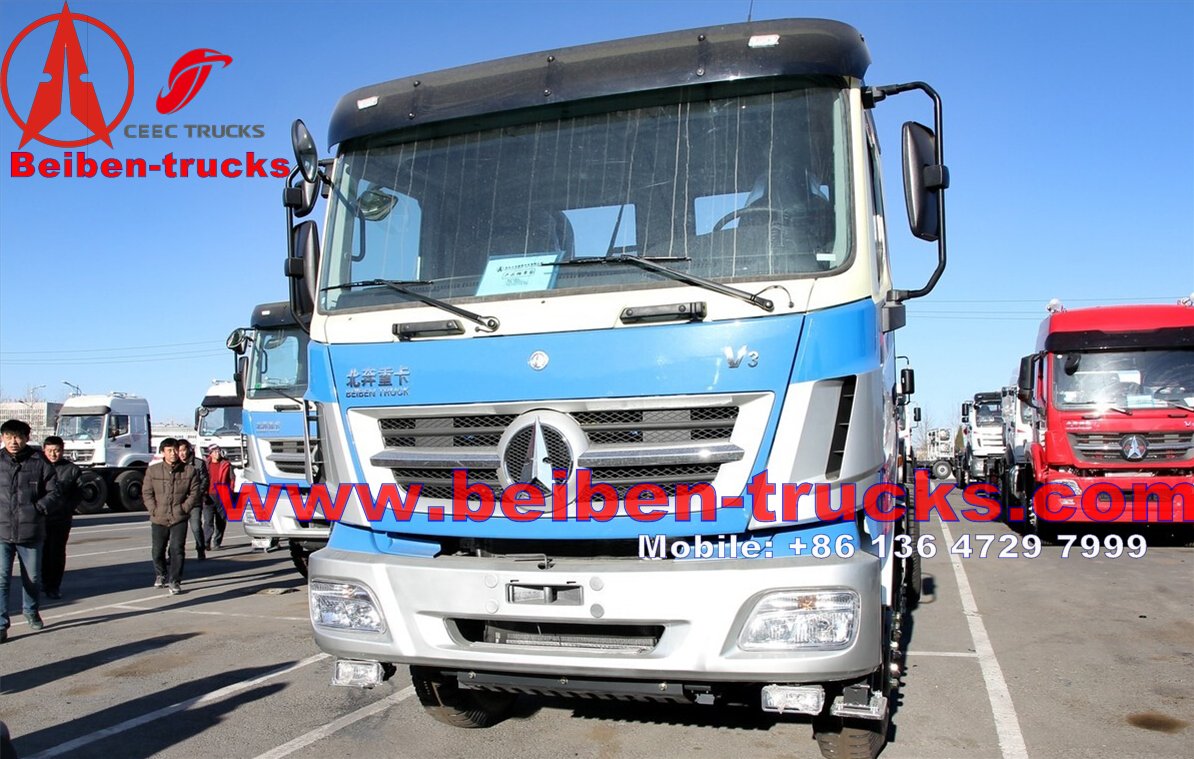

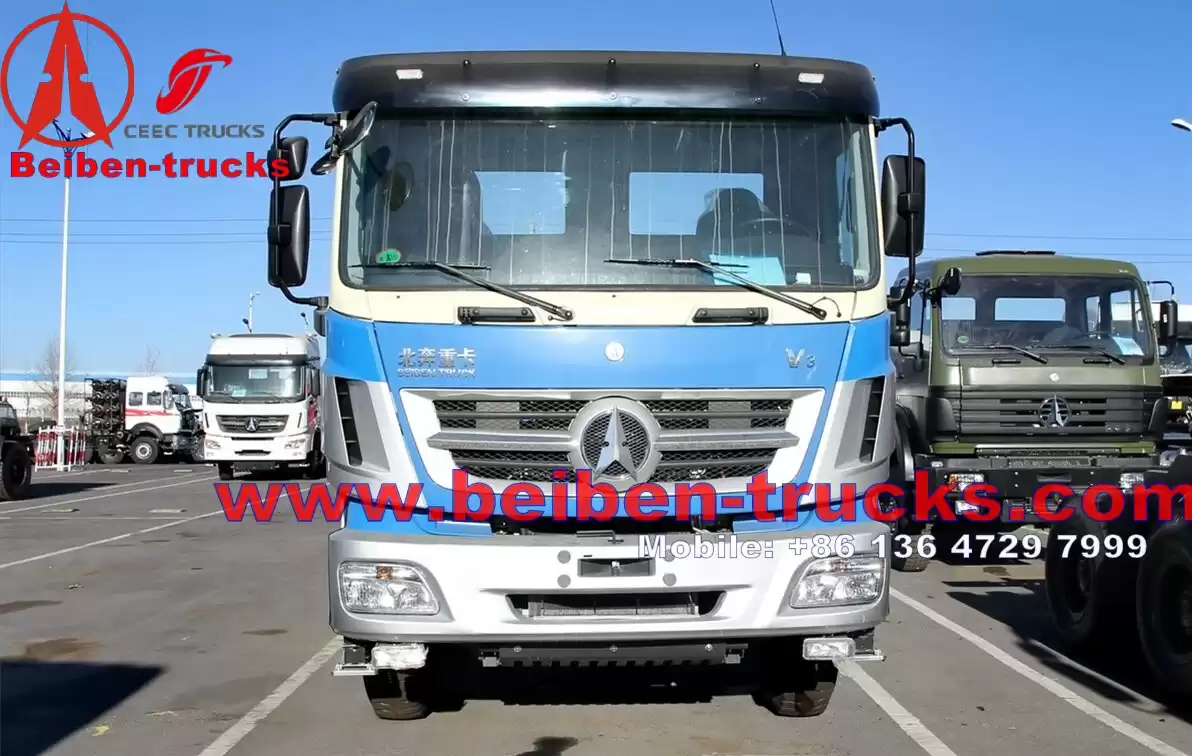

| North benz V3 cabin 3138KY /8×4/1950+4600+1450/Long-Flat Roof Cab
|
| Dimension
|
11680*2500*3484mm
|
| Upper body inner dimension
|
8900x2300x950 sand body, Hyva hydralic lifting system, thickness: bottom 8mm, side 6mm
|
| Approaching angle/Departure angle
|
16/32°
|
| Overhang(front/rear)
|
1515/2215mm
|
| Wheel base
|
1500+4750+1450mm
|
| Max speed
|
90km/h
|
| Curb weight
|
15080kg
|
| Loading capacity
|
15790kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.375，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
276/2200 (kw/rpm)
|
| Max.torque
|
1460/1200-1600（Nm/rpm）
|
| Emission stantard
|
EuroⅢ
|
| Fuel tanker capacity
|
300L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
| Gearbox
|
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated,
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
|
| Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
|
| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|

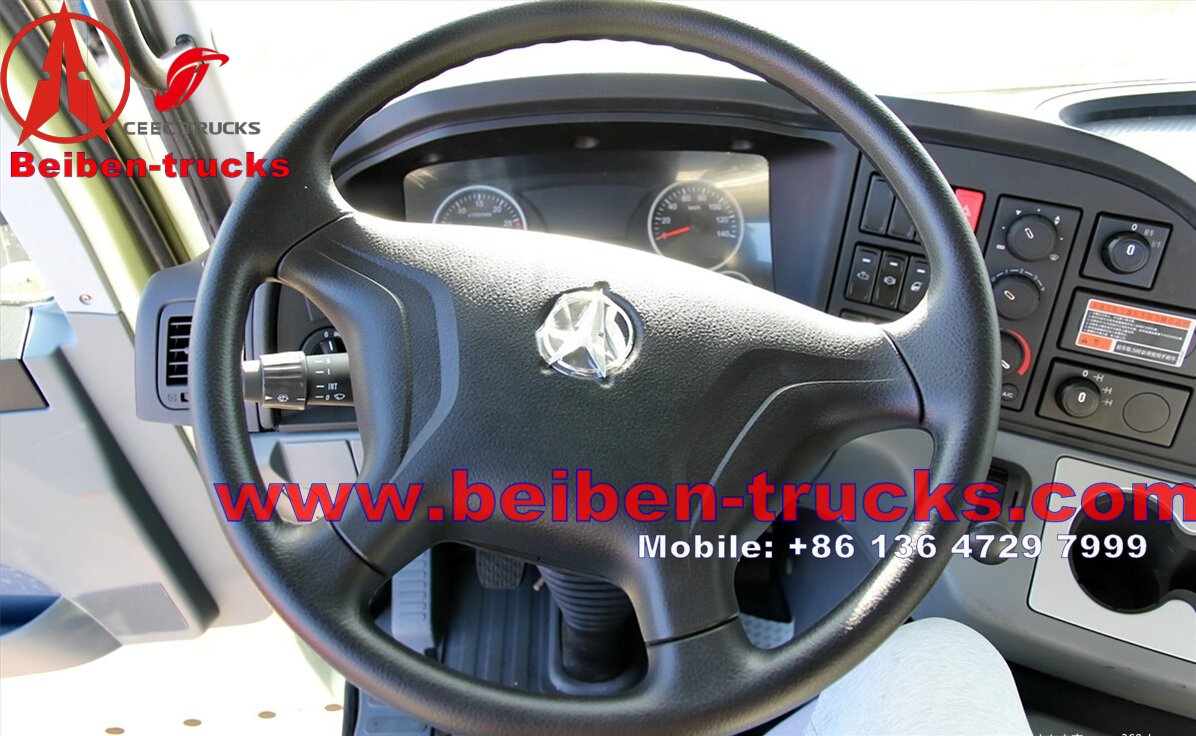

| Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|

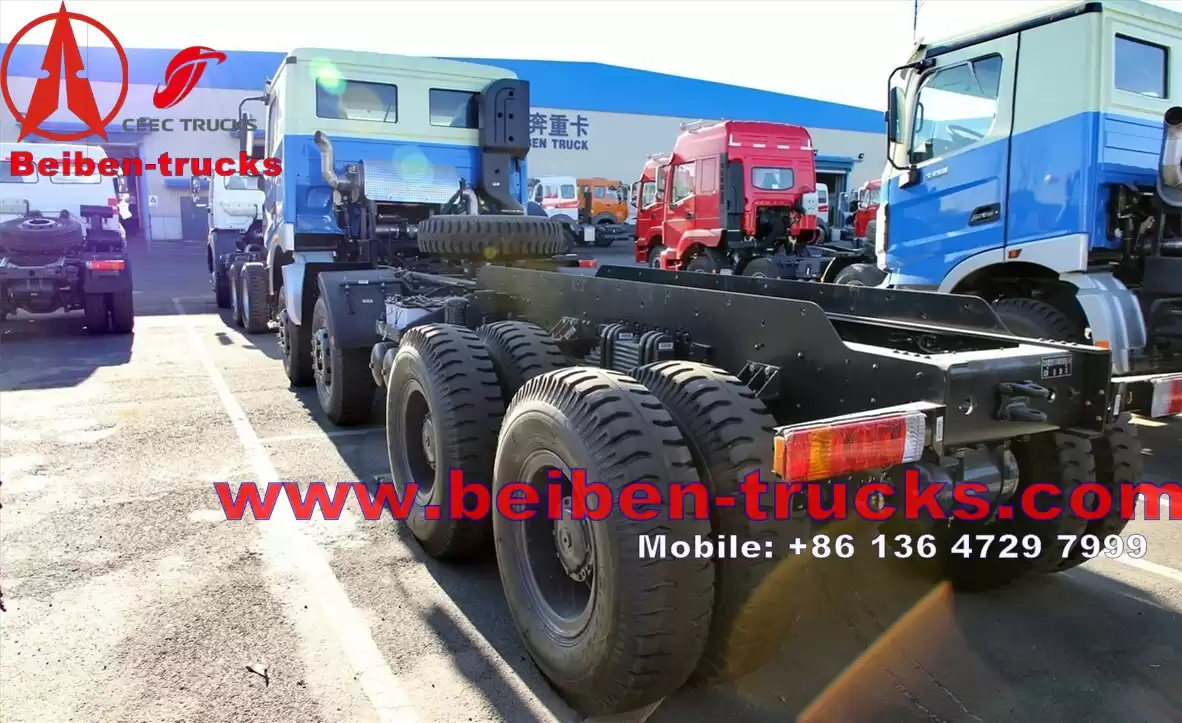

| Frame
|
Fish belly shape, variable width, variable sections
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00R20 Radial
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

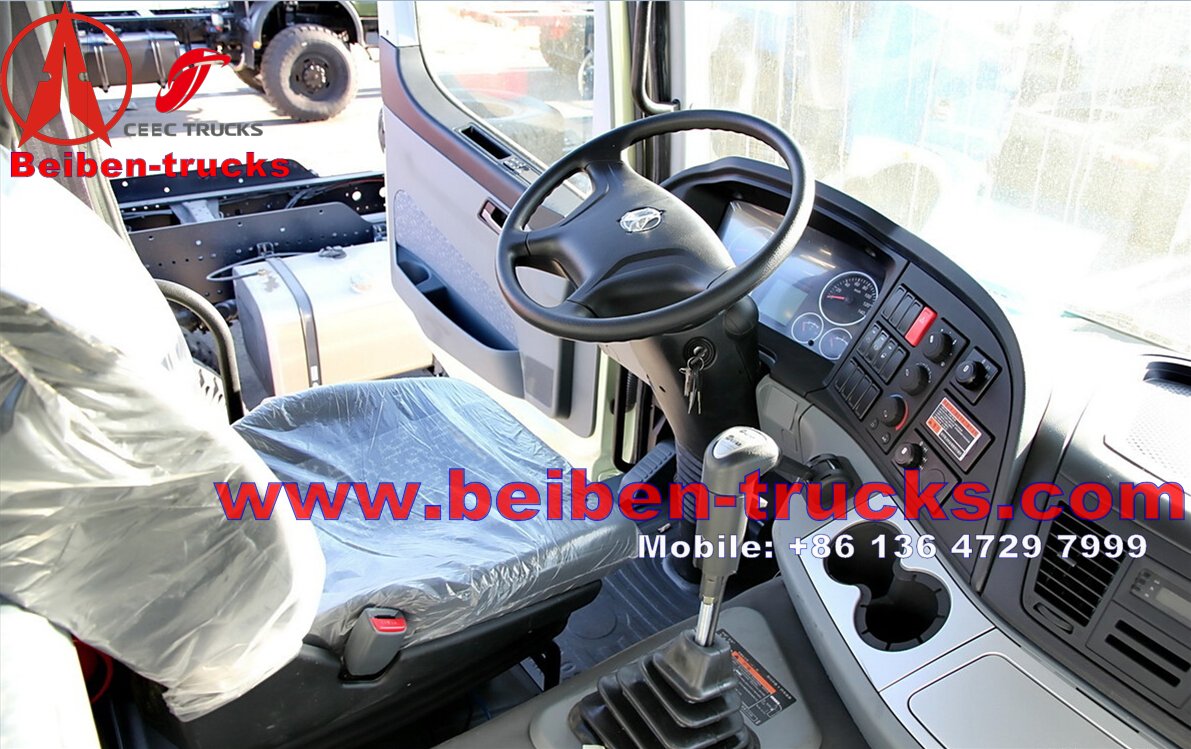

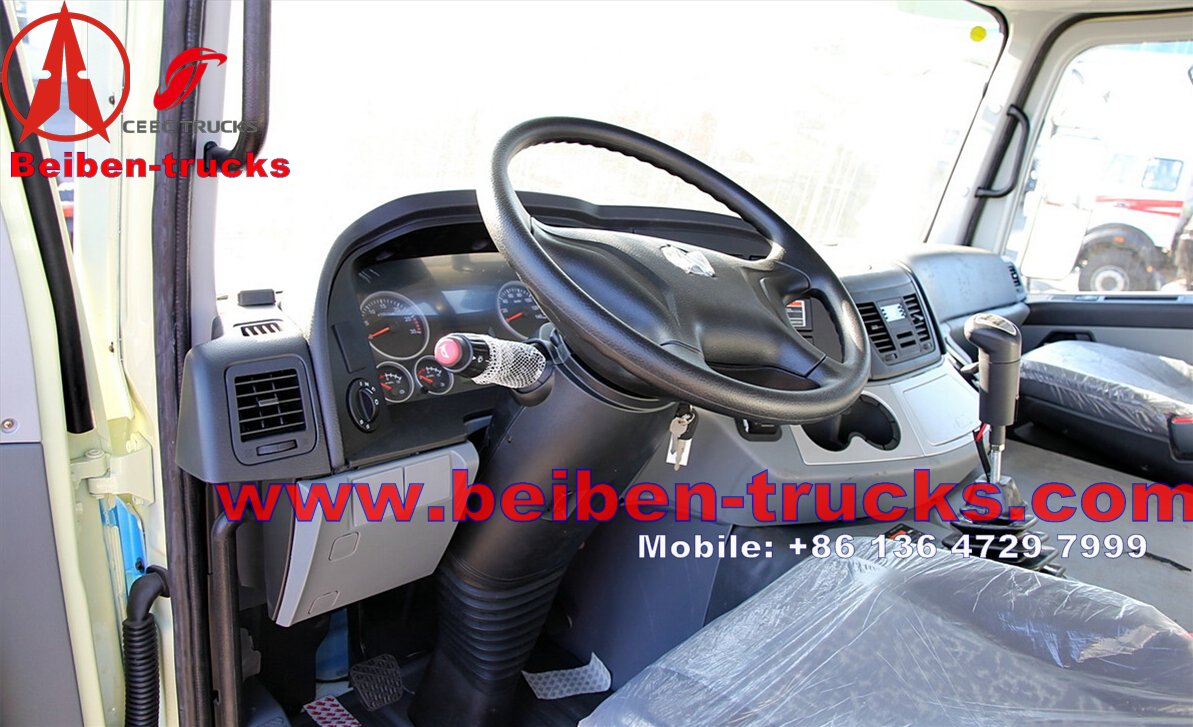

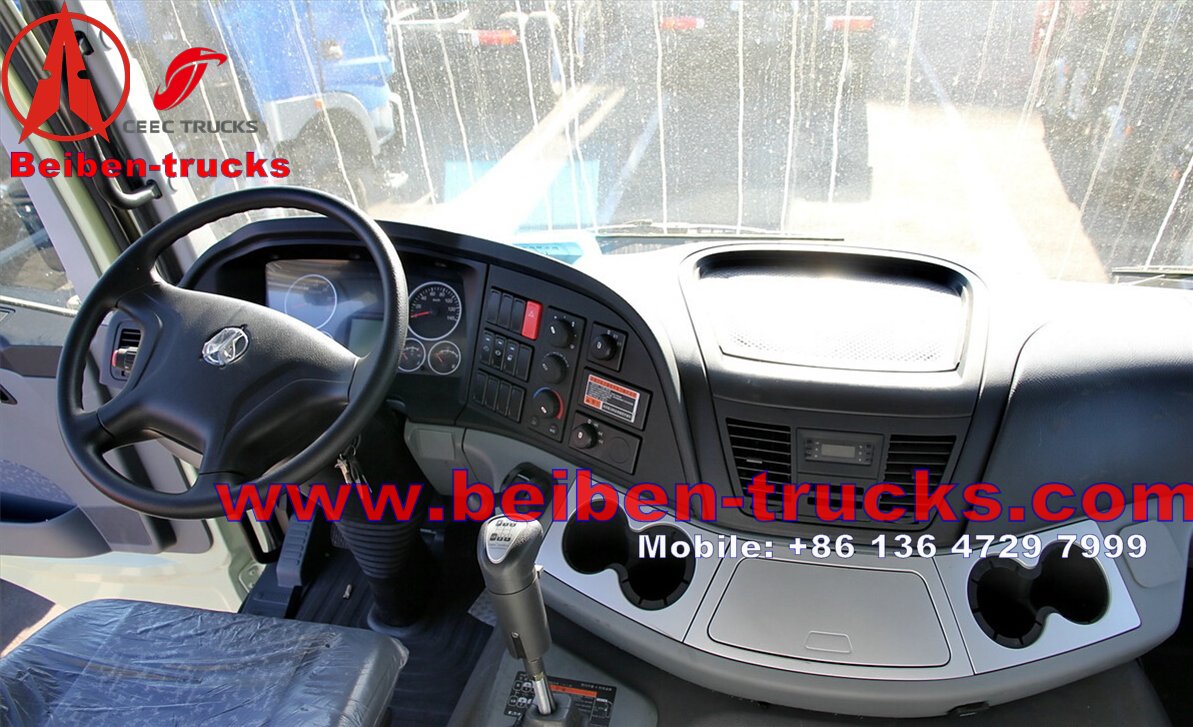

| Cabin
|
V3 Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
