Product Description

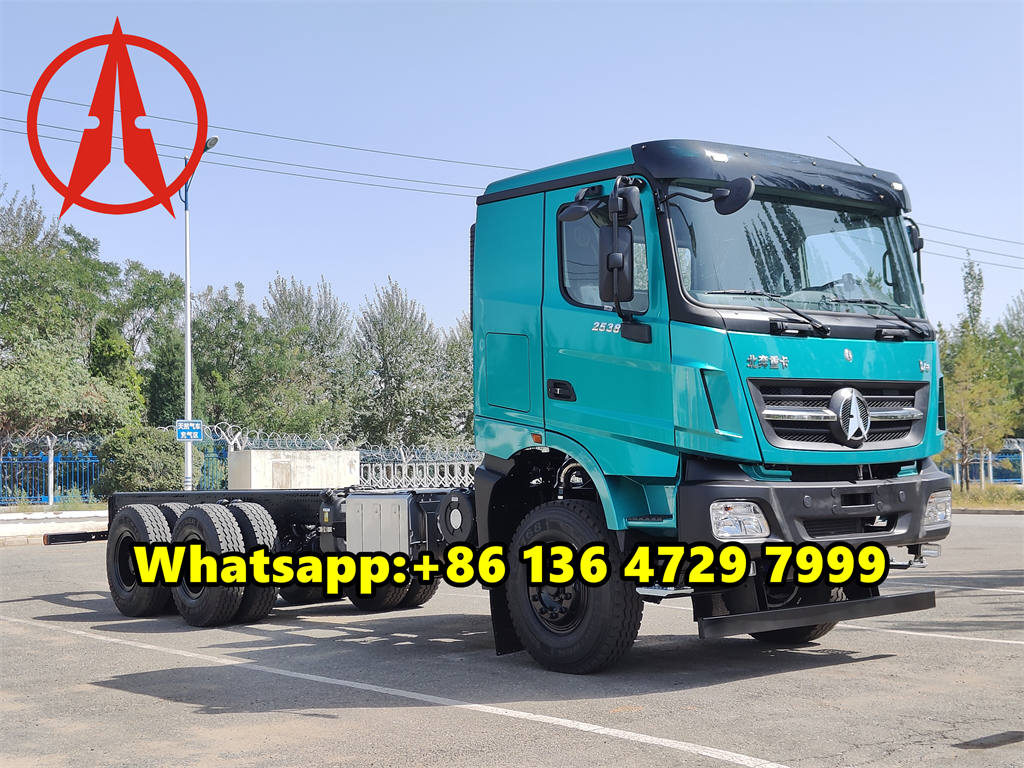

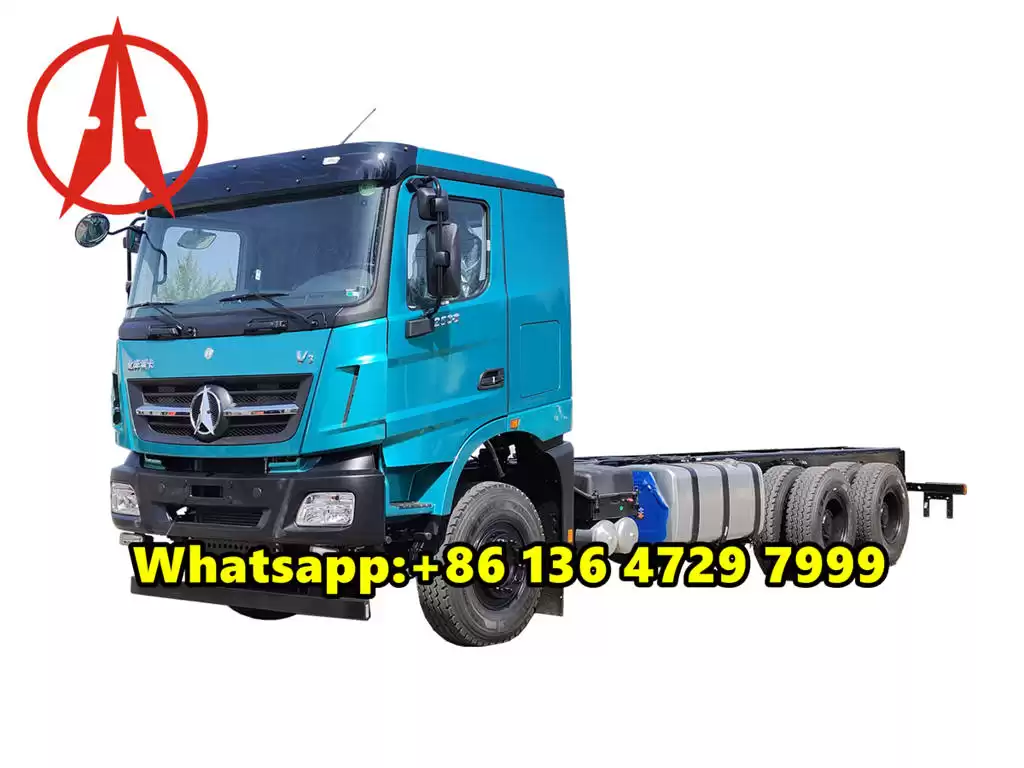

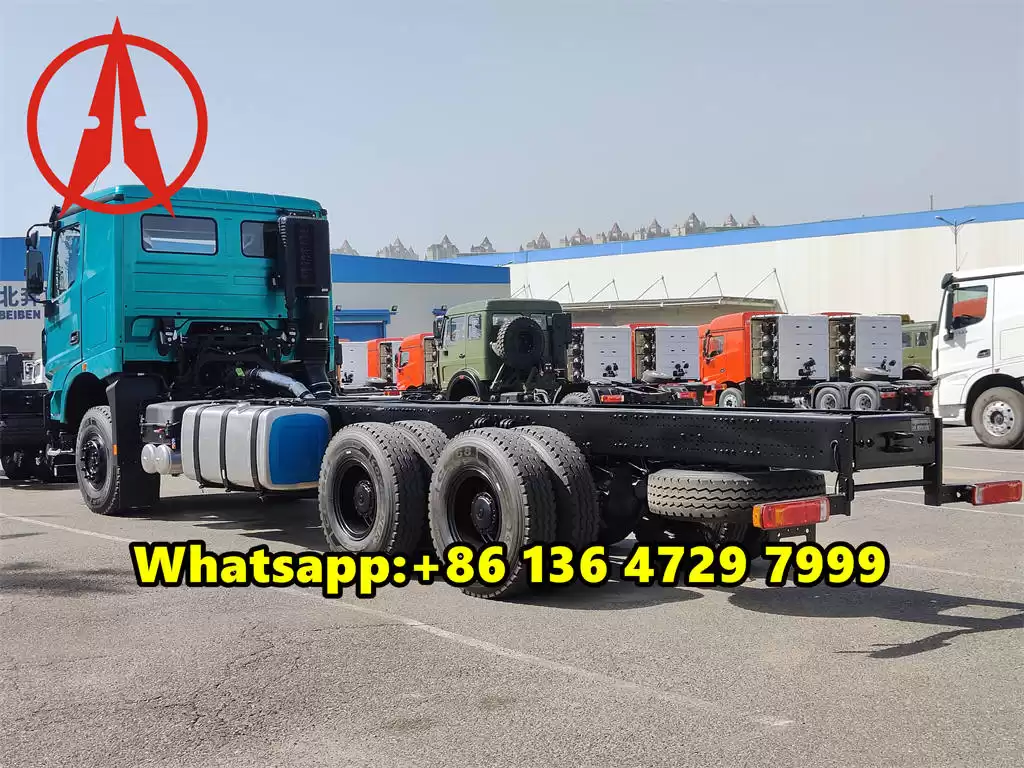

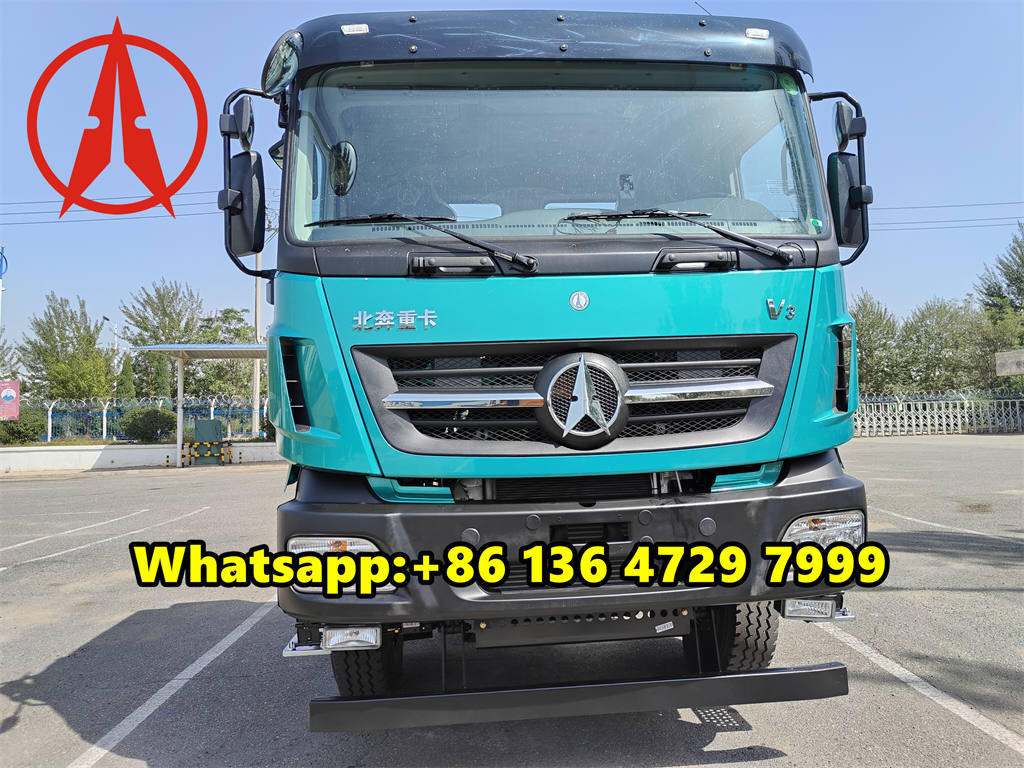

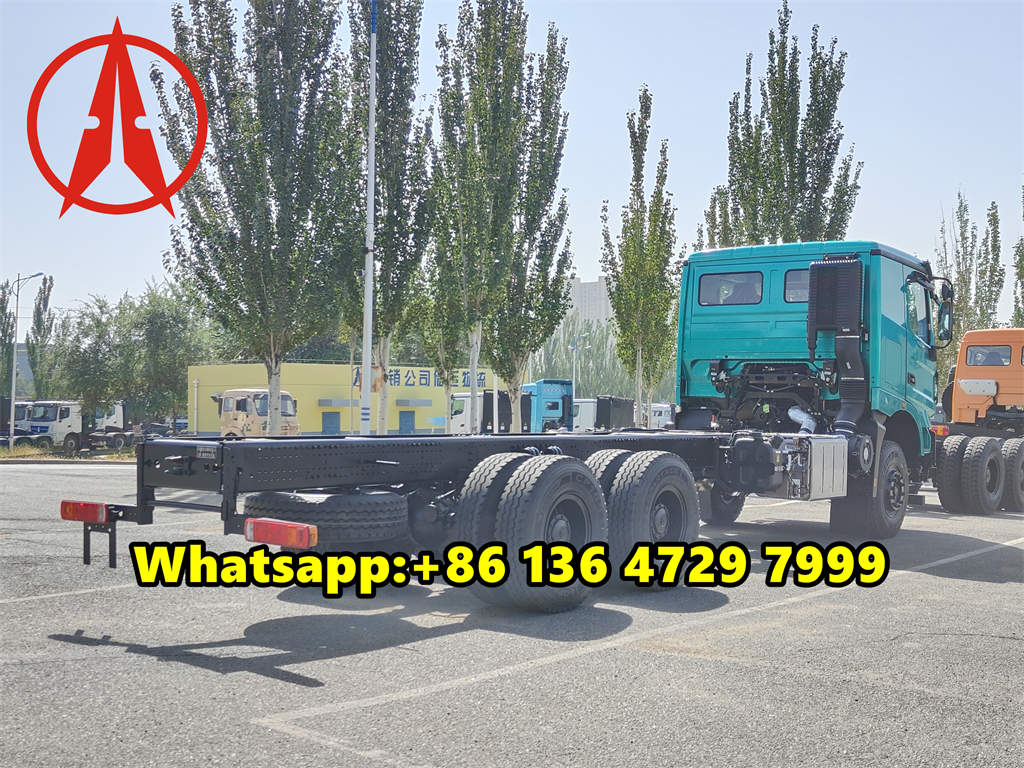

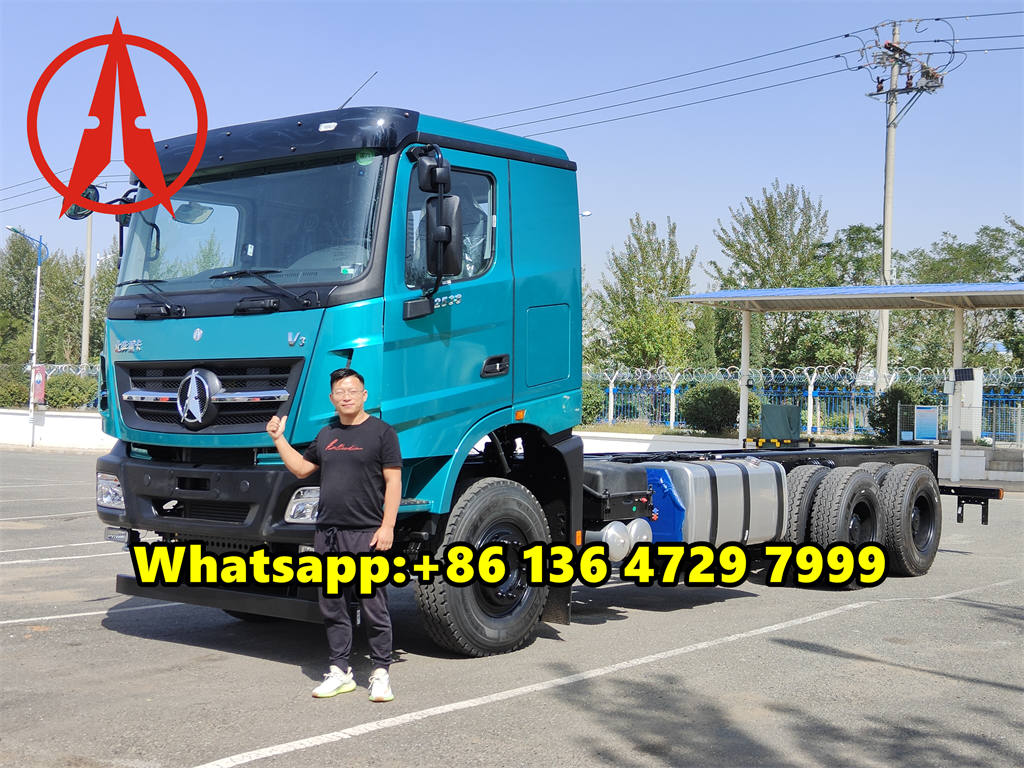

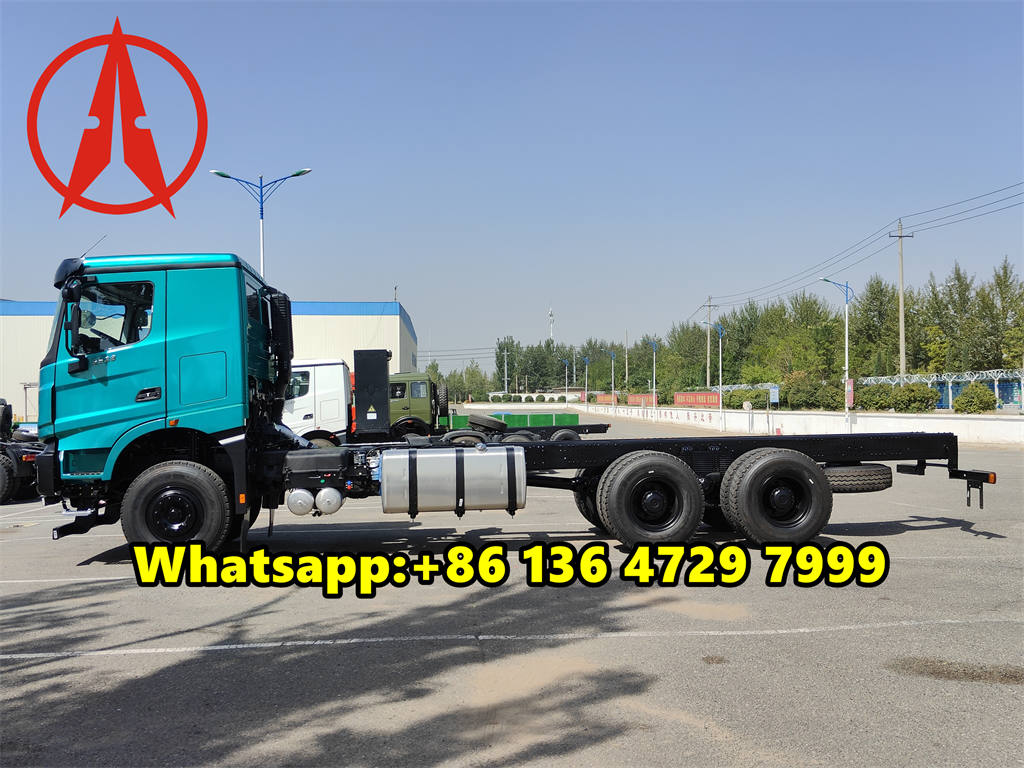

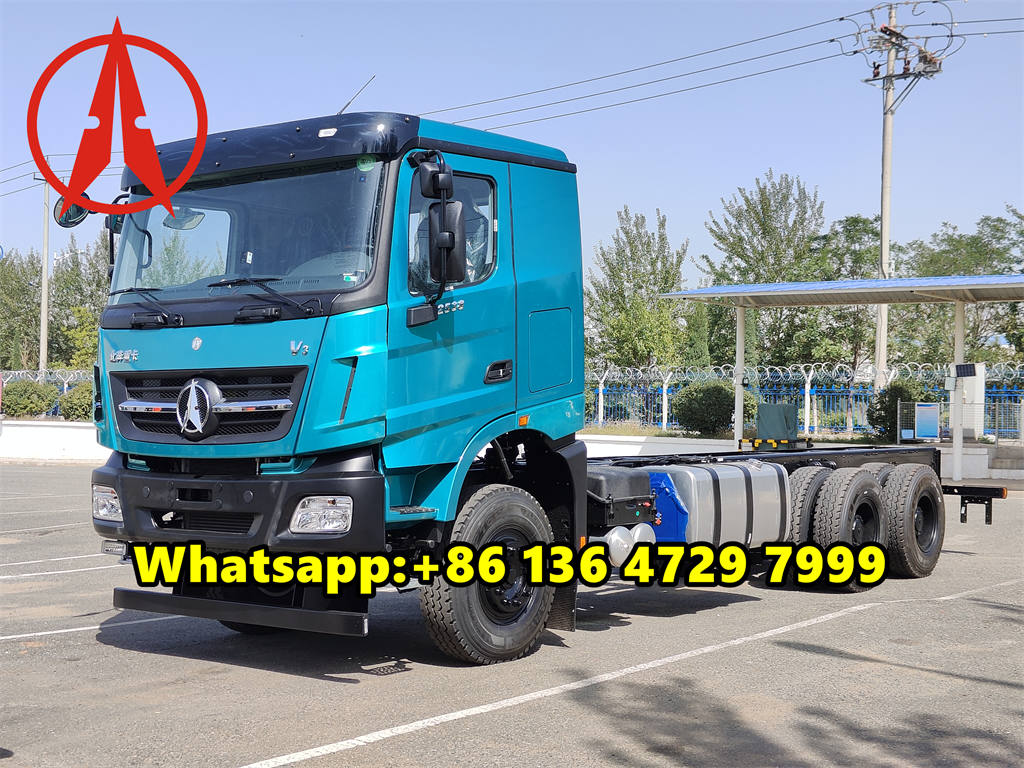

Beiben V3 6×4 chassis is a heavy-duty vehicle chassis with rich configuration and excellent performance. The cab design of this vehicle focuses on practicality and comfort. It is equipped with air conditioning and provides single or double berths to meet the rest needs of long-distance driving. The application of USB interface increases convenience, while the air suspension seat greatly improves the driving comfort. In addition, the adjustable steering wheel makes driving more flexible and convenient.
Beiben V3 2538 truck chassis is left-hand drive, 6x4 drive form, ensuring strong traction and stability. Its WEICHAI WP10 380E32 engine is a diesel four-stroke, direct injection, six-cylinder water-cooled, turbocharged and internally cooled engine with a displacement of 9.726L, which meets the European III emission standards. This engine can output a maximum torque of 2000NM in the speed range of 1400-1600rpm, providing strong power for the vehicle.

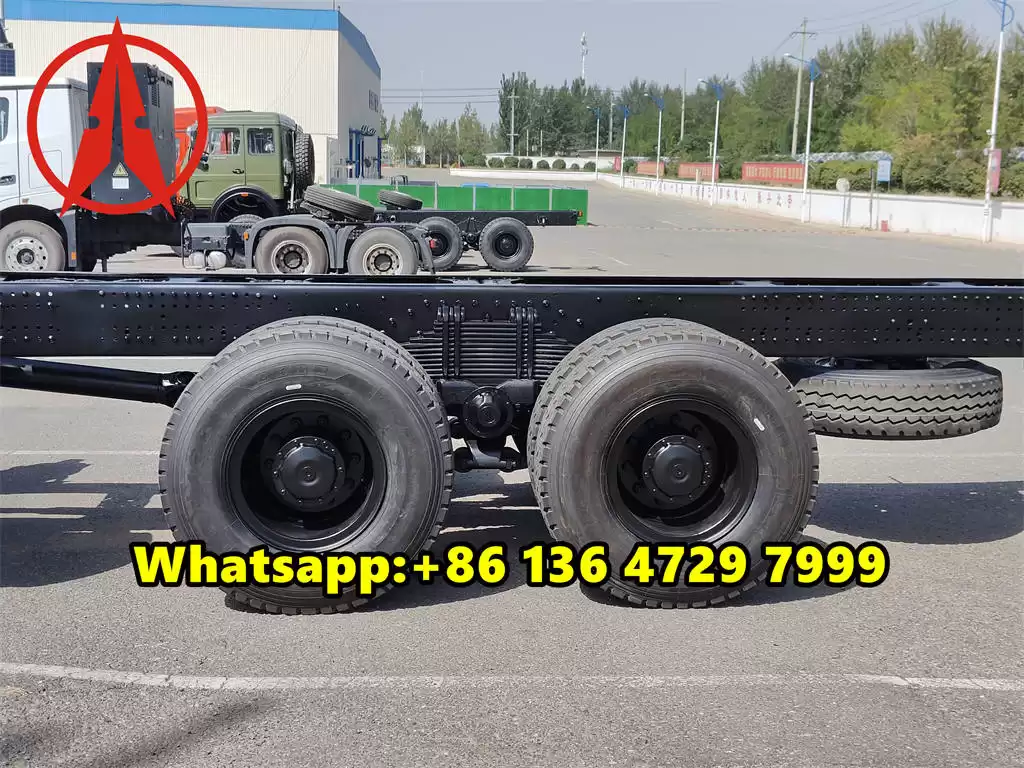

The front axle of the Beiben V3 10 wheeler chassis uses BENZ technology, with a reasonable design and a load capacity of 7000kg. The rear drive axle also uses BENZ technology, which is a pressed axle housing with optional single-stage or double-stage reduction, and a load capacity of up to 13,000 kg. The vehicle's wheelbase is 1800/1860 mm, and the tire specification is 12.00RR20, providing the vehicle with good grip and stability.
Product Specifications
|

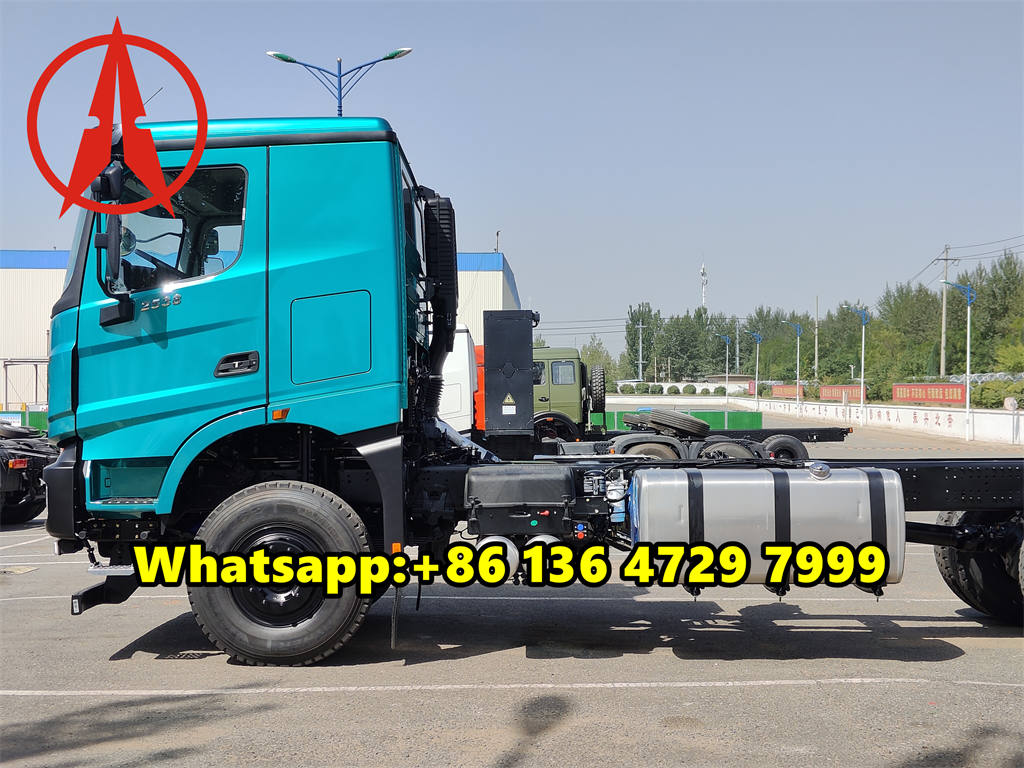

Cabin
|
Beiben V3，air condition, single or double sleeper, USB application, air suspension seat, adjustable steering wheels.
|
|
Drive type
|
Left hand drive, 6x4
|
|
Engine model
|
WEICHAI WP10 380E32
|
|
Type
|
Diesel 4-stroke, direct injection, 6 cylinders in line, water cooling, turbocharged& inner cooling.
|
|
Number of cylinders
|
six
|
|
Displacement
|
9.726L
|
|
Emission standard
|
Euro 3
|
|
Max torque (kg.m/rpm)
|
Max 2000NM@1400-1600rpm
|
|
Clutch
|
|
Type
|
φ 430 diaphragm type
|
|
Single-plate dry clutch, mechanically operating with air assisted
|
|
Gear box
|
|
Model
|
FAST 9-speed
|
|
Type
|
Manual, 9-speed forwards and 1 reverse
|
|
Steering
|
ZF8098
|
|
Front axle
|
|
Type
|
BENZ technology axle
|
|
Payload
|
7000kg
|
|

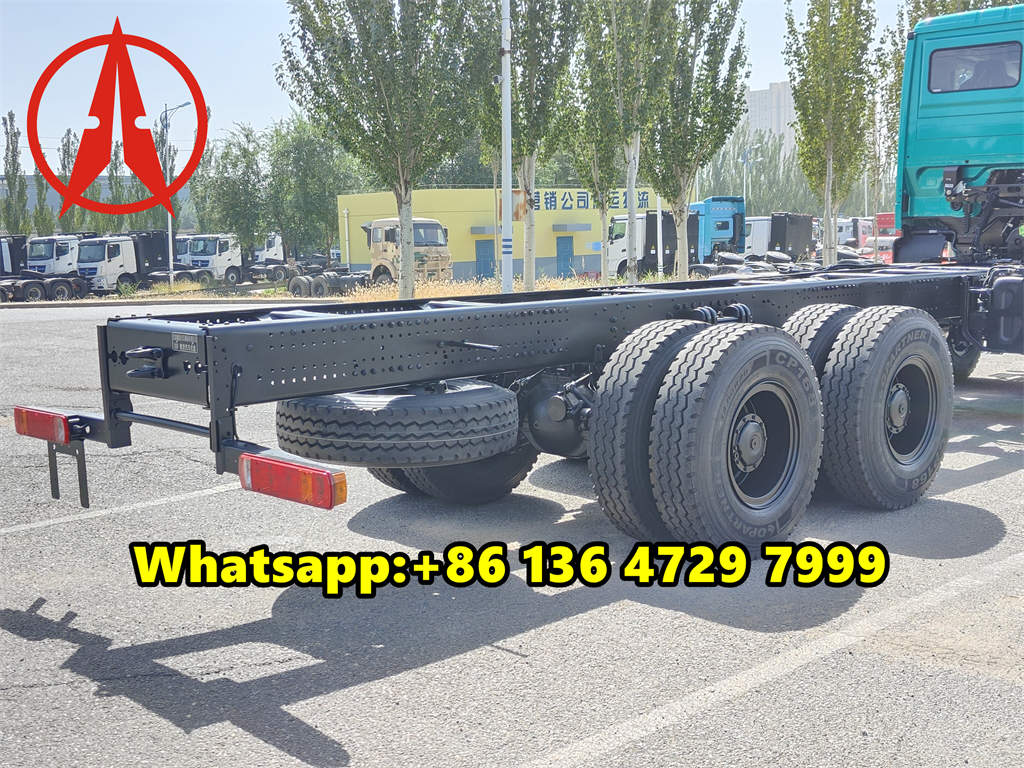

Rear driving axle
|
|
Model
|
Benz technology driving axle
|
|
Type
|
Pressed axle housing, single/double reduction.
|
|
Payload
|
13000kg
|
|
Track (mm)
|
1800/1860
|
|
Tyre
|
12.00RR20
|
|
Braking system
|
Double lines penumatic (air) brake, drum brake, optional: disc brake
|
|
Engine Brake
|
EVB
|
|
Parking brake
|
Spring activated, compressed air operating on rear wheels
|
|
Suspension system
|
|
Type
|
FR/RR
|
Leaf Spring, 10/12
|
|
Electric equipment
|
|
Operating voltage
|
24v,negative grounded
|
|
Battery voltage/capacity
|
2x 12v/135A,165A
|
|
Starter
|
5.4KW/24V
|
|
Fuel tank
|
400 L
|
|
PTO: (QH50)
|
