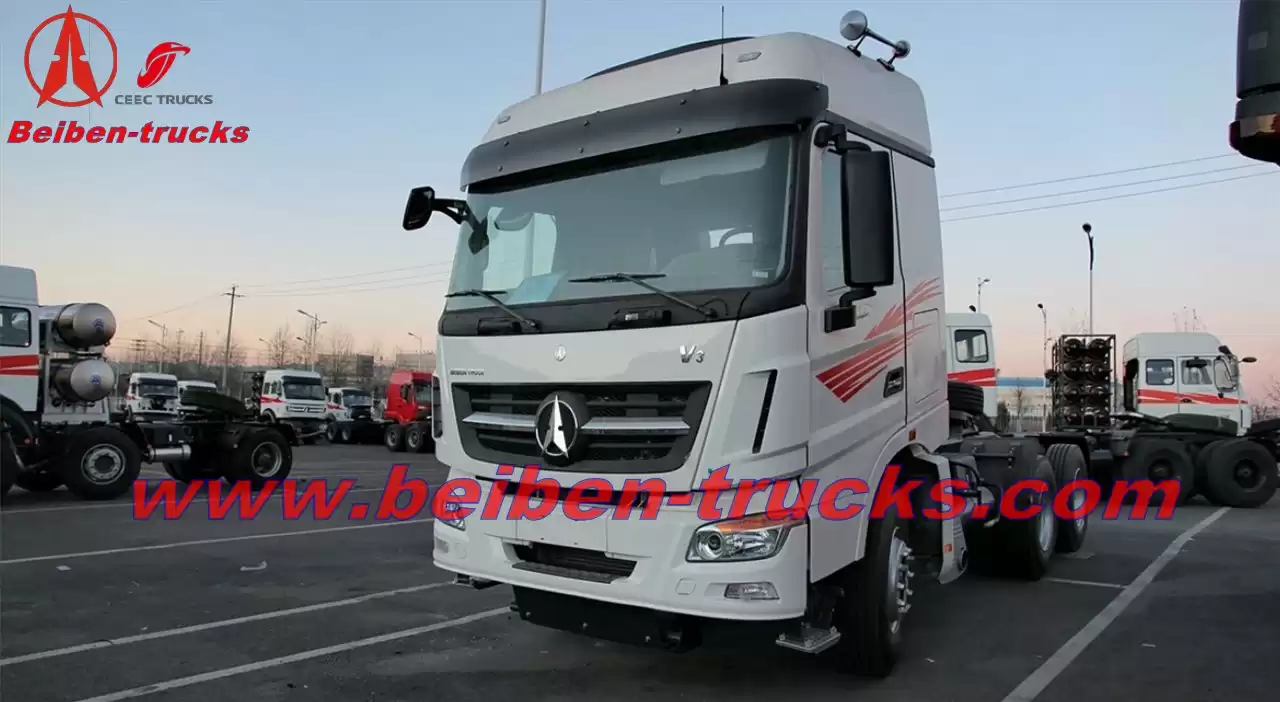

BEIBEN V3 tractor truck with 315/80R22.5 tyres
BEIBEN
TRACTOR TRUCK
ND4251B34J7
|
|
Traction type
|
LHD&HD
|
Drive System
|
6×4
|
Cabin
|
V3 high cab, air conditioner ,two sleepers
|
Engine
|
Brand
|
WEICHAI
|
Model
|
WD12.420 EuroII
|
Rated power
|
420hp
|
Engine displacement
|
11.596 liters
|
Gearbox
|
12JS200T
|
Clutch
|
430 Diaphragm type
|
Steering
|
TAS85/ZF8098
|
Axle
|
Front
|
BEIBEN 7.5T
|
Rear
|
BEIBEN 13T, double reduction axle, ratio:5.921
|
Max. running speed (km/h)
|
80
|
Tire
|
315/80R22.5
|
Spring
|
13/13
|
Fuel tank
|
400L
|
Kerb weight (kg)
|
8800
|
Total mass (kg)
|
25000
|
Wheel base (mm)
|
3450+1450
|
Overhang (mm) (front/rear)
|
1515/825
|
Track (mm) (front/rear)
|
1995/1800
|
Approach / departure angle(°)
|
16/60
|
Overall Dimensions(L*W*H)(mm)
|
7240×2500×3750
|
5th wheel
|
90#
|
