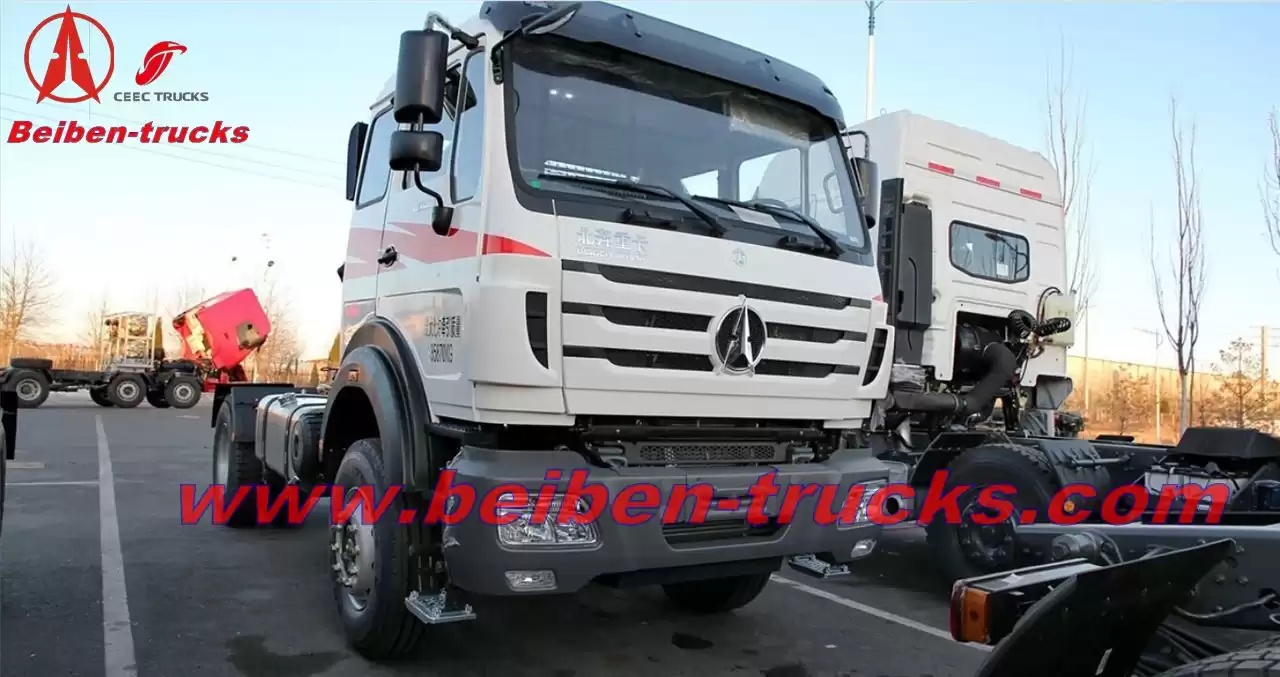

Beiben V3 380hp CNG tractor truck

Beiben V3 CNG 380hp truck head
120L CNG bottles
380hp Weichai engine
fast transmission
Favorable price



Beiben V3 CNG tractor truck for sale Benz technology military quality

Engine: WP12NG380E40

  Weichai brand, turbocharged inter cooling, water cooled, 6 cylinders in line, Euro IV

  Displacement: 11.596L

  Max. Power: 380hp/2200rpm

  Max. Torque: 1500N.m/1400-1600r/min

  Bore x Stroke: 126x155mm

Transmission: 12JSD200TA/16JS240TA

Steering: ZF8098 hydraulic steering with power assistance

Frame: Fish belly shape, variable width, variable sections

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs

Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Clutch: #430, Single dry frictional disc, Hydraulic boosting

Front axle(Mercedes Benz Technology) 7.5Ton Double-shoe pneumatic brake, non-driving steering axle

Rear axle: (Mercedes Benz Technology): 13Ton, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Cab: V3 Long-high roof cabin with double sleepersFull steel skeleton structure, covered with double  layer steel plate; Can be tipped forwardly; High back seat for driver; Electric lifting window. With inner A/C

Electrical system: Battery 2x12V/135Ah

                Generator 28V-35A

                Starter 5.4Kw/24V

CNG Bottles: 150Lx8 stainless steel

Brake system:

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels
