Product Description

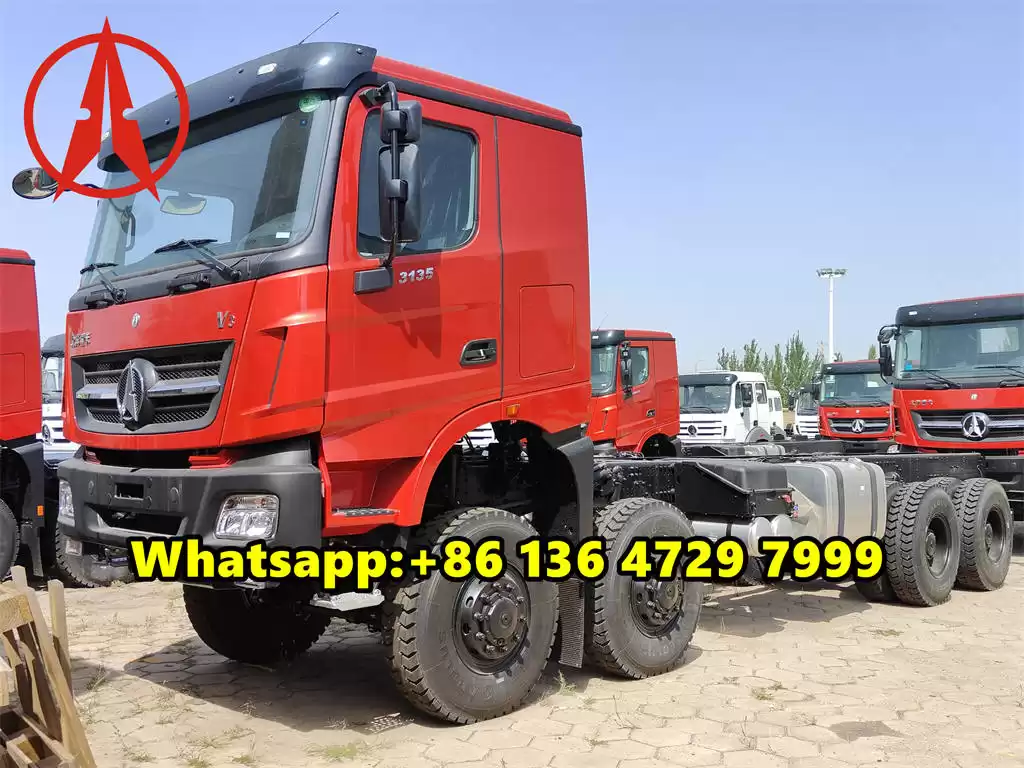

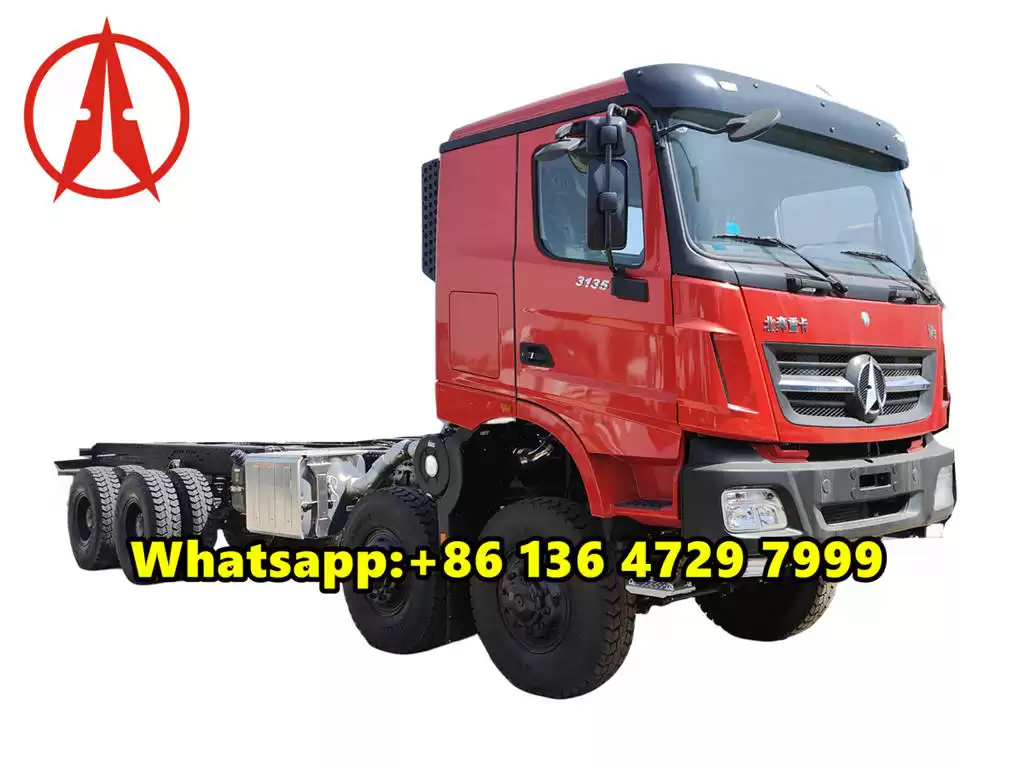

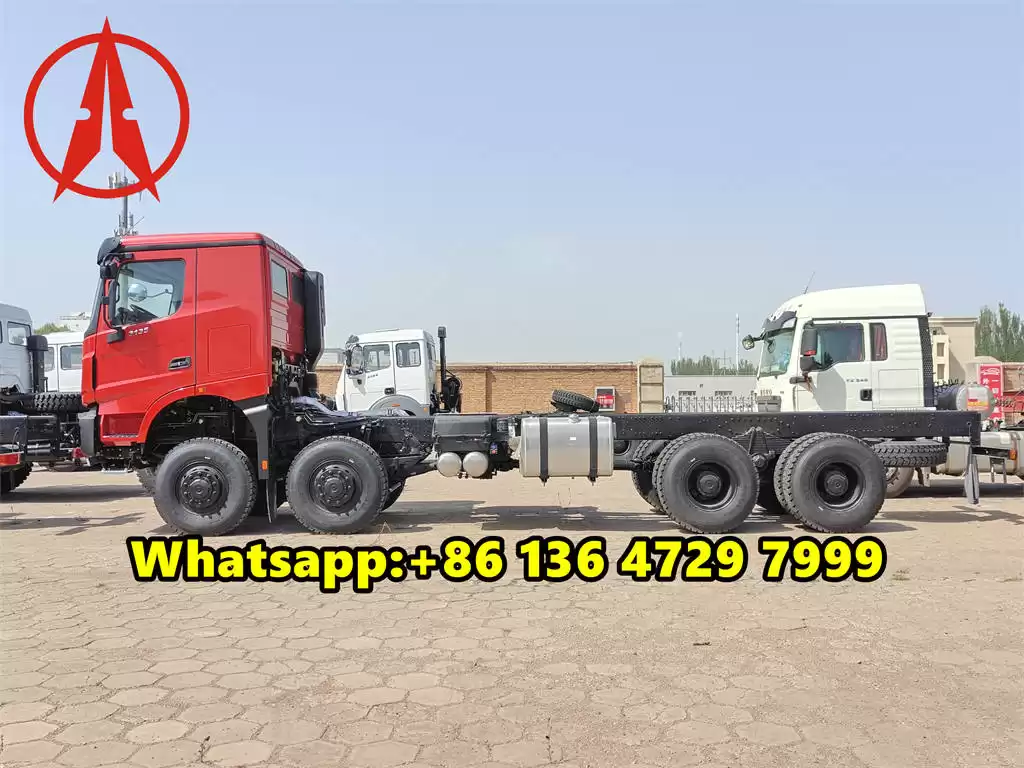

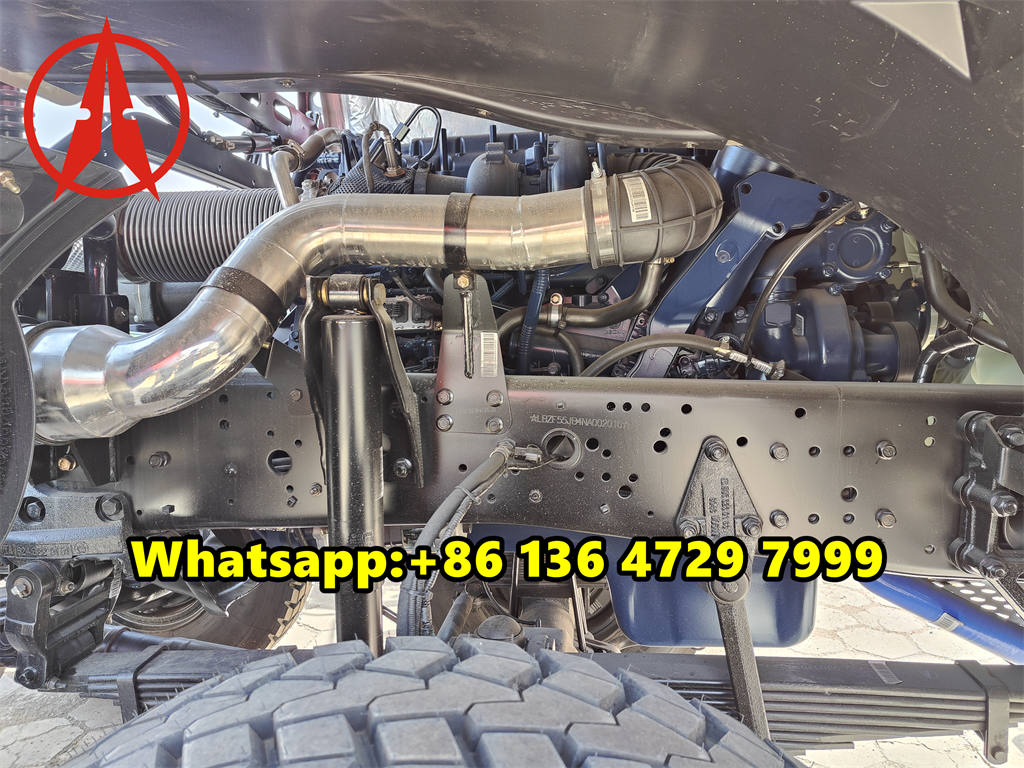

Beiben 8x8 V3 Truck Chassis, with its outstanding design and powerful performance, has become an ideal choice for many engineering and application fields. The model of this chassis is 3135, equipped with a WEICHAI WP10H350 engine, which provides up to 350 horsepower and a displacement of 9.5 liters, ensuring that the vehicle can perform well in various working conditions.
In terms of transmission system, Beiben 8x8 off-road chassis uses a 12JS200T gearbox with 12 forward gears and 2 reverse gears, providing drivers with flexible and changeable operating options, whether on urban roads or rugged terrain. The application of the ZF8098 hydraulic power steering system further improves the vehicle's handling and stability, making driving easier and more comfortable.

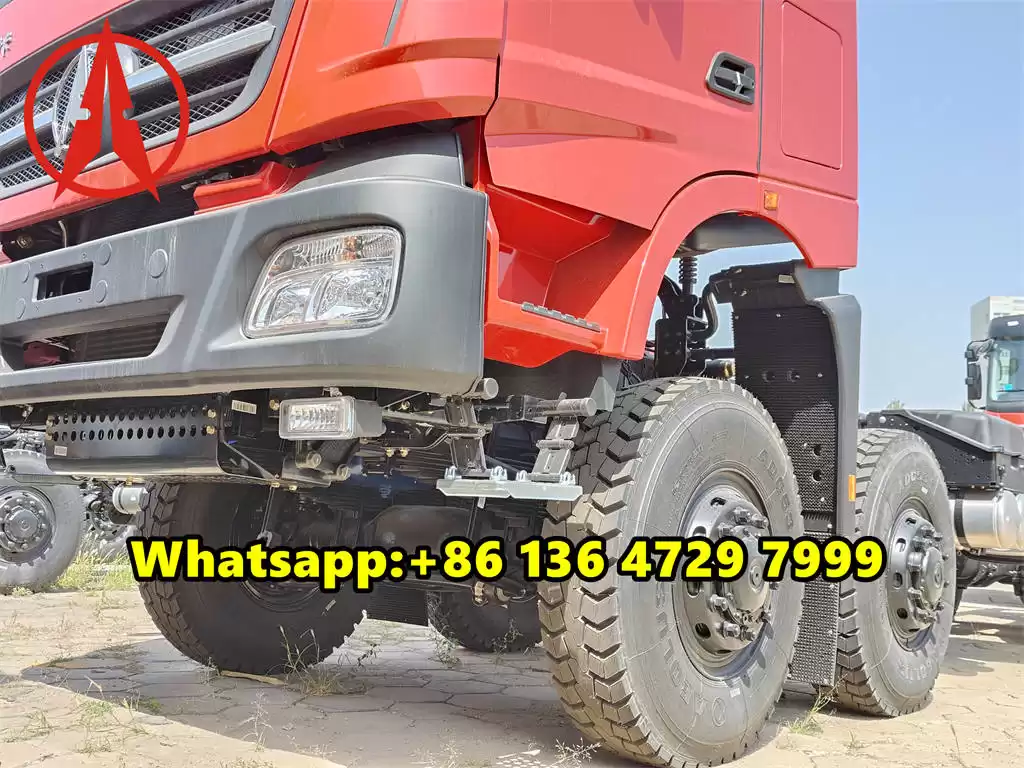

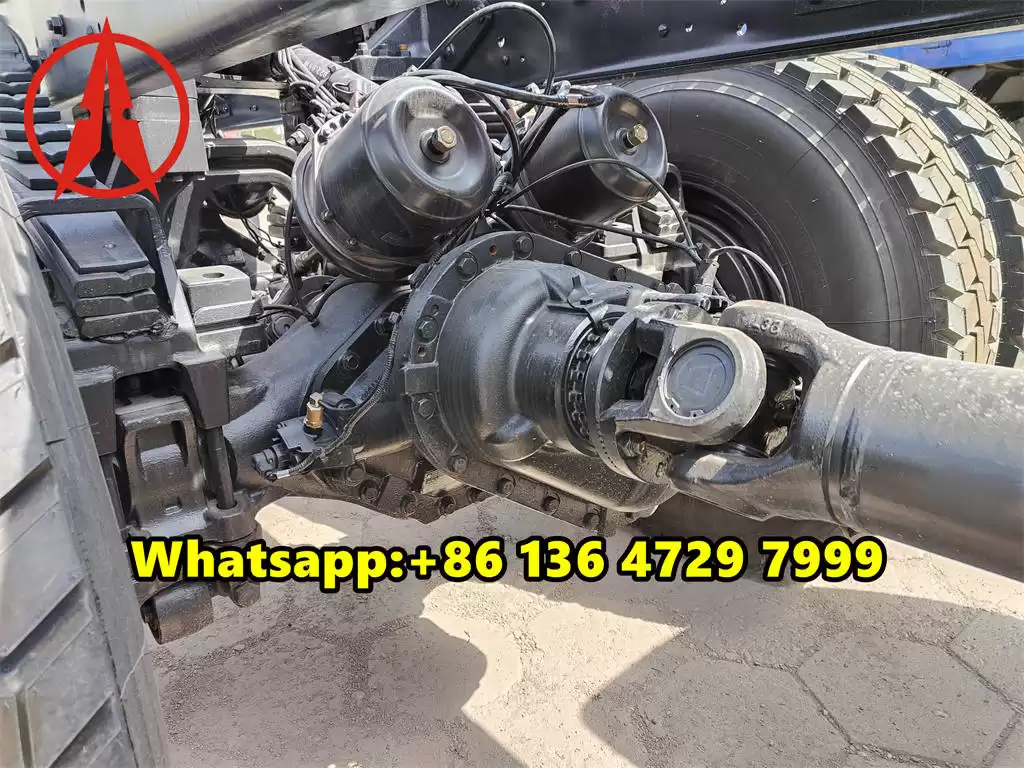

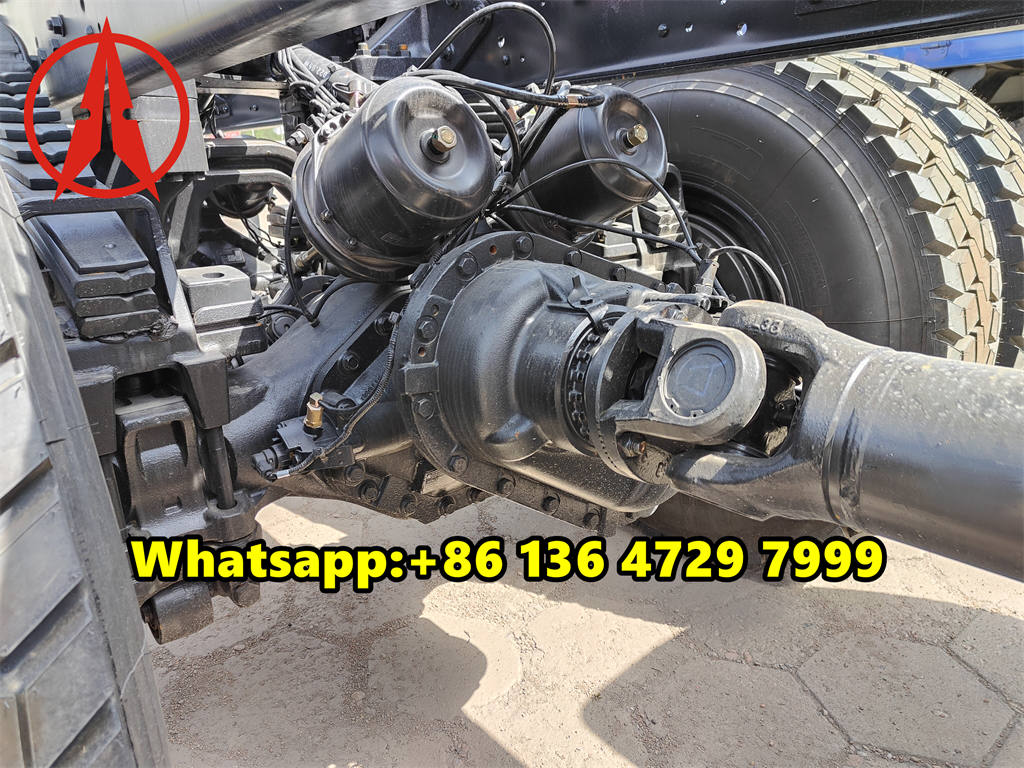

Beiben 8x8 truck also performs well in key components of the chassis. The front axle adopts Mercedes Benz technology, with a load capacity of 6.5 tons, while the rear axle is a 13-ton double-stage reduction drive axle, also based on Mercedes Benz technology, ensuring the stability and durability of the vehicle under heavy load.
The Beiben 8x8 AWD truck chassis is equipped with Beiben V3 cab, which has a spacious and comfortable interior space, and is equipped with air conditioning and a sleeper, providing the driver with a good working environment and rest conditions. The 12.00R24 off-road tires (including a spare tire) ensure the vehicle's good grip and driving stability under various road conditions.
Product Specifications
|
Beiben 8x8 V3 Truck Chassis
|
|
Model
|
3135
|
|
Engine
|
WEICHAI WP10H350, 350HP
|
|
Displacement
|
9.5L
|
|
Transmission
|
12JS200T gearbox, 12 forward, 2 reverse
|
|
Steering
|
ZF8098 Hydraulic Steering With Power Assistance
|
|
Clutch
|
GFX430, Single dry frictional disc, Hydraulic boosting
|
|
Front axle (Mercedes Benz technology)
|
6.5T driving axle
|
|
Rear axle (Mercedes Benz technology)
|
13T dual reduction driving axle
|
|
Cab
|
V3 Cab, inner A/C, one bed
|
|
Rim/Tires
|
12.00R24 (one spare tire)
|
|
Overall Dimensions
|
9500×2500×3180mm
|
|
Gross Vehicle Weight
|
31000kg
|
|
Curb Weight
|
13200kg
|
|
Wheel base
|
1500+4150+1450 mm
|
|
Color
|
white, orange, red
|
|
Max. Speed
|
100km/h
|
|
Fuel Tank
|
400L
|
Product Applications
Beiben 8x8 V3 heavy truck chassis is mainly used in the following fields due to its strong carrying capacity and off-road performance:
1. Heavy-duty transportation: suitable for long-distance cargo transportation, especially for transportation tasks that require high carrying capacity and complex road conditions.
2. Engineering operations: In environments such as mines and construction sites that require heavy equipment transportation and operations, Beiben 8×8 off-road chassis can cope with harsh working conditions.
3. Emergency rescue: Beiben 8×8 trucks have strong carrying capacity and off-road performance, making them an ideal choice for emergency rescue vehicles, able to quickly arrive at the scene and carry out rescue work in an emergency.
4. Military use: The 8x8 drive form and multi-axis design make this chassis also widely used in the military field, such as military material transportation, field combat support, etc.

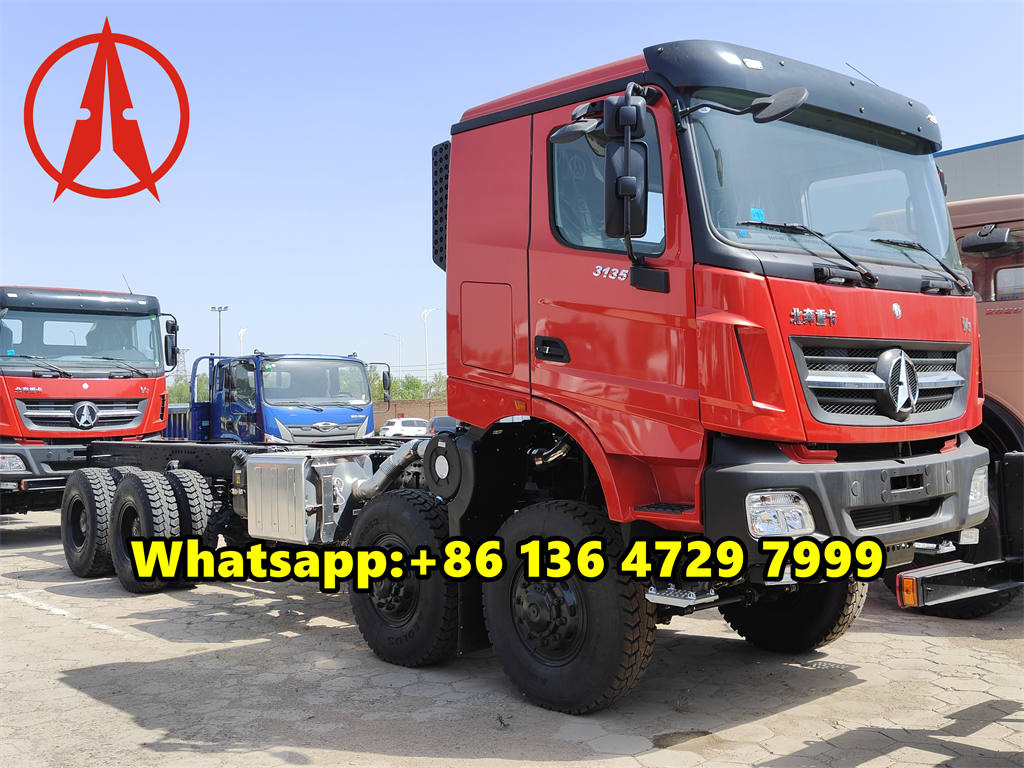

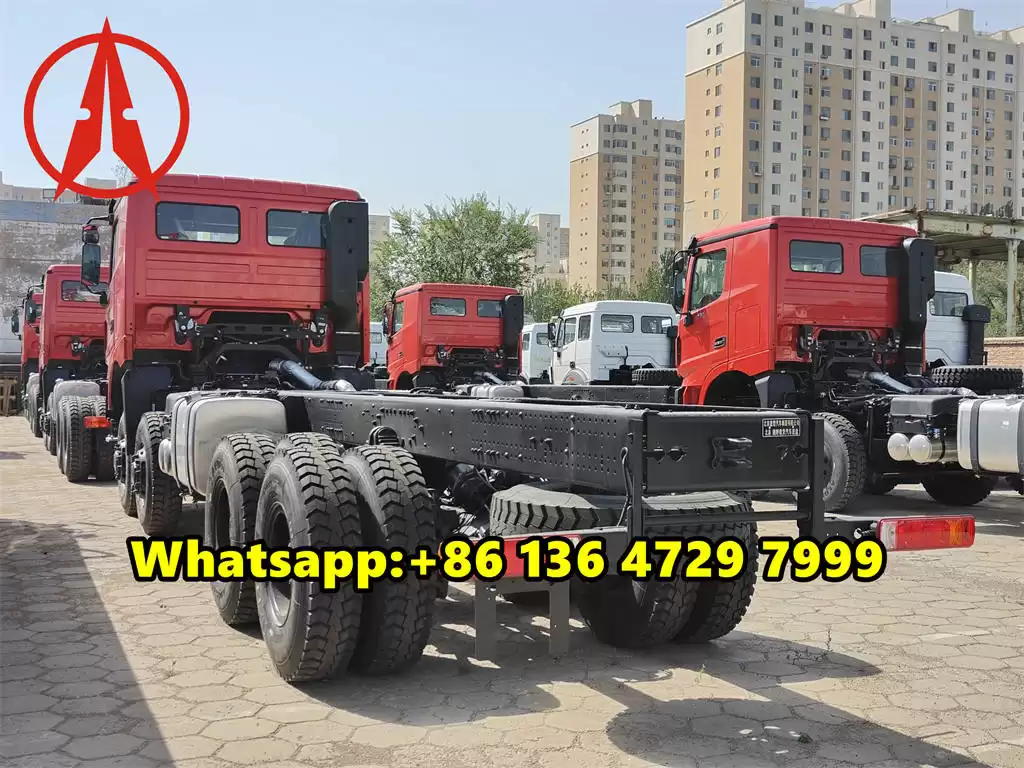

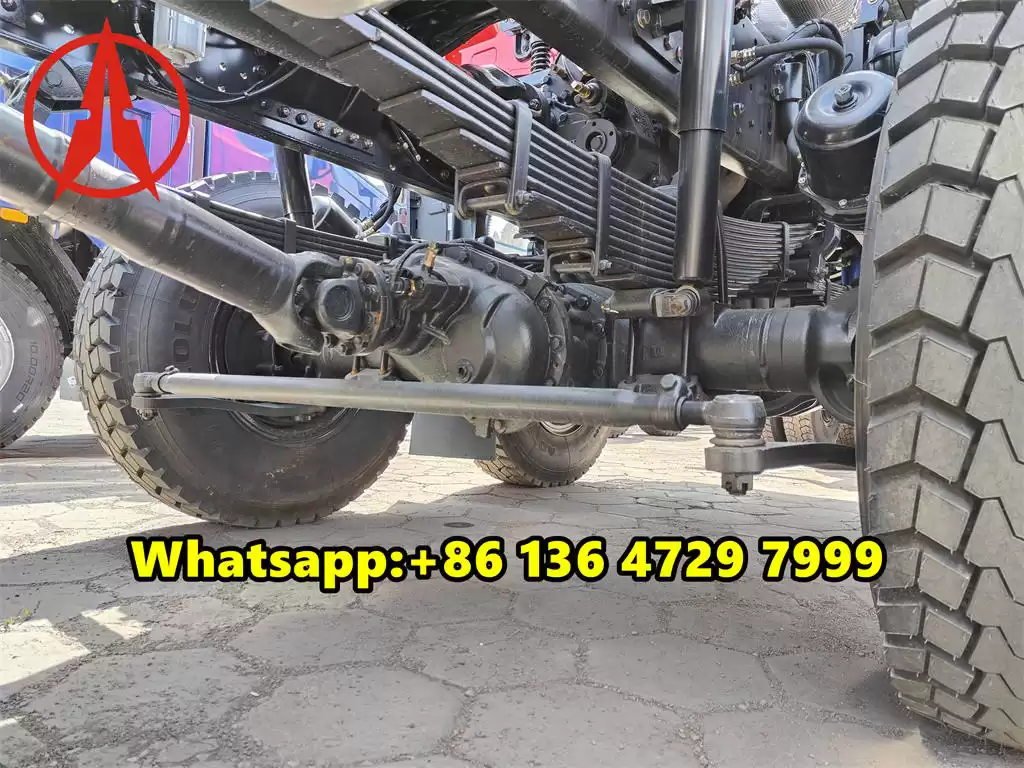

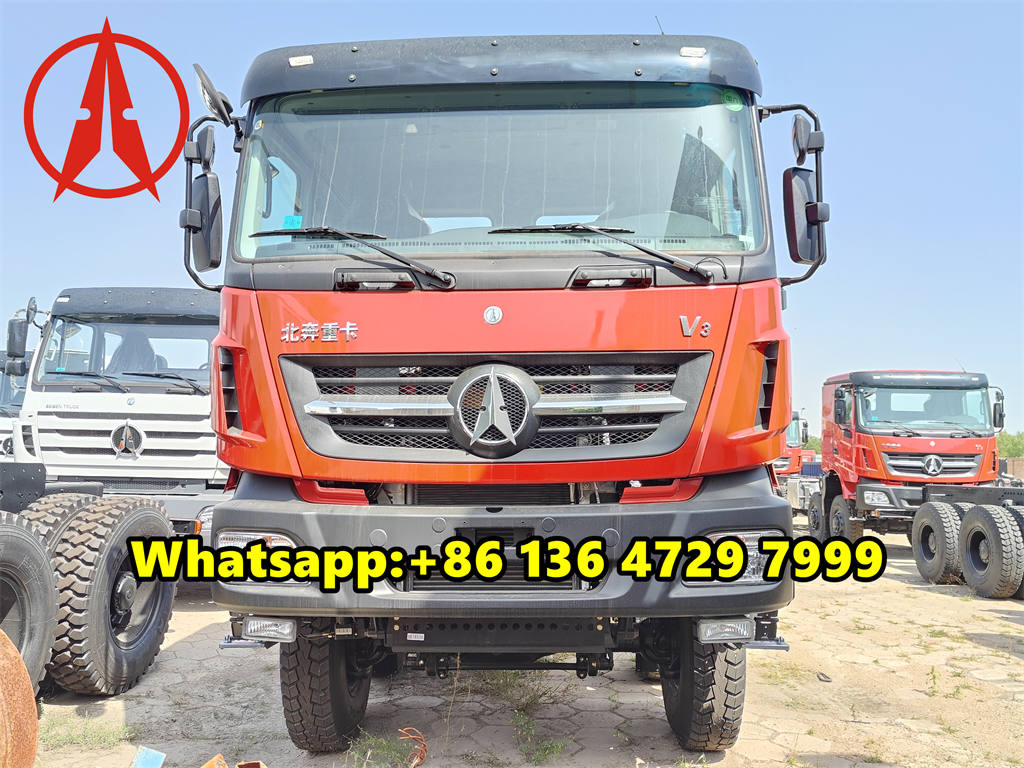

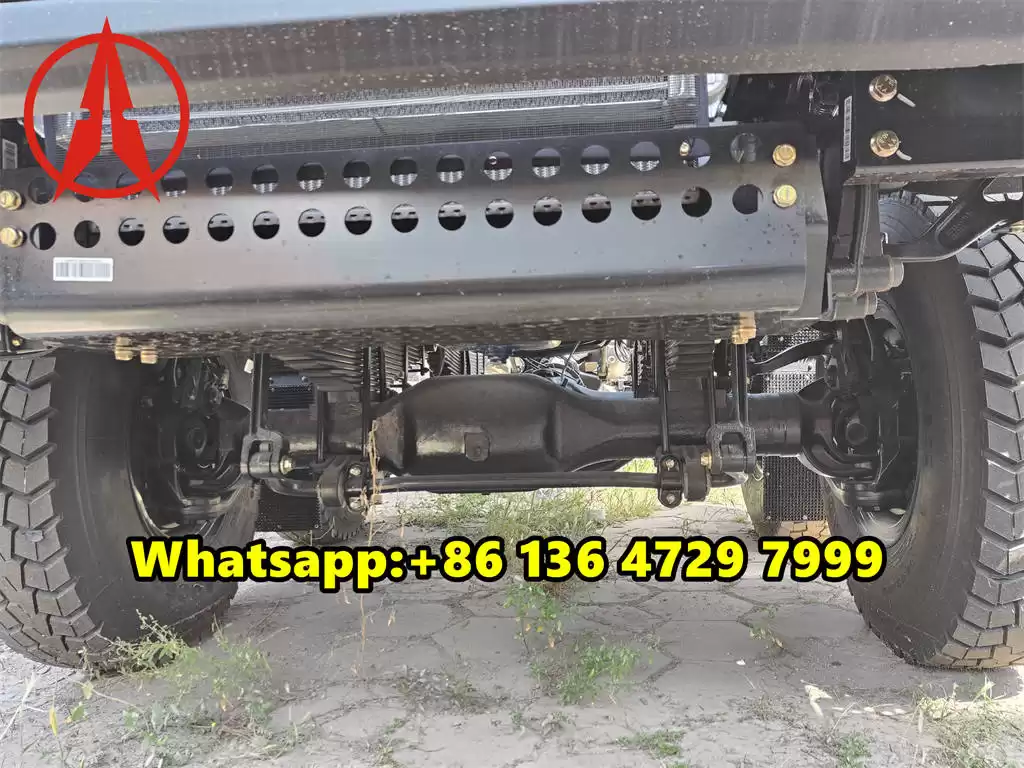

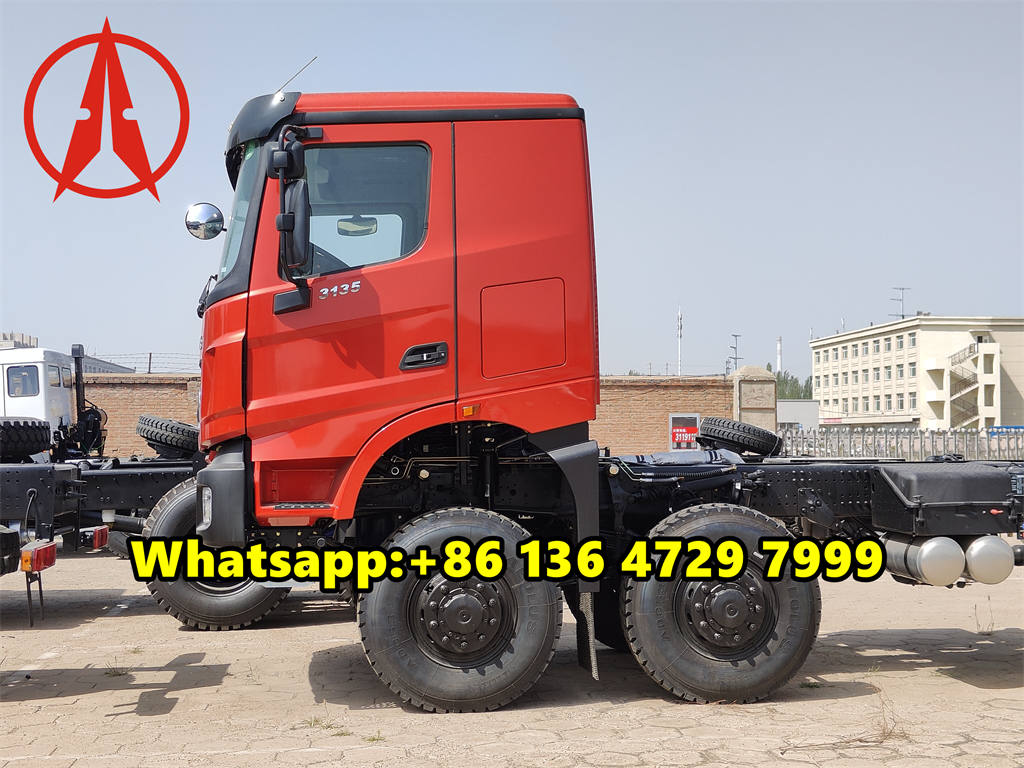

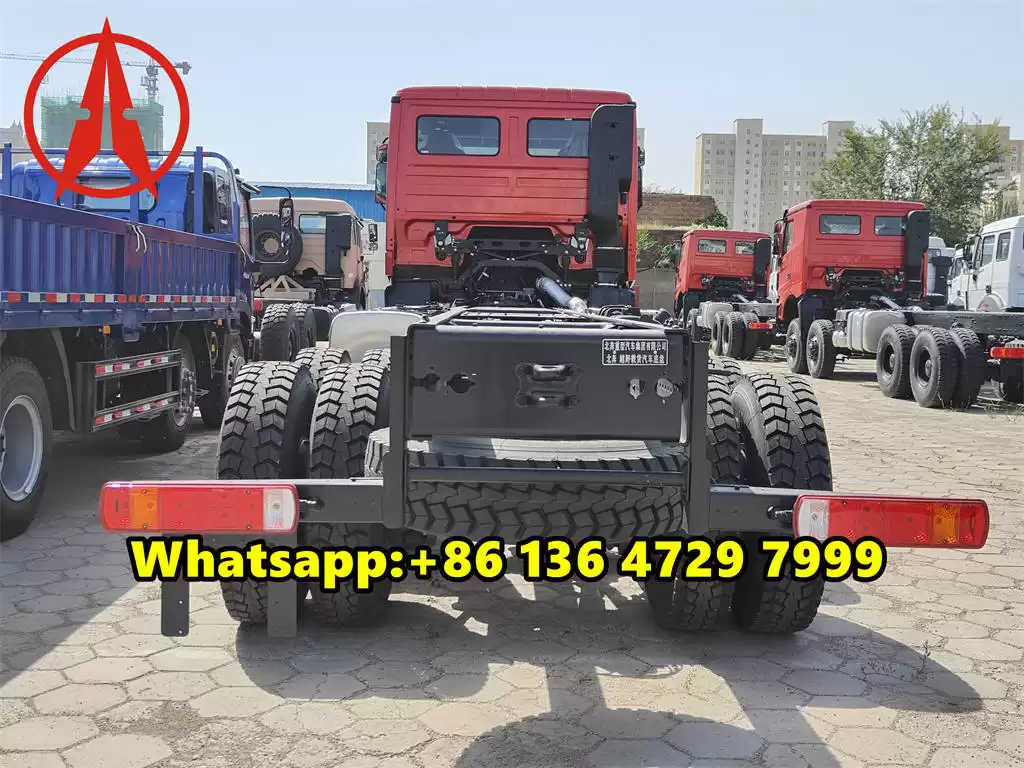

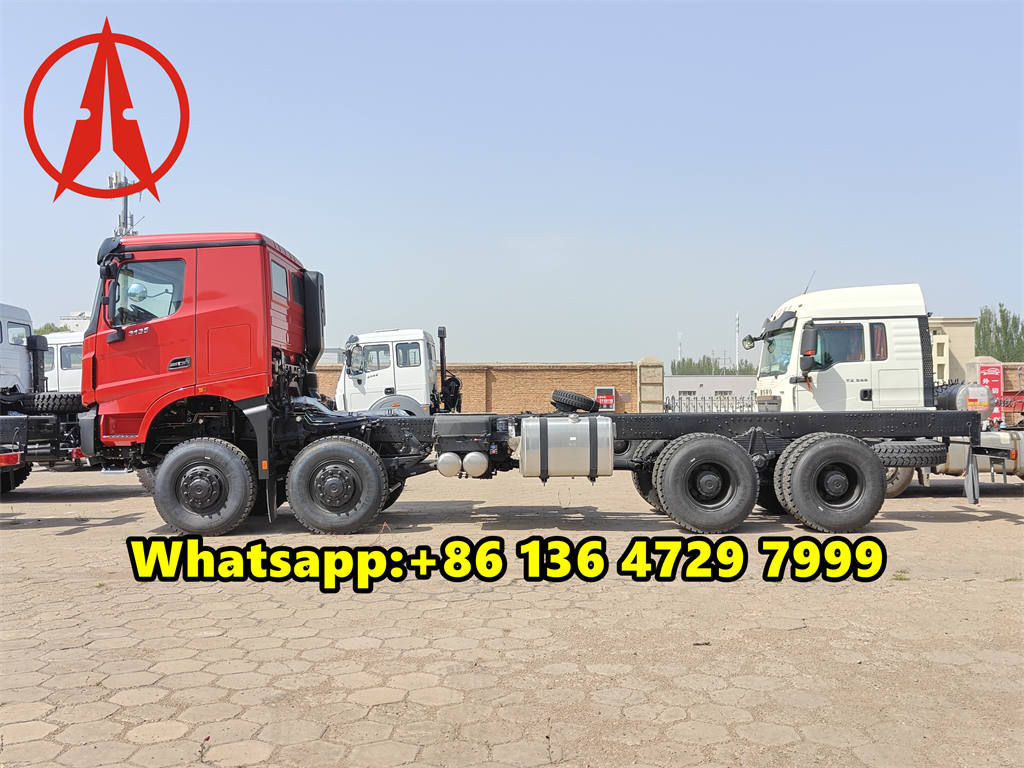

Product Details
