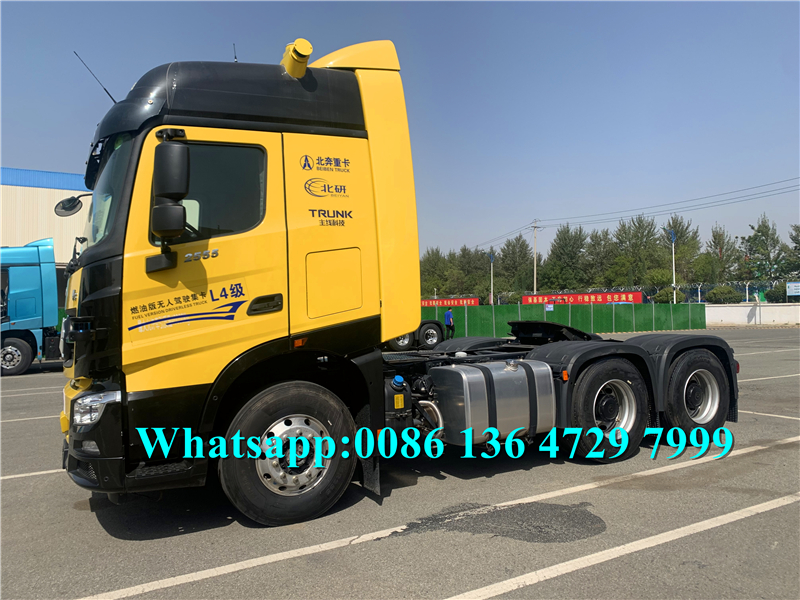

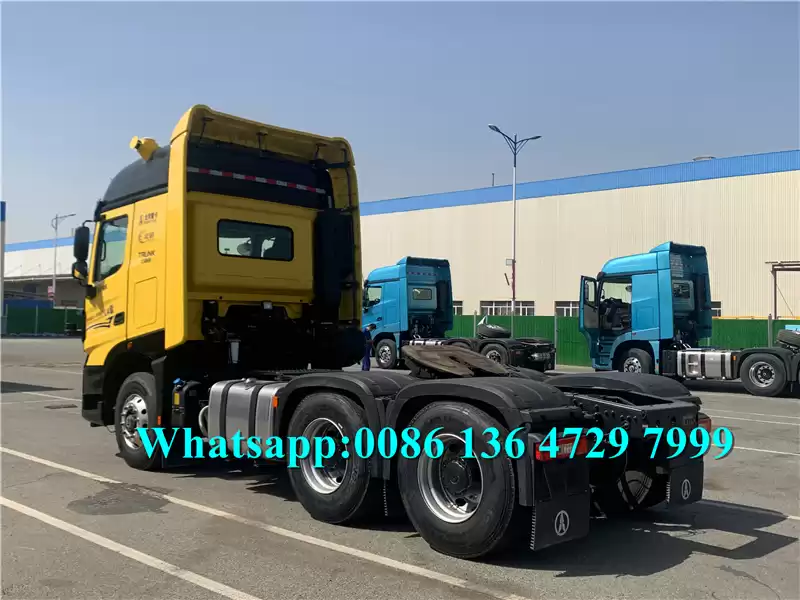

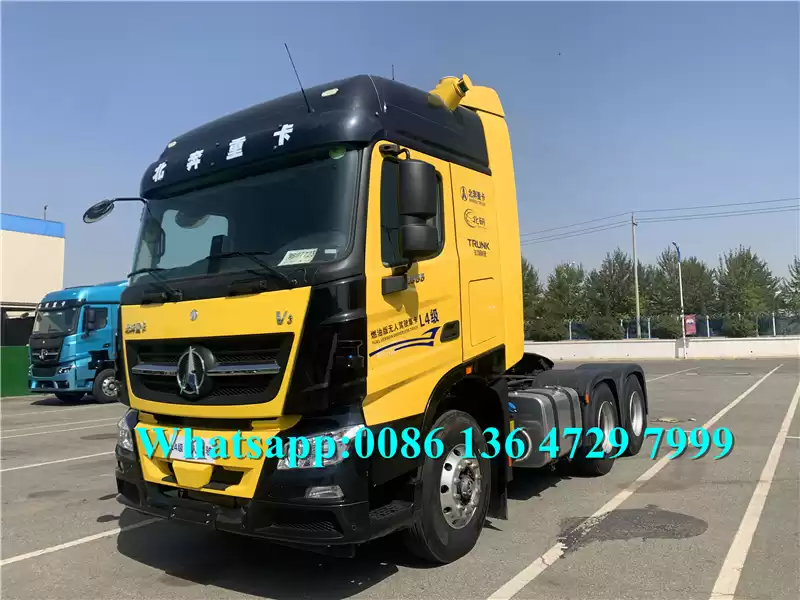

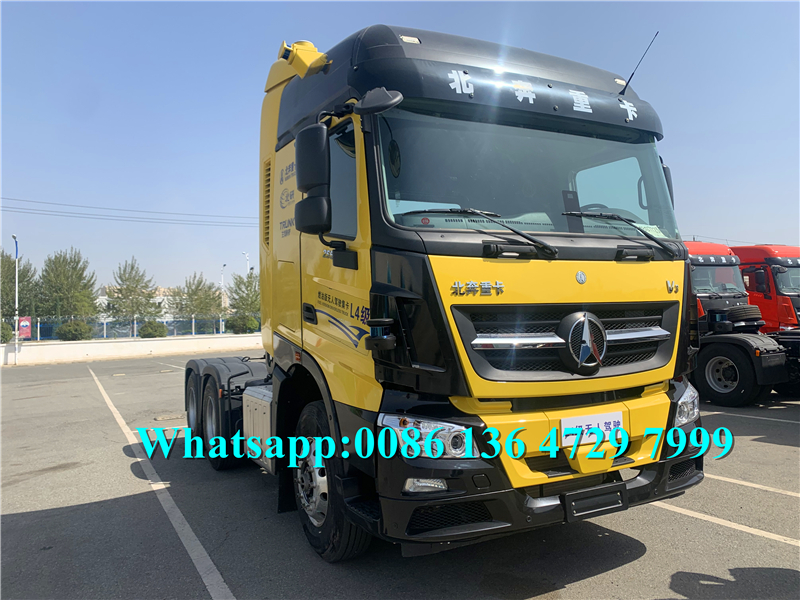

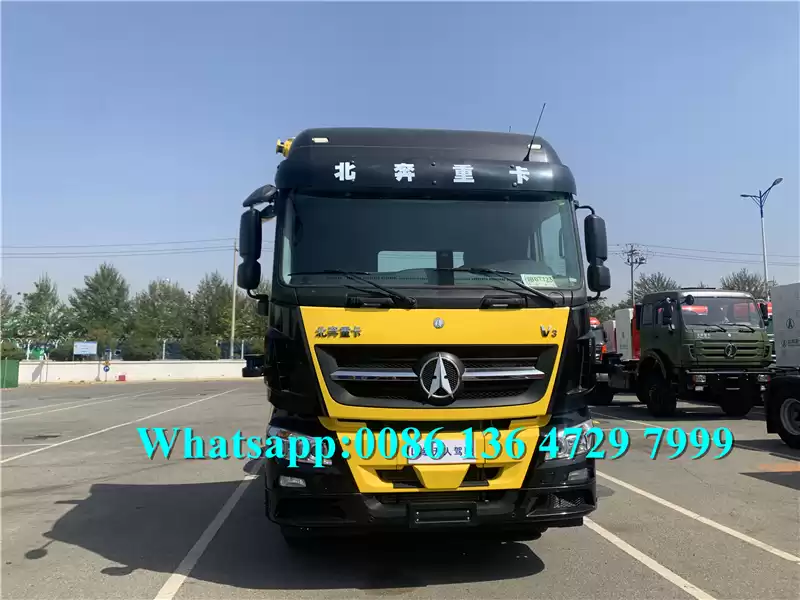

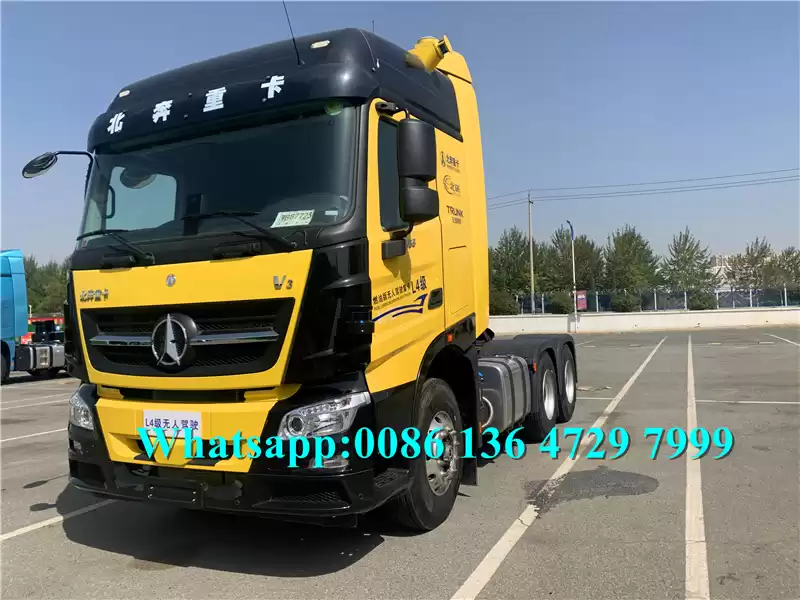

Beiben 460 hp towing trailer tractor truck
Applications:
Beiben 2646 prime mover chassis with V3 cabin, with 600 hp engine, also called as beiben 2646 prime mover, Beiben 2646 towing head, beiben 2646 trailer tractor, beiben 2646 cabin tractor truck.
This 2646 beiben tractor truck is equipped with V3 long cabin, with 3550+1450 mm wheelbase , germany benz technology NG80B cabin .
The cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- Germany benz V3 cabin, safety and convenience
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- ZF8098 steering system
---- extremely heavy duty suspension, maximum payload 80 ton
---- Military Germany mercedes benz technology axle.
Specifications:
|
Dimension
|
7540*2500*3600mm
|
|
Approaching angle/Departure angle
|
16/60°
|
|
Overhang(front/rear)
|
1515/825mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
110km/h
|
|
Curb weight
|
8800kg
|
|
Max towing weight
|
40000kg
|
|
Max loading on fifth wheel, Permitted(kg)
|
16070kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP12.460N，water-cooled,
four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU
Common Rail
|
|
Displacement
|
11.596L/Diesel
|
|
Stroke
|
126/155mm
|
|
Max. power
|
338/1900 (kw/rpm)
|
|
Max.torque
|
2110/1000-1400（Nm/rpm）
|
|
Emission stantard
|
EuroIII
|
|
Fuel tanker capacity
|
400L
|
|
Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
|
Gearbox
|
12JS200T, mechanism,12forward gears,2
reverse gear, manual operated
|
|
Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00
R: 14.86 3.33
|
|
Suspension system
|
Front
|
Non-free standing leaf spring,telescopic
shock absorber with stablizer bar suspension , 13pcs
|
|
Rear
|
Non-free standing stablization spring,
balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically,
double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and
rear wheels
|
|
Steering system
|
TAS85,whole circulation in ball,
hydraulic booster
|
|
Frame
|
Fish belly shape, variable width,
variable sections
|
|
The Fifth wheel
|
Model
|
JOST ∮90 single
direction
|
|
Height of fifth wheel(mm) (unload)
|
1410
|
|
Radius of front gap (mm)
|
2300
|
|
Radius of rear slew (mm)
|
2600
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving
steering axle
|
|

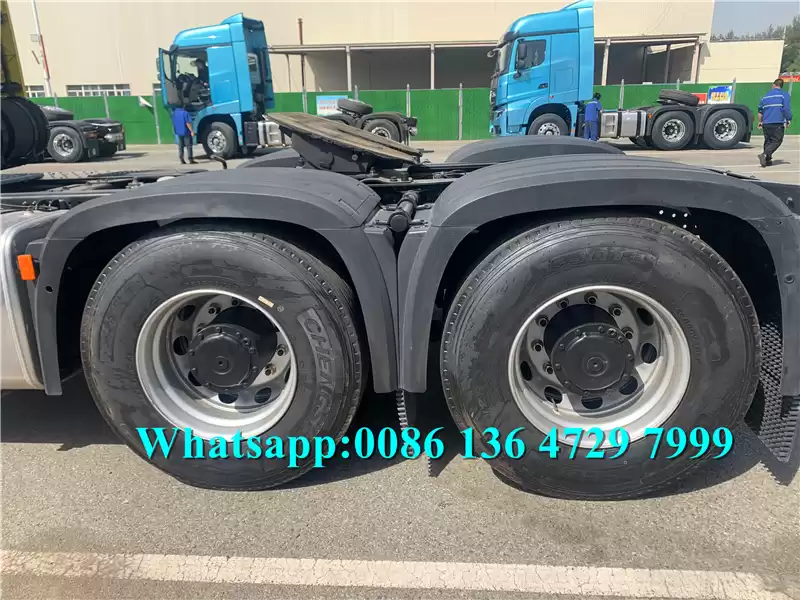

Middle and Rear axle (Mercedes
Technology)
|
Double-shoe pneumatic brake, ductile
casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00-R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

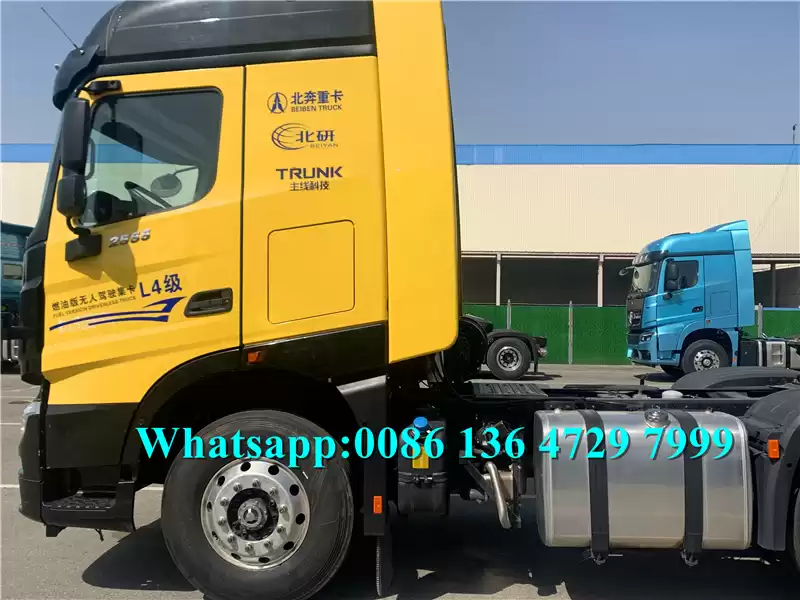

Cabin
|
V3 Long-high roof cabin with double
sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|

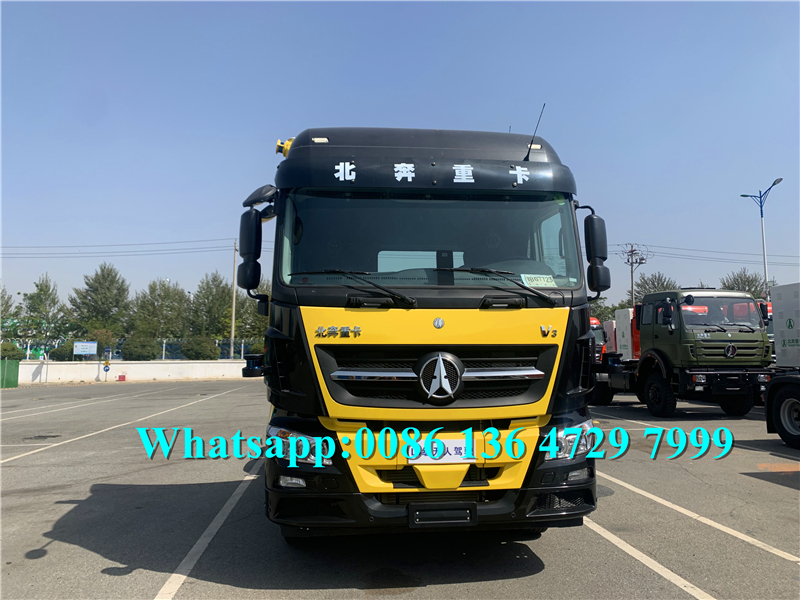

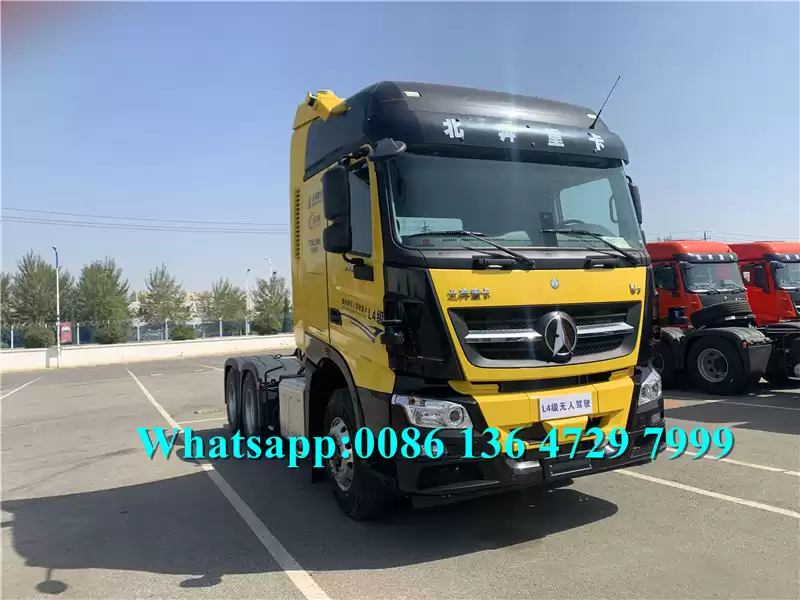

Beiben V3 cabin truck, with sleeper bed .
