SPECIFICATION
|

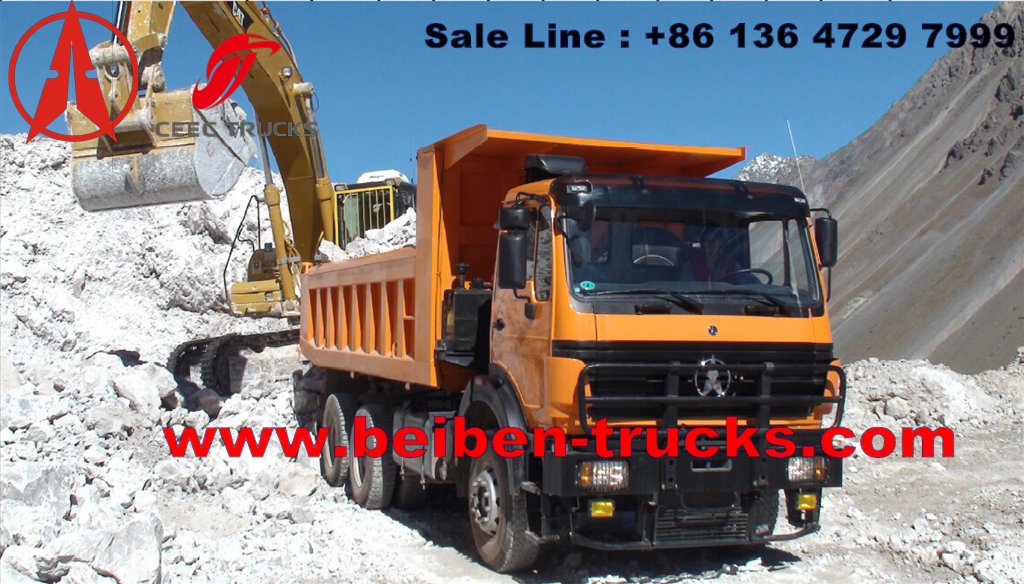

NORTH BENZ 6X4 DUMP TRUCK LHD DRIVE
|
Traction
|
6x4
|
Driving type
|
LHD (RHD is option)
|
Cabin
|
North Benz, V3 cabin,
made by full steel material, anti-crash performance can be ensured by
double hollow chamber structure, high back and shock absorption seat for
the driver, with One Sleeper
|
Major color of cab: Ice white lacquer+ color bar, yellow
|
Vehicle Main Dimensions
|
LxWxH(mm)
|
7800x2500x3430
|
Wheel base(mm)
|
3450+1550
|
Wheel track(front/rear)(mm)
|
Front track (mm): 1995
Rear track (mm): 1800/1800
|
Approach/Departure angle(°)
|
23/ 35°
|
Overhang (front/rear)(mm)
|
1410/1870
|
Weight
in KGS
|
Tare Weight(kg)
|
12300kg
|
Total mass(kg)
|
25000kg
|
Front axle loading capacity
|
7.5tons
|
Rear axle loading capacity
|
2x13tons
|
Driving Speed(km/h)
|
|
85
|
Engine
|
Brand
|
Wei chai
|
Model
|
WP10.340
|
Emission
|
Euro III
|
Engine type
|
Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
|
Displacement
|
9.726 L /Diesel
|
Max. output
|
340hp@2200rpm
|
Max torque
|
1250NM@1400-1600rpm
|
Bore/Stroke(mm)
|
126/130
|
Specific fuel consumption
|
198g/Kwh
|
Gear box
|
Model
|
9JS150A
|
Brand
|
FAST 9 speeds
|
Type
|
Fuller transmission, mechanism, 9 forward gears, 1 reverse gear, manual, made in China
|
Clutch
|
Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting
|
Steering
|
ZJ120D
|
Tyre
|
Tyre
|
12.002-20 Bias tyres
|
No. of tyres
|
10+1spare
|
Fuel tank
|
300L Aluminum Tank
|
Front axle
|
Mercedes Benz Technology, Double-shoe pneumatic brake, non-driving steering axle
|
Rear axle
|
Mercedes Benz Technology, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
Frame
|
Mercedes-Benz technology, Strengthened frame 300x90x8+6+8mm
|
Spring
|
10/13
Strengthened rear spring 7x25mm+6x22mm, 4-line U-bolt, Strengthened Push Rod, Strengthened Transmission Shaft
|
Gradeability
|
28%
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
ABS
|
With
|
Electrical system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
PTO
TIPPER BODY
|
YES
|
|
Inner size (mm)
|
5600*2300*1500
|
Capacity
|
19.32m³
|
Thickness
|
floor 8 front 6 side & back 4
|
Tipping type
|
Back tipping type
|
oil cylinder
|
HYVA Φ150x4230
|
