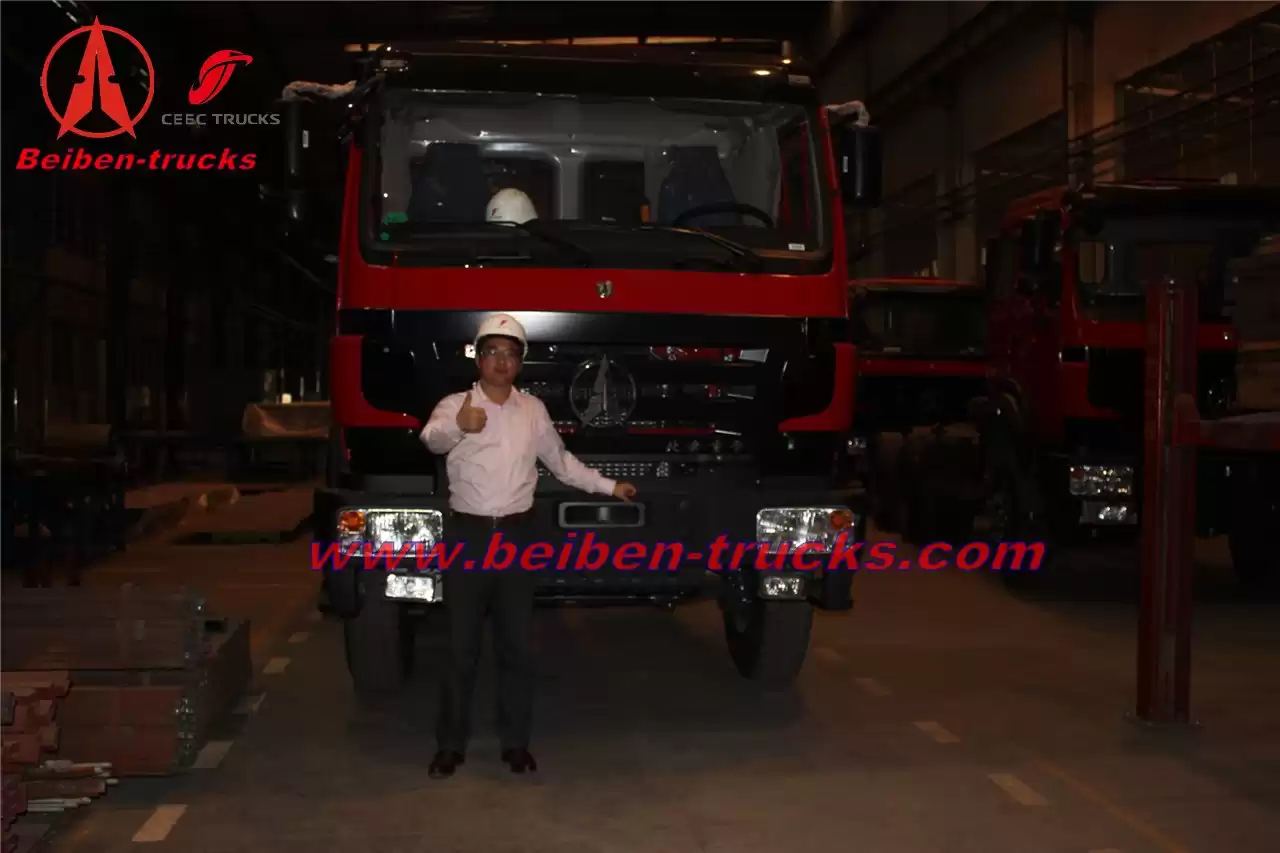

BEIBEN weichai engine 480hp 6x4 tractor truck

Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4
Standard: Euro3



Wheel base  (mm)			3450+1450
Curb weight kg			9200
Engine	Model		WP12.480(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection
	Displacement     L		12/Diesel
	Power, max   kw/rpm		309/2200
	Emission		EURO3
Fuel tanker capacity   L			400
Clutch		Model	φ430, Single dry frictional disc,Hydraulic boosting
Gearbox		Model	12JS200T
Brake system		Service brake	Brake gap can be adjusted automatically, double circulation air brake system
		Assistant brake	Engine exhaust brake
		Park brake	Potential springs pressing on middle and rear wheels
Steering system		Model	TAS85/ZF8098
Frame		Fish belly shape, variable width, variable sections
Front axle (Mercedes Benz  Technology)		Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology)		Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre		12.00R20
Electrical system		Battery	2X12V/135Ah
		Generator	28V-35A
		Starter	5.4Kw/24V
Cab		Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.
The Fifth wheel		90 #single
