BelFone BTX Trunk DMR Tier III Trunking System
BTX Trunk is a trunking system designed for
large networks ranging from hundreds to thousands of users. Based on DMR Tier
III standard and technology, BTX system delivers exceptional performance and
reliability, centralized network management and information security, improved
personnel safety and business efficiency, greater flexibility and scalability
to meet the user’s future needs.
System Features

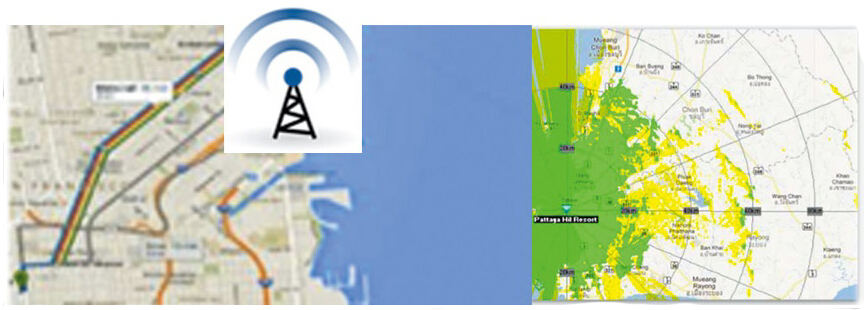

Large Coverage
Nonlinear amplifier combined with large
coverage technologies makes it possible to achieve the same coverage area with
fewer base stations, resulting in a much simpler network structure and a much
lower networking cost which reliability and security are enhanced. This greatly
facilitates both operation and maintenance.

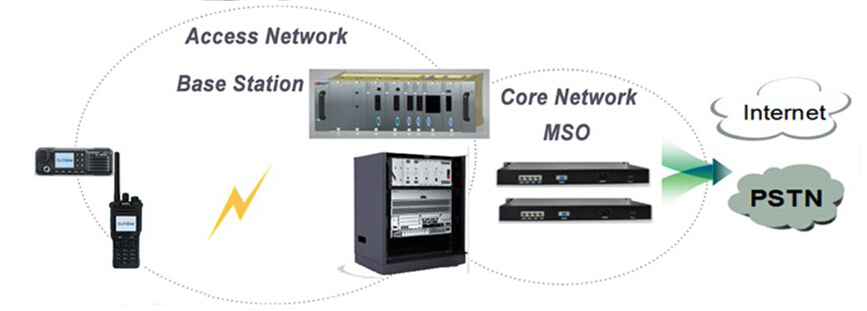

Integrated Network Design
BelFone BTX Trunk is designed to provide a
basic trunking network with minimum facilities. It is meant to be simple and
easy to use. The integrated base station works as a single site trunking with
expandability to establish multisite network by IP connection to core network.
The MSO is a highly integrated software which provides switch between and
interconnectivity with PSTN networks.

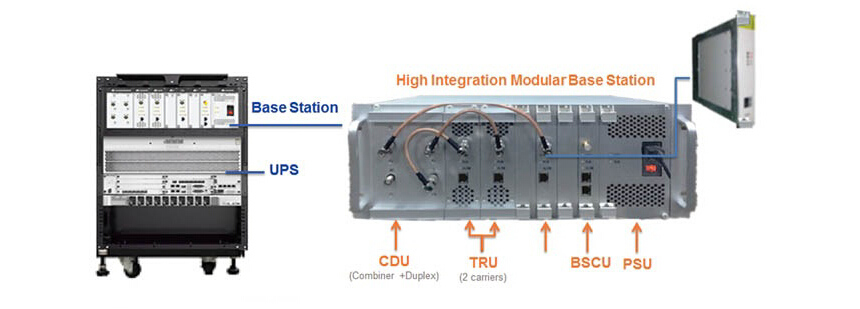

Integrated Modular Base Station Design
BelFone BTX Trunk base station adopts a
highly integrated and modularized design to enhance reliability. The 19 inch
rack structure and mature ATCA frame make it the most robust and reliable
single trunking base station.

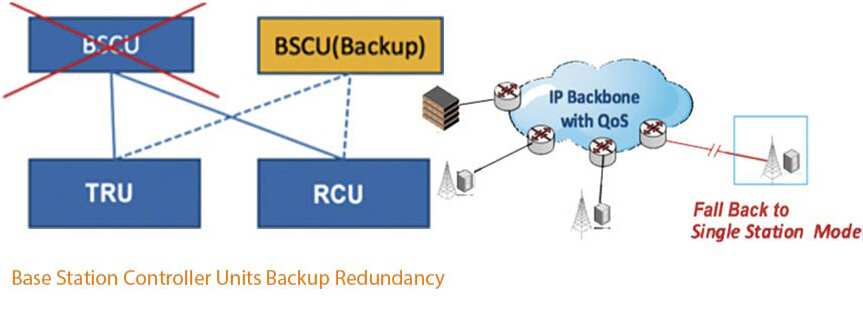

Superior Reliability
With multilevel redundancy and fallback,
BTX system delivers great reliability. The redundancy backup mechanism is
employed to retain the integrity of some key devices, for example, base station
controller redundancy and main control channel backup, as well as link backup
for the network elements.

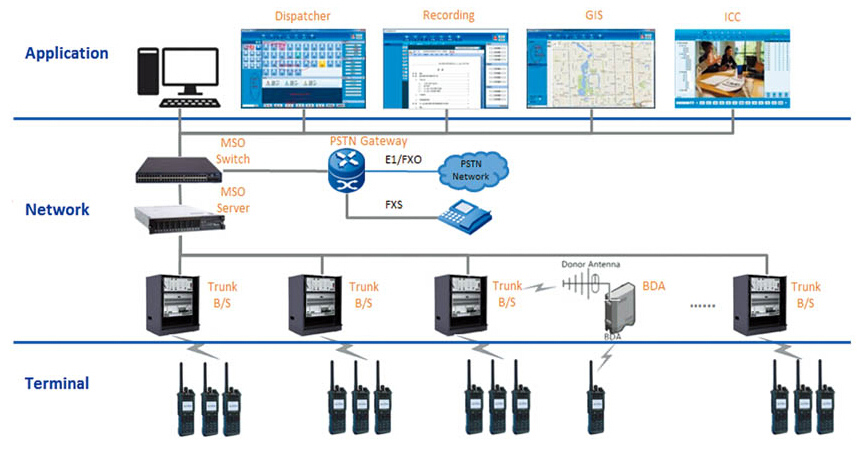

Topology
Applications
