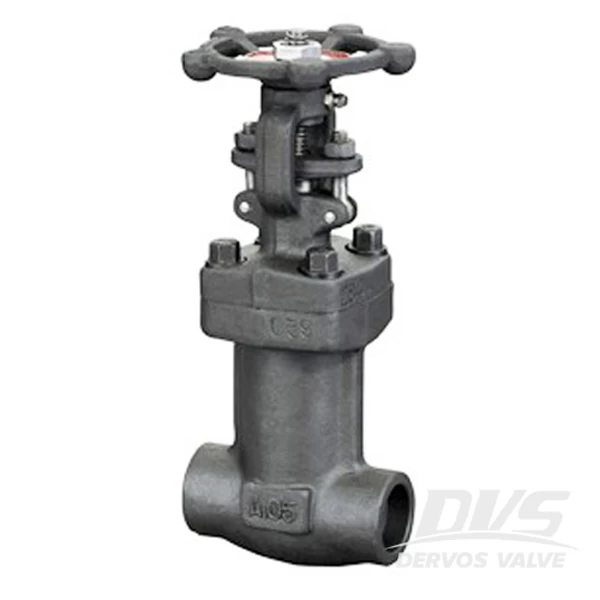

The 1.5 inch 800LB bellow seal globe valve is designed with outside screw and yoke, handwheel operation, sw end. The reduced port globe valve is has forged steel A105N body.
Design Feature
1.Outside screw and yoke
2.Rising stem
3.Bolted bonnet design
4.Bellow seal packing for reliable stem sealing
5.Reduced bore design
6.Handwheel Operated
Quick Detail
|
Type
|
Globe
Valve
|
|
Size
|
1.5''
|
|
Design Pressure
|
Class
800
|
|
Structure
|
BB,
OS&Y, Reduced Port, Bellow Seal Packing
|
|
Connection Type
|
Socket
Weld
|
|
Operation
|
Handwheel
|
|
Design Code
|
API
602
|
|
End to End
|
ASME
B16.10
|
|
Connection End
|
ASME
B16.11
|
|
Pressure &
Temperature
|
ASME
B16.34
|
|
Test &
Inspection Standard
|
API
598
|
|
Body Material
|
Forged
Steel ASTM A105
|
|
Trim Material
|
Trim
8
|
|
Applicable Temperature
|
-29℃~+425℃
|
|
Application
|
W.O.G
|
|
Origin
|
China
|
Related Knowledge
What is a bellw seal valve?
For bellow seal globe valves, the lower end bellows is welded on the valve stem to prevent the process fluid from eroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double seal design ensure that if bellow seal pakcing fails, the stem packing will also function.
The bellow seal globe valves are applicable for media like steam, flammable, explosive, heat transfer oil, high purity, and toxic media etc.
Special Tests
Besides general tests we will do (hydraulic and air test), we could also do tensile strength test, metallographic test, fugitive emission test, and NDE test (UT,RT,PT,MT) upon customers’ specific requests.
