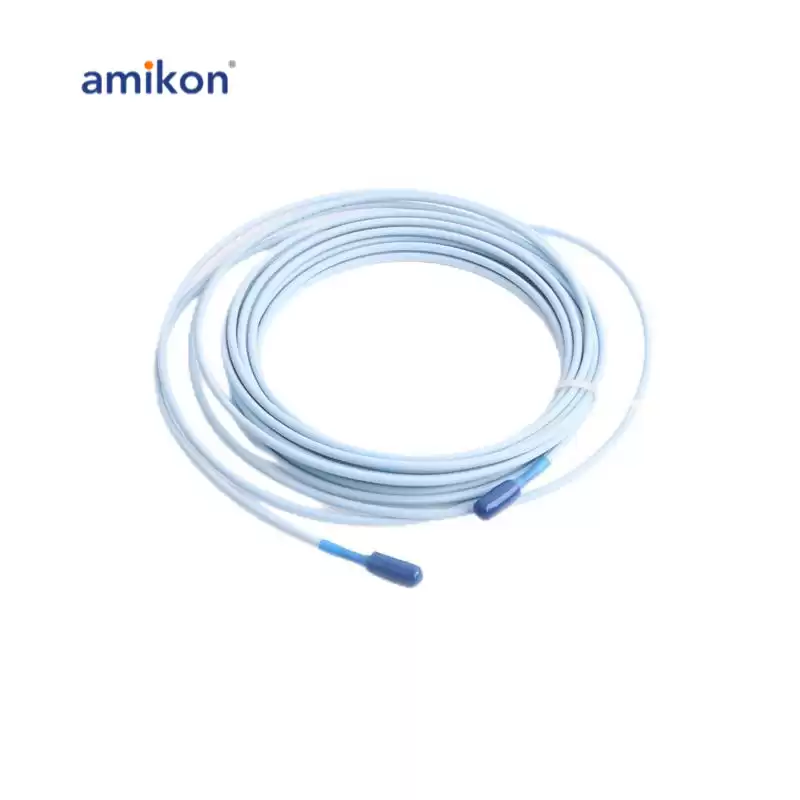

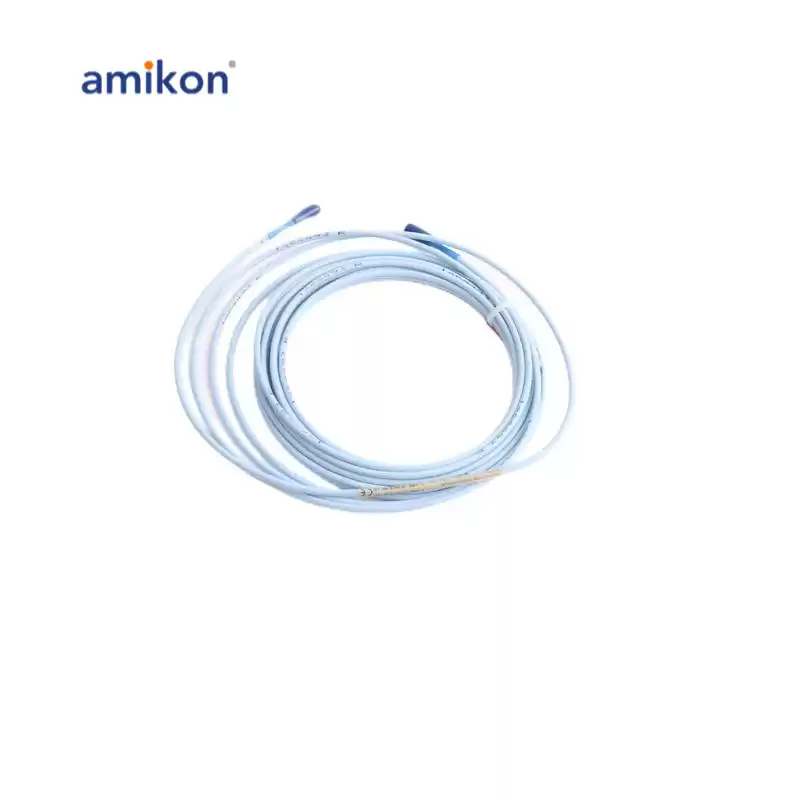

Part Number: 330130-075-02-00
Model: 3300 XL Standard Extension Cable
Brand: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
|
Model
|
330130
|
3300 XL Standard Extension Cable
|
|
Cable Length Option
|
075
|
7.5 metres (24.6 feet)
|
|
Connector Protector and Cable Option
|
02
|
Standard cable with connector protectors
|
|
Agency Approval Option
|
00
|
Not required
|
The 3300 XL 8 mm Proximity Transducer System includes:
A 3300 XL 8 mm probe,
A 3300 XL extension cable, and
A 3300 XL Proximitor* sensor.
This system provides an output voltage proportional to the distance between the probe tip and the observed conductive surface. It can measure both static (position) and dynamic (vibration) values.
The system is primarily designed for applications in fluid-film bearing machinery for vibration and position measurement, as well as for Keyphasor* reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in eddy-current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with API 670 (4th Edition) standards, covering mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems support complete interchangeability of probes, extension cables, and Proximitor sensors, without requiring matching or calibration of individual components.
Each 3300 XL 8 mm system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility extends to applications where the 3300 5 mm probe is required due to limited installation space constraints for the larger 8 mm probe.
