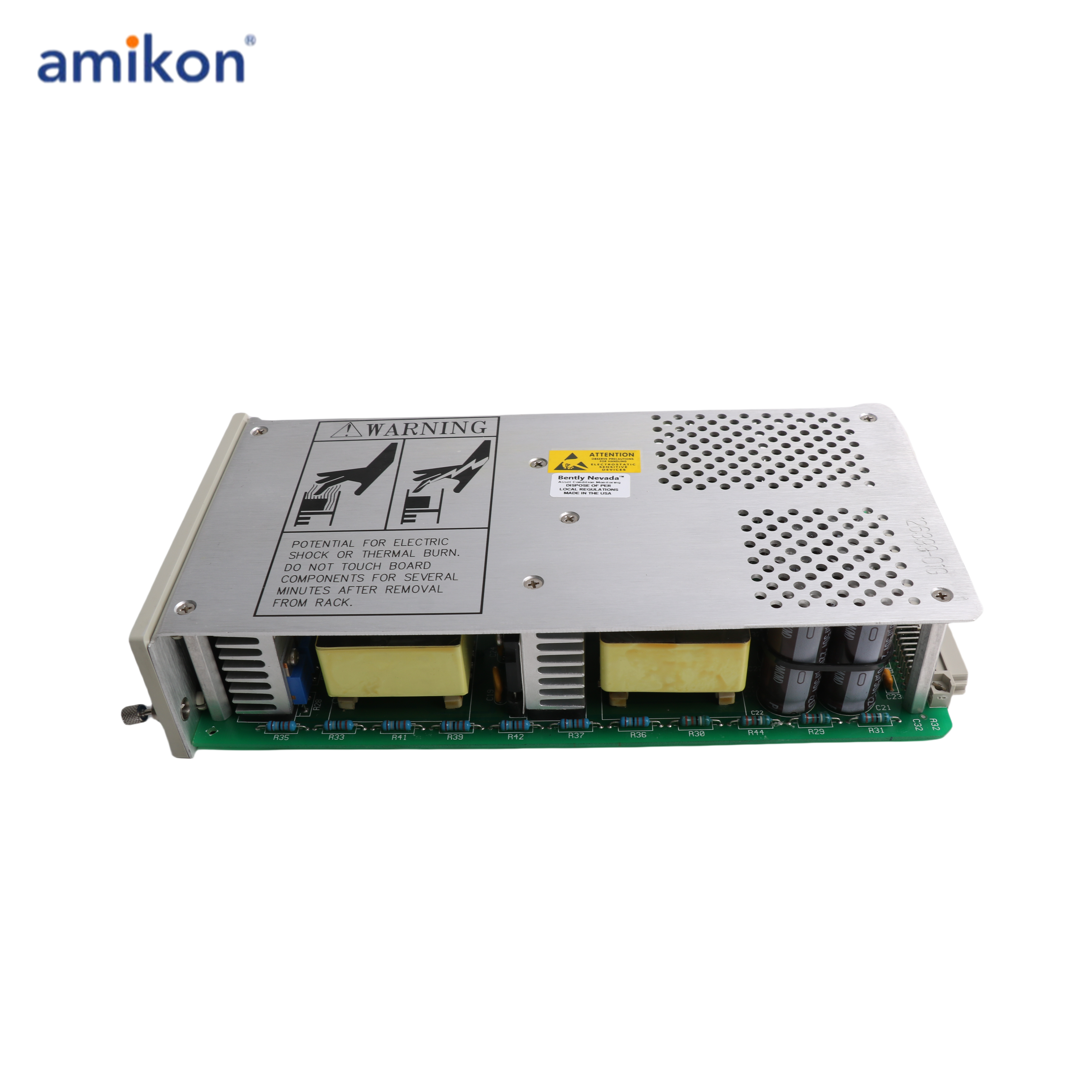

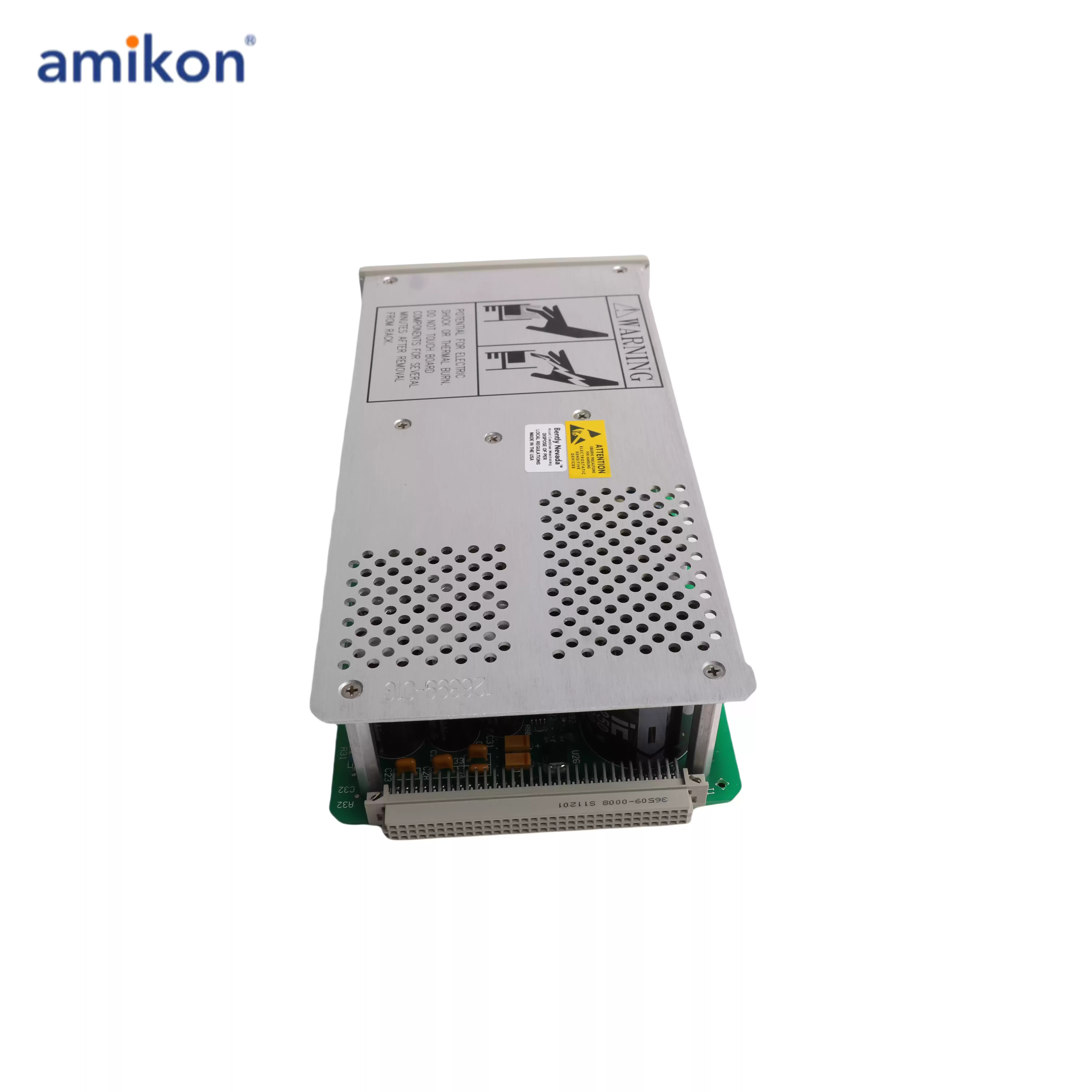

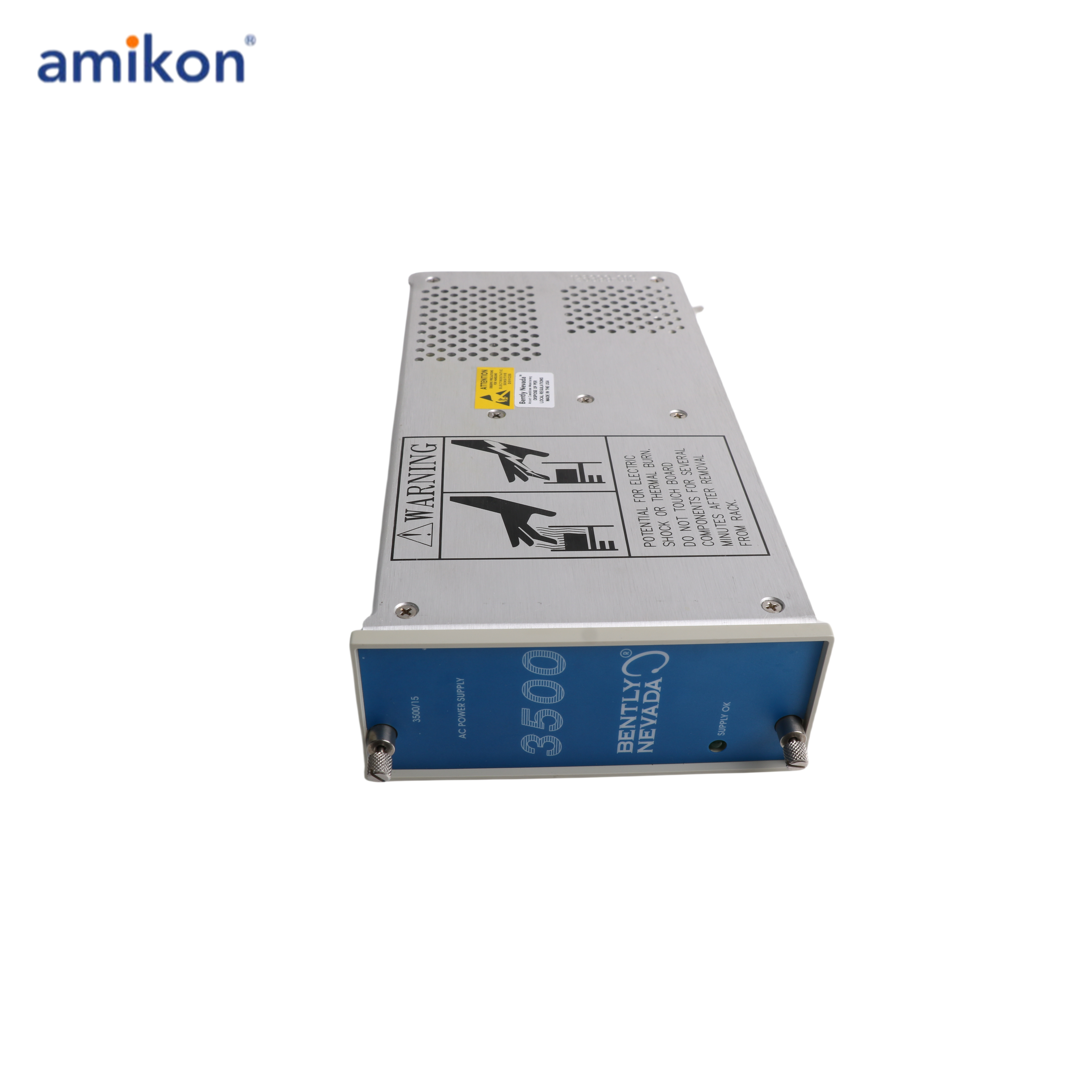

Bently AC Power Supply Module 3500/15 127610-01

Company infomation:

AMIKON LIMITED gives you access to a global supply of automation parts at your fingertips, ensuring that manufacturers can avoid unnecessary downtime. No matter where in the world, we are committed to helping businesses save millions in lost revenue.

Get in touch with us:

About product:

Description:

Manufacturer : Bently Nevada
Product No. : 127610-01
Product type : 3500/15 AC Power Supply Module
Series: 3500
Availability: In Stock
Operating Temperature:-30 to +65 degrees Celsius
Storage Temperature: -40 to +85 degrees Celsius
Humidity: 95%, non-condensing.
LED: Supply OK
Country of Manufacture: United States (USA)

127610-01 is a AC Power Supply Module developed by Bently Nevada. It belongs to the 3500 series of components. Power Supplies are half-height modules that must be installed in specially designed slots on the rack's left side. The rack can house one or two power supplies (any combination of ac and/or dc), with either supply capable of powering the entire rack. The second supply, if installed, serves as a backup for the primary supply. When two power supplies are installed in a rack, the lower supply serves as the primary supply and the upper supply serves as the backup supply. As long as a second power supply is installed, removing or inserting either power supply module will not disrupt rack operation. The Power Supplies accept a wide range of input voltages and convert them to voltages that other 3500 modules can use. With the Series Machinery Protection System, three Power Supply versions are available:
-AC Power
-High Voltage DC Power Supply
-Low Voltage DC Power Supply

Inputs Voltage Options:
High Voltage ac: This option uses the ac Power Supply and the High Voltage ac Power Input Module (PIM).
Input Voltage: 220 Vac nominal, 175 to 264 Vac rms, 247 to 373 Vac pk
Input Frequency: 47 to 63 Hz
Low Voltage ac: This option uses the ac Power Supply and the Low Voltage ac Power Input Module (PIM).
Input Voltage: 110 Vac nominal, 85 to 132 Vac rms, 120 to 188 Vac pk
Input Frequency: 47 to 63 Hz
High Voltage dc: This option uses the High Voltage dc Power Supply and the High Voltage dc Power Input Module (PIM).
Input Voltage: 88 to 140 Vdc
Low Voltage dc: This option uses the Low Voltage dc Power Supply and the Low Voltage dc Power Supply Input Module (PIM).
Input voltage: 20 to 30 Vdc
Out of Range Protection: For all power supply versions, an under-voltage will not harm either the supply or the PIM. However, an over-voltage will cause the fuse to open on the PIM.
