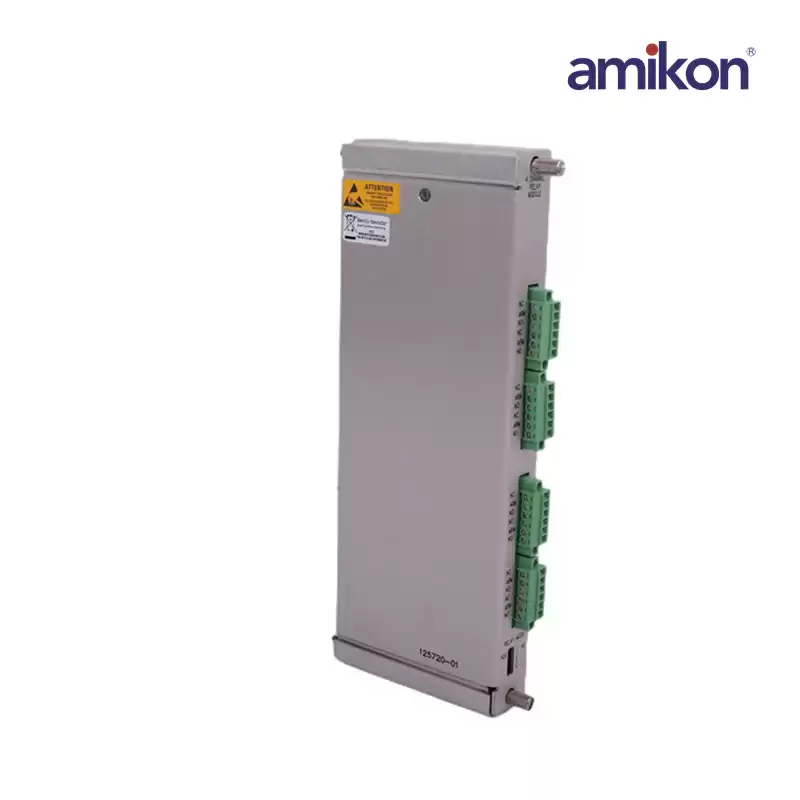

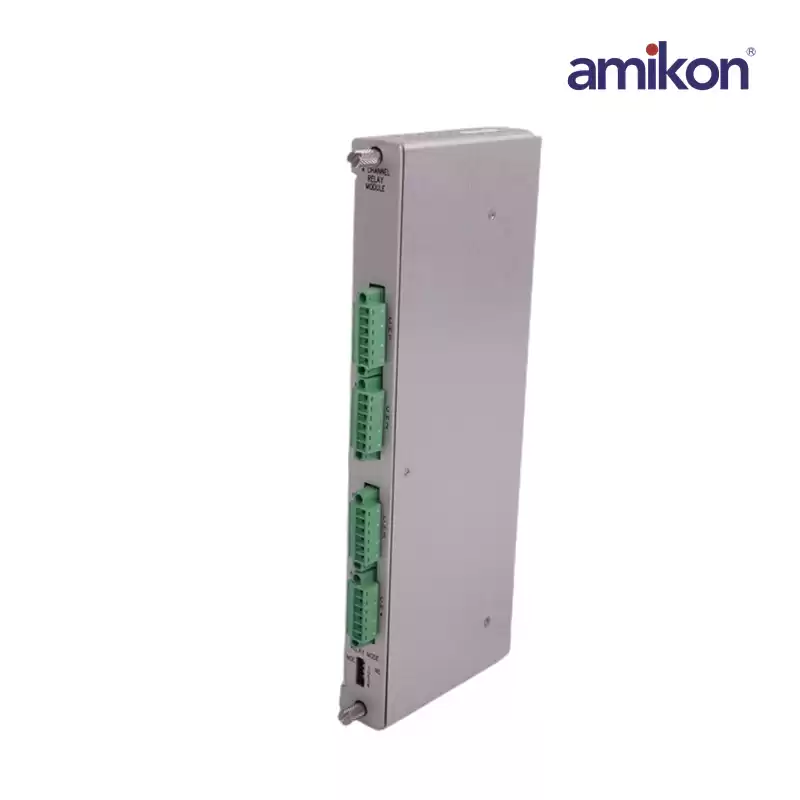

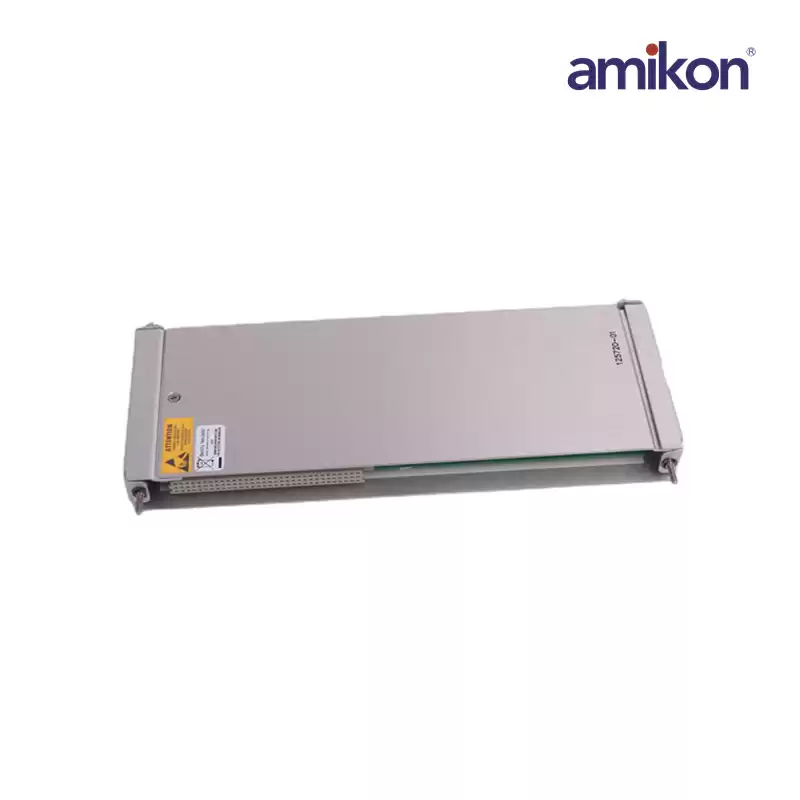

Bently Nevada 125720-01 4-Channel Relay Output Module
|
|
Dimensions ：
|
2.5x11.2x24.2cm
|
Weight：
|
0.5kg
|
|
Storage Temperature ：
|
-40°C to +85°C
|
Operating Temperature：
|
-30°C to +65°C
|
|
Features:
The 125720-01 is a 4-Channel Relay Output Module. The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic.
Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.
|
