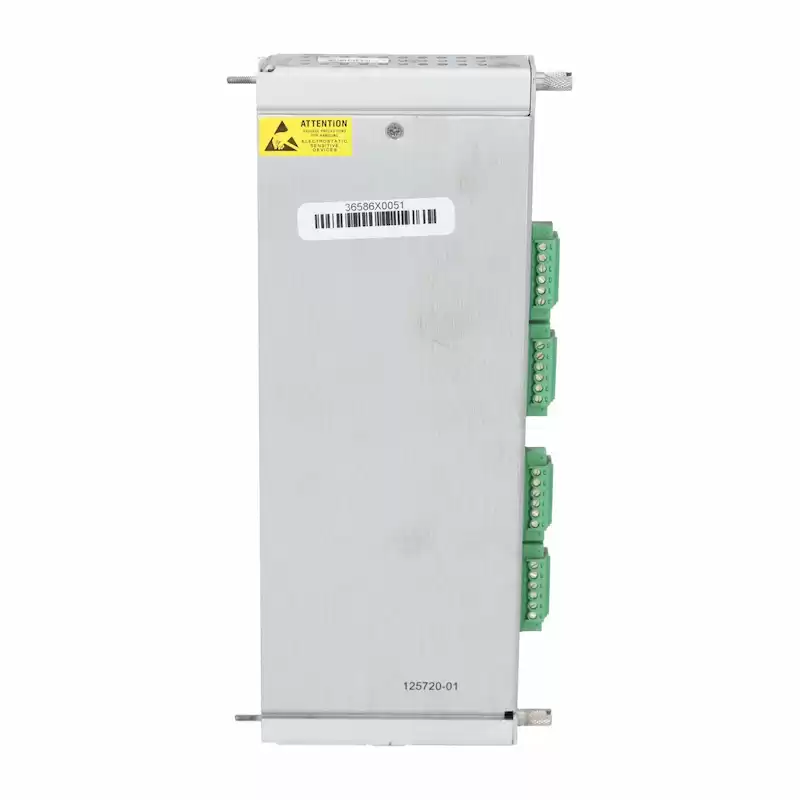

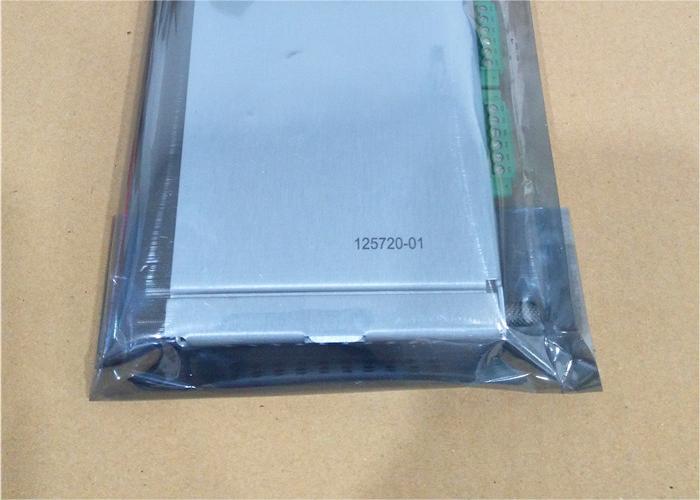

Bently Nevada 125720-01 Spare 4-Channel Relay I/O Module
The 125720-01 is a 4-Channel Relay I/O Module , it's manufactured and designed by Bently Nevada. It is a part of the Bently Nevada 3500/32 4-Channel Relay Module.
Functional Description
Inputs
Power Consumption: 6 watts typical.
Outputs
OK LED: Illuminated when module is functioning properly.
TX/RX LED: Transmit and Receive. Flashes to indicate proper communications between this module and other modules within the rack.
CH ALARM LED: Illuminated when the Relay Channel is in an alarm state.
Relays Type: Two single-pole, double-throw (SPDT) relays connected in a double-pole, double-throw (DPDT) configuration.

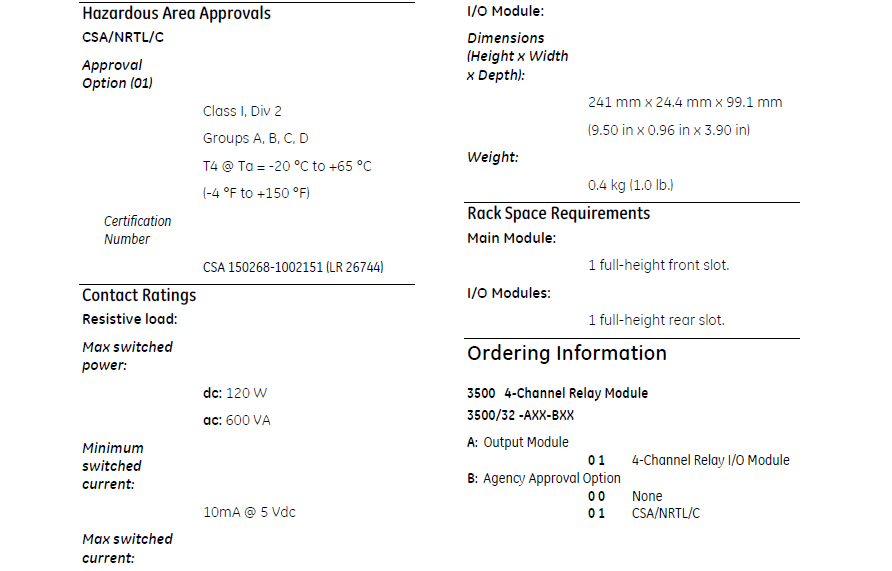

Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
125720-01 |
| Ordering Information |
3500/32-01-00 |
| Product Catalog |
3500/32-01-00 |
| Description |
Spare 4-Channel Relay I/O Module |
| Voltage |
24 Vdc |
| Current |
10 mA |
| Dimension |
241 mm x 24.4 mm x 99.1 mm |
| Weight |
0.4 kg |
