126632-01
|
|
Dimensions ：
|
60.5cmx2.4cmx3.3cm
|
Weight：
|
0.25kg
|
|
Storage Temperature ：
|
-40°C to +120°C
|
Product Origin:
|
USA
|
|

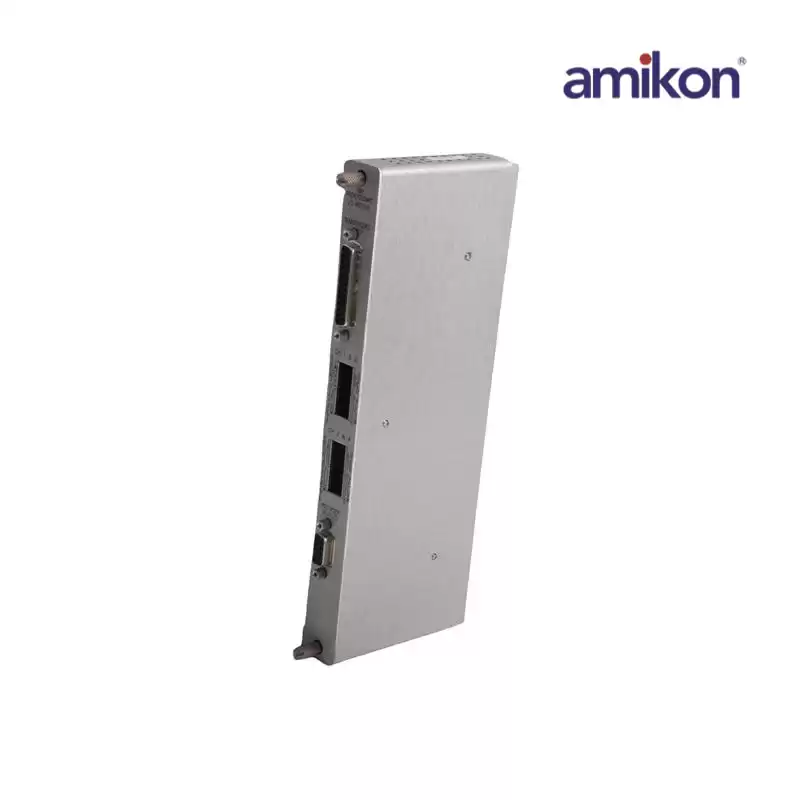

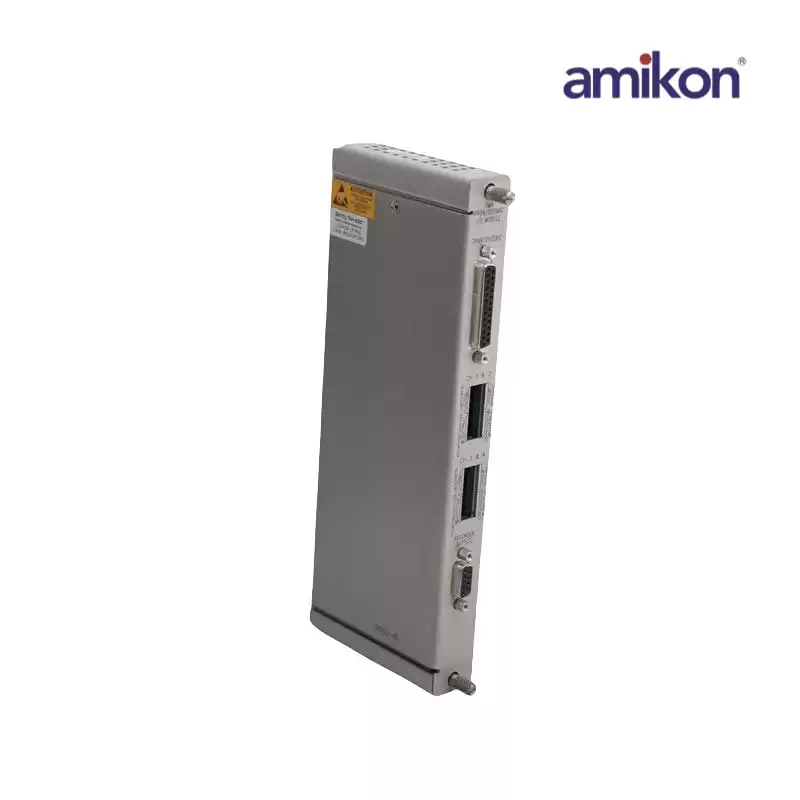

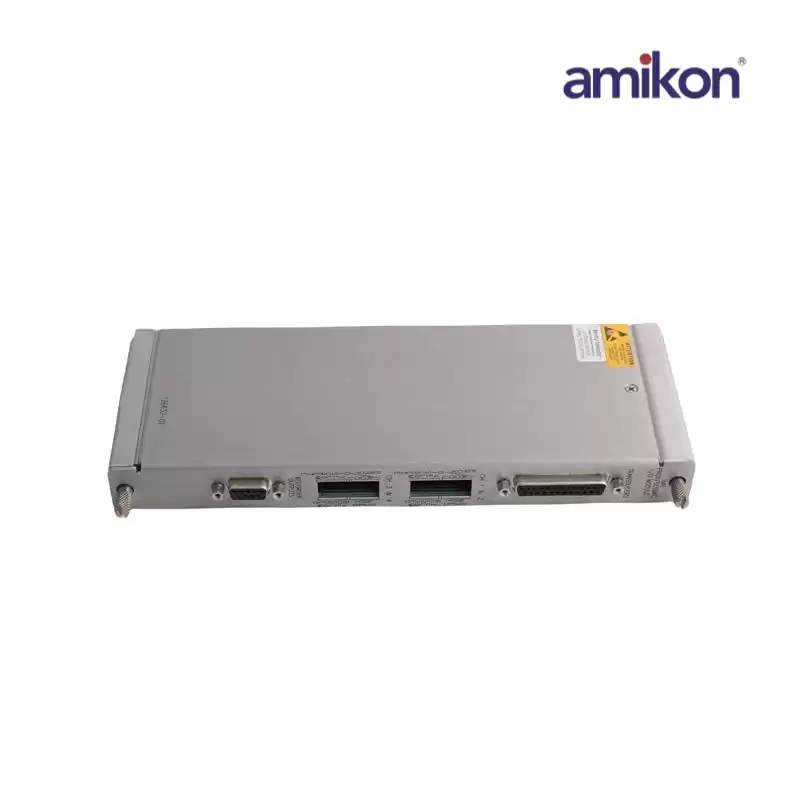

The 126632-01 is a TMR I/O Module.The 126632-01 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc.
It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.When used in a Triple Modular Redundant (TMR) configuration, you must install Process Variable Monitors adjacent to each other in groups of three. When used in this configuration, the monitor employs two types of voting to ensure accurate operation and to avoid loss of machinery protection due to single-point failures.
|
