Bently Nevada 128240-01 Proximitor/Seismic Monitor I/O Module

Brand new and original sealed//Same Day Shipment

  • Dimensions2.3x11x24.1cm
  • Weight0.4Kg
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
SPECIFICATIONS
Part Number: 128240-01
Manufacturer: Bently Nevada
Series: 3500
Product Type: Proximitor/Seismic Monitor I/O Module (external terminations)
Dimensions: 25.4 cm x 2.5 cm x 11.4 cm
Availability: In Stock
Country of Origin: United States (USA)

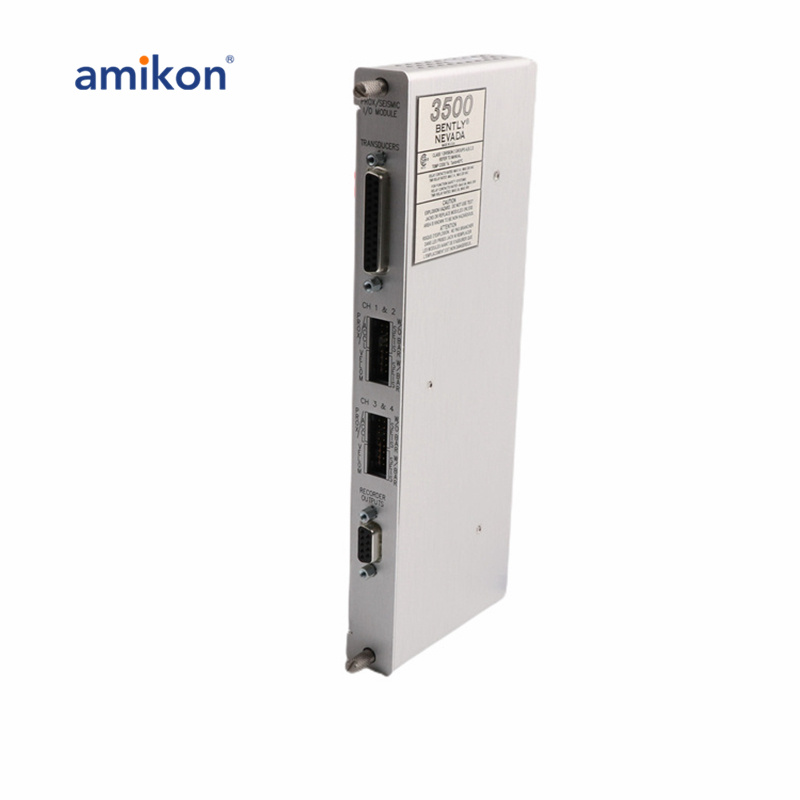

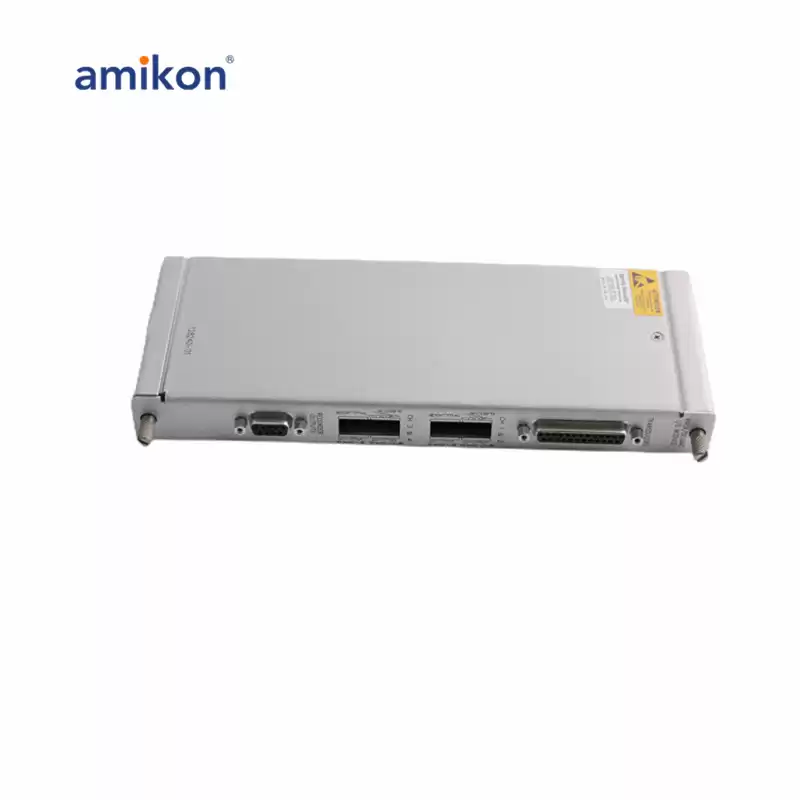

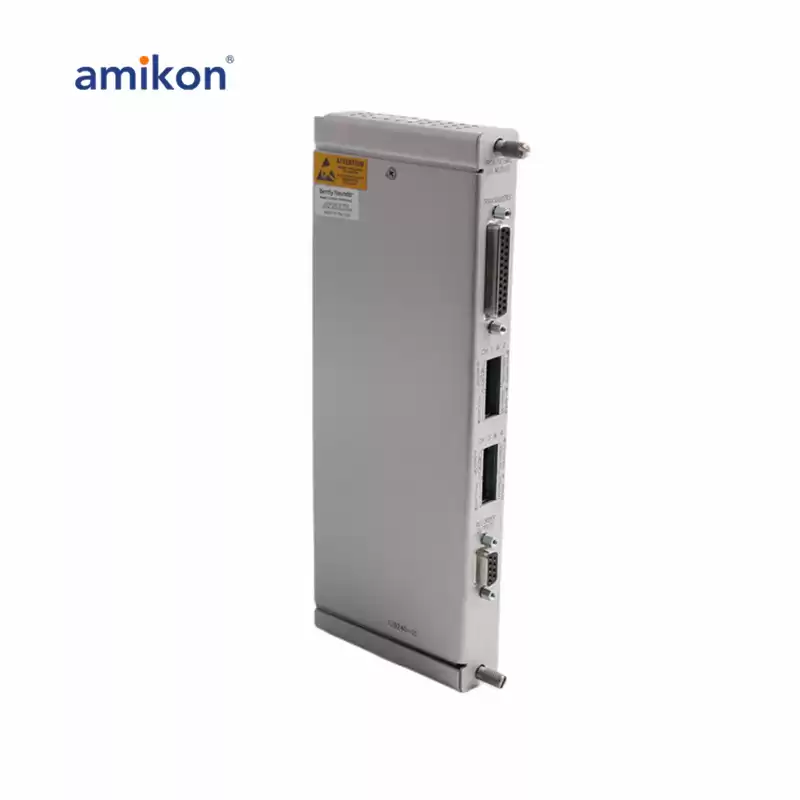

128240-01 is a Proximitor/Seismic Monitor I/O Module designed and developed by Bently Nevada. It is a part of the 3500/42M Proximitor Seismic Monitoring system. The four-channel Seismic Monitor receives data from proximity and seismic transducers. It processes the signal to produce vibration and location measurements, compares the processed signals with user-programmable alarms, and conditions the processed signals. Radial vibration, REBAM, thrust position, acceleration, differential expansion, shaft absolute, eccentricity, circular acceptance region, and velocity may all be programmed onto each channel utilizing the 3500 Rack Configuration Software.

128240-01 Features
The Proximitor/Seismic Monitor's primary function is to provide machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms and essential machine information for both operations and maintenance personnel.
Depending on the configuration, each channel typically conditions its input signal to generate various parameters known as static values. You can set alert and danger setpoints for each active static value, as well as alert and danger setpoints for any two active static values.
Transducer Type
Seismoprobe. Prox/Accel and Velomitor are supported but are not recommended.

Characteristics
Dimensions: Height x Width x Depth - 241.3 mm x 24.4 mm x 99.1 mm(9.50 in x 0.96 in x 3.90 in)
Weight: 0.20 kg (0.44 lb)
Rack Space Requirements: 1 full-height rear slot
Environmental Limits
Storage Temperature: -40 degrees Celsius to +85 degrees Celsius
Humidity: 95%, non-condensing
