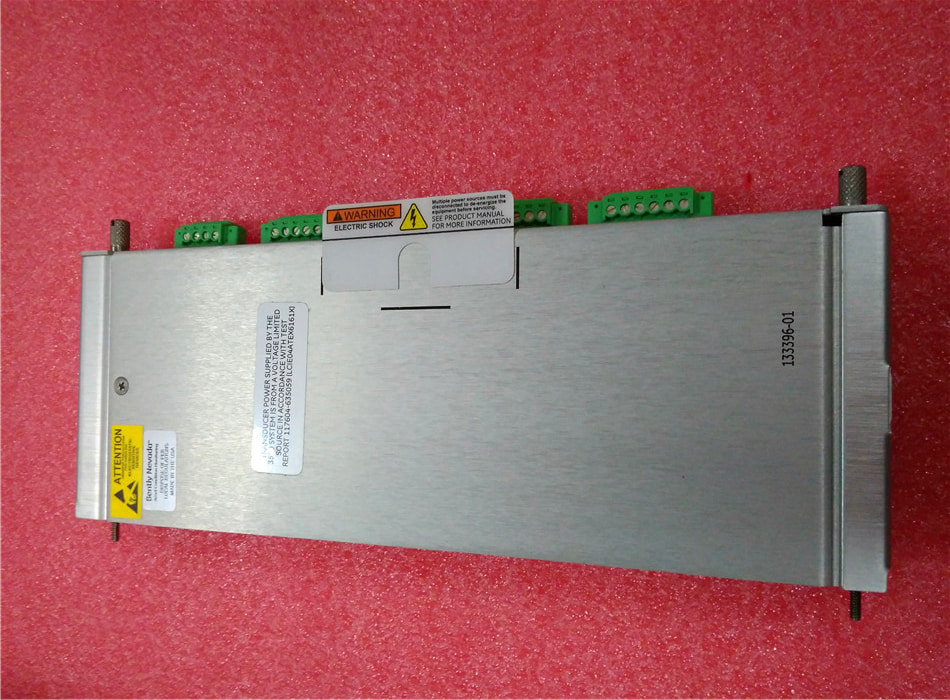

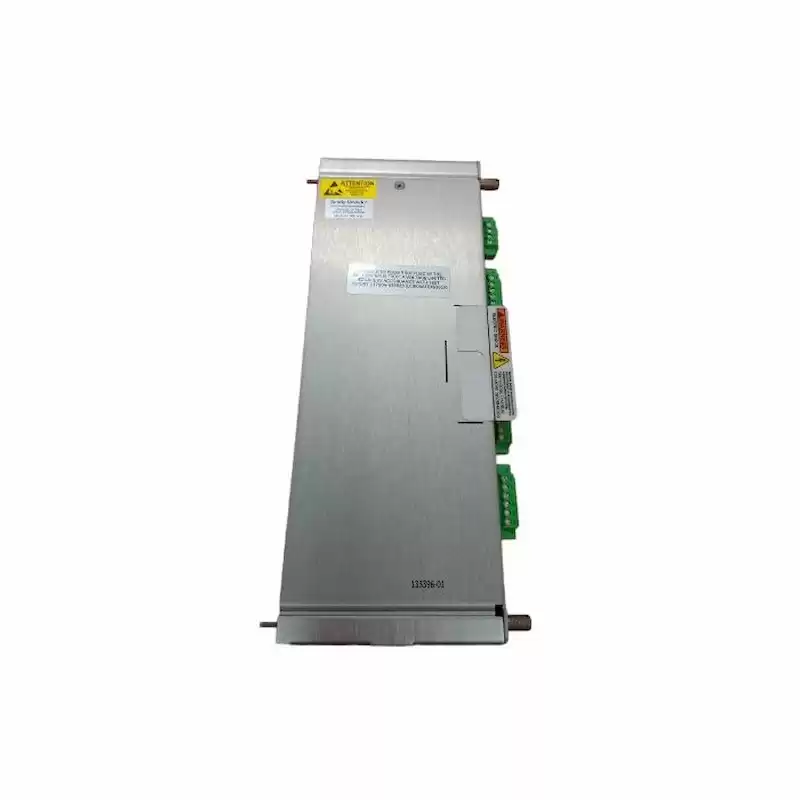

Bently Nevada 133396-01 Overspeed Detection I/O Module
133396-01 Overspeed Detection I/O Module is manufactured and designed by Bently Nevada.
The Bently Nevada™ Electronic Overspeed Detection System for the 3500 Series Machinery Detection System provides a highly reliable, fast response, redundant tachometer system intended specifically for use as part of an overspeed protection system. It is designed to meet the requirements of American Petroleum Institute (API) Standards 670 and 612 pertaining to overspeed protection.
3500/53 modules can be combined to form a 2-out-of-2 or a 2-out-of-3 (recommended) voting system.
The Overspeed Detection System requires the use of a 3500 rack with redundant power supplies.
Frequency
The 3500 Overspeed Protection Module will support from 1 to 255 events per revolution with a maximum full-scale range of 99,999 rpm and a maximum input frequency of 20 kHz. Minimum input frequency for proximity transducers is 0.0167 Hz (1 rpm for 1 event/revolution) and for passive magnetic pickups is 3.3 Hz.
Specifications
Inputs
Signal:
Each Overspeed Detection module accepts a single transducer signal from a proximity probe transducer or magnetic pickup. The input signal range is +10.0 V to -24.0 V. The module internally limits signals that exceed this range.
Input Impedance:
20 k W.
Power Consumption:
8.0 watts, typical.
Transducers:
Bently Nevada 3300 8 mm Proximitor 3300 16 mm HTPS, 7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor; 3300 RAM Proximitor, or Magnetic pickups.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
133396-01 |

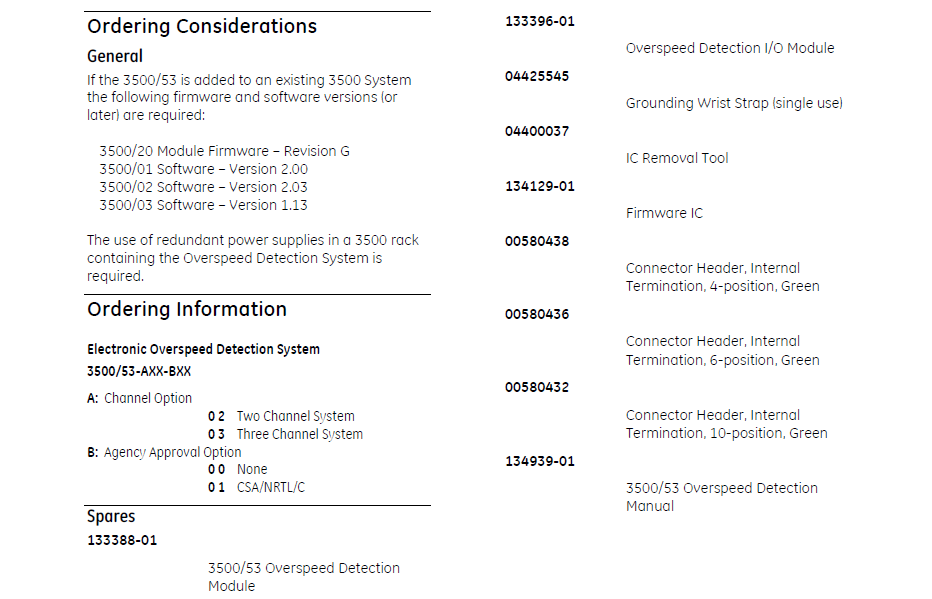

| Ordering Information |
3500/53 |
| Product Catalog |
3500/53 |
| Description |
Overspeed Detection I/O Module |
| Voltage |
0 to +12 Vdc |
| Current |
+4 to +20 mA |
| Dimension |
241.3 mm x 24.4 mm x 99.1 mm |
| Weight |
0.45 kg |
