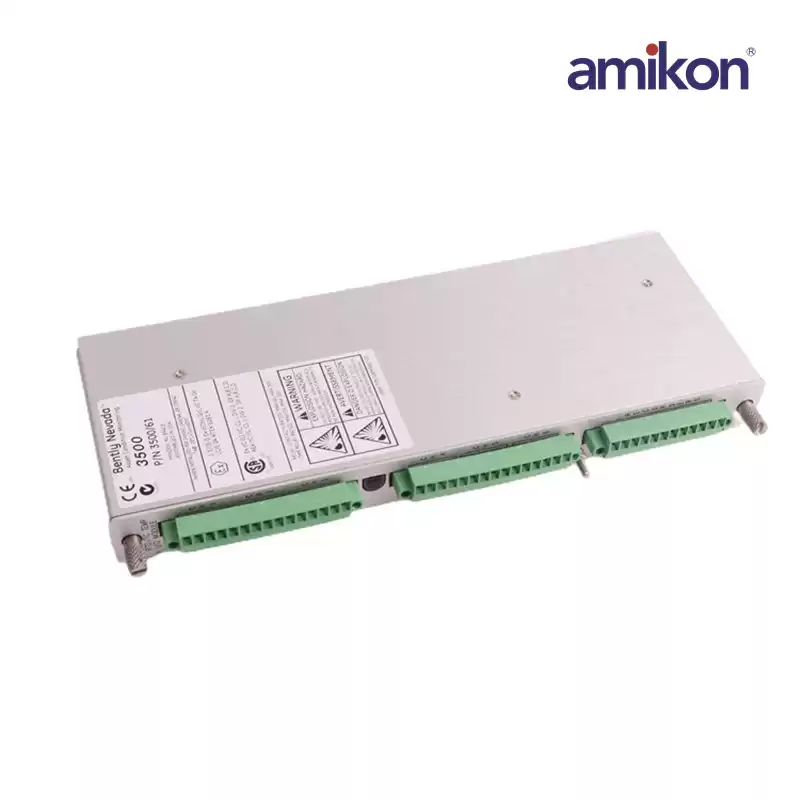

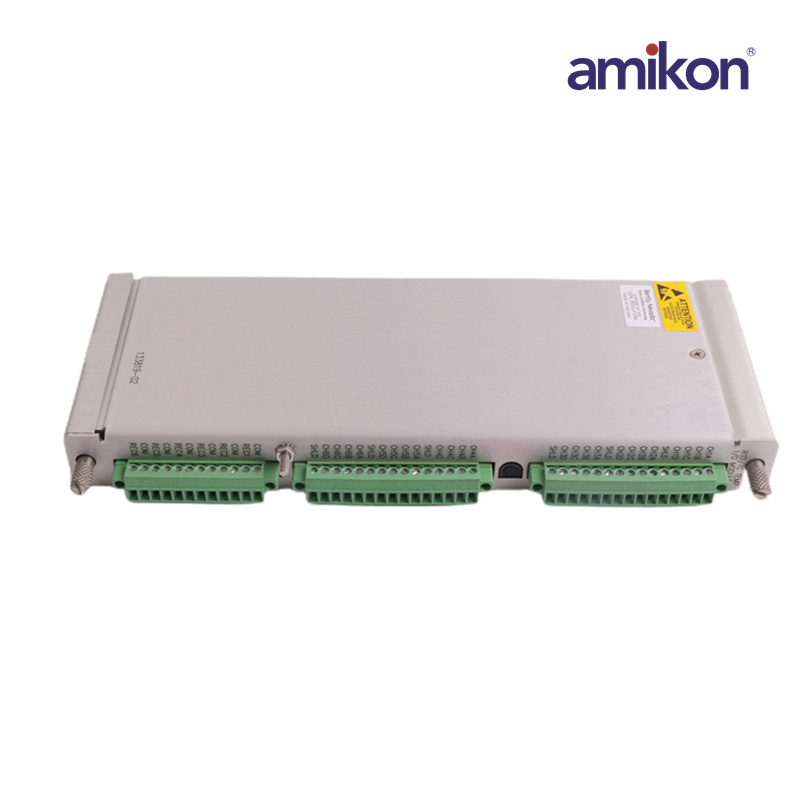

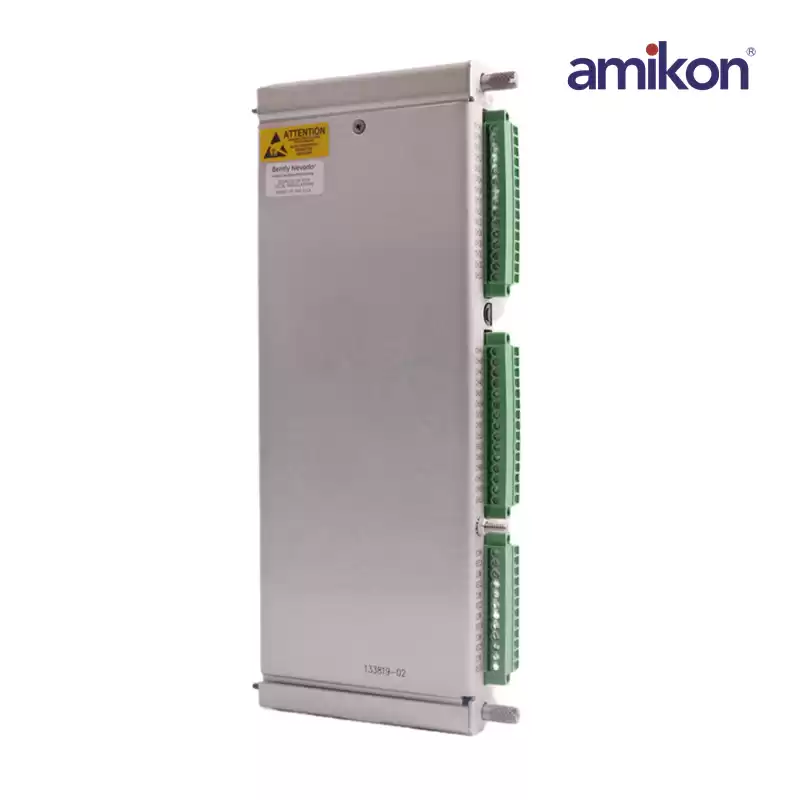

133819-02 RTD/TC Non-Isolated I/O Module
|
|
Dimensions ：
|
2.5x11.2x24.2cm
|
Weight：
|
0.4kg
|
|
Power Consumption：
|
8.5 watts typical
|
Humidity：
|
95%, noncondensing
|
|
Storage Temperature ：
|
-40°C to +85°C
|
Operating Temperature：
|
-30°C to +65°C
|
|
133819-02 is a RTD/TC Non-Isolated I/O Module Internal Terminations . It is a part of the Bently Nevada 3500/61. The 3500/60 & 61 modules provide six channels of temperature monitoring andaccept both Resistance Temperature Detector (RTD) and Thermocouple (TC)temperature inputs. The modules condition these inputs and compare themagainst user-programmable alarm setpoints. The 3500/60 and 3500/61 provideidentical functionality except that the 3500/61 provides recorder outputs foreach of its six channels while the 3500/60 does not.
|
