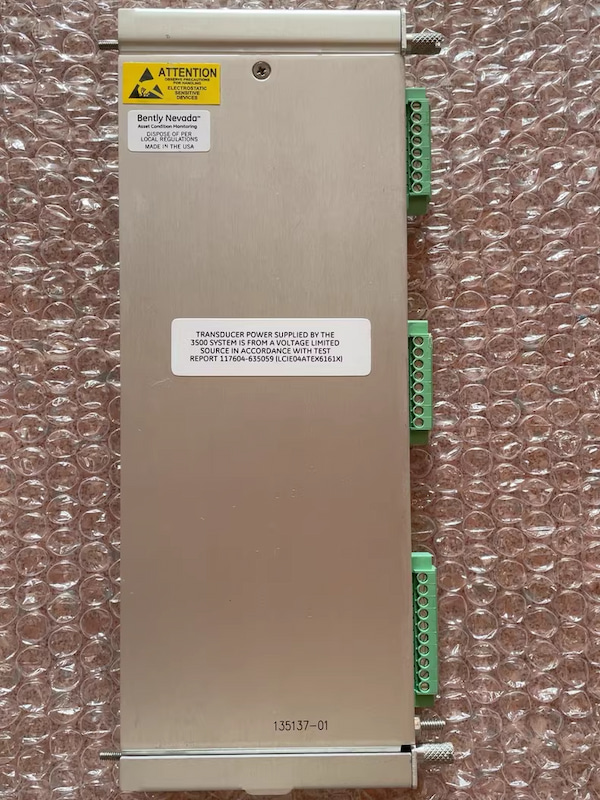

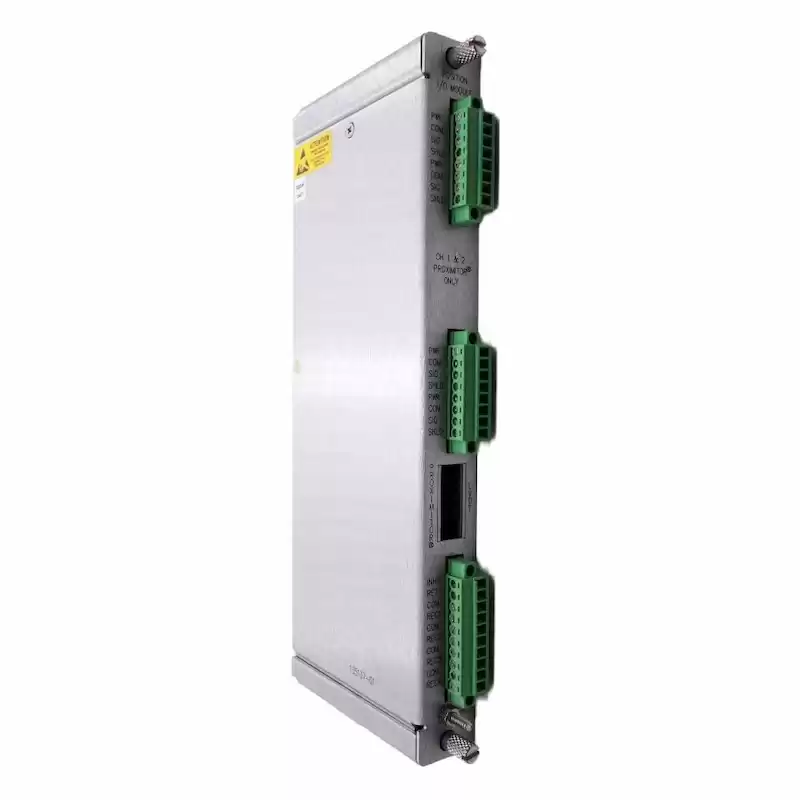

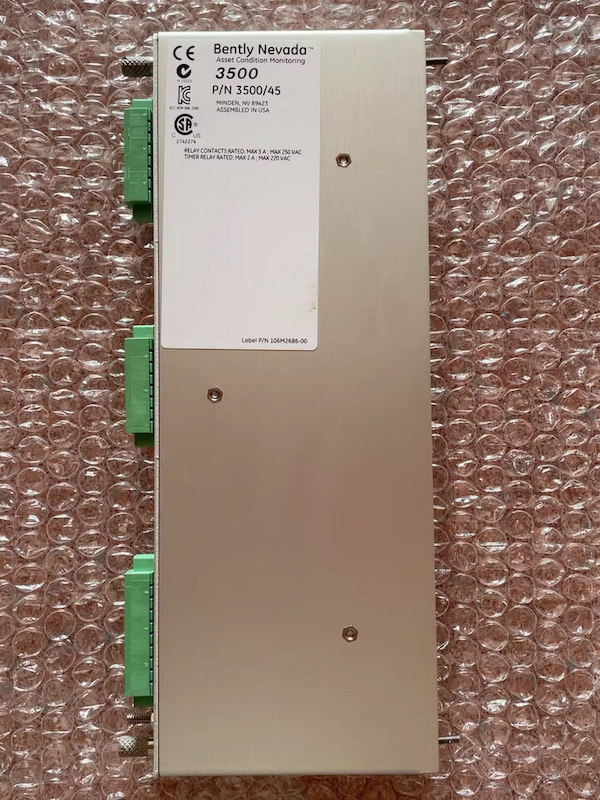

135137-01 Position I/O Module with Internal Terminations
The 135137-01 is a Position I/O Module with Internal Termination, it is manufactured and designed by Bently Nevada as part of 3500/45 monitor system, used with Proximitors, Rotary Position Transducers, or DC LVDTs.
The 3500/45 Position Monitor is a 4-channel monitor that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers.
The type of measurement to be made and the associated transducer input will dictate which Input / Output (I/O) Module is required.
The monitor channels are programmed in pairs and can perform up to two of these functions at a time. Channels 1 and 2 can perform one function, while channels 3 and 4 perform another (or the same) function. However, only channels and 3 and 4 can perform Case Expansion.
Position Monitor
3500/45 - AA-BB
A: I/O Module Type
01 Position I/O Module with Internal Terminations (Proximitor, RPT, DC LVDT)
02 Position I/O Module with External Terminations (Proximitor, RPT, DC LVDT)
03 Discrete TMR Position I/O Module with External Terminations (Proximitor or DC LVDT)
04 Bussed TMR Position I/O Module with External Terminations (Proximitor)
05 AC LVDT Position I/O Module with Internal Terminations
06 AC LVDT Position I/O Module with External Terminations
B: Agency Approval
00 None
01 cNRTLus (Class 1, Division 2)
02 ATEX / IECEx / CSA (Class 1, Zone 2)
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
135137-01 |
| Ordering Information |
3500/45-01-00 |
| Product Catalog |
3500/45-01-00 |
| Description |
Position I/O Module with Internal Terminations |
| Voltage |
24 Vdc |
| Current |
4 to +20 mA |
| Dimensions |
241.3 mm x 24.4 mm x 99.1 mm |
| Weight |
0.2 kg |
