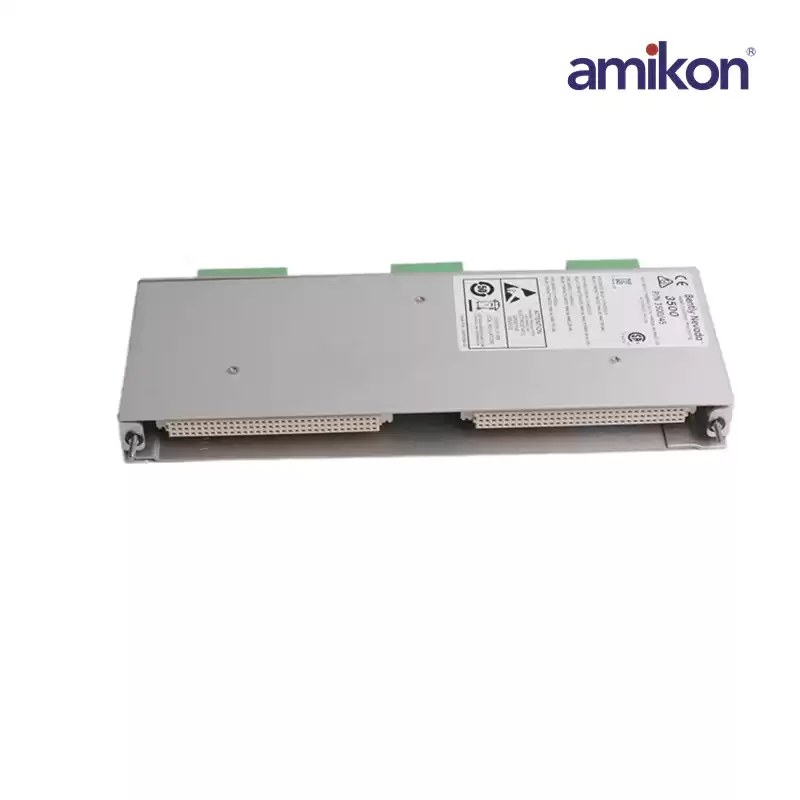

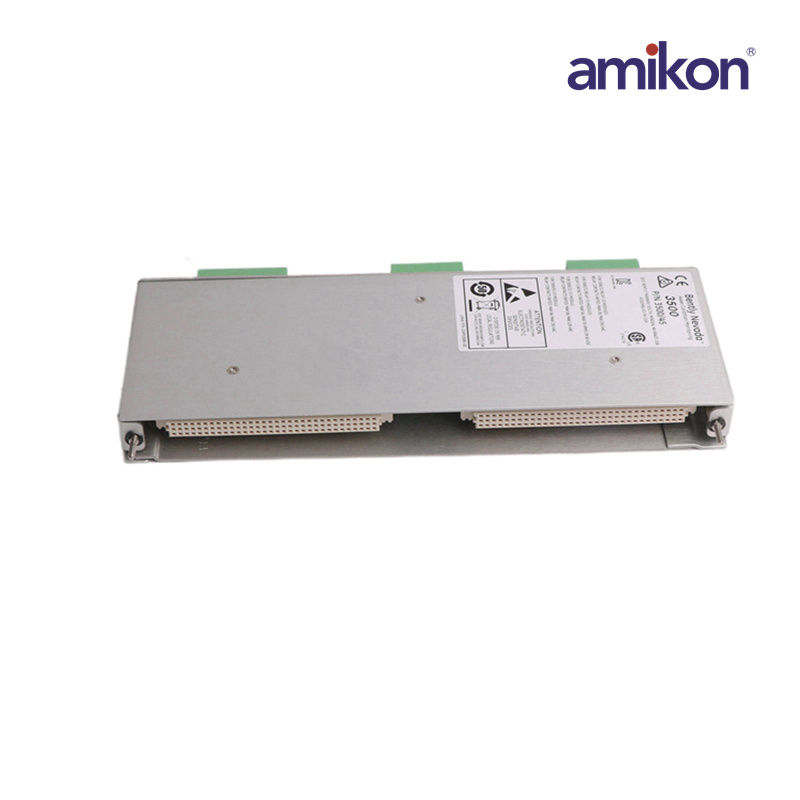

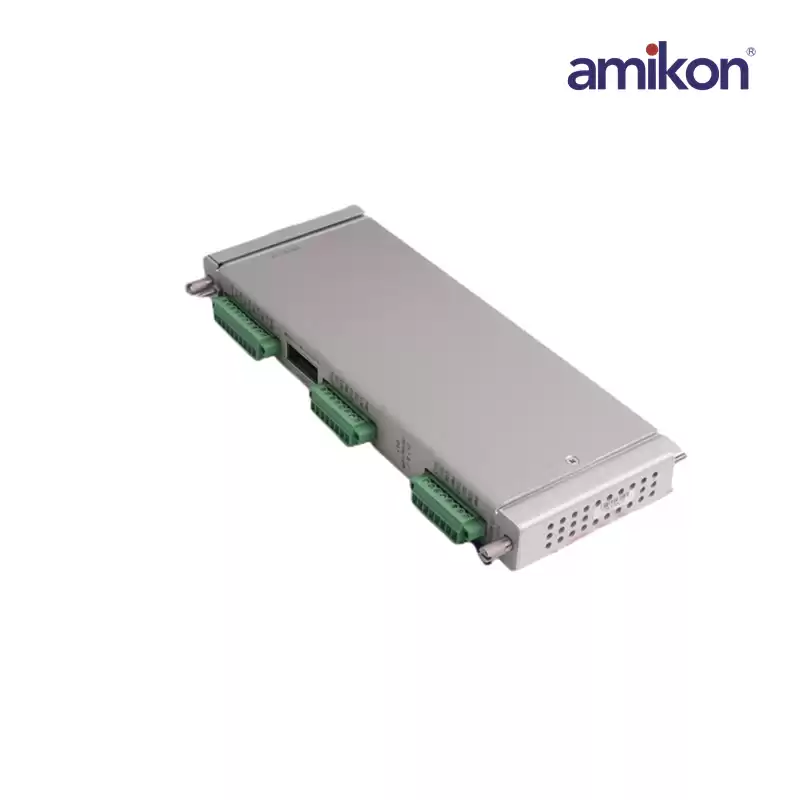

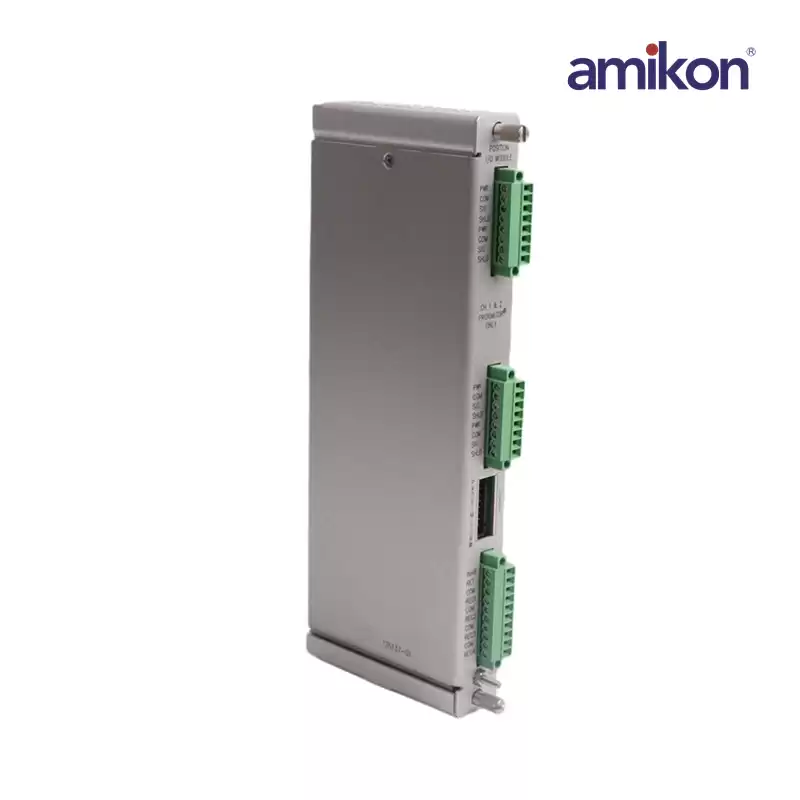

135137-01 POSITION I/O MODULE
|
|
Dimensions ：
|
2.5x11.2x24.2cm
|
Weight：
|
0.4kg
|
|
Power Consumption：
|
5.5 watts typical
|
Rotary Potentiometer：
|
-12.38 Vdc
|
|
Storage Temperature ：
|
-40°C to +85°C
|
Operating Temperature：
|
-30°C to +65°C
|
|
135813-01 is a Position I/O Module with Internal Terminations for use with Proximitors, RPTs or DC LVDTs . It is a part of the Bently Nevada 3500/45. The 3500/45 Position Monitor is a 4-channel monitor that accepts input fromproximity transducers, Rotary Position Transducers (RPTs), DC Linear VariableDifferential Transformers (DC LVDTs), AC Linear Variable Differential Transformers(AC LVDTs), and rotary potentiometers.
The monitor conditions the input and compares the conditioned signals with user-programmable alarms.The monitor channels are programmed in pairs and can perform up to two of these functions at a time. For example, Channels 1 and 2 can perform one function while channels 3 and 4 may perform the same or a different function.
|
