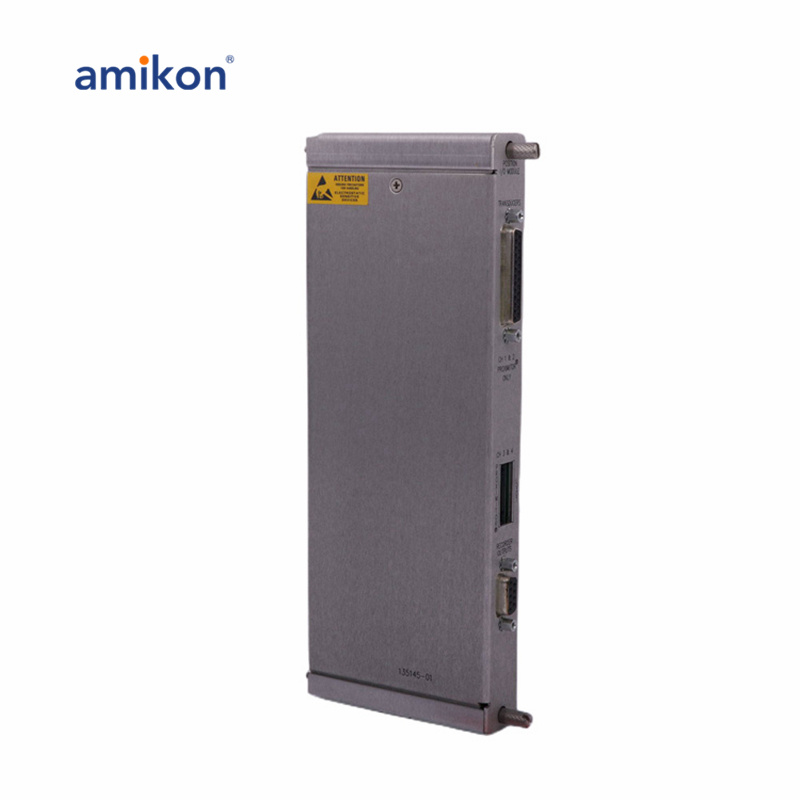

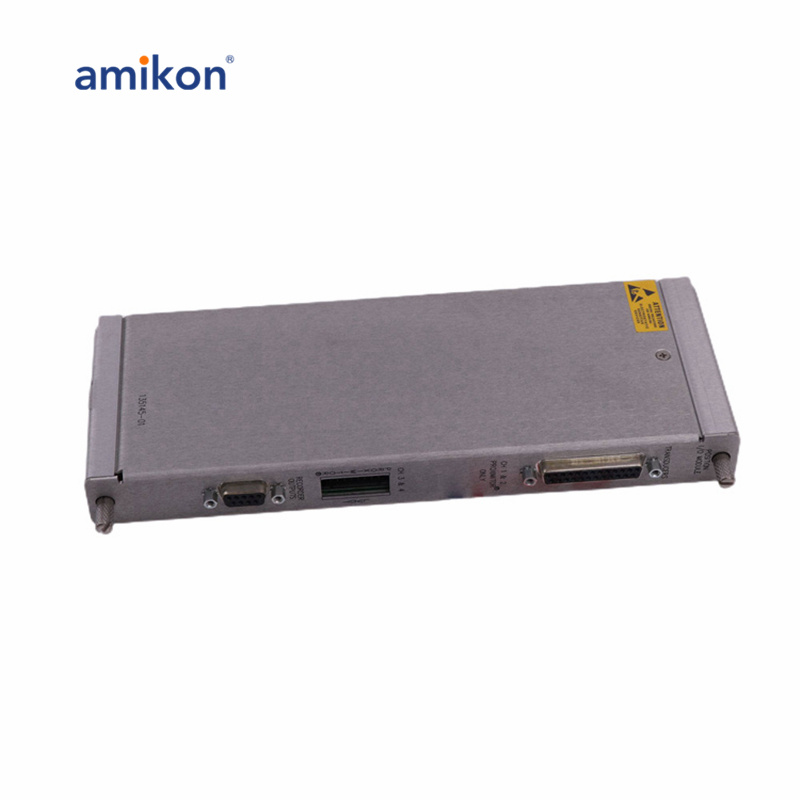

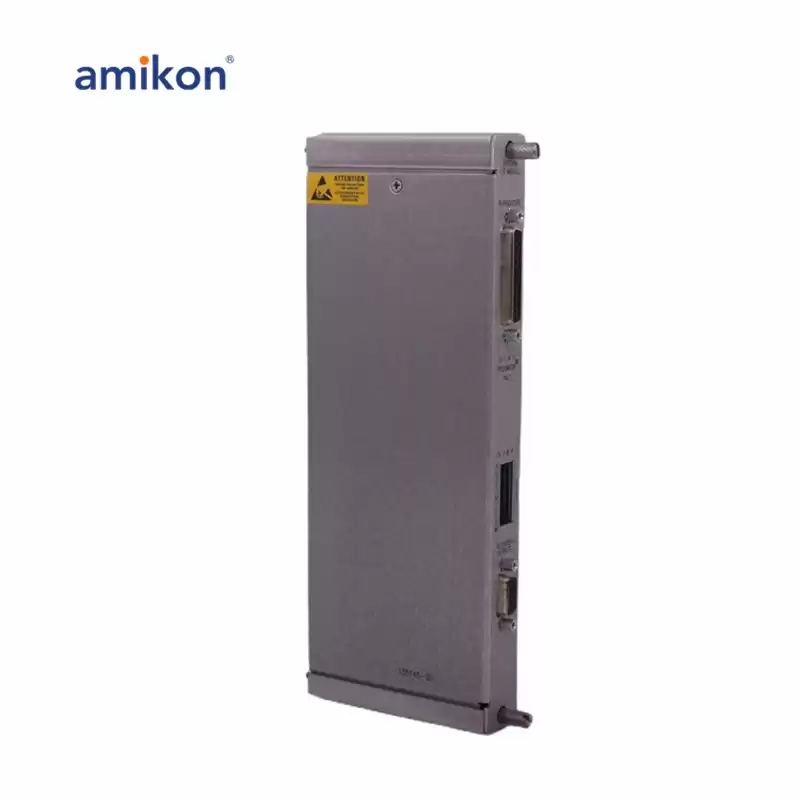

Bently Nevada 135145-01 Position I/O Module

The Bently Nevada 3500/45 135145-01, Position Monitor is a 4-channel instrument that accepts input from proximity transducers, rotary position transducers (RPTs)

135145-01  Datasheet

DC linear variable differential transformers (DC LVDTs)

AC linear variable differential transformers (AC LVDTs)

Differential Expansionl Dual Ramp Differential Expansionl Complementary Differential Expansionl Case Expansionl Valve Position

l Axial (thrust) Positionl Differential Expansionl Standard Single Ramp Differential Expansionl Non-standard Single Ramp

Parts delivered worldwide

Award-winning service

More than 25 in stock

Full 12-month warranty

 We deliver worldwide

Specification

Details

Signal

Accepts from 1 to 4 signal inputs

Power Consumption

- 7.7 Watts, typical, using Position I/O

- 8.5 Watts, typical, using AC LVDT I/O

- 5.6 Watts, typical, using Rotary Potentiometer I/O

Input Impedance

1 MΩ (DC LVDT inputs)

10 kΩ (Proximitor or RPT inputs)

137 kΩ (AC LVDT inputs)

200 kΩ (Rotary Potentiometer inputs)
