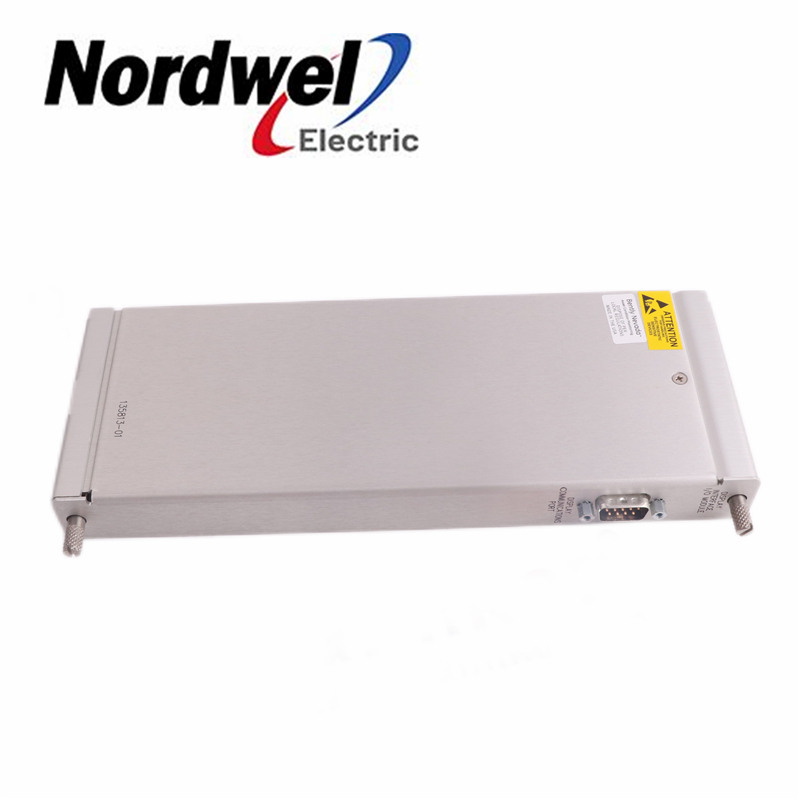

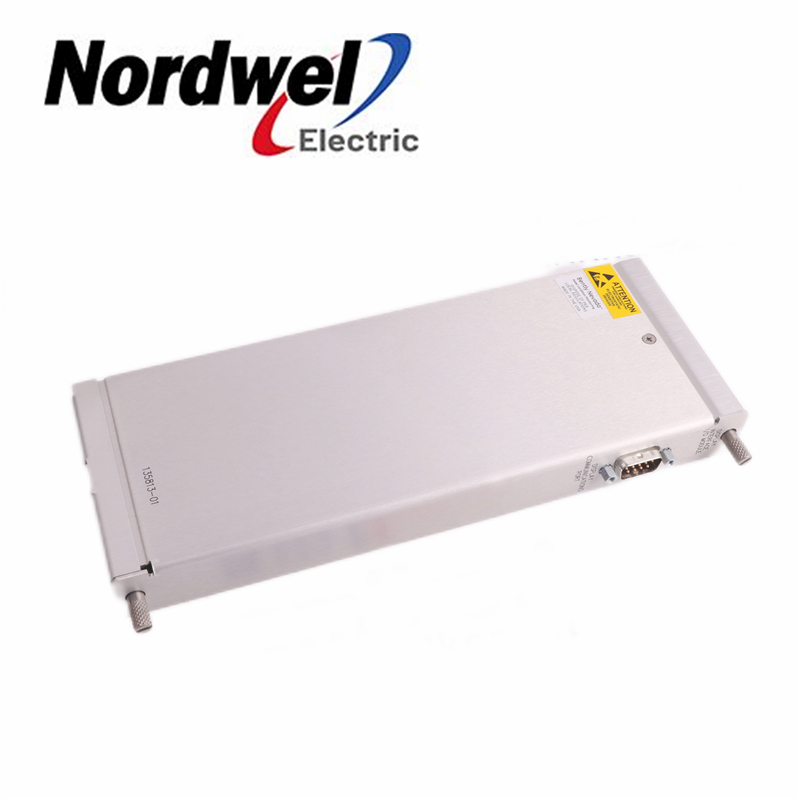

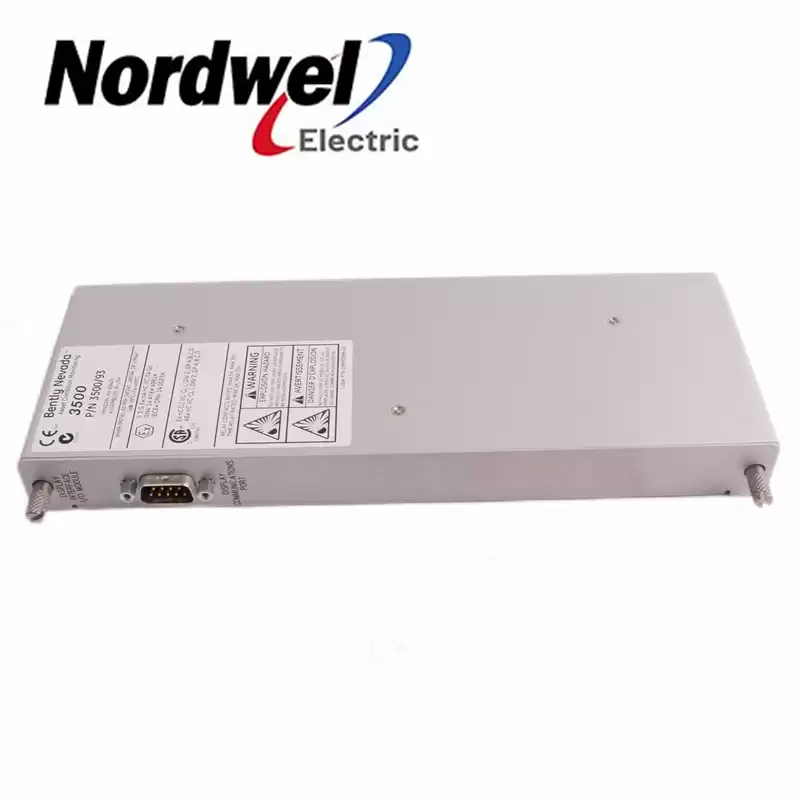

Bently Nevada|135813-01| Display Interface I/O Module

Part Number: 135813-01

Manufacturer: GE/Bently Nevada

Status: In stock

Series:3500/93 System Display

Full description: GE/Bently Nevada 135813-01 Display Interface I/O Module

Features:

Local or Remote Visual Indication of 3500 Machinery Protection System

(4) Display Mounting Types

Up to (2) Displays per 3500 Rack

The GE / Bently Nevada 3500/93 Series System Display is designed to meet the requirements of American

Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection

System information residing in the rack including: system event list, alarm event lists and all channel, monitor, relay

module, Keyphasor module or Tachometer Module data.

The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in

any of four ways: face mounting, 19-inch EIA rack mounting, panel mounting, and independent mounting.

Up to two displays can be connected to each 3500 rack and each display requires one empty 3500 rack slot for

insertion of its corresponding DIM. When the display is not face-mounted, the cable connection between the DIM

and the Display can be made from the front of the 3500 rack or from the I/O module at the rear of the rack.
