Product Description：

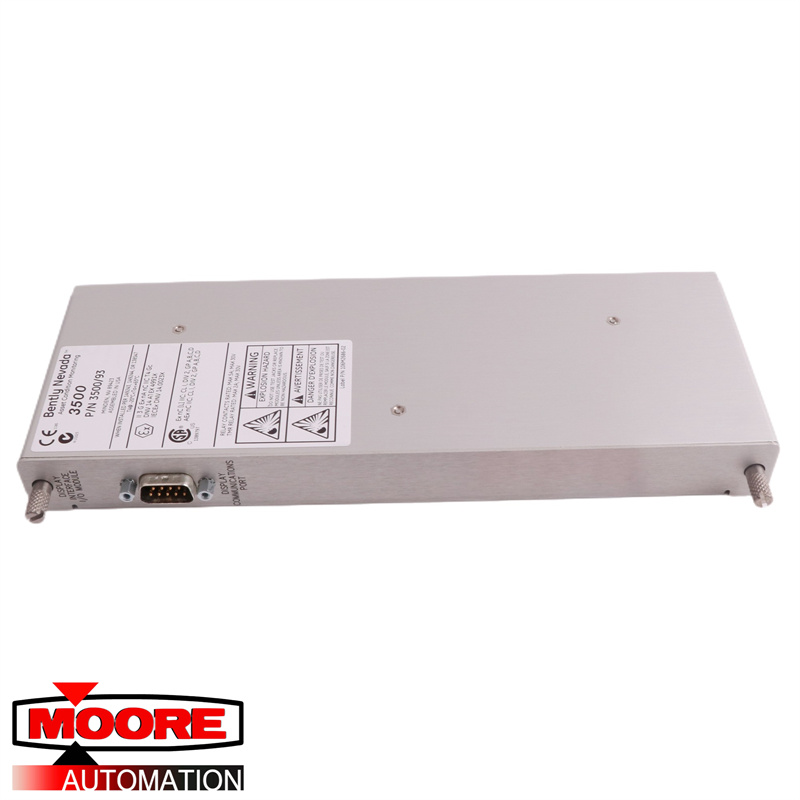

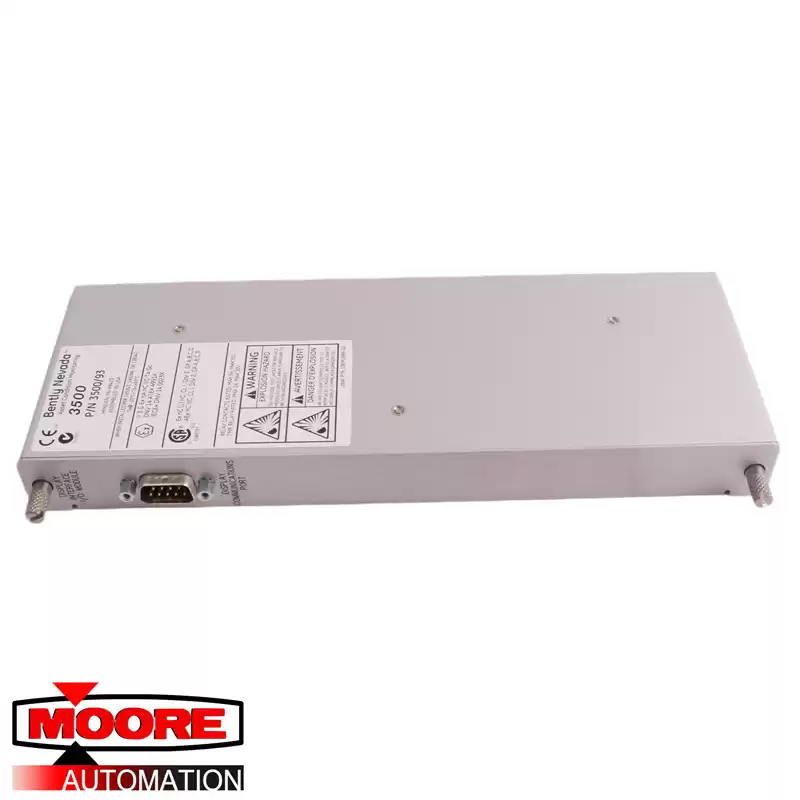

The 3500/93 System Display is designed to meet the
requirements of American Petroleum Institute Standard
670 and provide local or remote visual indication of all 3500
Machinery Protection System information residing in the
rack including:
System Event List
Alarm Event Lists
All Channel, Monitor, Relay Module, Keyphasor?
Module or Tachometer Module data
The 3500/93 System Display is configured using 3500
Rack Configuration Software. The display can be mounted
in any of four ways:
1. Face Mounting – display installs directly over the
front panel of any full size 3500 rack using a
special hinged support. This permits access to
the rack’s buffered output connectors and userinterface buttons and switches without
disconnecting or disabling the display.
Note: For this mounting option only, the Display
Interface Module (DIM) must be installed in slot 15
(right-most slot) of the rack. The Face Mounting
option is not compatible with the 3500 Mini-rack.
