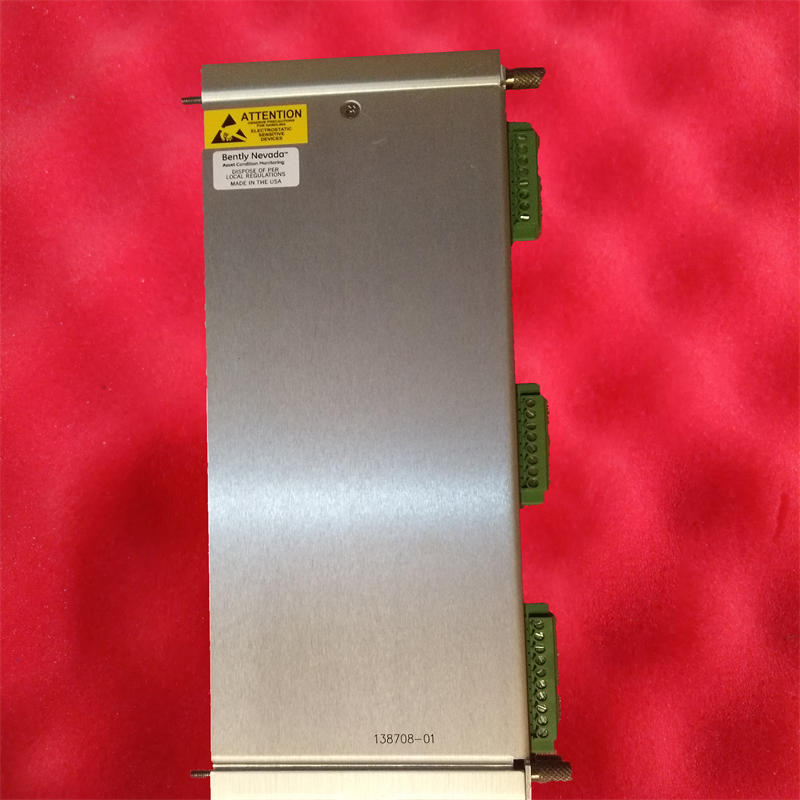

The Bently Nevada 138708-01 3500/42M Shaft Absolute I/O Module is a specific module within the Bently Nevada 3500 Monitoring System. This module is designed to provide precise and accurate measurements of absolute shaft position for rotating machinery.

Here are some key features and details about the Bently Nevada 138708-01 3500/42M Shaft Absolute I/O Module:

1. Shaft Absolute Position Measurement: The module utilizes absolute position measurement techniques to determine the exact position of a rotating shaft. This allows for accurate monitoring and analysis of shaft position and movement.

2. Compatibility: The module is compatible with various types of position sensors such as eddy current proximity probes or other types of transducers used for absolute position measurements. It supports different sensor types to accommodate a wide range of applications.

3. Signal Conditioning: The module provides signal conditioning and amplification capabilities to ensure accurate and reliable measurements of the shaft position. It can process and convert the signals from the position sensors to a usable format for further analysis.

4. Communication and Integration: The module interfaces with the Bently Nevada 3500 Monitoring System and communicates with other modules in the system for data collection, analysis, and display. It may use communication protocols such as Modbus or proprietary Bently Nevada protocols to integrate with the overall monitoring system.

5. Condition Monitoring: The Bently Nevada 138708-01 3500/42M Shaft Absolute I/O Module is specifically designed for condition monitoring applications, allowing operators to monitor the position and movement of critical rotating machinery. It provides valuable data for assessing machine health and performance.

• » Datasheet Link

Bently Nevada 3500/42M 138708-01 Shaft Absolute I/O Module Datasheet
