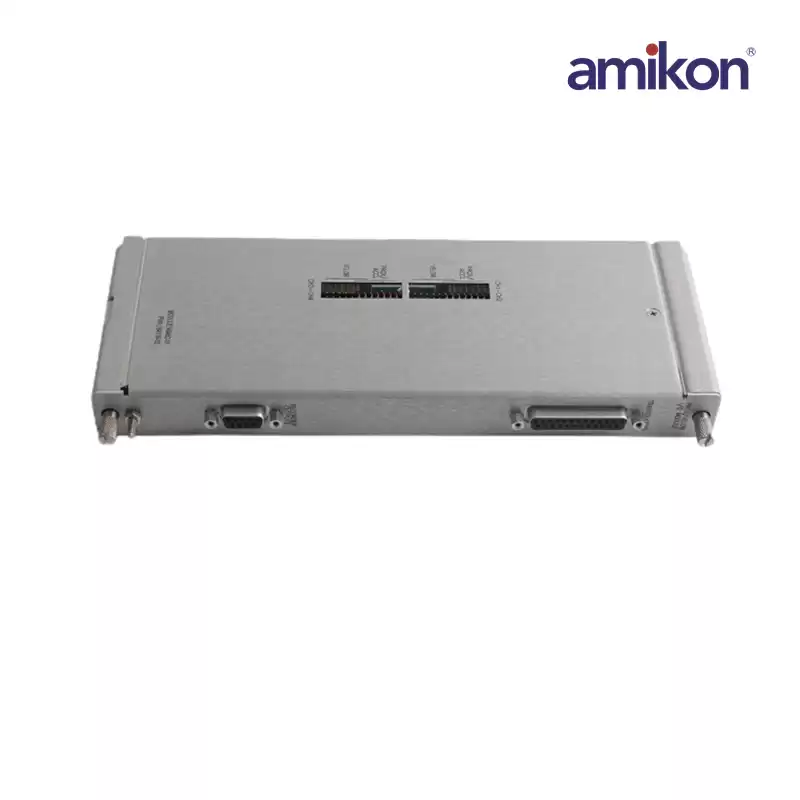

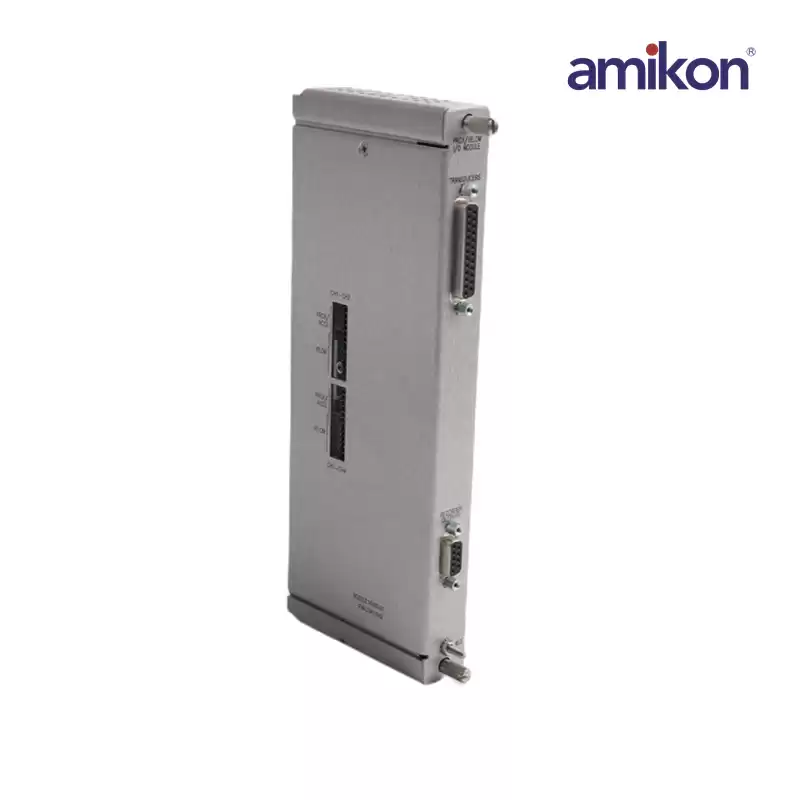

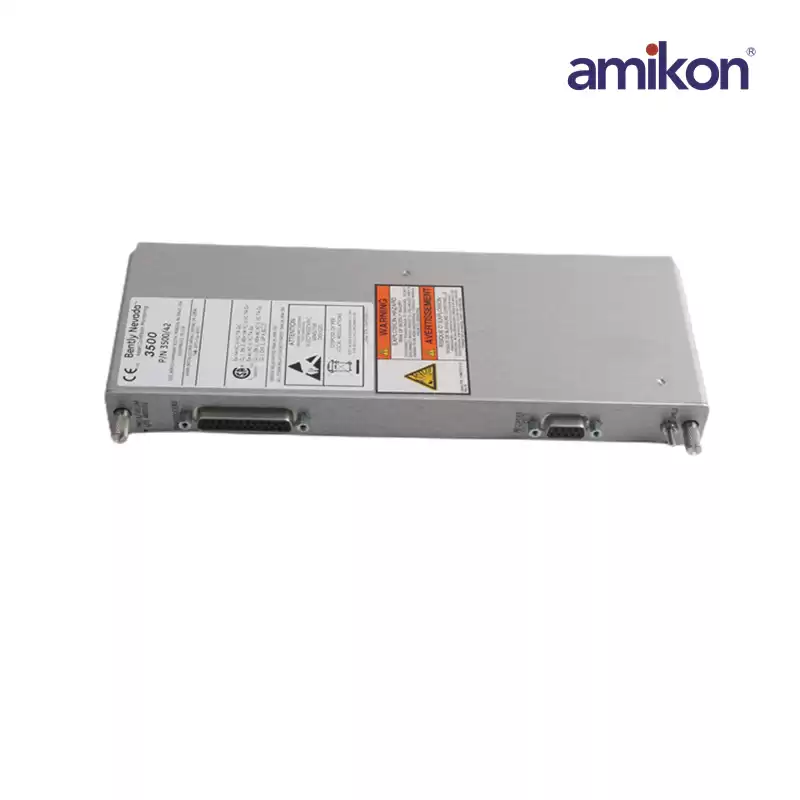

140482-01 Prox/Velom I/O Module
|
|
Dimensions ：
|
2.5x18.5x24.2cm
|
Weight：
|
0.92kg
|
|
Power Consumption：
|
7.5 watts typical
|
Humidity：
|
95%, noncondensing
|
|
Storage Temperature ：
|
-40°C to +85°C
|
Operating Temperature：
|
-30°C to +65°C
|
|
136483-01 is a Isolated +4 to +20 mA I/O Module with external terminations . It is a part of the Bently Nevada 3500/62. The 3500/62 Process Variable Monitor is a 6-channel monitorfor processing machine critical parameters that meritcontinuous monitoring, such as pressures, flows,temperatures, and levels. The monitor accepts +4 to +20 mAcurrent inputs or any proportional voltage inputs between -10Vdc and +10 Vdc. It conditions these signals and comparesthe conditioned signals to user-programmable alarmsetpoints.
|
