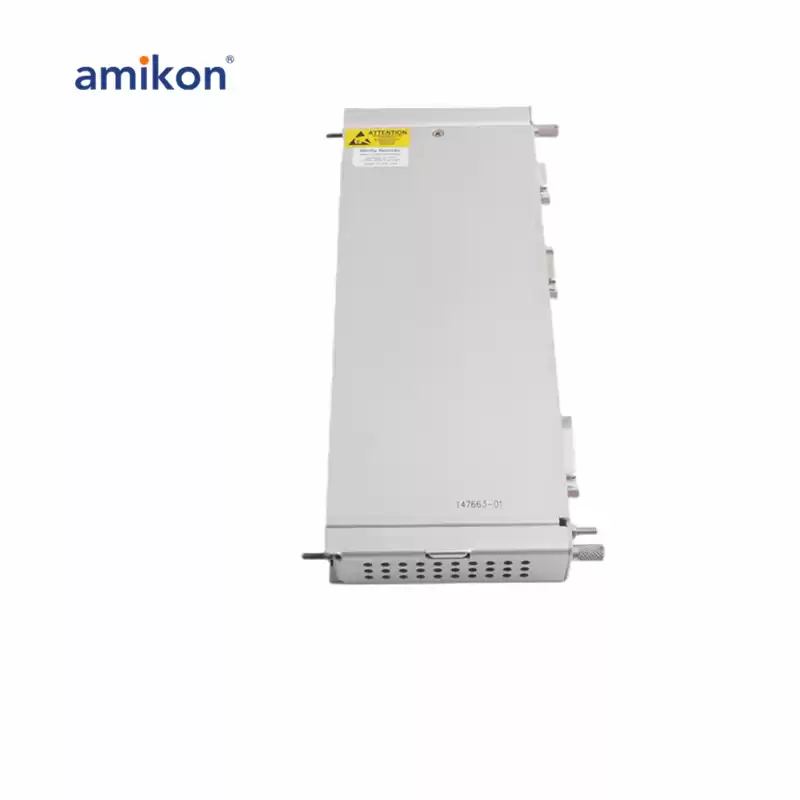

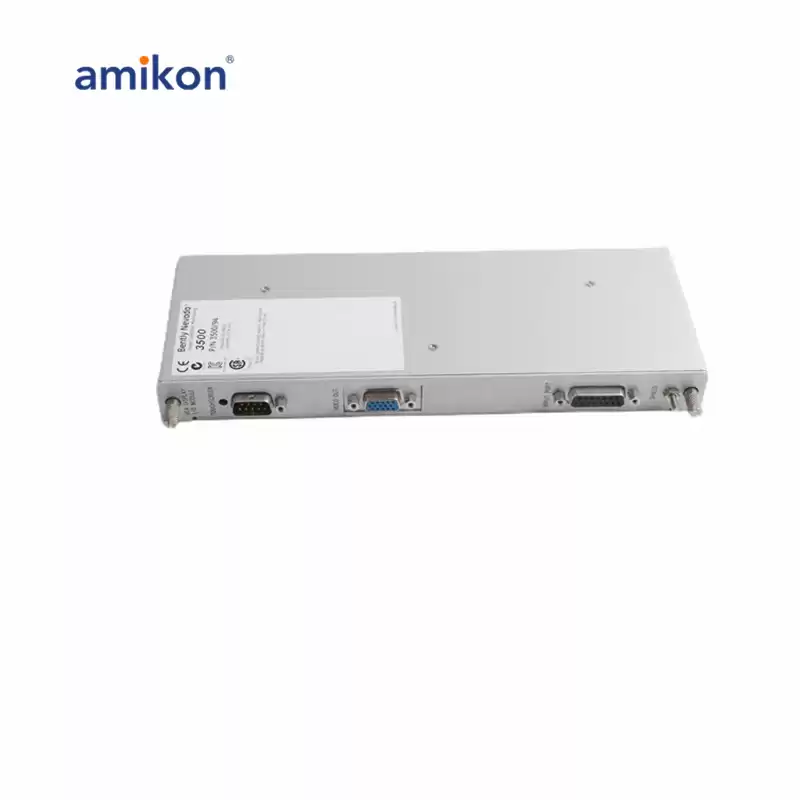

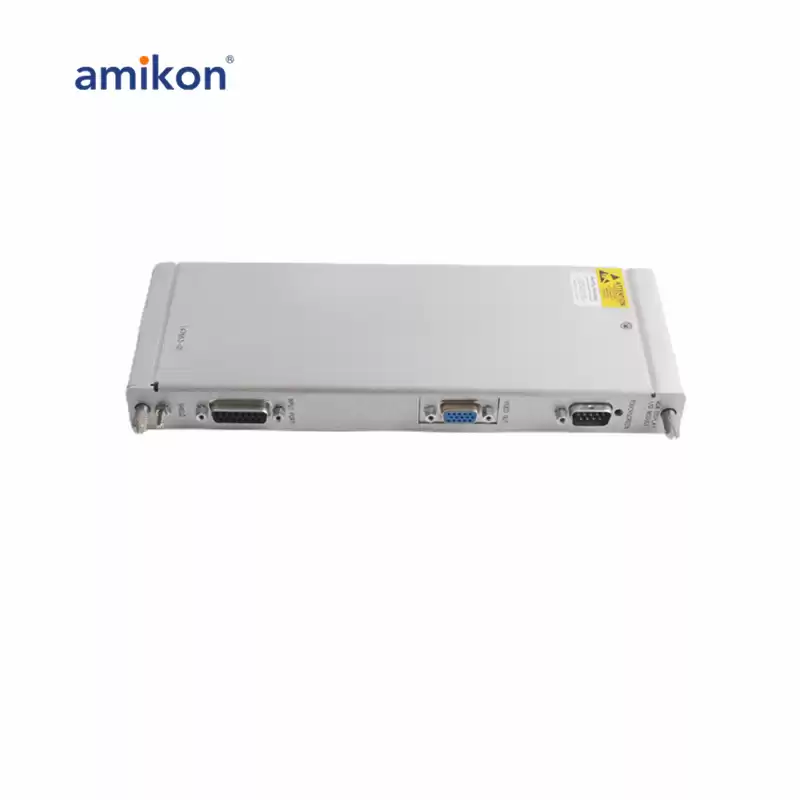

BENTLY NEVADA 147663-01 I/O MODULE VGA DISPLAY

Brand new and original sealed//Same Day Shipment

  • Warranty PeriodOne Year Warranty
  • Dimensions2.5 cm x 24.1 cm x 10.8 cm
  • Weight0.2kg
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享

Manufacturers：

Bently Nevada
Estimated Shipping Size：
-Dimensions: 1.0" x 9.5" x 4.3"
-(2.5 cm x 24.1 cm x 10.8 cm)
-Weight: 0 lbs 8.0 oz (0.2kg )

147663-01 is a VGA Display I/O Module manufactured and designed by Bently Nevada as part of 3500 Series used in machinery condition monitoring. VGA Display shows 3500 data on a typical color VGA monitor using Touch Screen technology. The VGA Display Module and its I/O card, as well as the VGA display monitor, are the two parts of this device. With normal cabling, the display monitor can be positioned up to 10 meters (33 feet) from the rack.

147663-01 Features:
Configure the 3500/94 modules for language and VGA display type using the 3500 Rack Configuration Software. All other types of data configuration are done locally at the display, giving the operator control over the displayed data. Locally, you can set up nine custom screens.
For example, one custom screen could display all of the 1X measurements, while another displays all of the Gap values, or the custom screens could be organized into machine train groupings. You can organize all system data into any specified sets and then assign the data to a custom screen.

There is also an API-670 compatible screen available. This screen displays a "3300-style" bar graph and numerical values for each rack slot's monitor. Each module displays Direct or Gap values, as well as OK and Bypass LEDs.
