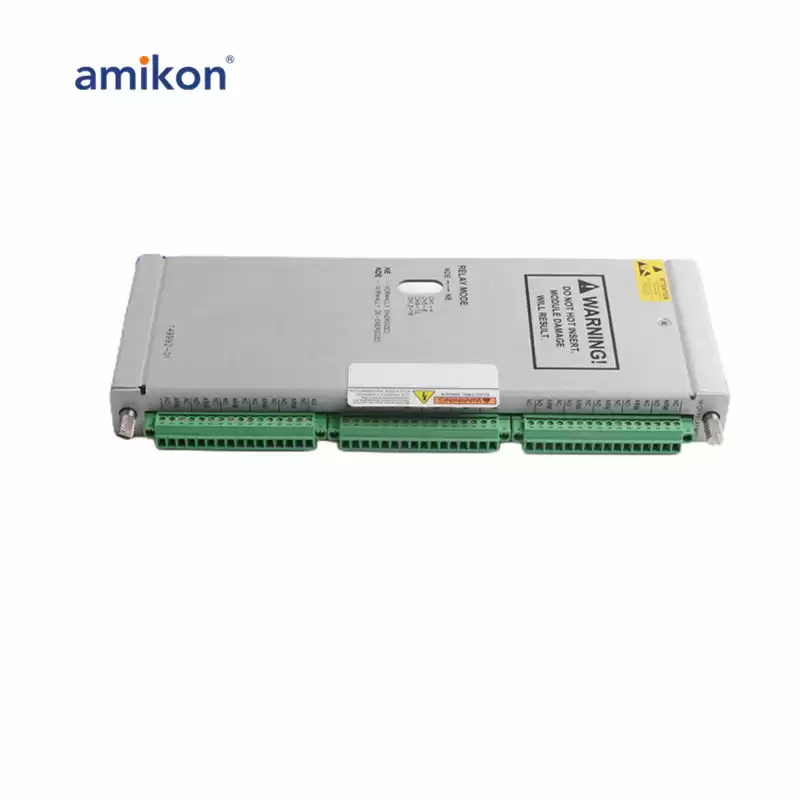

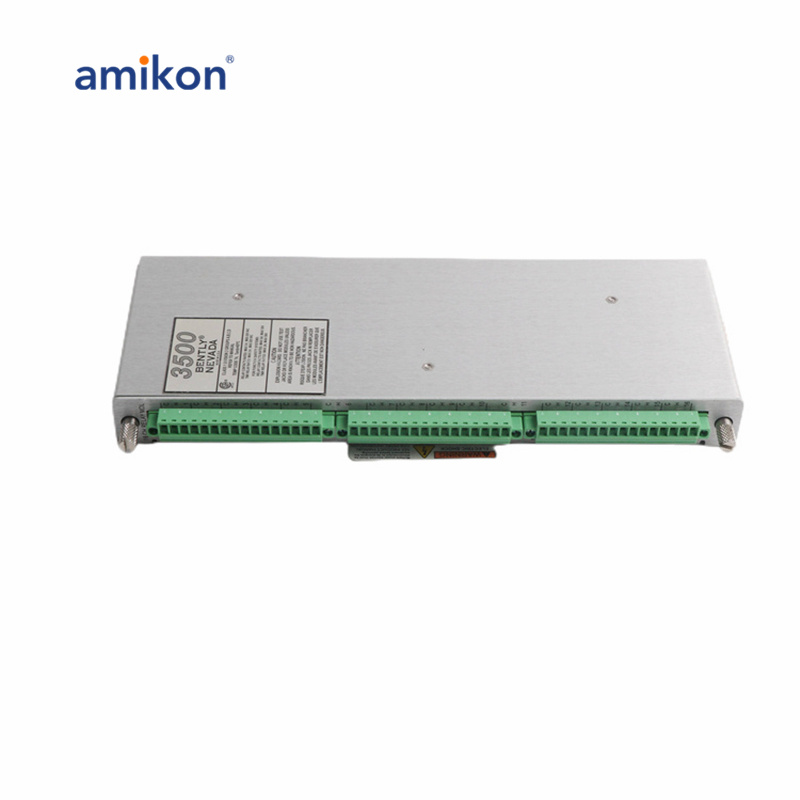

The Bently Nevada 3500/33 16-Channel Relay Output Module is a spare component designed for use with the Bently Nevada 3500 series machinery condition monitoring systems. This module set includes the 3500/33 16-Channel Relay Output Module (149992-01) and the Asset Condition Monitor Module.
The 3500/33 I/O Module set consists of two modules:
One (1) Bently Nevada 3500/33 16-Channel Relay Output Module
One (1) Bently Nevada 3500/33 Asset Conditioning Monitor Module
These modules are designed to provide alarming inputs, including alert and danger statuses, and to monitor individual measured variables from any channel, or any combination of monitor channels within the rack. This functionality ensures that the system can detect and alert operators to any potential issues with the equipment being monitored, enhancing the reliability and performance of the machinery.
|
Specification
|
Details
|
|
Power Consumption
|
5.8 watts typical
|
|
Front Panel LEDs
|
OK LED: Illuminated when the 3500/33 16-Channel Relay Module is operating properly.
|
|
|
TX/RX LED: Transmit and receive flashes when the 3500/33 16-Channel Relay Module is communicating with other modules in the 3500 rack.
|
|
|
CH Alarm LED: Illuminated when the relay channel is in an alarm state.
|
|
Relay Type
|
Single-pole, Double-throw (SPDT) Relay
|
|
Environmental Sealing
|
Epoxy-sealed
|
|
Relay Arc Suppressor
|
250 Vrms, Installed as standard
|
|
Relay Contact Life
|
10,000 cycles
|
|
Relay Operation
|

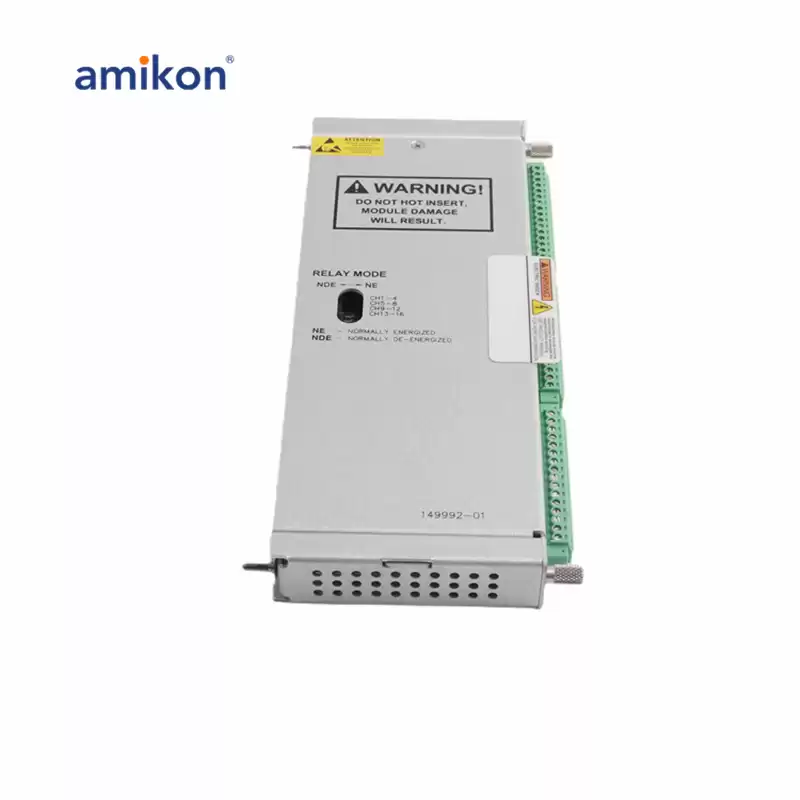

Four groups of four channels are switch selectable for Normally De-energized (ND) or Normally Energized (NE) operation.
|
